Vaddio EasyIP 20 Overview

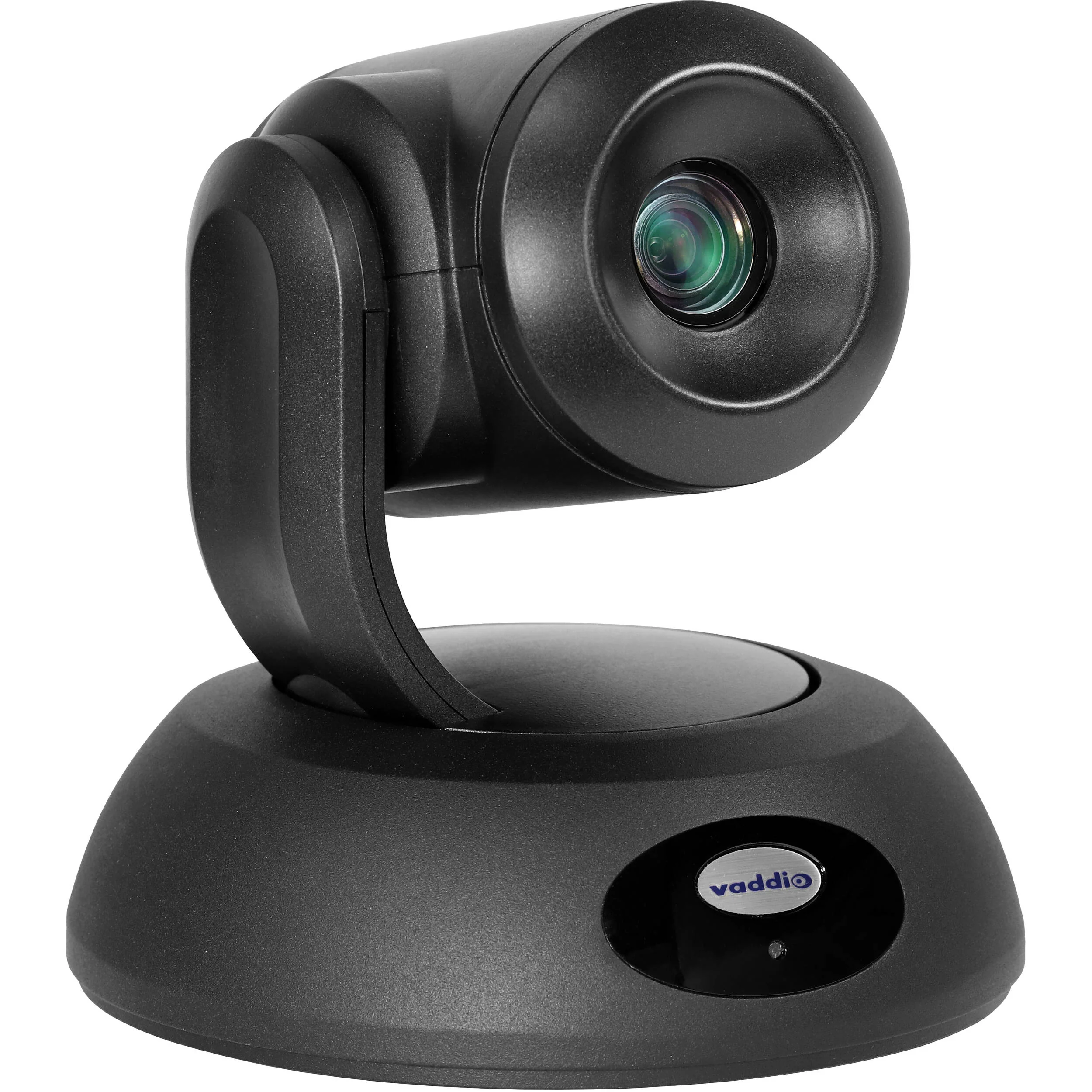

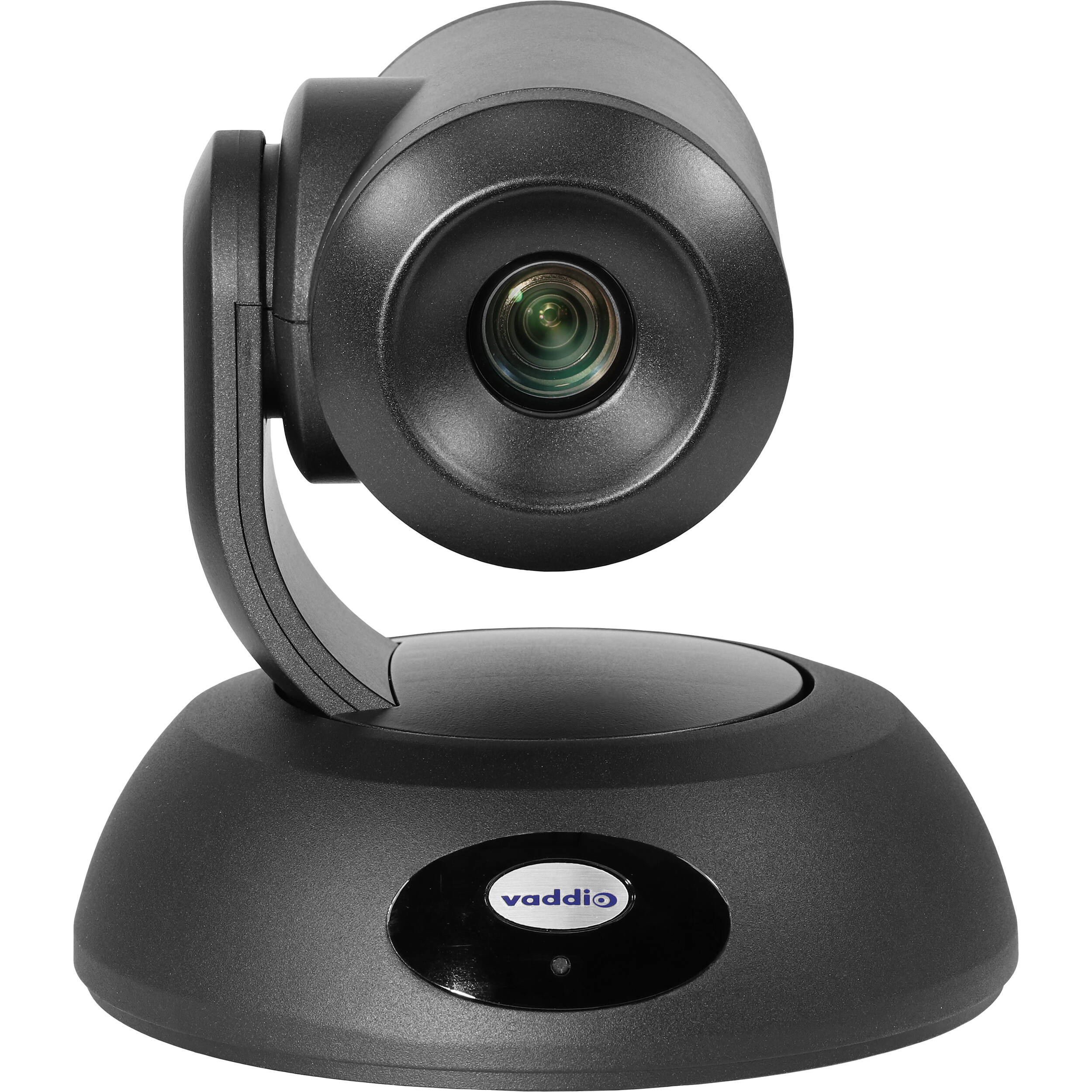

Add a remotely controllable high-definition PTZ camera to your IP network at your education, remote meeting room, lecture hall, or house of worship location with this black EasyIP 20 PTZ Camera from Vaddio. The EasyIP 20 installs onto your existing PoE+ (Power-over-Ethernet) network and it simultaneously streams up to 1080p60 high-definition video over the LAN or via HDMI to a network switch, video switch, recorder, and/or display.
The camera features RS-232 input/output for serial control of the pan, tilt, and zoom operation using the VISCA control protocol as well as IP control over the RJ45 LAN port using a web configuration interface. Up to 16 presets can be assigned and managed via the included IR remote controller. Other features include silent motors, noise reduction, wide dynamic range, automatic white balance, and spotlight compensation mode.

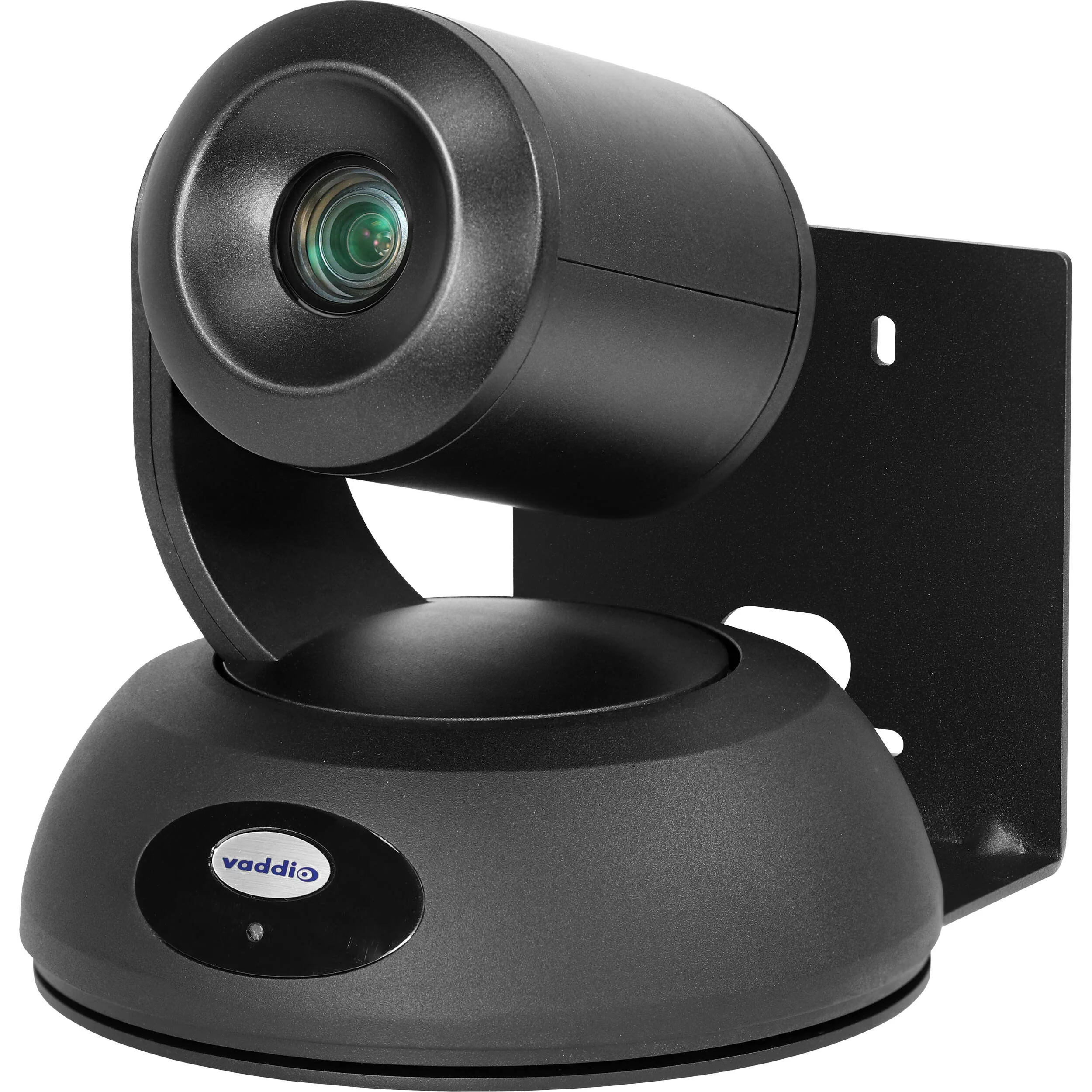

A wall mount with mounting hardware is included with the camera, and the camera supports image flip so it can be installed right-side up or upside down.
Key Camera Features
Enhanced Wide Dynamic Range
Remote Management
Smooth Tri-Synchronous Motion
Flexible Video Outputs
In the Box
- Vaddio EasyIP 20 PTZ Camera (Black)
- IR Remote Commander
- Wall Mount
- Mounting Hardware
- Limited 2-Year Warranty
Vaddio EasyIP 20 Specs
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution | Effective: 8.57 Megapixel (1920 x 1080) |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 20x |
| Focal Length | 88.4 to 4.4mm |
| Field of View | Horizontal: 4.1 to 70.2° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 9.0" / 22.9 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI, RJ45: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| Presets | 16 via IR |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 300° (-150 to 150°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IR RS-232 VISCA |

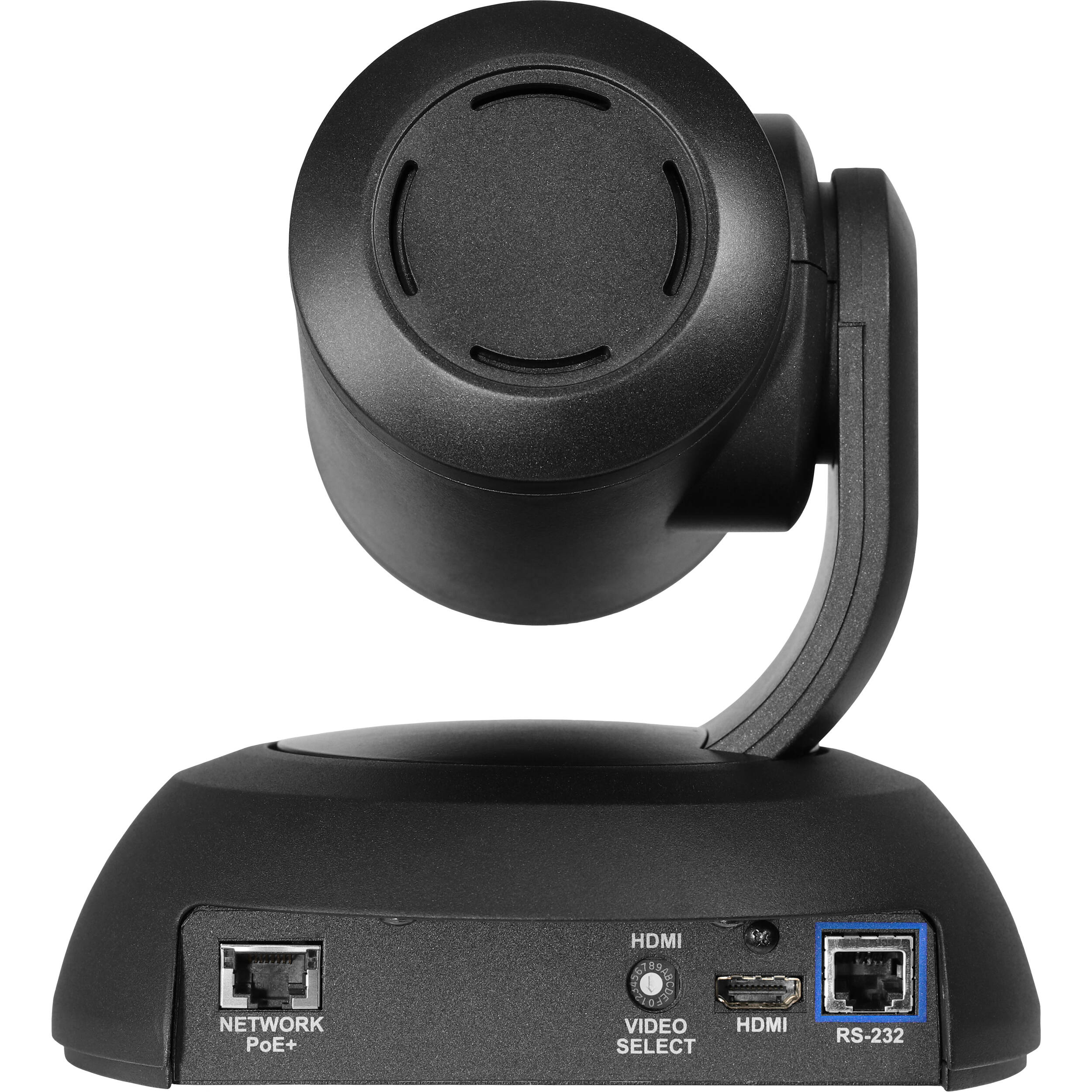

| Video Output Connectors | 1 x HDMI Type A Female 1 x RJ45 Female |
| Control Interface | 1 x RJ45 (RS-232, VISCA) Input |
| PoE Support | PoE+ 802.3at |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.15 cm |
| Weight | 4.9 lb / 2.2 kg |
| Package Weight | 10.25 lb |
| Box Dimensions (LxWxH) | 13.5 x 12 x 12" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
