AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (White)
HomeStore

AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (White)

AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (White)

$664.96

Original: $2,216.54

-70%
AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (White)—

$2,216.54

$664.96

The Story

AIDA Imaging PTZ-NDI3 Overview

By Photo's
Bruno Derlin
Control the pan, tilt, and zoom functions of your camera and send video out simultaneously via 3G-SDI, HDMI, and IP with NDI|HX3 support using this white Full HD NDI HX3 PTZ Camera with 20x Optical Zoom from AIDA Imaging. Use the included remote control or employ RS-232 serial control to have full reign over the camera's functions and capture vibrant images at resolutions up to 1080p, with support for up to 120 fps via HDMI and NDI|HX3 over IP.
The camera boasts built-in OSD controls, PoE (Power over Ethernet) support, and a 20x optical zoom, and it can store and recall up to 128 presets over network control and 10 presets via remote. A 3.5mm TRS stereo audio port provides an input for external audio sources, such as a microphone or a signal coming from an audio mixer with multiple audio sources already blended together. IP protocol support includes UDP/IP, RTSP/RTMP, SRT, NDI|HX, and NDIHX3.
NDI|HX3 streaming is capable of even lower-latency video streaming and PTZ control over the NDI|HX3 protocol.
Full HD progressive scan sensor captures sharp and vivid color under different light conditions.
Full HD up to 120 fps (NDI|HX3, IP, and HDMI) and 60 fps (3G-SDI) simultaneously.
Advanced digital image processor provides vivid and detailed images with full access feature sets.
3.5mm line-in for no audio/video delay over IP/NDI protocols.

In the Box

  • AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (White)
  • Remote Control
  • Mounting Bracket
  • Power Adapter & Cable
  • Limited 2-Year Manufacturer Warranty

    AIDA Imaging PTZ-NDI3 Specs

    Key Specs
    Image Sensor
    1/3"-Type CMOS
    Shutter Speed
    1/10000 to 1 Second
    Optical Zoom Ratio
    20x
    External Recording Modes
    SDI/BNC / USB
    1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 25/29.97/50/59.94 fps
    HDMI / RJ45
    1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100/120 fps
    1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
    Broadcast Output
    NTSC/PAL
    IP Streaming
    NDI|HX, NDI|HX3, RTMP, RTSP, SRT
    1920 x 1080
    1280 x 720
    Supported Control Protocols
    IP
    IR
    NDI
    RS-232
    VISCA
    PoE Support
    PoE+ 802.3at
    Imaging
    Image Sensor
    1/3"-Type CMOS
    Built-In ND Filter
    No
    Focus Control
    Autofocus
    Manual Focus
    Exposure Control
    Shutter Speed
    1/10000 to 1 Second
    White Balance
    Presets: Auto, Indoors, Manual, One Push, Outdoors
    Lens
    Focal Length
    4.9 to 98mm
    Optical Zoom Ratio
    20x
    Field of View
    60 to 4°
    Maximum Aperture
    f/1.5 to 3
    Video Capture
    External Recording Modes
    SDI/BNC / USB
    1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 25/29.97/50/59.94 fps
    HDMI / RJ45
    1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100/120 fps
    1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
    Broadcast Output
    NTSC/PAL
    IP Streaming
    NDI|HX, NDI|HX3, RTMP, RTSP, SRT
    1920 x 1080
    1280 x 720
    Control
    Presets
    10 via IR
    128 via IP, RS-232, VISCA
    Move Speed
    Pan: 0 to 120°/sec
    Tilt: 0 to 80°/sec
    Movement Range
    Pan: 340°
    Tilt: 120° (-30 to 90°)
    Supported Control Protocols
    IP
    IR
    NDI
    RS-232
    VISCA
    Interface

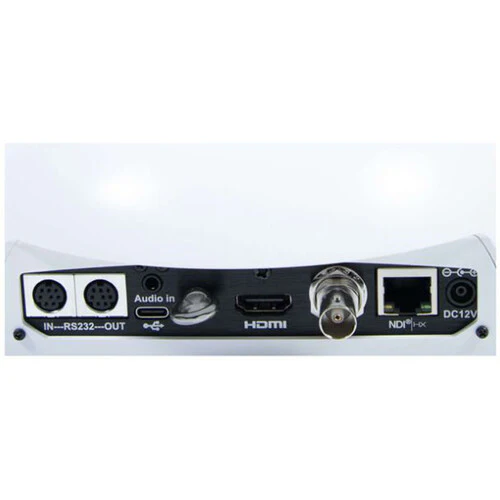

    Video I/O
    1x BNC (3G-SDI) Output
    1x HDMI Output
    1x RJ45 (NDI) Output
    Audio I/O
    1x 1/8" / 3.5 mm TRS Stereo Line Input
    Other I/O
    1x Mini-DIN 8-Pin (RS-232, VISCA) Input
    1x Mini-DIN 8-Pin (RS-232, VISCA) Output
    1x RJ45 (LAN) Output
    Power
    PoE Support
    PoE+ 802.3at
    Power I/O
    1x Barrel (9 to 15VDC) Input
    Environmental
    Operating Temperature
    32 to 104°F / 0 to 40°C
    General
    Dimensions (W x H x D)
    7.75 x 7.48 x 6.95" / 19.68 x 19 x 17.65 cm
    Weight
    3.1 lb / 1.4 kg
    Packaging Info
    Package Weight
    7.575 lb
    Box Dimensions (LxWxH)
    12.9 x 10.7 x 10.5"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
