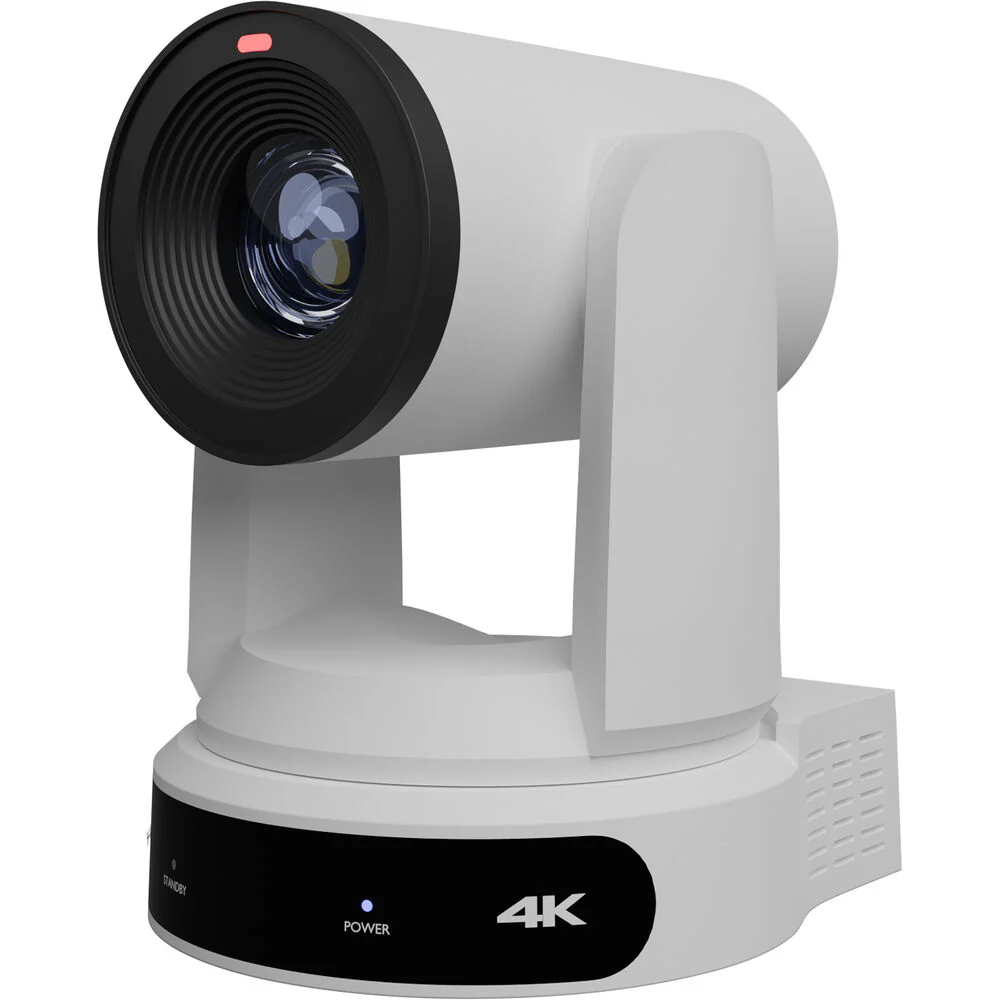

PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)
HomeStore

PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)

PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)

$1,378.79

Original: $4,595.98

-70%
PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)—

$4,595.98

$1,378.79

The Story

PTZOptics Link 4K PTZ Camera Overview

  • 1Description
  • 2Dante AV-H Support
  • 3Connectivity Features
  • 4PTZ and Tracking Movement
  • 5Control Options
  • 6Multiple Mounting Options
  • 7Software Compatibility

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the white Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom from PTZOptics. The Link 4K camera features the same 4K capture resolutions up to UHD 4K60 via IP and HDMI, up to 1080p60 over 3G-SDI, and it adds support for Dante AV-H audio and video routing.

The Link 4K features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and handy Dante AV-H workflow capabilities provide a sharp, consistent image, even in low light.

The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 30x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using Dante AV-H, SRT, RTSP, and RTMP protocols.

The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.

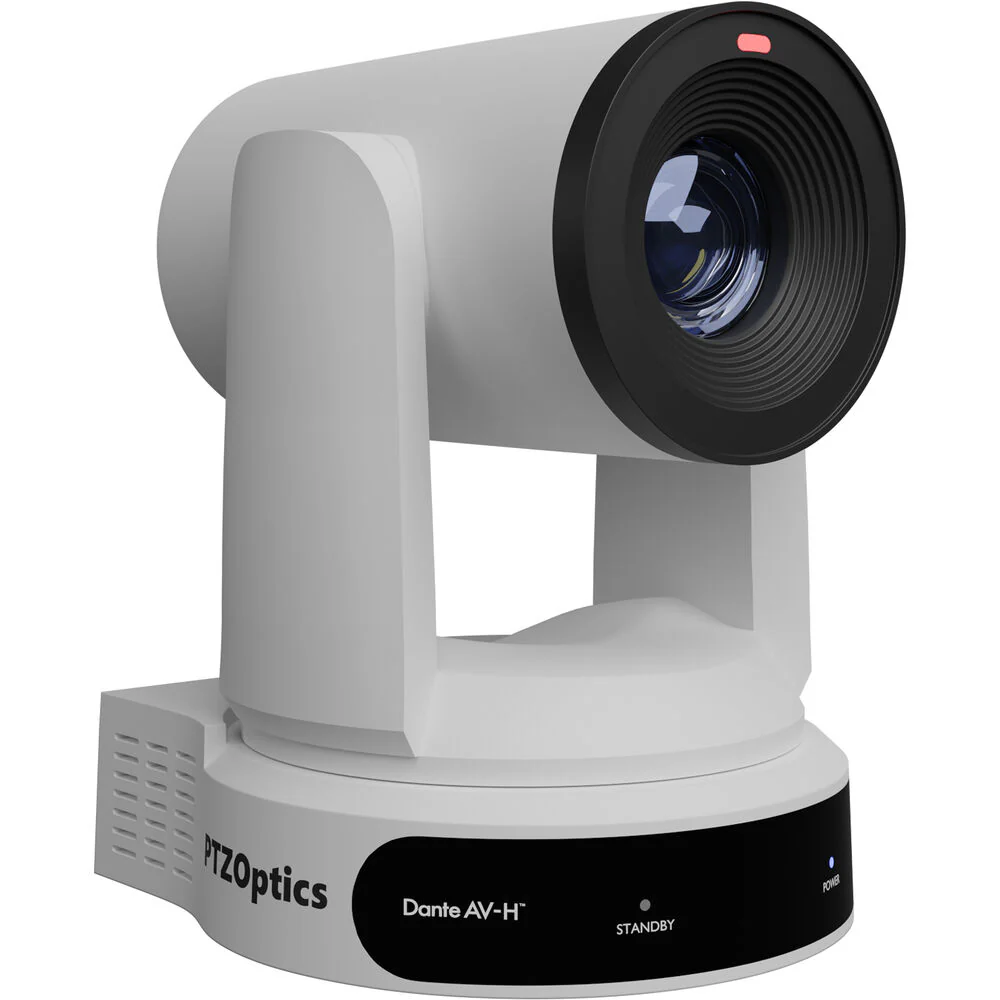

Dante AV-H Support
Dante AV-H brings device interoperability and the power of Dante to H.26x endpoints. With Dante AV-H, all video and audio routing, configuration, and management of devices is done with one easy-to-use platform. Dante AV-H adds Dante audio to video devices that are independently routable and compatible with thousands of Dante products.
Connectivity Features
Every Link 4K camera features SDI, HDMI, USB, and IP output for unparalleled performance and versatility. Using technology by Dante, the Link 4K can provide 1080p60 resolution over Dante AV-H, as well as SDI.
PTZ and Tracking Movement
The Link 4K's auto-tracking can lock onto a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Link 4K can track subjects up to 300' away.

In addition to the Link 4K's auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Control Options
Users can control Link 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster, or via a hardware joystick controller such as a PTZOptics IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.

Multiple Mounting Options
Mount the Link 4K camera above, below, or beside the action using optional wall or ceiling mounts to capture the ideal view every time. The Link 4K's automatic video inversion feature senses the camera's orientation and saves time on installation and setup.
Software Compatibility
Upgrade your meetings and presentations with NewBlueFX Titler Live 5 Present, now free for any PTZOptics customer. Create stunning graphics and data visualizations in minutes with the easy-to-use software, or use it to control your PTZOptics camera from anywhere on the network.
UPC: 840170500593

In the Box

  • PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)
  • 12 VDC Power Adapter
  • IR Remote Control
  • USB-A to USB-A Cable
  • RS-232 Cable
  • 2 x AA Battery
  • Limited 5-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Dante AV-H Support
    • Connectivity Features
    • PTZ and Tracking Movement
    • Control Options
    • Multiple Mounting Options
    • Software Compatibility

    PTZOptics Link 4K PTZ Camera Specs

    Key Specs
    Image Sensor
    1/1.8"-Type CMOS
    Sensor Resolution
    Effective: 8.42 Megapixel (3840 x 2160)
    Shutter Type
    Electronic Global Shutter
    Shutter Speed
    1/10000 to 1/30 Second
    Optical Zoom Ratio
    30x
    Max Digital Zoom
    16x
    External Recording Modes
    SDI/BNC
    HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
    HD (1920 x 1080i) at 50/59.94/60.00 fps
    HD (1280 x 720) at 59.94/60.00 fps
    HDMI / RJ45 / USB
    UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
    HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
    HD (1920 x 1080i) at 50/59.94/60.00 fps
    HD (1280 x 720) at 59.94/60.00 fps
    Broadcast Output
    NTSC/PAL
    IP Streaming
    RTMP, RTMPS, RTSP, SRT
    640 x 360 to 3840 x 2160 to
    320 x 240 to 720 x 480 to
    Dante AV-H
    1920 x 1080 at 60p
    Supported Control Protocols
    IP
    IR
    NDI
    Pelco-D
    Pelco-P
    RS-232
    RS-485
    VISCA
    PoE Support
    PoE+ 802.3at
    Imaging
    Image Sensor
    1/1.8"-Type CMOS
    Sensor Resolution
    Effective: 8.42 Megapixel (3840 x 2160)
    IR Cut Filter
    No
    Built-In ND Filter
    No
    Focus Control
    Autofocus
    Manual Focus
    Exposure Control
    Shutter Type
    Electronic Global Shutter
    Shutter Speed
    1/10000 to 1/30 Second
    Signal-to-Noise Ratio
    55 dB
    Minimum Illumination
    0.5 Lux
    Flip / Mirror Support
    Image Flip, Mirror (Vertical)
    Lens
    Focal Length
    7.1 to 210mm
    Optical Zoom Ratio
    30x
    Max Digital Zoom
    16x
    Field of View
    Horizontal: 59.2 to 2.5°
    Vertical: 34.6 to 1.4°
    Maximum Aperture
    f/1.61 to 5.19
    Video Capture
    External Recording Modes
    SDI/BNC
    HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
    HD (1920 x 1080i) at 50/59.94/60.00 fps
    HD (1280 x 720) at 59.94/60.00 fps
    HDMI / RJ45 / USB
    UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
    HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
    HD (1920 x 1080i) at 50/59.94/60.00 fps
    HD (1280 x 720) at 59.94/60.00 fps
    Broadcast Output
    NTSC/PAL
    IP Streaming
    RTMP, RTMPS, RTSP, SRT
    640 x 360 to 3840 x 2160 to
    320 x 240 to 720 x 480 to
    Dante AV-H
    1920 x 1080 at 60p
    Control
    Presets
    255
    Move Speed
    Pan: 1.7 to 100°/sec
    Tilt: 1.7 to 69.9°/sec
    Movement Range
    Pan: 340° (-170 to 170°)
    Tilt: 120° (-30 to 90°)
    Tally Light
    Yes
    Supported Control Protocols
    IP
    IR
    NDI
    Pelco-D
    Pelco-P
    RS-232
    RS-485
    VISCA
    Wireless Range
    30' / 9.1 m (IR)
    Max Cable Length
    98.5' / 30 m (RS-232)
    3937' / 1200 m (RS-485)

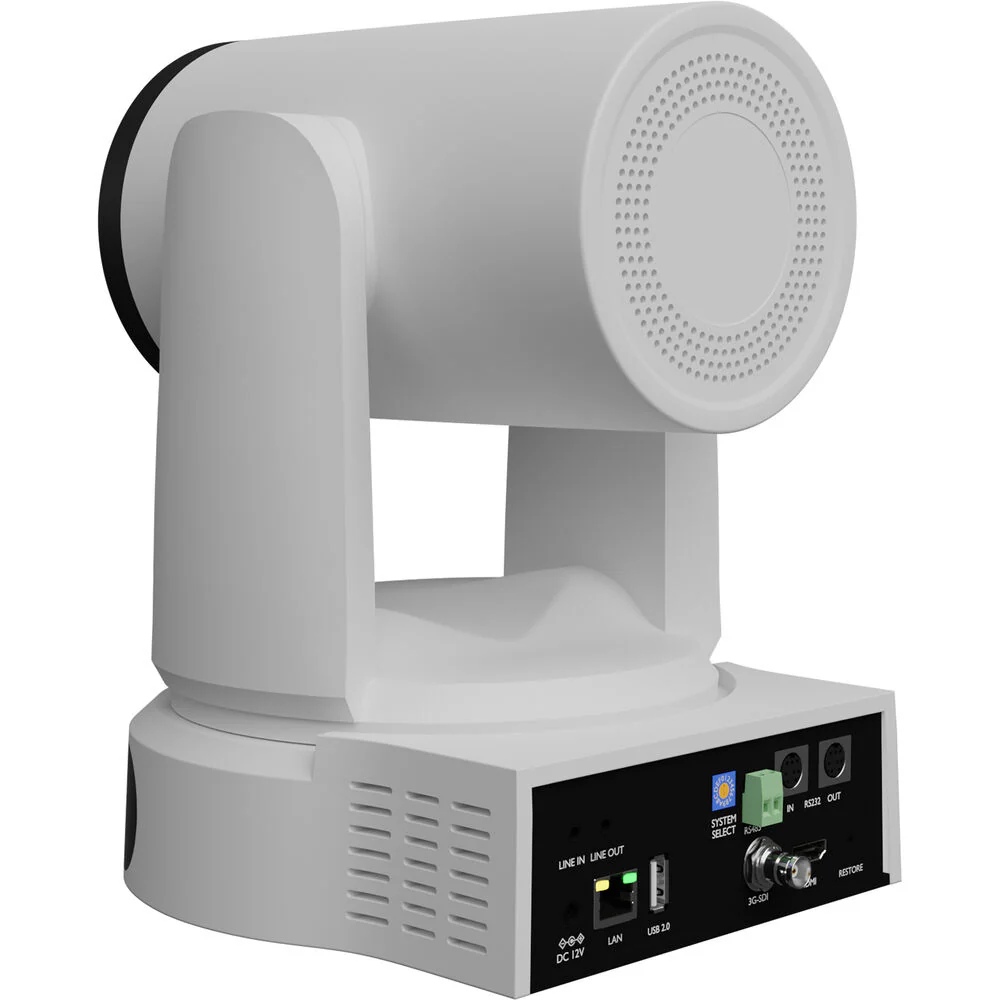

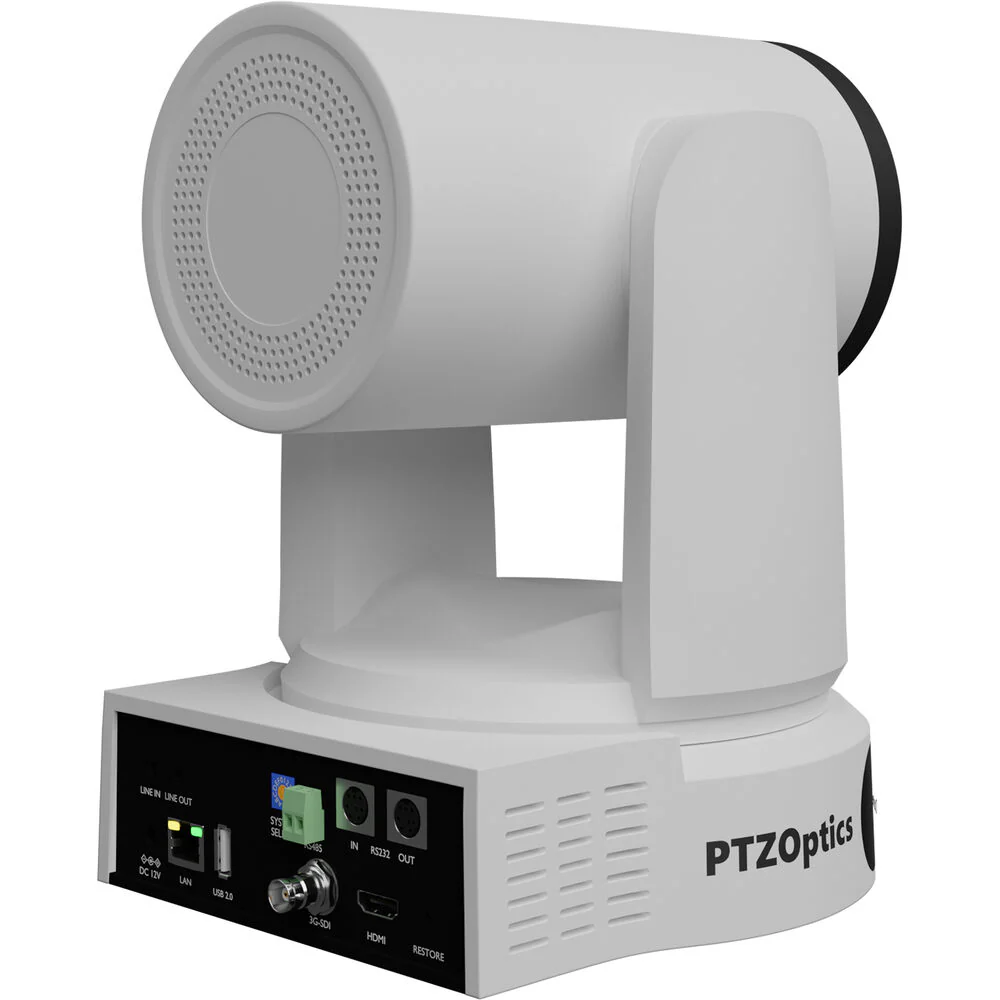

    Interface
    Video I/O
    1x HDMI 2.0 Output
    1x BNC (3G-SDI) Output
    1x RJ45 Output
    1x USB-A 2.0 Output
    Audio I/O
    1x 1/8" / 3.5 mm TRS Stereo Line Input
    1x 1/8" / 3.5 mm TRS Stereo Line Output
    Other I/O
    1x D-Sub 8-Pin (RS-232) Control Input
    1x D-Sub 8-Pin (RS-232) Control Output
    1x Block 2-Pin (RS-485) Control Input/Output
    Built-In Speaker
    No
    Power
    PoE Support
    PoE+ 802.3at
    Power I/O
    1x Barrel (12VDC) Input
    Power Consumption
    Device: 18 W
    Environmental
    Operating Temperature
    14 to 104°F / -10 to 40°C
    Storage Temperature
    -40 to 140°F / -40 to 60°C
    General
    Material of Construction
    Aluminum, Plastic
    OS Compatibility
    Windows
    macOS
    Linux
    Mobile App Compatible
    Yes
    Dimensions (W x H x D)
    6.7 x 7.1 x 9" / 170 x 181 x 228 mm
    Weight
    4.4 lb / 2.0 kg
    Packaging Info
    Package Weight
    8.825 lb
    Box Dimensions (LxWxH)
    12.7 x 11.5 x 10.4"
