$5,257.82
BZBGEAR 4K PTZ Auto-Tracking/Live Streaming Camera with Tally & 12x Zoom (White)—
$5,257.82
The Story
BZBGEAR BG-ADAMO-4KDA12X Overview
- 1Description
- 2Dante AV-H Support
- 3Image Capture
- 4Sharp Focus
- 5Control Options
- 6Streaming and I/O
- 7Applications
By Photo's
Jennifer Hahn
Capture high-resolution UHD 4K imagery in your conference room, event space, or house of worship with the white 4K PTZ Auto-Tracking/Live Streaming Camera with Tally & 12x Zoom from BZBGear. This camera features a 1/2.5" Sony 4K CMOS sensor, a 12x optical zoom, accurate autofocus, and simultaneous output via HDMI, 12G-SDI, USB 3.0, USB 2.0, and IP streaming with Dante AV-H support. Dante AV-H allows you to stream audio and video signals over a Dante network, providing high-compression, low-bandwidth streams. You can embed analog audio into your video using the 3.5mm audio input.
You can record the camera's capture up to 4K resolution onto an optional microSD card up to 1TB. The camera features LED tally lights to indicate the camera is on or idle. The camera supports PoE (Power-over-Ethernet), so it can be controlled, powered, and can stream over one connector. It also supports RS-232 and RS-422 serial control using a separately available serial controller.
Dante AV-H Support
Dante AV-H technology enables users to stream their camera footage over a local area network with a single ethernet cable using H.265/264 compression, YUV 4:4:4 color, and low latency
Image Capture
12x optical zoom lens
UHD 4K60 resolutions provide fluid motion, clear image, and accurate colors
Sharp Focus
Autofocusing algorithms resulting in quick, accurate, and stable focus
Control Options
Web interface control via the IP address with camera preview access
IR remote control
Supports IP and serial control protocols (VISCA IP, ONVIF and Pelco-P/D, VISCA)
Free BG-PTZ-Control app/program for macOS and Windows
Streaming and I/O
Supports RTSP, RTMP, RTMPS, ONVIF, and GB/T28181
12G-SDI, HDMI, USB 2.0/3.0, Dante AV-H, LAN / Power over Ethernet
H.264/H.265 video compression formats provide excellent image quality
3.5mm input for embedding audio into your live stream
Applications
Compatible with live streaming software and online platforms such as vMix, Wirecast, Echo360, Zoom, Skype, Meet, GoToMeeting, YouTube, Facebook, Linkedin, Instagram, Twitter, Twitch, and more
UPC: 850033687552
In the Box
- BZBGEAR 4K PTZ Auto-Tracking/Live Streaming Camera with Tally & 12x Zoom (White)
- IR Remote Control
- Power Adapter
Guides & Manuals
Table of Contents
- Description
- Dante AV-H Support
- Image Capture
- Sharp Focus
- Control Options
- Streaming and I/O
- Applications
BZBGEAR BG-ADAMO-4KDA12X Specs
Key Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Optical Zoom Ratio |
12x
|
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 800 x 448 at 29.97 fps 640 x 480p at 29.97 fps 640 x 360 at 29.97 fps 320 x 176 at 29.97 fps 432 x 240 at 29.97 fps |
| Broadcast Output |
NTSC
|
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-422 VISCA |
| PoE Support |
PoE 802.3af
|
Imaging
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
3000 to 7000K
Presets: Auto, Manual, One Push |
Lens
| Focal Length |
3.8 to 43mm
|
| Optical Zoom Ratio |
12x
|
| Field of View |
Horizontal: 80.4 to 7.59°
Vertical: 50 to 4.6° |
| Maximum Aperture |
f/1.8 to 3.56
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 800 x 448 at 29.97 fps 640 x 480p at 29.97 fps 640 x 360 at 29.97 fps 320 x 176 at 29.97 fps 432 x 240 at 29.97 fps |
| Broadcast Output |
NTSC
|
Control
| Presets |
255 via IP, RS-232, VISCA
10 via IR |
| Move Speed |
Pan: 0.1 to 120°/sec
Tilt: 0.1 to 80°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-422 VISCA |
Interface
| Media/Memory Card Slot |
Single Slot: microSDXC Only
|

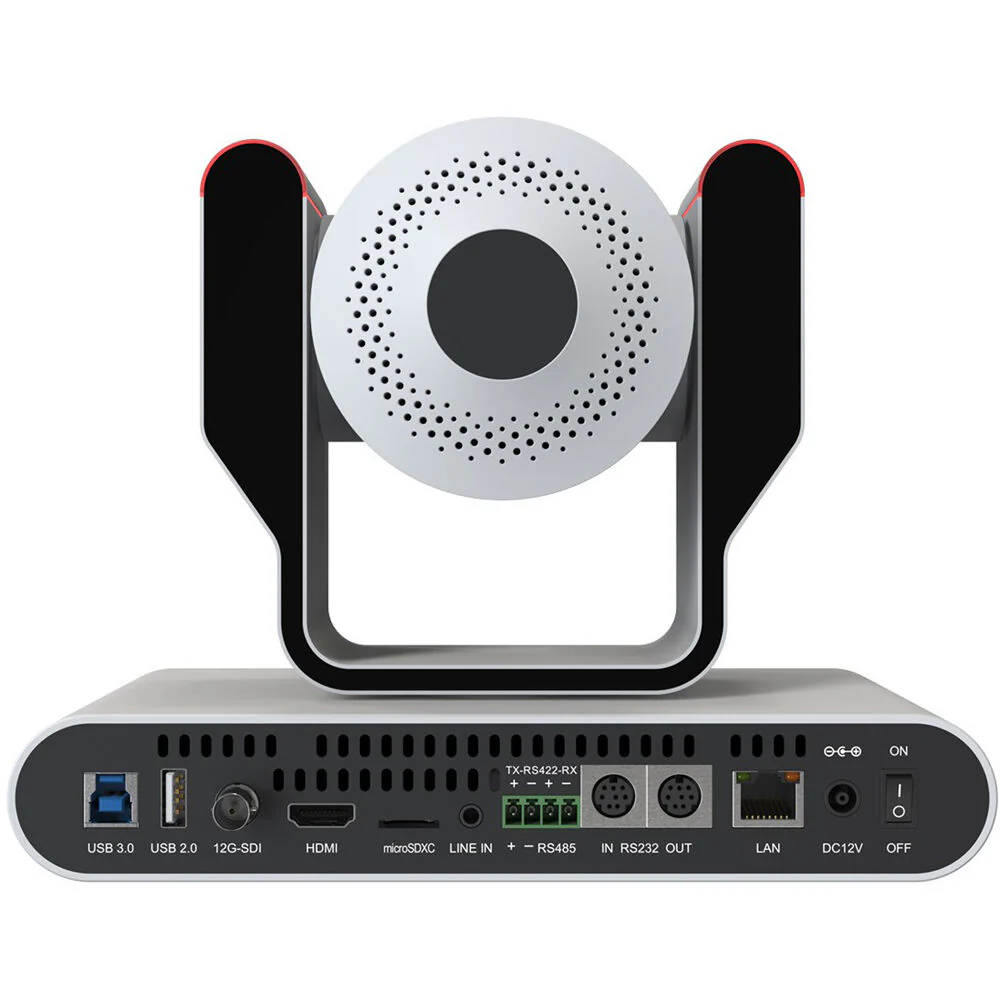

| Video I/O |
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1 x USB-A 2.0 Output 1 x HDMI Output 1 x BNC (12G-SDI) Output 1 x RJ45 (Dante) Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1 x Block (RS-422, RS-485) Input
1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output |
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1 x Barrel (12VDC at 2.5 A) Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
|
Environmental
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Storage Temperature |
14 to 140°F / -10 to 60°C
|
| Operating Humidity |
20 to 80%
|
| Storage Humidity |
20 to 95%
|
General
| OS Compatibility |
Windows
macOS 11 or Later *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
Yes: iOS Only
App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) |
8.7 x 7 x 5.9" / 220 x 177.5 x 150.2 mm
|
| Weight |
4 lb / 1.8 kg
|
Packaging Info
| Package Weight |
7.69 lb
|
| Box Dimensions (LxWxH) |
11.3 x 9.6 x 9.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
