$162.56The Story
- HDTV Compatible
- Silver Finish
The Shinybow SB-5470 4 x 2 HDTV Component Video & Audio Matrix Routing Switcher is designed to switch between 4 component (YPbPr) inputs and left and right analog audio. It is a rugged 4 x 2 switcher offering seamless switching and crystal-clear distribution of all HDTV video formats as well as audio signals. This switcher accepts up to 4 different input sources and you can seamlessly select any of these inputs to drive 2 outputs, without any signal degradation. It is universally compatible with all HDTV formats including 480i, 576i, 480p, 576p, 1080i, 720p, and 1080p.

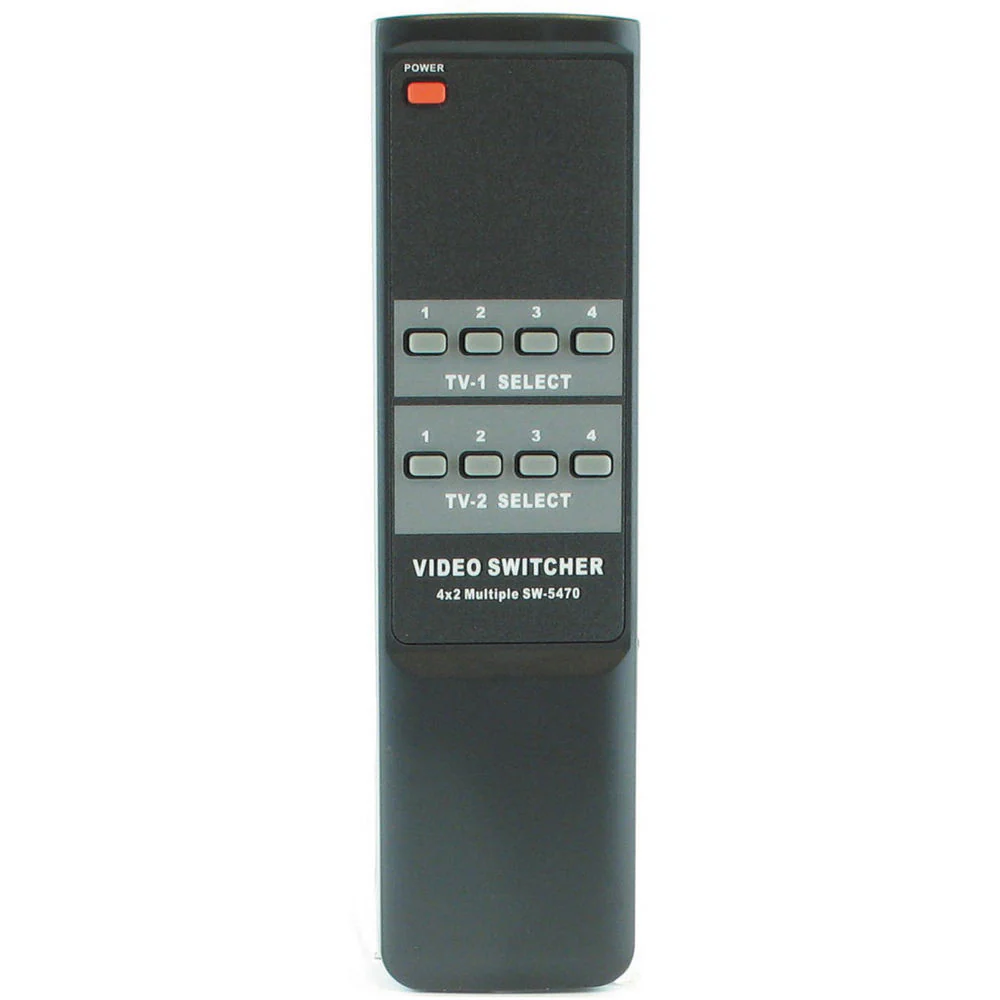

This matrix routing switcher is a versatile and compact state-of-the-art switcher of choice when you need high-quality and reliable switching. It can be controlled by its front-panel manual control button or via its IR remote control. The convenient front-panel LEDs indicate which input has been selected for both outputs.

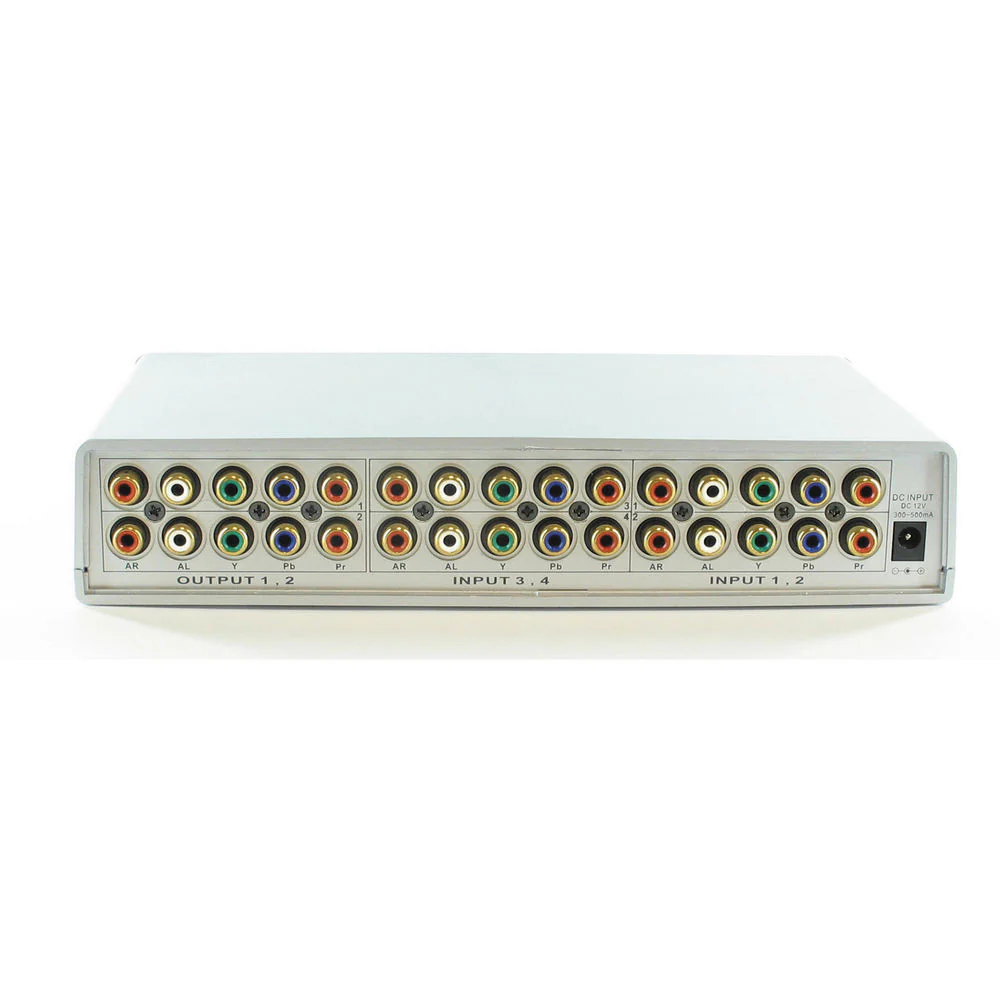

- Inputs: 4x component video (YPbPr), 4x stereo audio input
- Outputs: 2x component video (YPbPr), 2x stereo audio outputs
- Switch easily between any 4 component video sources
- Supports HDTV resolutions of 480i, 480p, 576p, 720p, 1080i, and 1080p
- IR remote control with a frequency of 38 kHz
- Suitable for full HD high-resolution video players and LCD / plasma monitor displays
- Direct selection and confirmation via front push buttons with LED readout
- Can be mounted on a 19" (48.26 cm) rack mountable panel
- Supports lower power consumption (under 450 mA at full load)
- Power supply offers a universal type 100 to 230 VAC switch
- Easy to install and simple to operate
- Can be used for composite video switching 1
Please Note:
Please note that this switcher will not convert component or composite video signals.
close
- 5 RCA Component Video Cable
- Left & Right Audio Cable
- Wireless Remote Control with Batteries
- User Guide
- AC/DC Adapter (12 VDC, 500 mA)
- 3-Year Warranty on Parts & Labor
Shinybow SB-5470 specs
| Video Amplifier Bandwidth | 200 MHz |
| Video Bandwidth | 250 MHz, (-3 dB) 200 mVpp, 300 MHz, (-3 dB) 2 Vpp R: 250 MHz, G: 250 MHz, B: 250 MHz, and Audio: 60 MHz |
| Audio Bandwidth | 60 MHz, (-3 dB) (Audio-Right: 60 MHz, Audio-Left: 60 MHz) |
| Resolution | Up to 1080p |
| Input/Output Connectors | Input: 4x component video (RGB, YPbPr), 4x left and right audio (RCA-Phono) Output: 2x component video (RGB, YPbPr), 2x left and right audio (RCA-Phono) |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Crosstalk | All Hostile: -84 dB @ 5 MHz-54 dB @ 50 MHz Channel: -56 dB @ 100 MHz |
| Slew Rate | 1000 V/us, G = +1.2 V step |
| IR Frequency | 38 kHz |
| Controls | IR remote controller and front panel selection buttons with LED readout |
| Power Voltage Input | 12 VDC, 0.66 A |
| Power Consumption | 12 VDC, 0.66 mA |
| Safety Approvals | CE, FCC, and RoHS (2002/95/EC) |
| Dimensions (W x D x H) | 9.06 x 4.72 x 1.73" (230 x 120 x 44 mm) |
| Weight | 2.4 lb (1.09 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.05 lb |
| Box Dimensions (LxWxH) | 11.26 x 10.0 x 2.598" |
