DVDO SWITCHER-41-USBC Overview

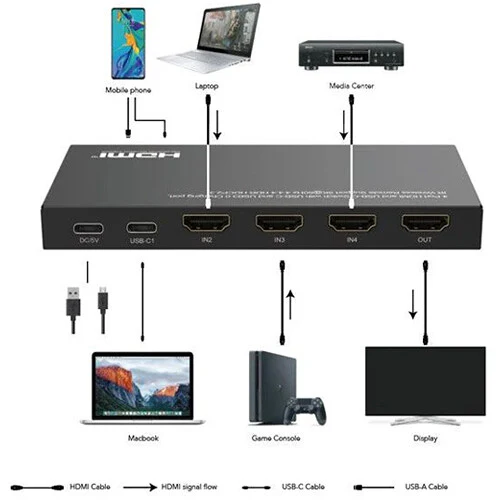

The 8K 4x1 Switcher with 1 USB-C & 3 HDMI Inputs from DVDO is a versatile 4x1 switcher that enables routing of up to three HDMI sources and one USB-C source to a single HDMI display. It supports video resolutions up to 8K60 4:4:4 with a video bandwidth of 48 Gb/s. The switcher offers both automatic and manual switching options, and is controllable via an IR remote, a front-panel button, or CEC. Two extra USB ports (one USB-C and one USB-A) are located on the front panel for charging external devices.
Multiple Switching Modes
- Manual switching allows you to manually select your HDMI source with a button on the front panel
- Automatic switching allows your most recently activated video source to be displayed automatically
- Remote control switching allows you to switch between sources from a distance using the remote control
Features at a Glance
- Automatic or manual switching
- 3 x HDMI inputs, 1 x USB-C input, and 1 x HDMI output
- Support video resolutions up to 8K60 4:4:4, 4K120, and 1080p240
- HDCP 2.3 support, which is backward compatible with the HDCP 2.2 and HDCP 1.4
- USB-C input compatible with Thunderbolt 3 and DP1.4 alt mode
- 1 x USB-A and 1 x USB-C charging ports (5 VDC / 1A) - only one port can charge at a time
- High Dynamic Range (HDR) video passthrough such as HDR10/HDR10+/Dolby Vision
- Supports full 3D video format
- Supports VRR (Variable Refresh Rate), ALLM (Auto low-latency Mode), and QFT (Quick Frame Transport) functions
- Built-in equalizer, retiming, and driver
- Consumer Electronics Control (CEC)
- IR control can be disabled/enabled by pressing the �Select� button on the front panel or the IR button on the remote
- Support for uncompressed audio such as LPCM and compressed audio such as DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and Dolby Atmos
UPC: 880802001920
Items Included
- DVDO 8K 4x1 Switcher with 1 USB-C & 3 HDMI Inputs
- 5 VDC, 2A USB Power Adapter
- Remote Control
- Limited 1-Year Manufacturer Warranty
Additional Resources
DVDO SWITCHER-41-USBC Specs
Processing
| Switching Type |
IR Remote, Pushbutton
|
| Processing Resolution |
8K at 60
|
| Color Processing |
12-Bit 4:4:4
|
Input
| Video Inputs |
3x HDMI (2.0b) Female
1x USB-C Female |
| Input Video Format |
HDMI / USB-C (12-Bit 4:4:4)
8K up to 60 fps UHD 4K up to 120 fps 1080p up to 240 fps |
| Embedded Audio Input |
HDMI
USB-C |
Output
| Video Outputs |
1x HDMI (2.0b) Female
|
| Output Video Format |
HDMI (12-Bit 4:4:4)
8K up to 60 fps UHD 4K up to 120 fps 1080p up to 240 fps |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
1x USB-A Output
1x USB-C Output |
| HDCP Support |
Yes, Version 2.3
|
| HDR Support |
Yes, HDR10/HDR10+/Dolby Vision
|
| DTS Compatibility |
DTS, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Digital, Dolby TrueHD
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Built-In Battery |
Yes
|
| Power I/O |
1x USB-C (5 VDC at 2 A) Input
|
| Power Consumption |
10 W
|
General
| Operating Conditions |
32 to 122°F / 0 to 50°C at 5 to 80% Humidity
|
| Dimensions |
5.5 x 2.5 x 0.6" / 139 x 64.5 x 15Â mm
|
| Weight |
6.7Â oz / 190Â g
|
Packaging Info
| Package Weight |
0.945 lb
|
| Box Dimensions (LxWxH) |
8.5 x 7.6 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
