Original: $173.55
-70%$173.55
$52.07The Story

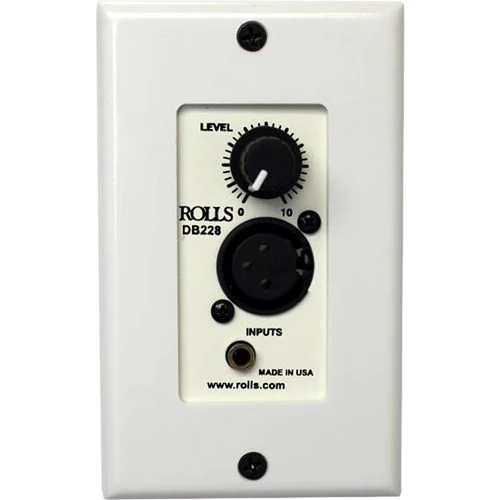

The Rolls DB228 Wall Direct Interface is a passive transformer-isolated direct box, which mixes an XLR microphone input with an unbalanced 1/8" stereo input to a screw-terminal pluggable strip. The interface is ideal for impedance matching any consumer-level audio signal such as CD, DVD, and MP3 players to a professional audio system. The Rolls DB228 offers a level control and will pass phantom power. The Rolls DB228 can be mounted into an optional electrical wall box, while an optional standard Decor'a wall plate is available for a clean and finished look.
-
- Transformer isolated
- Passive design requires no power
- Will pass phantom power
- XLR microphone input
- 1/8" left and right mixes to mono
- Level control adjusts both inputs
- Output is a screw terminal pluggable strip
- Connects consumer audio equipment such as CD, DVD, and MP3 players to a professional audio system
- Mix a microphone with line-level signal and send it out via pluggable barrier strip connector
- Optional mount for standard electrical wall box (not included)
- Optional trim for standard Decor'a wall plate (not included)
- Passive Transformer-Isolated Direct Box
- Mounts into Standard Electrical Box
- XLR Microphone Input
- Stereo 1/8" Input
- Mixes Both Microphone and Line Signals
- Level Control
- Frequency Response: 50 Hz to 20 kHz
- Balanced Pluggable Barrier Strip Output
- Optional Mounts and Wall Plate Available
- Limited 1-Year Warranty
| Connectors | Input 1: Balanced XLR for microphone Input 2: 1/8" / 3.5 mm TRS for unbalanced stereo signal Output: Pluggable barrier strip (pin 2-hot, pin 3-neutral, pin 1-ground) |
| Input Impedances | XLR: 600 Ohms 1/8": 20 kOhms |
| Frequency Response ± 3dB | 50 Hz to 20 kHz |
| Dimensions (W Ă— H Ă— D) | 1.5 x 4.1 x 1.5" / 38.1 x 104.8 x 38.1 mm |
| Weight | 0.25 lb / 0.11 kg |
| Packaging Info | |
|---|---|
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 8.3 x 5.0 x 2.4" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
