On-Stage DB2150 Overview
The On-Stage DB2150 is a stereo USB/DAC direct box that provides noise-free, digital-to-analog conversion and features a full-speed USB 2.0 connection, discrete stereo-balanced XLR outputs, and an 1/8" stereo headphone output. The unit is automatically recognized as a soundcard by all Windows and Mac operating systems and offers a sample rate of 96 kHz with a frequency response of 10 Hz to 20 kHz and a dynamic range of 90 dB. Additional features include ISO left/right and mono-sum switches, which guard against phase issues and facilitate monophonic transference. The custom-wound resistors isolate and eliminate ground loops. The On-Stage DB2150 ships with a USB cable.
- Custom wound transformer
- Transformer isolation eliminates ground loops
- Frequency Response: 10 Hz to 20 kHz
- Sample Rate: 96 kHz
- Dynamic Range: 90 dB
- Output Impedance: 200 Ohms

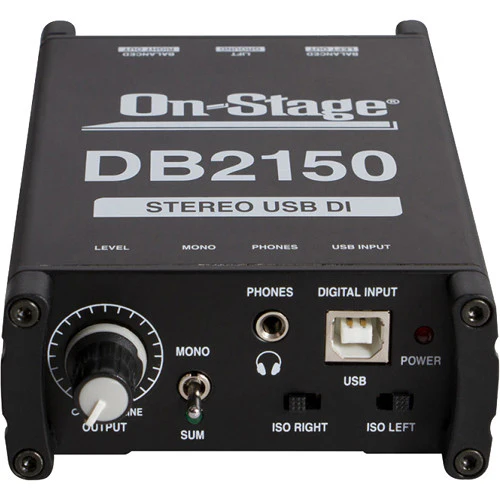

- Controls:
- Level: Used to control the overall output level
- Mono On/Off: Sums the stereo signal to mono. When active and switch is in the top position, sums to single channel and the LED indicator illuminates; when switch is in the bottom position, DI box changes to stereo, and the LED light is off
- Headphone: 3.5mm TRS headphone output works with earbuds and standard headphones
- USB Input: Connects from PC/Mac using a TYPE-B cable delivering the digital audio signal and power
- Power LED: When active, this indicator will illuminate
- ISO Left/Right: Switch left for thru, switch right for transformer isolation
- Left Out: Right balanced output connects to console or active speaker
- Right Out: Left balanced output connects to console or active speaker
- Ground Lift: Disconnects input ground output to stop ground hum
In the Box
- On-Stage DB2150 Stereo USB DAC - Direct Box

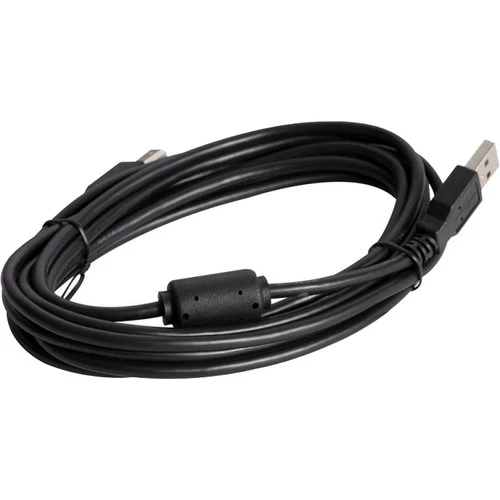

- USB Cable
- Limited 3-Year Manufacturer Warranty
On-Stage DB2150 Specs
| Item Type |
Standard DI
|
| Number of Channels |
Single-Channel
|
| Active/Passive |
Passive
|
| Circuitry |
Solid-State
|
| Ground Lift |
Yes
|
| Polarity Reverse |
No
|
| Low-Cut/High-Pass Filter |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
1x XLR 3-Pin Balanced Output |
| USB I/O |
1x USB-B
|
| Frequency Response |
10 Hz to 20 kHz
|
| Output Impedance |
200 Ohms
|
| Dimensions |
5.8 x 3.5 x 1.5" / 146.1 x 88.9 x 38.1Â mm
|
| Weight |
1Â lb / 0.4Â kg
|
| Package Weight |
1.3 lb
|
| Box Dimensions (LxWxH) |
7 x 6 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
