Original: $178.91
-70%$178.91
$53.67The Story
On-Stage DB1050 Overview

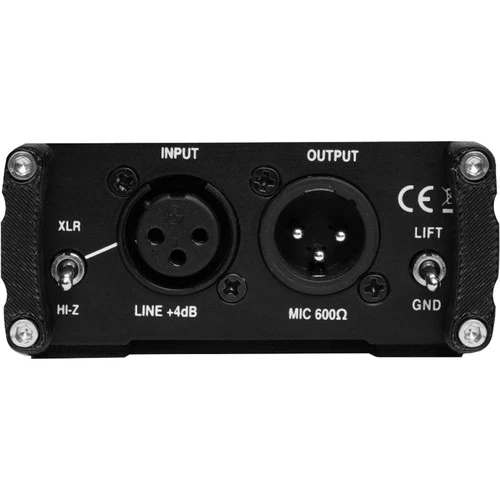

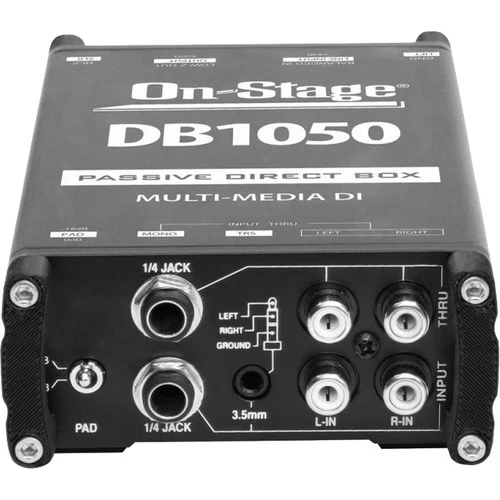

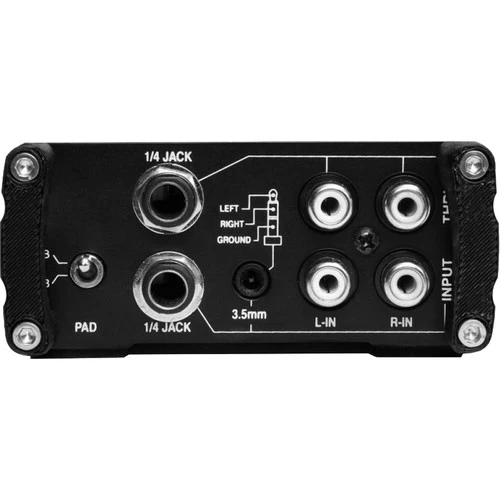

Connect the stereo outputs of your computer, mobile device, DJ mixer, or keyboard directly to a single mic preamp with the On-Stage DB1050 passive multimedia DI box. Thanks to its stereo-to-mono design, it adapts stereo high-impedance, line-level signals from the 1/4" TS, 3.5mm TRS, or RCA coaxial input jacks to one low-impedance, mic-level XLR output. Alternatively, use the 3-pin XLR input to bring in a mono line- or instrument-level input. By converting your signal from unbalanced to balanced, it allows longer cable runs, less noise, and proper compatibility with mic inputs.
Dedicated RCA thru jacks provide an unbalanced pass-through for easy connection to a DJ/monitor mixer or secondary recorder. Flip the -15 dB pad switch to prevent distortion when accepting high-output sources, and utilize the ground-lift switch to rid your signal of hum from ground loops. Since the DB1050 is a passive direct box, it requires no batteries, power cables, or AC adapters. It features a durable metal housing with protective nylon bumpers, making it equally well suited for constant use in the studio, on stage, or at home.
In the Box
- On-Stage DB1050 Passive Multimedia DI Box with Stereo-to-Mono Summing
- Limited 3-Year Manufacturer Warranty
On-Stage DB1050 Specs
| Type |
Passive
|
| Input Connections |
2 x 1/4" TS (Unbalanced)
1 x 1/8" / 3.5 mm TRS (Unbalanced) 2 x RCA Coaxial (Unbalanced, One Stereo Pair) 1 x 3-Pin XLR Female (Balanced) |
| Output Connectors |
1 x 3-Pin XLR Male (Balanced)
2 x RCA Coaxial Thru (Unbalanced, One Stereo Pair) |
| Pad |
-15 dB
|
| Controls |
Pad Switch
XLR/Hi-Z Switch Ground-Lift Switch |
| Input Resistance |
220 kOhms
|
| Output Impedance |
600 Ohms
|
| Frequency Response |
10 Hz to 40 kHz
|
| Power Requirement |
No Power Source Required
|
| Construction Material |
Enclosure: Metal
Bumpers: Nylon |
| Dimensions |
3.5 x 1.5 x 6.0" / 8.9 x 3.8 x 15.2 cm
|
| Weight |
0.7 lb / 0.3 kg
|
| Package Weight |
1.01 lb
|
| Box Dimensions (LxWxH) |
6.9 x 5.9 x 2.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
