OSEE Megamon 15 HDR Production Monitor with V-Mount Kit
HomeStore

OSEE Megamon 15 HDR Production Monitor with V-Mount Kit

OSEE Megamon 15 HDR Production Monitor with V-Mount Kit

$488.70

Original: $1,629.01

-70%
OSEE Megamon 15 HDR Production Monitor with V-Mount Kit—

$1,629.01

$488.70

The Story

OSEE Megamon 15 Overview

  • 1Description
  • 2Multiple Video I/O
  • 3Exposure Tools
  • 4Framing Tools
  • 5Focus Tools
  • 6Color Management

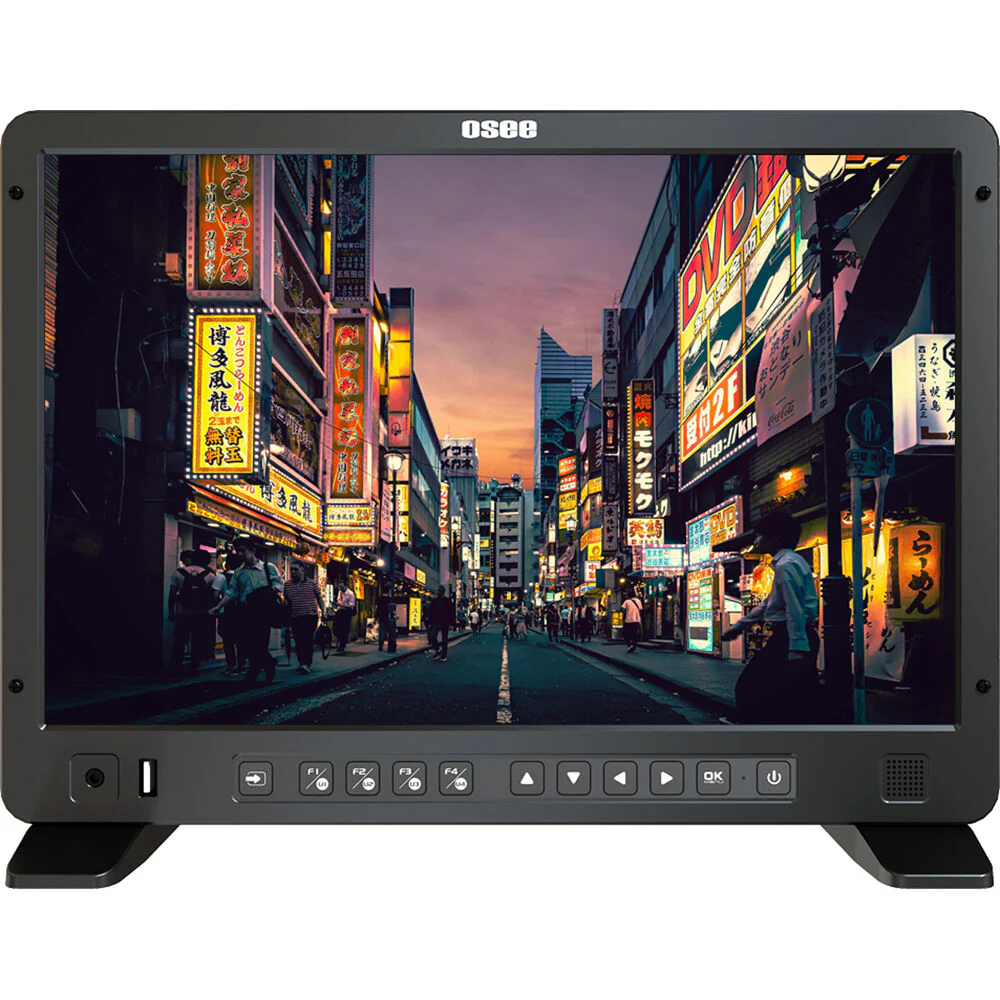

The Osee Megamon 15 HDR Production Monitor with V-Mount Kit is an 800 cd/m² 1920 x 1080 display packed with monitoring tools. Whether you prefer to use histograms, waveforms, false colors, or zebras, the Osee field monitor has the right tool to help you nail the optimal exposure. The monitor also supports anamorphic de-squeeze and custom frame guides for anamorphic shooters. Packaged with a sun hood, C-stand mount, and desktop stand, the Osee production monitor is ready to go in just about any production environment.

Multiple Video I/O
  • One HDMI input
  • Two 3G-SDI inputs
  • One 3G-SDI Loop out
Exposure Tools
  • False color
  • Zebra
  • Histogram
  • Vectorscope
  • Waveform
Framing Tools
  • Anamorphic desqueeze
  • Custom aspect ratios
  • Area marker
  • Center marker
Focus Tools
  • Focus assist (red/green/blue/mono; sensitivity value 0-100 adjustable)
  • Peaking (level 1-16 adjustable)
Color Management
The Osee monitor features several settings to adjust the color parameters to meet your production's needs, including:

  • Gamma (PQ, HLG)
  • Color temperature (D55, D61, D65, D93, DCI)
  • Color space (ITU709, EBU, SMPTE-C, P3, ITU2020)
UPC: 650971522294

In the Box

  • OSEE Megamon 15 HDR Production Monitor with V-Mount Kit
  • V-Mount Battery Plate with D-Tap to XLR Cable
  • C-Stand Adapter with 3 Screws
  • Carrying Bag with Shoulder Strap
  • Cheese Plate
  • HDMI Cable Lock (2 Parts)
  • 2 x Desktop Foot
  • Velcro Strip
    Table of Contents
    • Description
    • Multiple Video I/O
    • Exposure Tools
    • Framing Tools
    • Focus Tools
    • Color Management

    OSEE Megamon 15 Specs

    Display
    Panel Type TFT LCD
    Display Size 15.4" / 39.1 cm
    Screen Area 13.0 x 8.1" / 330 x 206 mm
    Resolution 1920 x 1200
    Aspect Ratio 16:10
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Touchscreen No
    Maximum Brightness 800 cd/m2
    Contrast Ratio 1450:1
    HDR Compatibility Hybrid Log Gamma
    Pixels Per Inch (ppi) 147 ppi
    Response Time 18 ms
    Real-Time LUT Monitoring SDR, HDR
    Image Controls Anamorphic De-Squeeze, Blue Only, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Green Only, Histogram, Red Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
    Video I/O 2 x BNC (3G-SDI) Input
    1 x HDMI Input
    1 x BNC (Composite) Input
    1 x BNC (3G-SDI) Loop Output
    Embedded Audio SDI
    HDMI
    Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker 2
    Power I/O 1 x IEC Input
    1 x XLR 4-Pin (16.8 VDC) Input
    Other I/O 1 x USB-A 2.0 Input
    1 x 2.5 mm Input
    Media/Memory Card Slot None
    Wi-Fi None
    Bluetooth None
    Mobile App Compatible No
    *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
    Format Support
    Video Format SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
    DCI 2K PsF: 30/29.97/25/24/23.98
    DCI 2K: 48/47.95/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    720p: 60/59.94/50/30/29.97/25/24/23.98
    576i: 50
    480i: 60
    SDI (10-Bit 4:2:2 YCC)
    1035i: 60/59.94
    Composite (10-Bit 4:2:2 YCC)
    480i: 60
    576i: 60
    HDMI (10-Bit 4:2:2 YCC)
    1080p: 30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    Gamma Curve HDR-HLG, HDR-PQ
    Video Standard Compliance SMPTE 259M/292M/297M/424M
    ITU -R BT.709/BT.2020
    Power
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 11 to 16.8 VDC
    Battery Type 1 x V-Mount
    Power Consumption 29.3 W
    Environmental
    Certifications FCC Part 15 Class B
    *as per Manufacturer
    Operating Temperature 32 to 82°F / 0 to 50°C
    General
    Dimensions 14.5 x 10.4 x 2.1" / 368.9 x 264.9 x 54.5 mm
    Packaging Info
    Package Weight 16.585 lb
    Box Dimensions (LxWxH) 18.1 x 13.8 x 8.1"

    OSEE Megamon 15 Reviews

    Good Value

    By Andrew
    Rated 4 out of 5
    Date: 2022-12-12

    The USB A port provides juice to power a wireless video receiver. There is a cheeseplate on the back where you can attach a wireless video receiver. V Mount plate to power with battery. The updated clicky buttons are better than the membrane buttons that used to be on this monitor. Has all the focus and exposure tools you need at your fingertips. The handy carrying case easily turns into a sunhood for outdoor use. The baby pin receiver is wobbly by itself but if you keep the monitor in the case there is a ring you insert the baby pin into in addition to the mount that keeps the monitor more stable. The menu system is complex but you can program four presets for quick access and apply a LUT. So so screen quality and brightness but more than adequately viewable with the sunhood. Overall good value.


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

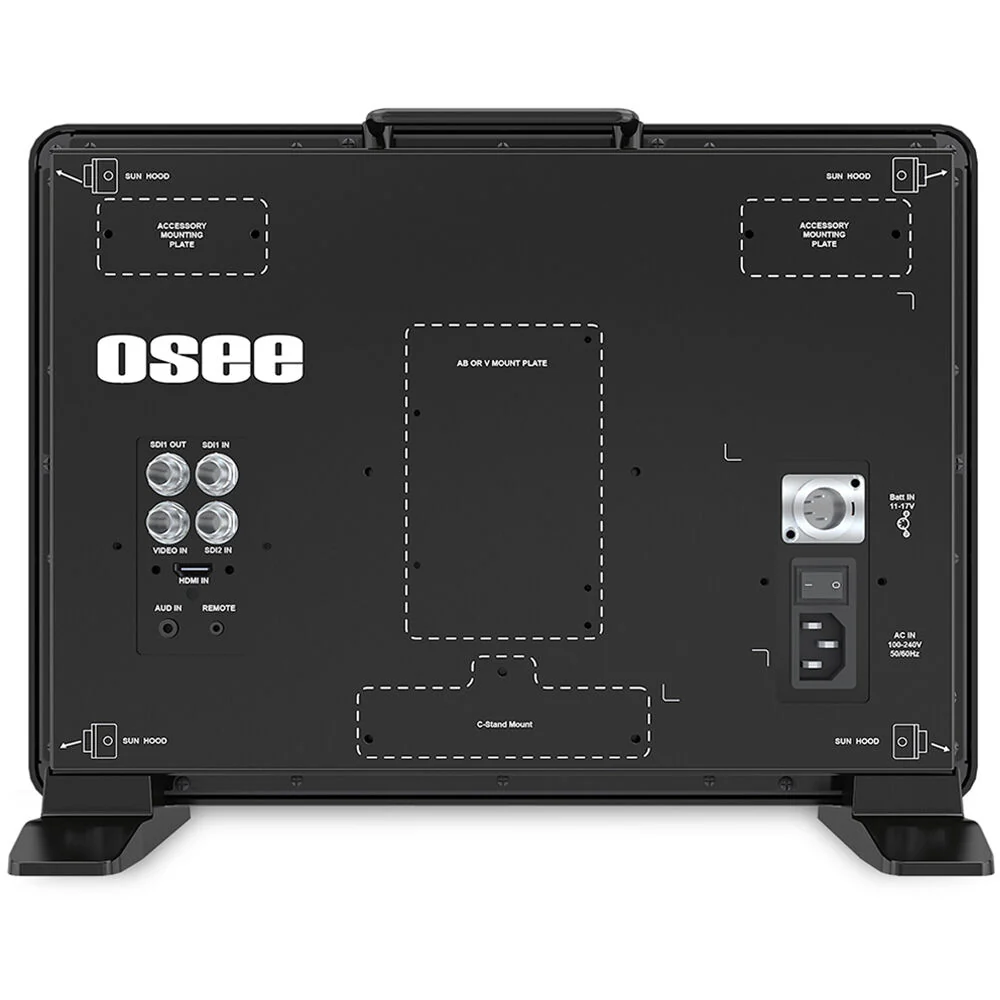

    OSEE Megamon 15 HDR Production Monitor with V-Mount Kit - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

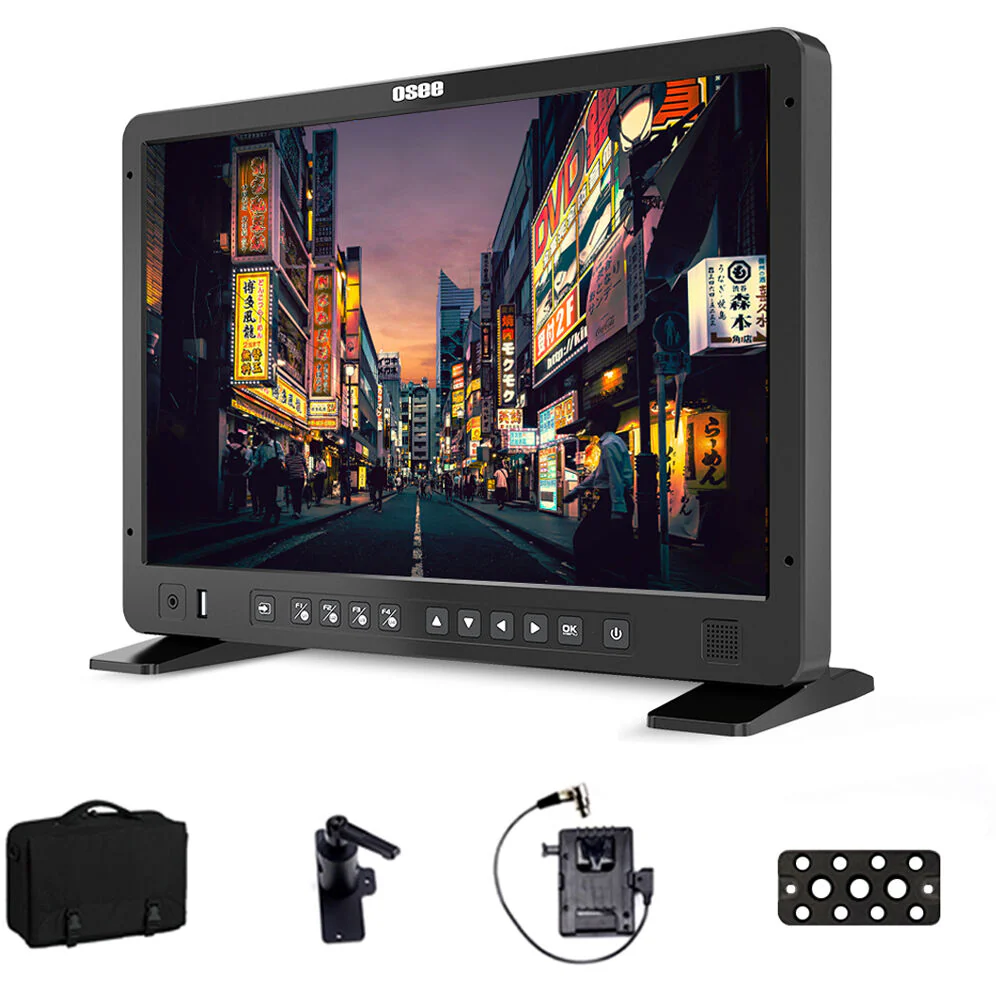

    OSEE Megamon 15 HDR Production Monitor with V-Mount Kit - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

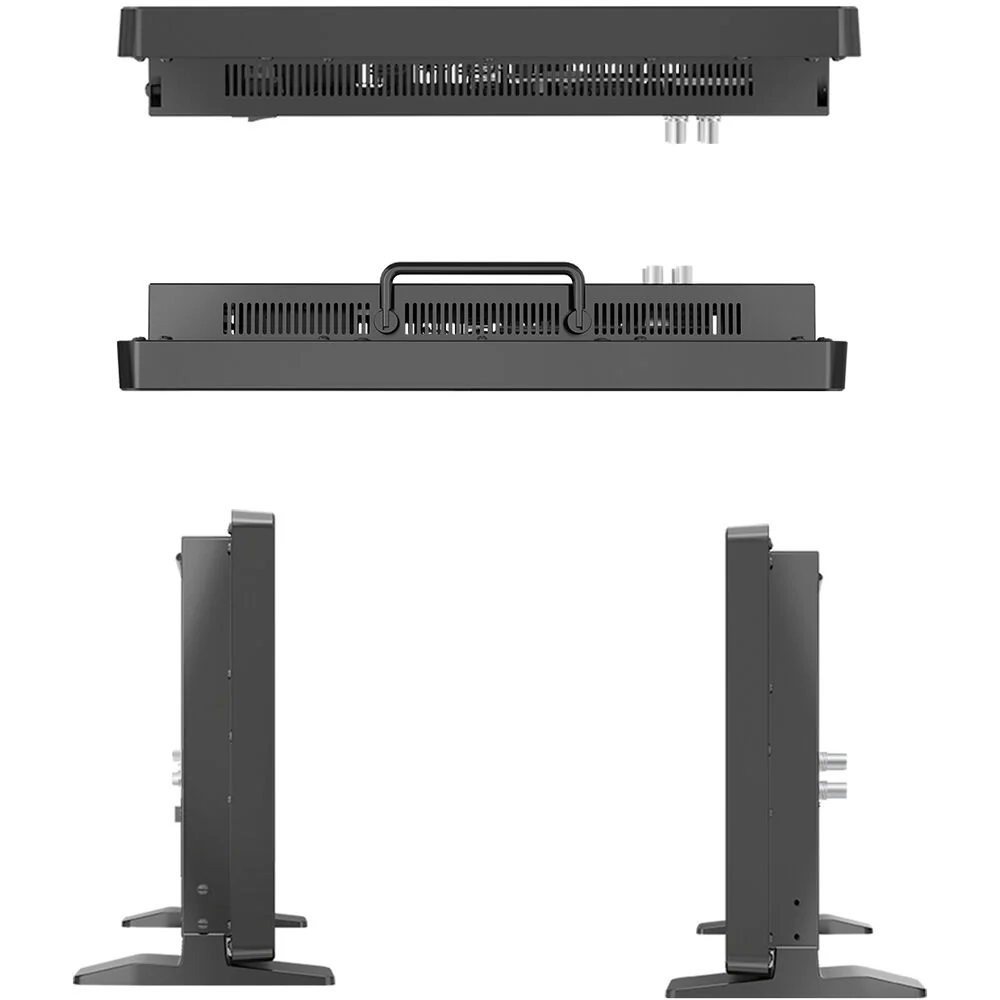

    OSEE Megamon 15 HDR Production Monitor with V-Mount Kit - Image 4
