The Story

FeelWorld P7S Overview

1 Description
2 Brightness
3 Top-Mounted Menu and Function Buttons
4 Focus and Exposure Tools
5 Connections
6 Flexible Installation
7 Aluminum Chassis
8 Power
9 Advanced Features

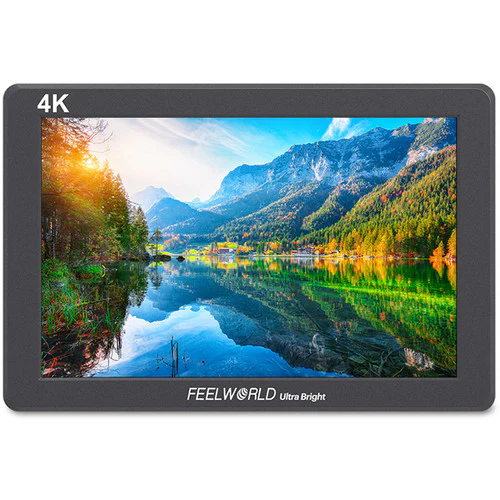

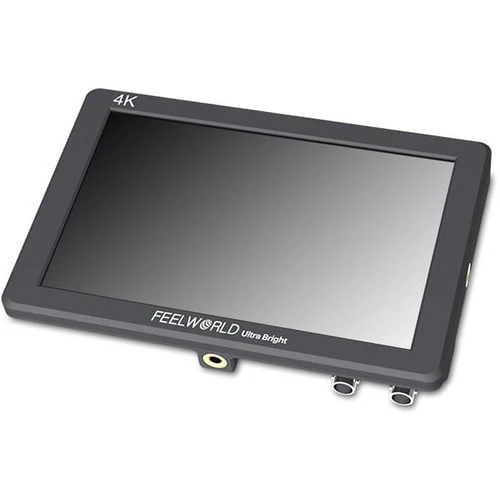

The FeelWorld 7" 2200 cd/m² Full HD 3G-SDI/HDMI On-Camera Monitor with 4K Support features a native resolution of 1920 x 1200 with a contrast ratio of 1200:1, and a maximum brightness of 2200 cd/m² which makes it suitable for use outdoors without a sun hood. This IPS monitor enables you to accurately monitor your camera's output, and is calibrated to the Rec. 709 HD color standard to ensure accurate color reproduction. The large 7" diameter screen and 160°-wide viewing angle allows for multiple members of the crew to watch the footage at the same time without the appearance of contrast or color changes to the image.

The top-mounted control buttons provide maximum screen real estate to view your footage, now that front-panel buttons and knobs are no longer cluttering up your monitor. The monitor supports an assortment of display and diagnostic tools including: focus peaking, false color, zebra bars, histogram, image flip, and color temperature adjustment. In addition, the monitor offers multiple aspect ratio options and features an anamorphic mode that supports 1.33:1 and 2.0:1.

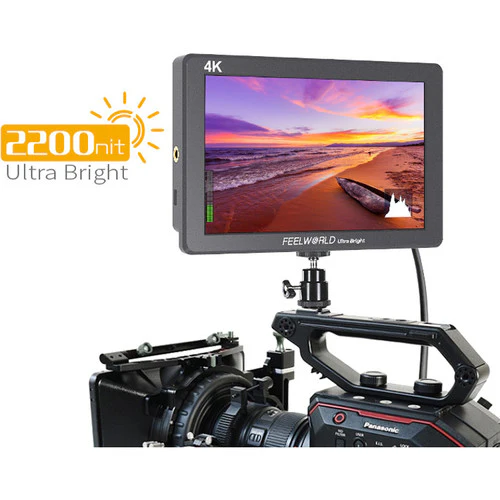

Brightness

At 2200 cd/m² maximum brightness, the monitor does not require a sunshade when used in bright exterior settings.

Top-Mounted Menu and Function Buttons

The menu controls are located on top of the monitor, including three programmable buttons for frequently used settings. The monitor will automatically save the parameters you have previously set, even when powering down.

Focus and Exposure Tools

The focus and exposure tools of the P7S include focus peaking indicators (red, green, and blue) that highlight parts of the image in sharp focus. In addition, false color tools make it easy to properly set exposure. The false color tools work by highlighting specific color ranges of luminance with a solid color overlay.

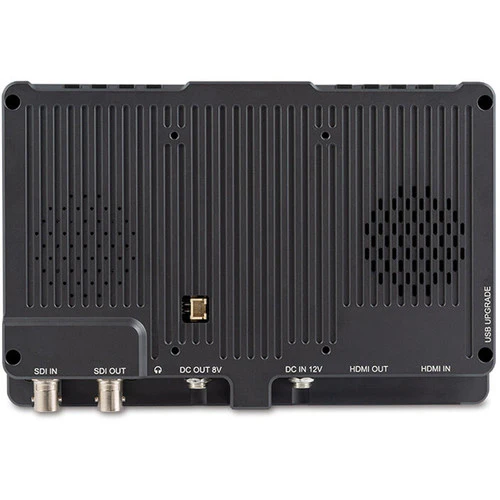

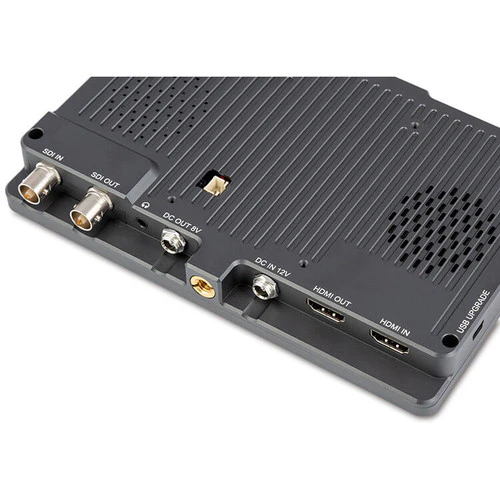

Connections

The P7S is equipped with a 4K HDMI input and pass-through 4K HDMI output, allowing for connection to 4K cameras. The monitor's 3.5mm stereo jack enables you to plug in headphones to monitor audio. DC input and output ports are also provided, and a dummy battery adapter cable (available separately) can be used to power your DSLR or mirrorless camera.

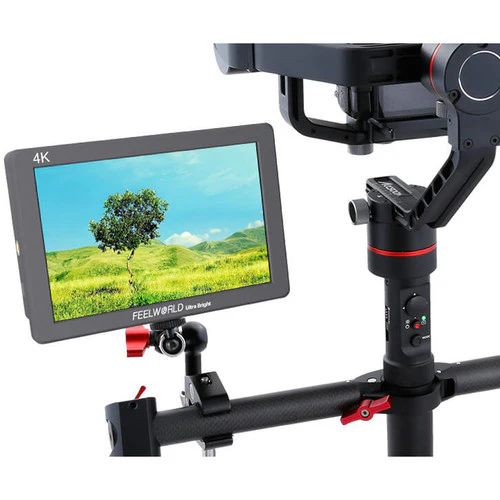

Flexible Installation

Three standard 1/4"-20 mounting points (left side, bottom, and right side) offer easy attachment to cameras and rigs.

Aluminum Chassis

The milled aluminum chassis protects the monitor from the rigors of the production day.

Power

The monitor supports interchangeable battery plates and comes with an L-series battery plate. In addition, the monitor features an integrated 12 VDC locking coaxial input, as well as an 8 VDC locking coaxial output that can be used to power your DSLR or mirrorless camera (requires dummy battery, available separately).

Advanced Features

High-resolution Full HD 1920 x 1200
High-contrast 1200:1
Ultra brightness: 2200 cd/m²
IPS panel with 160° wide viewing angles
Ultra-thin design; 25mm thickness
Histogram
Peaking focus assist (red, green, blue)
False colors
Zebra exposure
Nine-grid m ode (underscan, overscan)
Zoom (4x, 9x, 16x)
Anamorphic mode (1.3x, 2.0x, 2.0x mag)
Pixel-to-pixel
Center marker
Safe area (80/85/90/93/96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Marker color (red, green, blue, white, black)
Check field (red, green, blue, mono)
Image flip (H, V, H/V)
Image freeze
Zoom-all
U/D and L/R zoom
Color temperature adjustment

In the Box

FeelWorld 7" 2200 cd/m² Full HD 3G-SDI/HDMI On-Camera Monitor with 4K Support

Mini-HDMI Cable

Cold Shoe Mount

L-Series Battery Plate

Limited 1-Year Warranty

Table of Contents

Description
Brightness
Top-Mounted Menu and Function Buttons
Focus and Exposure Tools
Connections
Flexible Installation
Aluminum Chassis
Power
Advanced Features

FeelWorld P7S Specs

Display

Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160° (80/80) Vertical: 160° (80/80)
Touchscreen	No
Maximum Brightness	2200 cd/m ²
Contrast Ratio	1200:1

I/O

Video	1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x HDMI Type A Input 1 x HDMI Type A Output
Embedded Audio	HDMI
Audio	1 x 3.5 mm Headphone Output
Built-In Speaker	2
Power	1 x Coax Input 1 x Coax (8 VDC) Output
Card Slot	None

Format Support

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i

Power

DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series (Interchangeable Mount)

Mounting

3 x 1/4"-20 Female

Environmental

Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C

General

Material of Construction	Aluminum
Dimensions (W x H x D)	7.09 x 4.72 x 0.87" / 180 x 120 x 22 mm
Weight	1.05 lb / 475 g 1.10 lb / 500 g, Including Battery Plate

Packaging Info

Package Weight	2.22 lb
Box Dimensions (LxWxH)	8.9 x 6.5 x 3.3"
