- 1920 x 1200 Screen Resolution
- SDI, HDMI, Analog I/O; Tally Input
- Up to DCI 4K Resolution Support
- RCA Audio Input, Headphone Jack, Speaker
- Six Function Buttons on Front Panel
- L-Series Battery Plate (Interchangeable)
- 320 cd/m² Brightness
- 800:1 Contrast Ratio
- Histogram, Peaking, False Colors, Zebra
- Check Field, Anamorphic Mode, and More

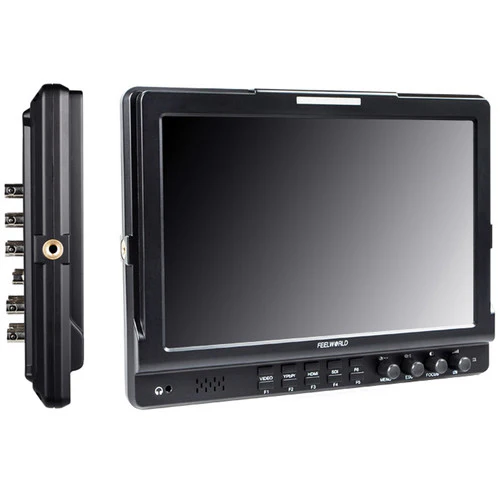

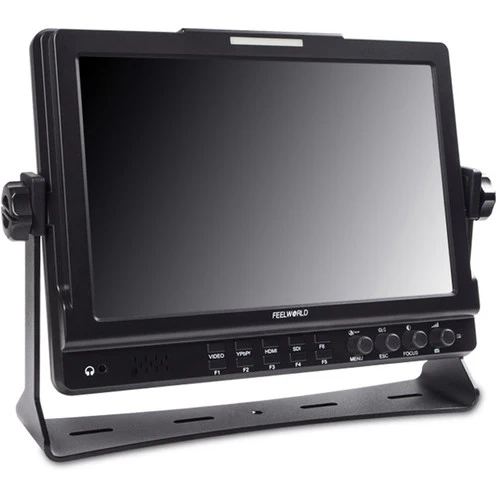

Featuring a large screen, 1920 x 1200 resolution, and many image analysis tools, the 10" 4K IPS Professional Field Monitor from FeelWorld allows you to frame your shots with accuracy. It features 1/4"-20 mounting threads so you can attach it to your camera or camera rig, and it comes with a U-bracket so you can use it desktop-mounted. A sunshade is also supplied that lets you confidently monitor your image outdoors.
The monitor features SDI, HDMI, and analog inputs and outputs, audio and tally inputs, and a headphone jack and speaker. It supports up to DCI 4K resolution signals at 24 fps via the HDMI input and up to 1080p60 via the 3G-SDI input. Up to six of the image analysis tools can be assigned to function buttons on the front panel. An L-series battery plate comes included with the monitor but can be switched out for optional LP-E6, D28S, V-mount, or Gold mount plates. A battery is sold separately.
- Key Features
-
- 1920 x 1200 screen resolution
- 170° IPS viewing angle
- SDI, HDMI, and analog inputs and outputs
- Audio and tally inputs
- Headphone jack and speaker
- Supports up to DCI 4K resolution signals at 24 fps via HDMI
- Supports up to 1080p60 via 3G-SDI
- Six assignable function buttons on front panel
- L-series battery plate (interchangeable; D28S, LP-E6, V-mount, or Gold mount plates supported)
- 320 cd/m² brightness
- 800:1 contrast ratio
- Image Analysis
-
- Brightness histogram
- Peaking focus assist
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Audio level meters for embedded audio monitoring
- Check field (red, green, blue, mono)
- Camera mode
- Anamorphic mode (1.3x, 2.0x, 2.0x) - allows you to see the image unsqueezed, even if your camera does not de-squeeze in-camera
- Image flip (H, V, H/V)
- Image freeze
- Center marker
- Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Color temperature adjustment
- Nine-grid (zoom in on an image to up to full screen - up to 1080p input only)
- Zoom (4x, 9x, 16x - up to 1080p input only)
- Pixel-to-pixel (up to 1080p)
- Zoom-all (up to 1080p)
- U/D zoom (up to 1080p)
- L/R zoom (up to 1080p)
FeelWorld FW1018SPV1 specs
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 10.0" / 25.4 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Touchscreen | No |
| Maximum Brightness | 320 cd/m 2 |
| Contrast Ratio | 800:1 |
| Dot Pitch | 0.113 x 0.113 mm |
| LUT Support | No |
| I/O | |
|---|---|

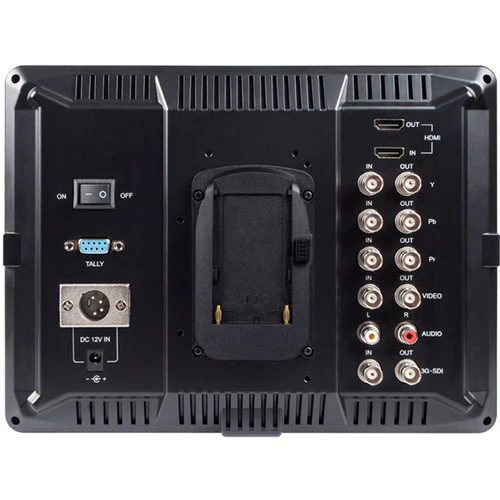

| Video | 1 x 3G-SDI (BNC) Input 1 x HDMI 1.4 (HDMI Type A) Input 1 x Component (3BNC) Input 1 x Composite (BNC) Input 1 x 3G-SDI (BNC) Output 1 x HDMI 1.4 (HDMI Type A) Output 1 x Component (3BNC) Output 1 x Composite (BNC) Output |
| Audio | 1 x 2RCA Input |
| Built-In Speaker | 1 |
| Power | 1 x 4-Pin XLR Input |
| Other I/O | 1 x Tally (DE-9) |
| Card Slot | None |
| Format Support | |
|---|---|
| Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL HDMI DCI 4K: 24 UHD 4K: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 576p 480p NTSC PAL |
| Power | |
|---|---|
| DC Input Power | 6 to 36 VDC |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 12 W (Maximum) |
| Mounting | |
|---|---|
| Mounting | 3 x 1/4"-20 Thread Left/right/bottom |
| Environmental | |
|---|---|
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| General | |
|---|---|
| Dimensions (W x H x D) | 10.24 x 7.48 x 1.57" / 26 x 19 x 4 cm |
| Weight | 1.76 lb / 0.8 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.6 lb |
| Box Dimensions (LxWxH) | 20.1 x 12.6 x 12.6" |
