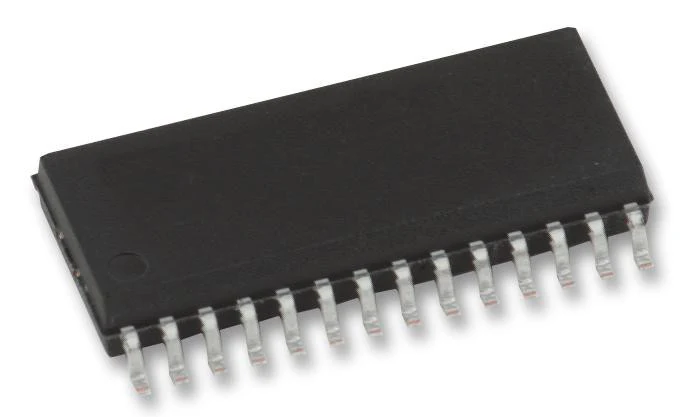

-70%MICROCHIP PIC18F25K50-I/SO 8 Bit Microcontroller, Flash, PIC18FxxKxx, 48 MHz, 32 KB, 2 KB, 28 Pins, SOIC—
$5.52
$1.66The Story
The PIC18F25K50-I/SO is a high-performance PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of processing power with benchmark nanoWatt XLP extreme low power consumption. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 32kB of addressable program memory size, 2048bytes of data memory size, 25 general-purpose I/O pins, two comparators, 14-channel 10-bit analog-to-digital (A/D) converter and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 48MHz wide operating voltage of 1.8 to 5.5V.
- 83 (16-bit wide) powerful C-optimized
- 32 level hardware stack
- 1 (8-bit) file select register
- Integrated 8x8 hardware multiply
- Programmable brown-out reset (BOR)
- Programmable low voltage detection
- 16MHz internal oscillator
- Watch dog timer (WDT)
- Internal voltage reference (Bandgap)
- Charge time measurement unit (CTMU)
- Two 8-bit digital timers
- Two 16-bit digital timers
- 1x Capture/Compare/PWM (CCP)
- 1x Enhanced Capture/Compare/PWM (ECCP)
- full-speed USB 2.0
- Local interconnect network (LIN)
- 14x Capacitive touch channels
- In-Circuit Serial Programmingďż˝ (ICSPďż˝)
- 256bytes of EEPROM data memory
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Product details
| Controller Family/Series | PIC18FxxKxx |
| Embedded Interface Type | EUSART, I2C, SPI, USB |
| No. of I/O's | 25I/O's |
| Program Memory Size | 32KB |
| No. of Pins | 28Pins |
| Product Range | PIC18 Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 48MHz |
| Supply Voltage Min | 2.3V |
| MCU Case Style | SOIC |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 2KB |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F25K50-I/SO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
