Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor
HomeStore

Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor

Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor

$457.23

Original: $1,524.10

-70%
Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor—

$1,524.10

$457.23

The Story

Lilliput RM-1731 Overview

The RM-1731 Pullout Rackmount HDMI Monitor from Lilliput is a 17.3" broadcast monitor with a resolution of 1920 x 1080. It features a slim, space-saving 1 RU pullout rackmount design and support for up to UHD 4K60 input via HDMI. The 17.3" IPS panel provides an 800:1 contrast ratio, a viewing angle of 170°, and 300 cd/m² brightness. The RM-1731 monitor features an HDMI 2.0 input and loop-out, a USB-A port for LUT upload, and an RJ45 port for remote control using your computer.

This monitor supports multiple HDR color spaces and the ability to load custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply and a tally connector are included with the monitor.

Slim, Space-Saving Design
A pullout space-saving design enables the RM-1731 monitor to use a 1 RU space on your cabinet or truck rackmount.
Interface
Interfaces include an HDMI 2.0 input and loop-out, a USB-A port for uploading built-in or custom LUTs, and an RJ45 port for remote control via your computer.
Monitoring Tools
  • Peaking, Check Field, Image Freeze
  • Pixel-to-Pixel Zoom, False Color, Exposure
  • Vectorscope, Histogram
  • Anamorphic De-Squeeze, Screen Markers
  • HDR, Color Space
  • Color Temperature Adjustment
  • Image Flip, H/V Delay
  • Audio Metering
HDR and 3D LUTs
  • When HDR is activated, the display reproduces a greater dynamic range of luminosity.
  • Enables colors and lighter and darker details to be displayed more clearly.
  • Supports HLG and ST2084 300/1000/10,000 HDR.
  • You can use any of the 17 default logs or load up to six of your own custom LUTs in .cube format via the USB port.
Audio
  • This monitor outputs embedded audio via a 3.5mm headphone jack and two speakers.
  • Provides channel selection and onscreen audio metering.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.
Remote Control
Use the RJ45 port to connect to your laptop or computer for remote control.

In the Box

  • Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor
  • 12 VDC Adapter
  • Tally Adapter
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Lilliput RM-1731Specs

    Key Specs
    Display Size
    17.3" / 43.9 cm
    Native Resolution
    1920 x 1080
    Touchscreen
    No
    HDR Support
    Yes, Hybrid Log Gamma
    Video I/O
    1x HDMI 2.0 Input
    1x HDMI 2.0 Loop Output
    Media/Memory Card Slot
    No
    Power Consumption
    14 W
    Mounting
    No
    Display
    Panel Type
    LCD
    Display Size
    17.3" / 43.9 cm
    Native Resolution
    1920 x 1080
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 170°
    Vertical: 170°
    Touchscreen
    No
    Maximum Brightness
    300 nits / cd/m2
    Contrast Ratio
    800:1
    HDR Support
    Yes, Hybrid Log Gamma
    Pixels Per Inch (ppi)
    127 ppi
    LUT Support
    No
    Image Controls
    False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform
    Inputs/Outputs
    Video I/O
    1x HDMI 2.0 Input
    1x HDMI 2.0 Loop Output
    Embedded Audio
    HDMI: 8-Channel
    Audio I/O
    No
    Built-In Speaker
    Stereo
    Power I/O
    1x Barrel (12 VDC) Input
    Other I/O
    1x RJ45 (LAN)
    1x DE-15/DB-15 (Tally)
    1x USB-A (LUT Upload)
    Media/Memory Card Slot
    No
    Wi-Fi
    No
    Bluetooth
    No
    Mobile App Compatible
    No
    Format Support
    Gamma Curve
    ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log
    Video Standard Compliance
    SMPTE ST-2084
    Power
    Input Power
    10 to 24 VDC
    Power Consumption
    14 W
    Mounting
    Rack Form Factor
    1 RU
    Mounting
    No
    General
    Environmental Resistance
    No
    Operating Conditions
    32 to 82°F / 0 to 50°C
    Storage Conditions
    -4 to 140°F / -20 to 60°C
    Dimensions
    20 x 19 x 1.7" / 507.5 x 482.5 x 44 mm
    Weight
    19.6 lb / 8.9 kg
    Packaging Info
    Package Weight
    24.72 lb
    Box Dimensions (LxWxH)
    26.4 x 22.7 x 6.3"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

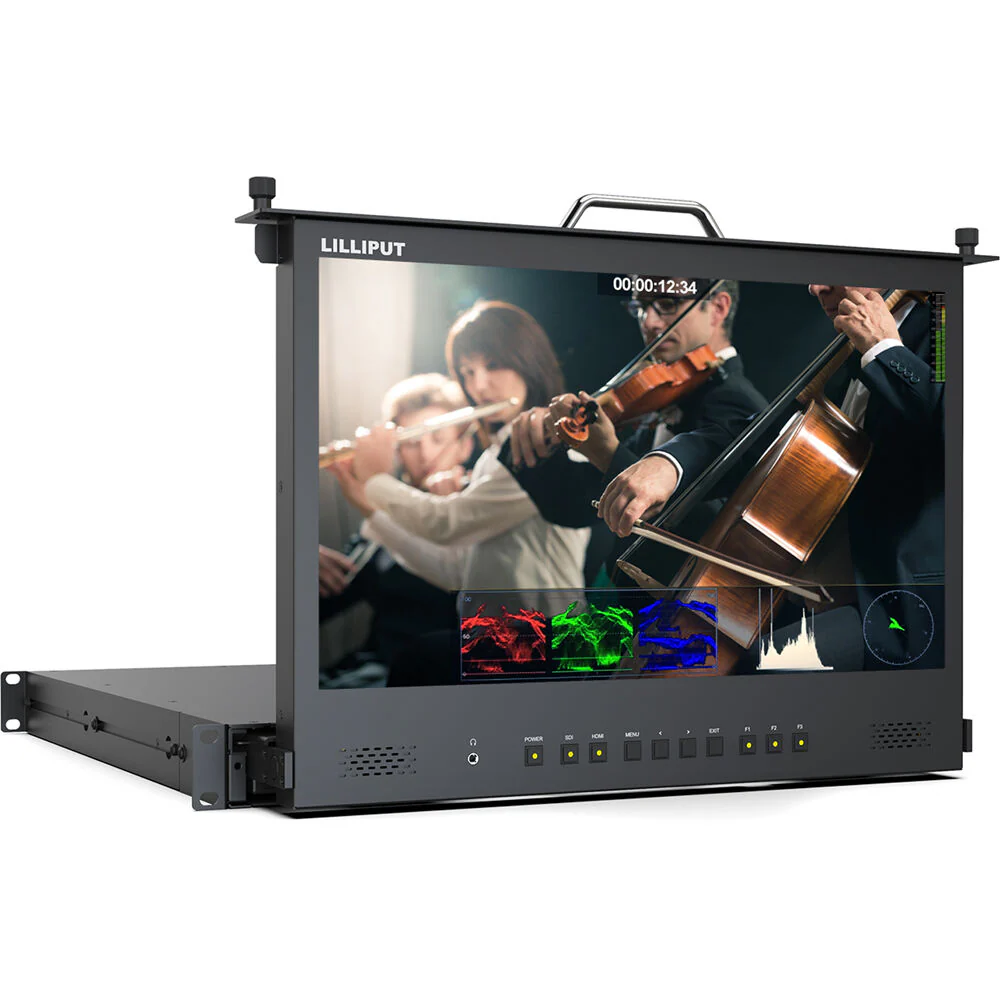

    Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

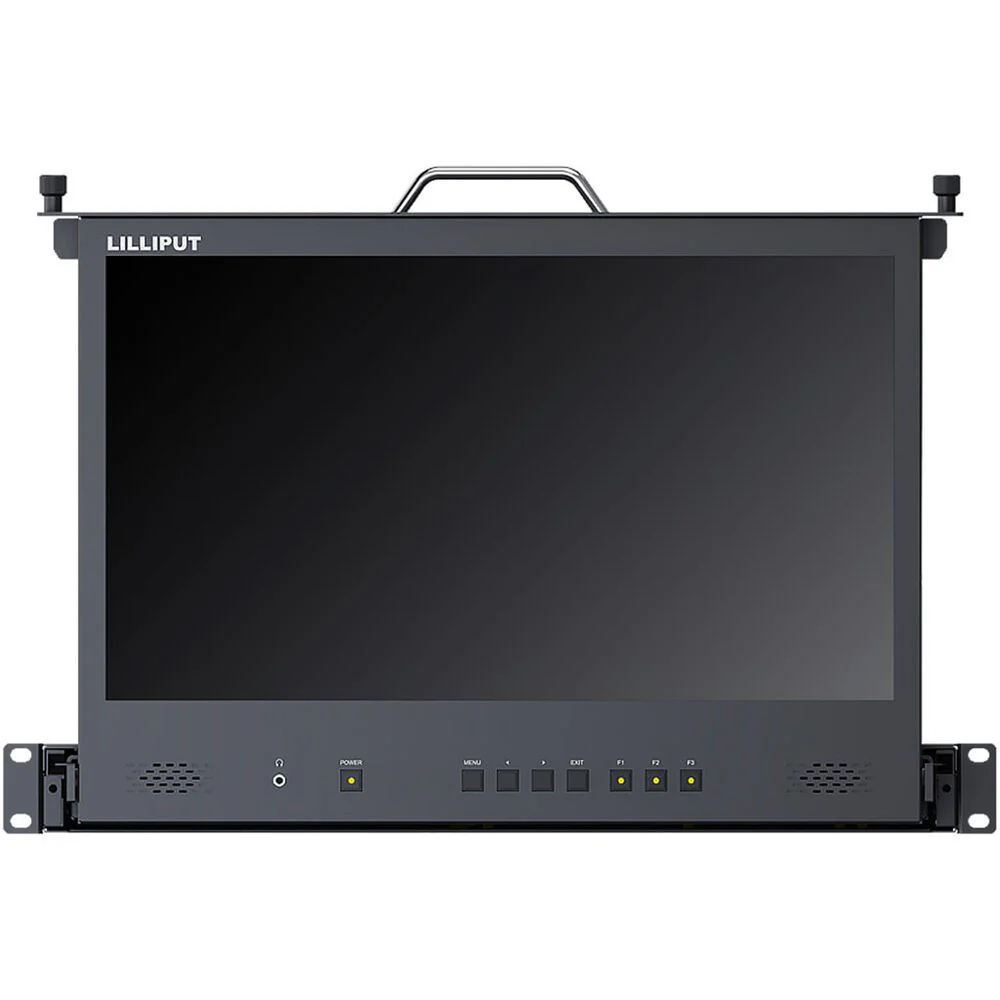

    Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

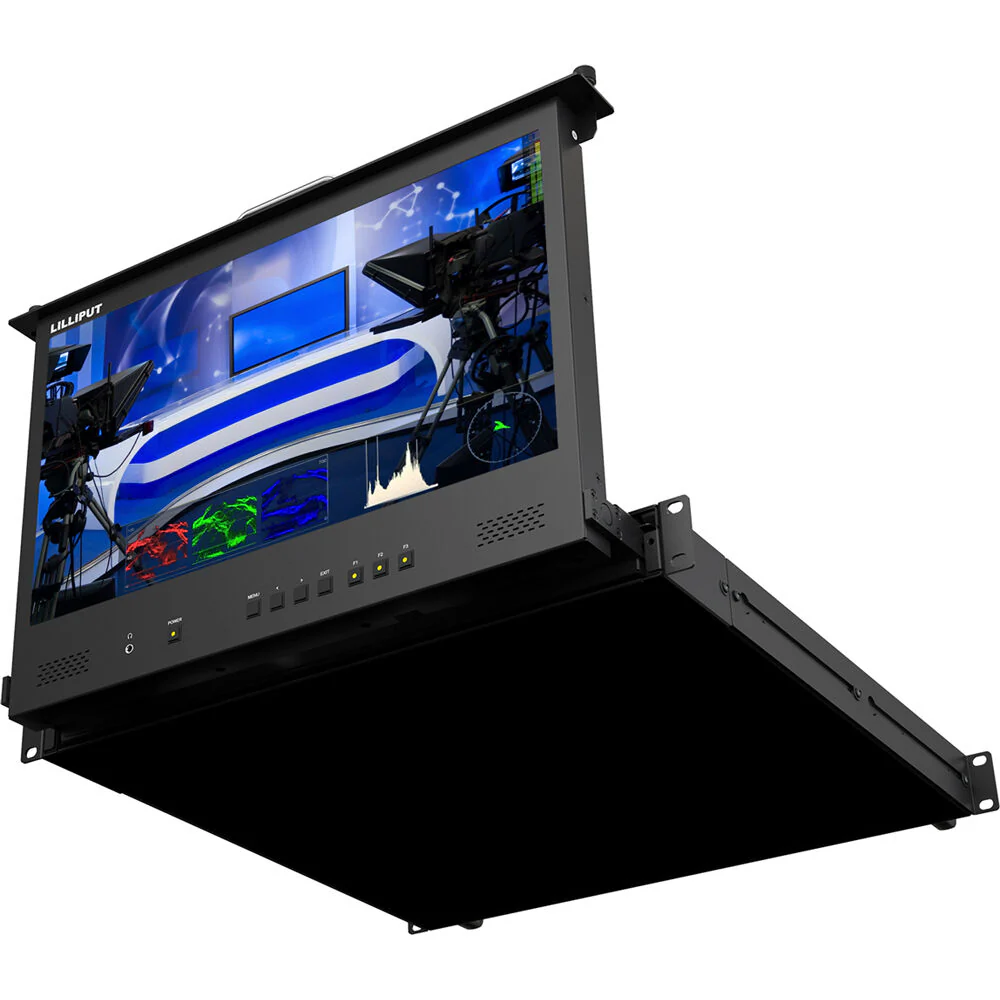

    Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

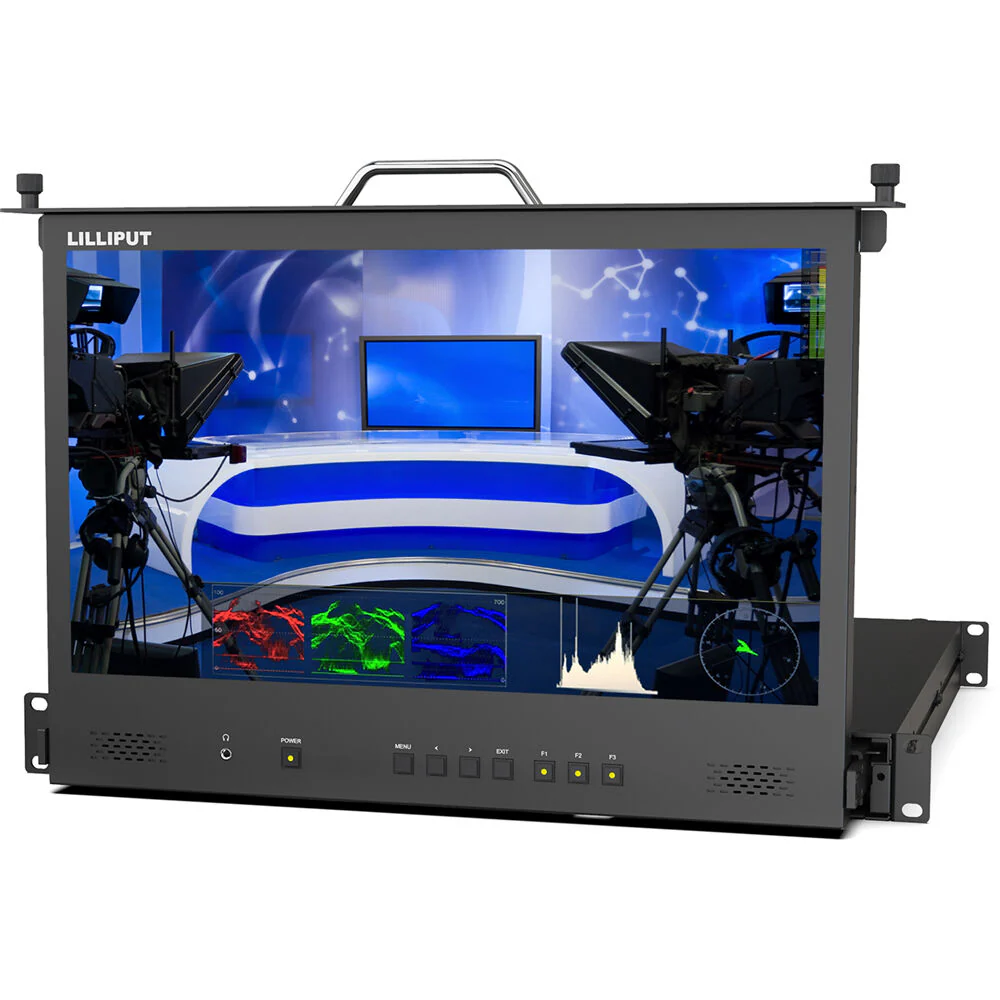

    Lilliput RM-1731 17.3" Pullout Rackmount HDMI Monitor - Image 5
