Lilliput Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor (V-Mount)
HomeStore

Lilliput Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor (V-Mount)

Lilliput Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor (V-Mount)

$789.33

Original: $2,631.10

-70%
Lilliput Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor (V-Mount)—

$2,631.10

$789.33

The Story

Lilliput Q13-8K Overview

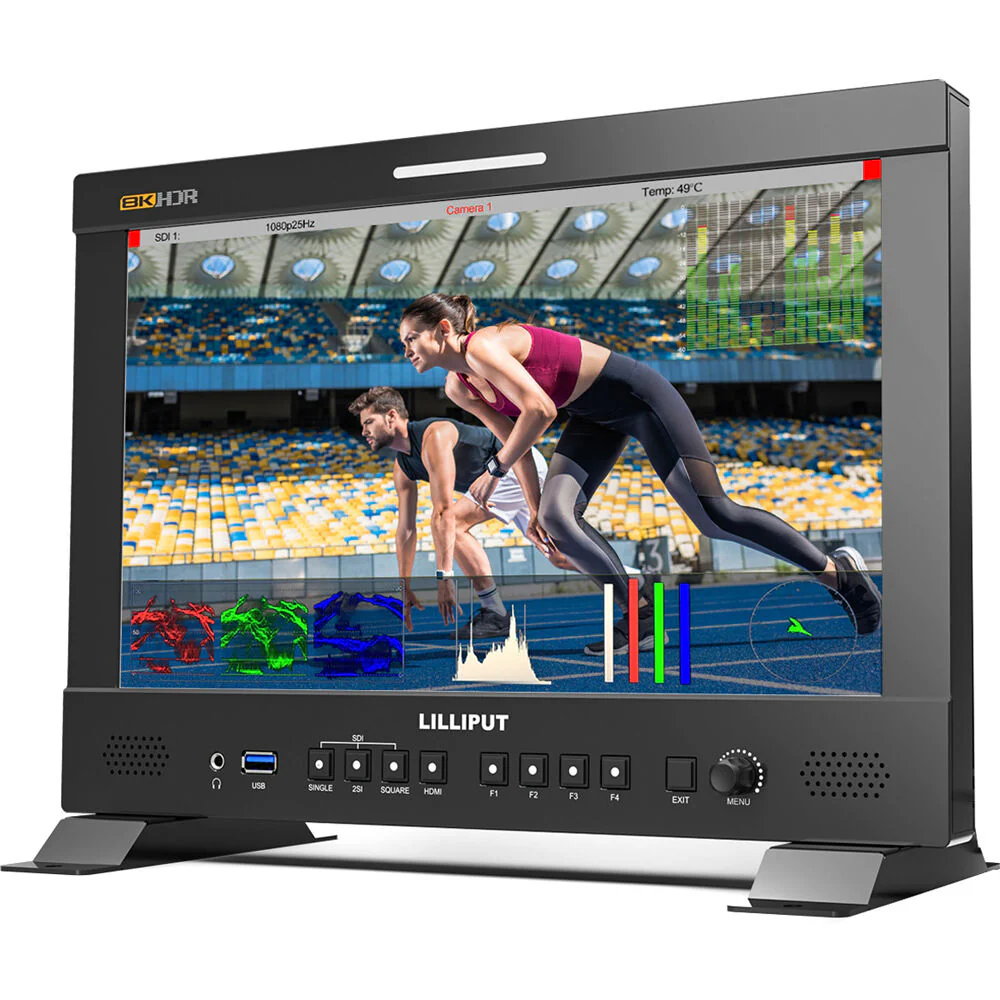

The Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor from Lilliput features a 13.3" native 3840 x 2160 resolution display with a V-mount battery plate, useful for both studio and field situations. The monitor features one HDMI 2.0 input and four 12G-SDI inputs, allowing for single-, dual-, and quad-link SDI input of up to 8K resolution video. In addition, the monitor supports an optional 12G SFP+ card, so you can display images over fiber on this monitor. The monitor also features loop-through HDMI and 12G-SDI outputs to pass the signal downstream.

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and 3D-LUTs. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

Features
Monitoring Tools
  • Peaking
  • Check field
  • Image rotation/flip
  • Overscan
  • Underscan
  • Image freeze
  • Pixel-to-pixel
  • False color
  • Exposure
  • Histogram
  • Timecode (SDI-only)
  • Aspect ratio selection
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment
HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front-panel USB port.
Supported Log Formats
SLog2, SLog3, CLog, NLog, ARRILiog, JLog, and User
Supported HDR
ST2084 300/1000/10000/HLG
Audio
The monitor can display the Lissajous shape, most useful when used in audio postproduction work for detecting phase variance.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four monitoring tools on and off without venturing into the monitor's menu system.
Remote Control
The monitor supports RS-422 via discrete in and out RJ45 LAN connectors. This allows you to control the monitor from computer applications as well as link multiple monitors together.
Calibration
The monitor supports color calibration in different color spaces, such as Rec. 709, NTSC, and DCI-P3, as well as using an optional PRO/LTE version of ColorSpace CMS by Light Illusion, to ensure your monitor is displaying your image accurately.
Fiber
An integrated slot accepts an optional 12G SFP+ module, should you require an SFP+ fiber connection.

Items Included

  • Lilliput Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor (V-Mount)
  • Power Adapter
  • V-Mount Battery Plate
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Lilliput Q13-8K Specs

    Key Specs
    Display Size
    13.3" / 33.8 cm
    Native Resolution
    3840 x 2160
    Touchscreen
    No
    HDR Support
    Yes, Hybrid Log Gamma
    Video I/O
    4x BNC (12G-SDI) Input
    1x HDMI 2.0 Input
    4x BNC (12G-SDI) Output
    1x HDMI 2.0 Output
    Media/Memory Card Slot
    No
    Video Format
    SDI
    8K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    HDMI
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    Fiber
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    Built-In Battery
    Yes
    Battery Type
    1x V-Mount
    Power Consumption
    36 W
    Display
    Panel Type
    LCD
    Display Size
    13.3" / 33.8 cm
    Native Resolution
    3840 x 2160
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178°
    Vertical: 178°
    Touchscreen
    No
    Maximum Brightness
    300 nits / cd/m2
    Contrast Ratio
    1000:1
    HDR Support
    Yes, Hybrid Log Gamma
    Pixels Per Inch (ppi)
    331 ppi
    LUT Support
    Yes
    Image Controls
    False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra

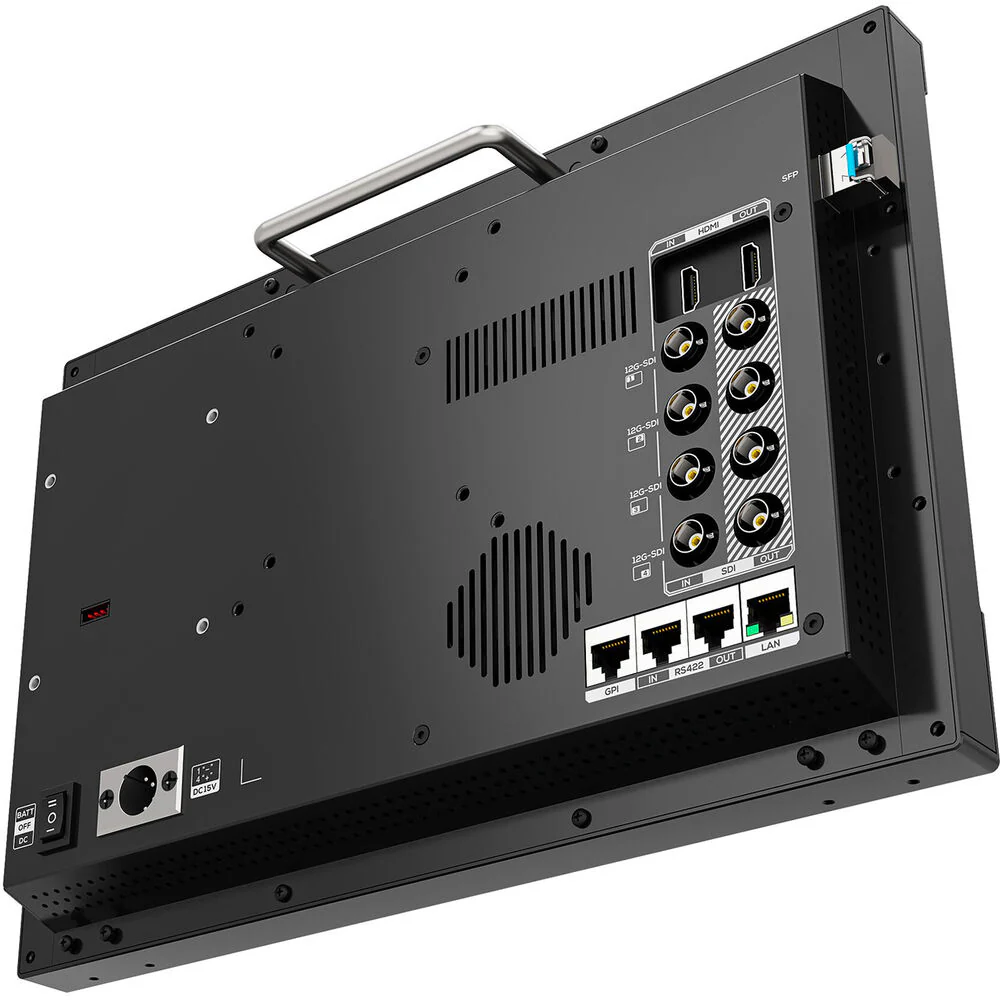

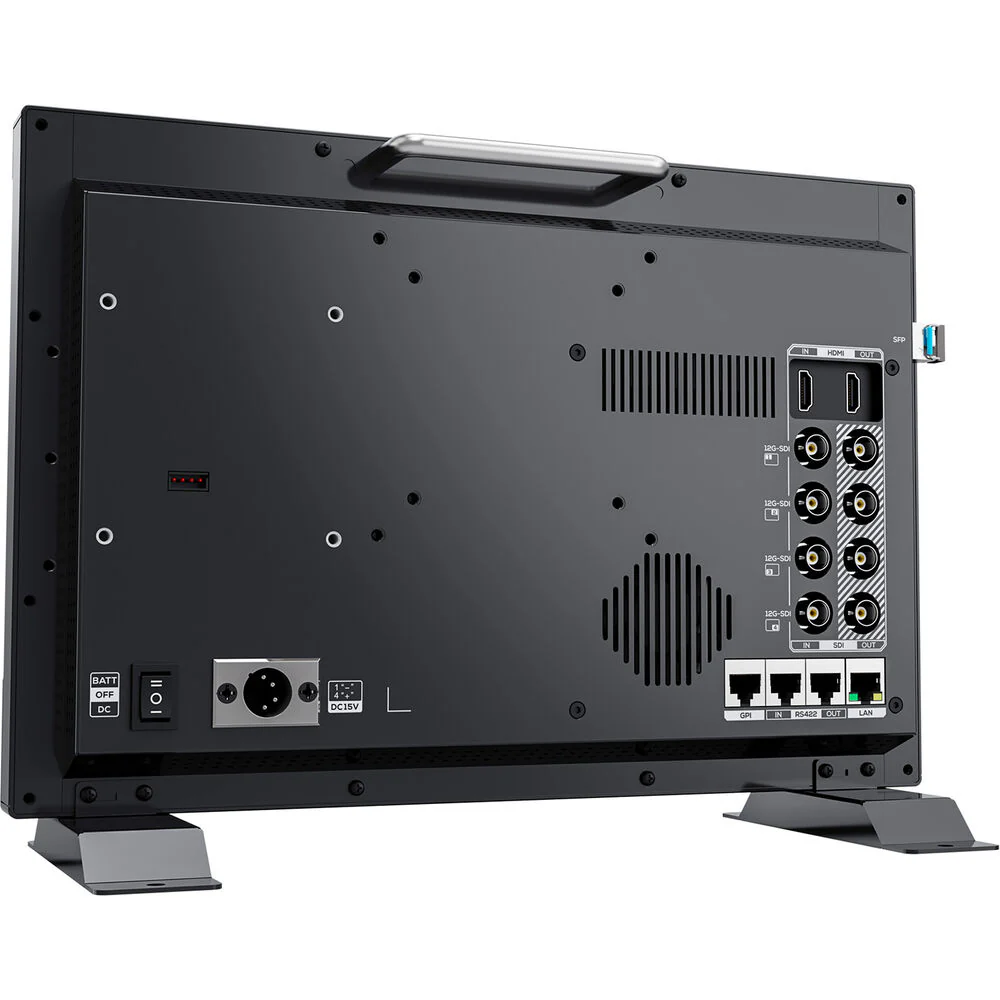

    Inputs/Outputs
    Video I/O
    4x BNC (12G-SDI) Input
    1x HDMI 2.0 Input
    4x BNC (12G-SDI) Output
    1x HDMI 2.0 Output
    Embedded Audio
    SDI: 16-Channel
    HDMI: 8-Channel
    Audio I/O
    1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    Stereo
    Power I/O
    1x XLR 4-Pin Input
    Other I/O
    1x USB-A (LUT Upload)
    1x RJ45 (GPI) Input
    1x RJ45 (RS-422) Input
    1x RJ45 (RS-422) Output
    1x RJ45 (LAN) Input/Output
    Expansion Slots
    1x SFP+ Slot
    Media/Memory Card Slot
    No
    Wi-Fi
    No
    Bluetooth
    No
    Mobile App Compatible
    No
    Format Support
    Video Format
    SDI
    8K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    HDMI
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    Fiber
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    Gamma Curve
    Canon Log, DCI-P3, HDR-HLG, JVC J-Log, Nikon N-Log, Rec709, Sony S-Log 2, Sony S-Log 3, Standard
    Power
    Input Power
    12 to 24 VDC
    Built-In Battery
    Yes
    Battery Type
    1x V-Mount
    Power Consumption
    36 W
    General
    Environmental Resistance
    No
    Operating Conditions
    32 to 122°F / 0 to 50°C
    Storage Conditions
    -4 to 140°F / -20 to 60°C
    Material of Construction
    Metal
    Dimensions
    13.4 x 9.2 x 1.8" / 340 x 232.8 x 46 mm
    Weight
    5.3 lb / 2.4 kg
    Packaging Info
    Package Weight
    12.205 lb
    Box Dimensions (LxWxH)
    17.6 x 15.4 x 7.8"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
