Lilliput Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)
HomeStore

Lilliput Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)

Lilliput Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)

$786.40

Original: $2,621.32

-70%
Lilliput Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)—

$2,621.32

$786.40

The Story

Lilliput Q13 Overview

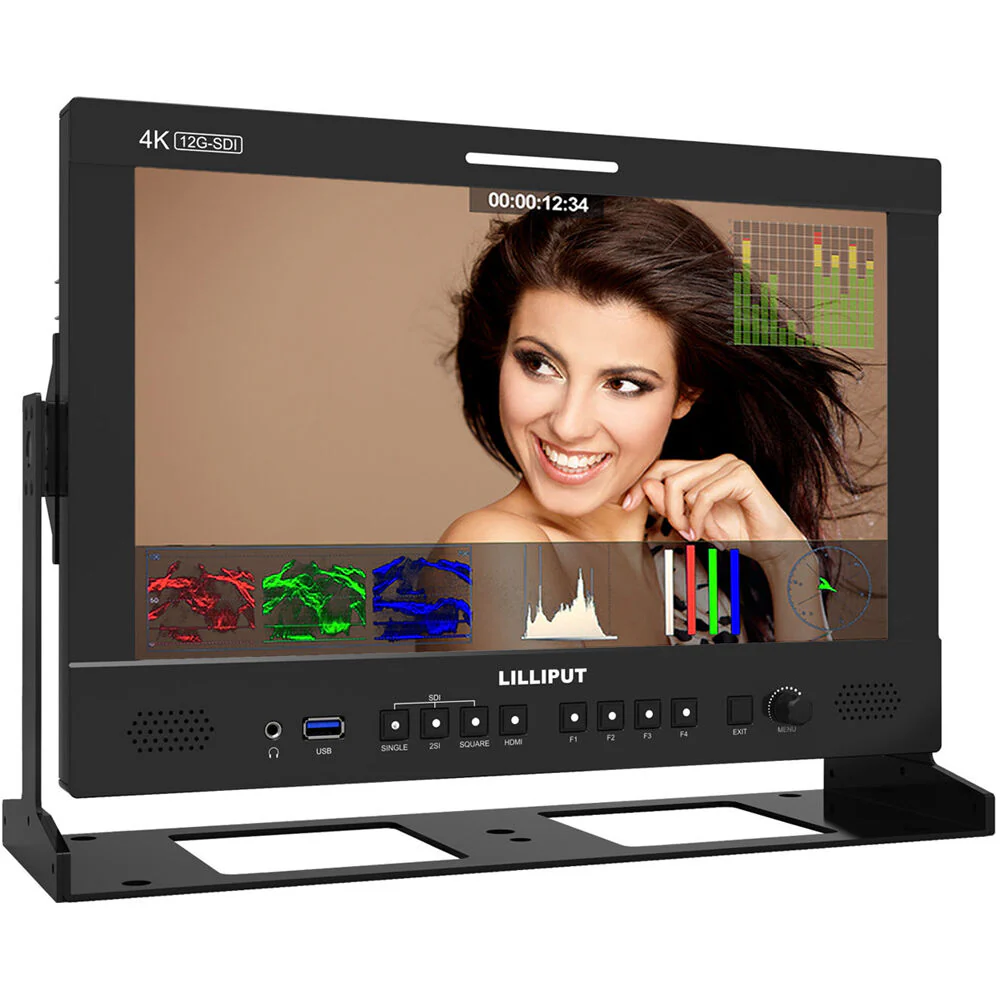

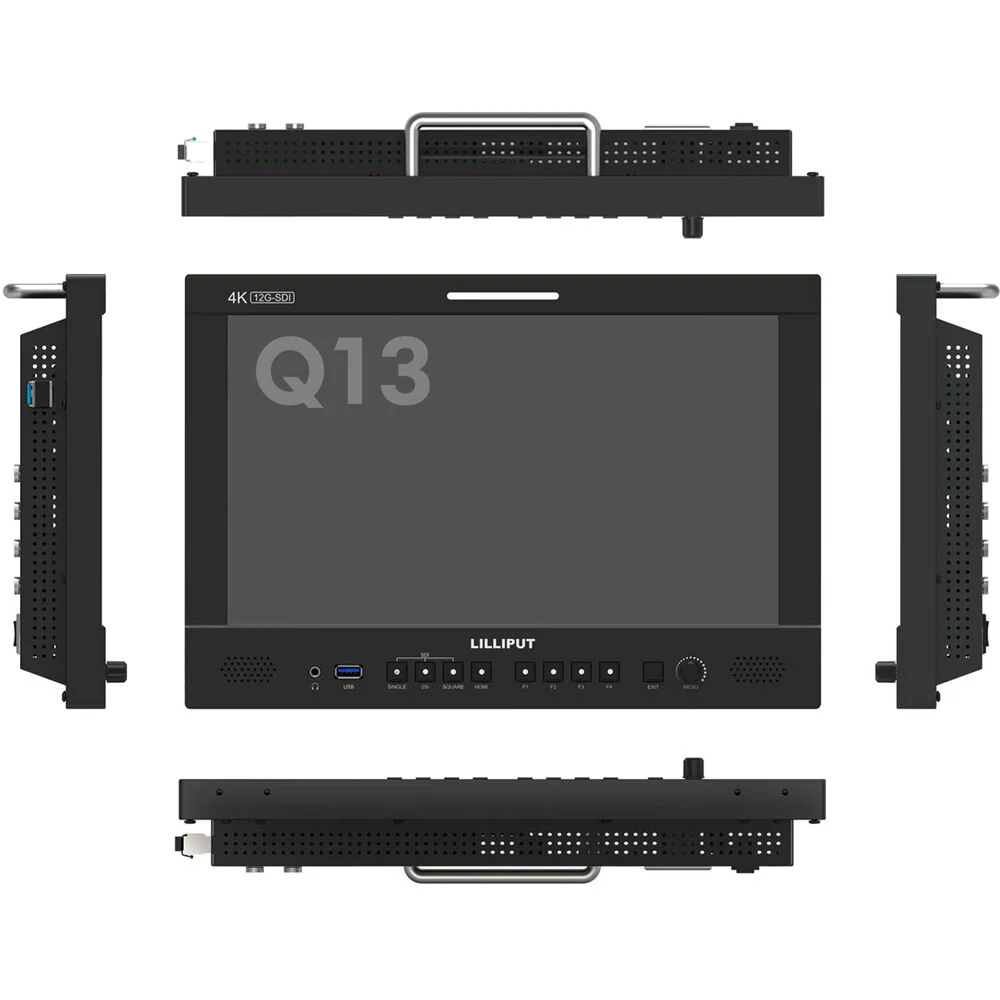

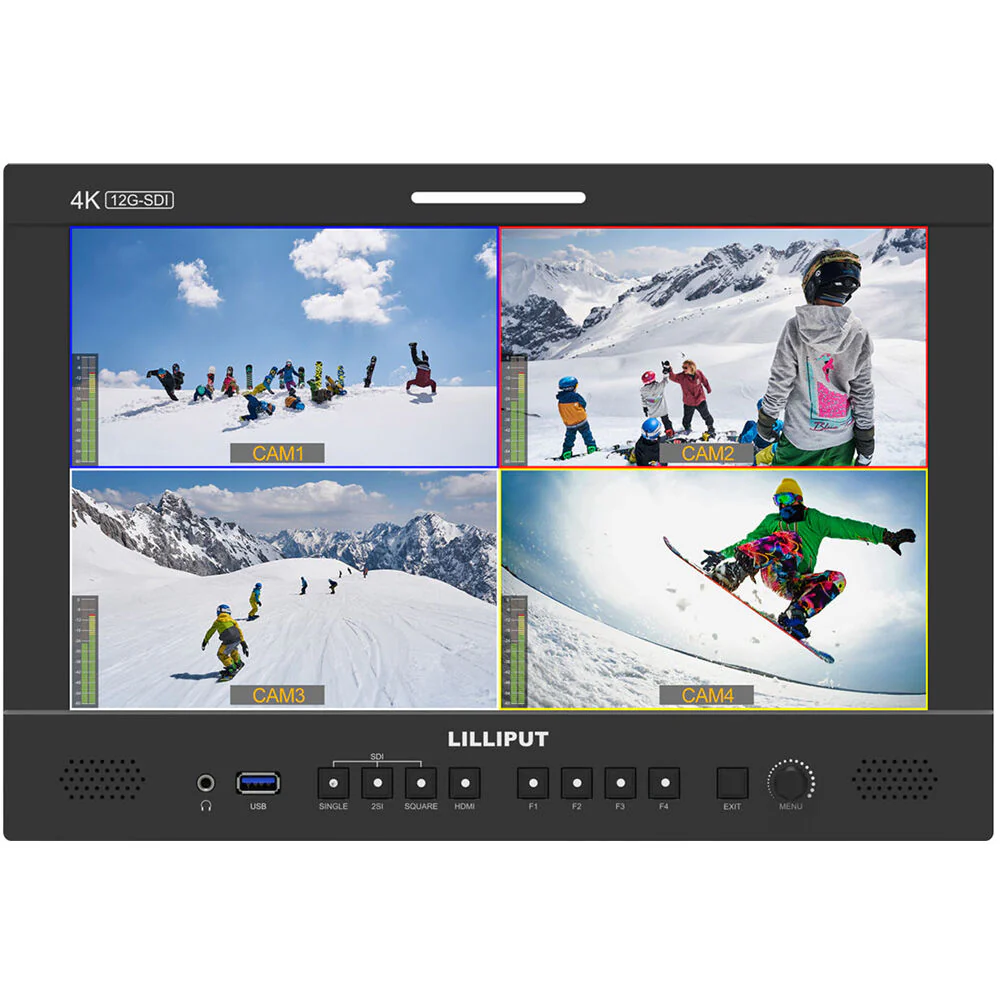

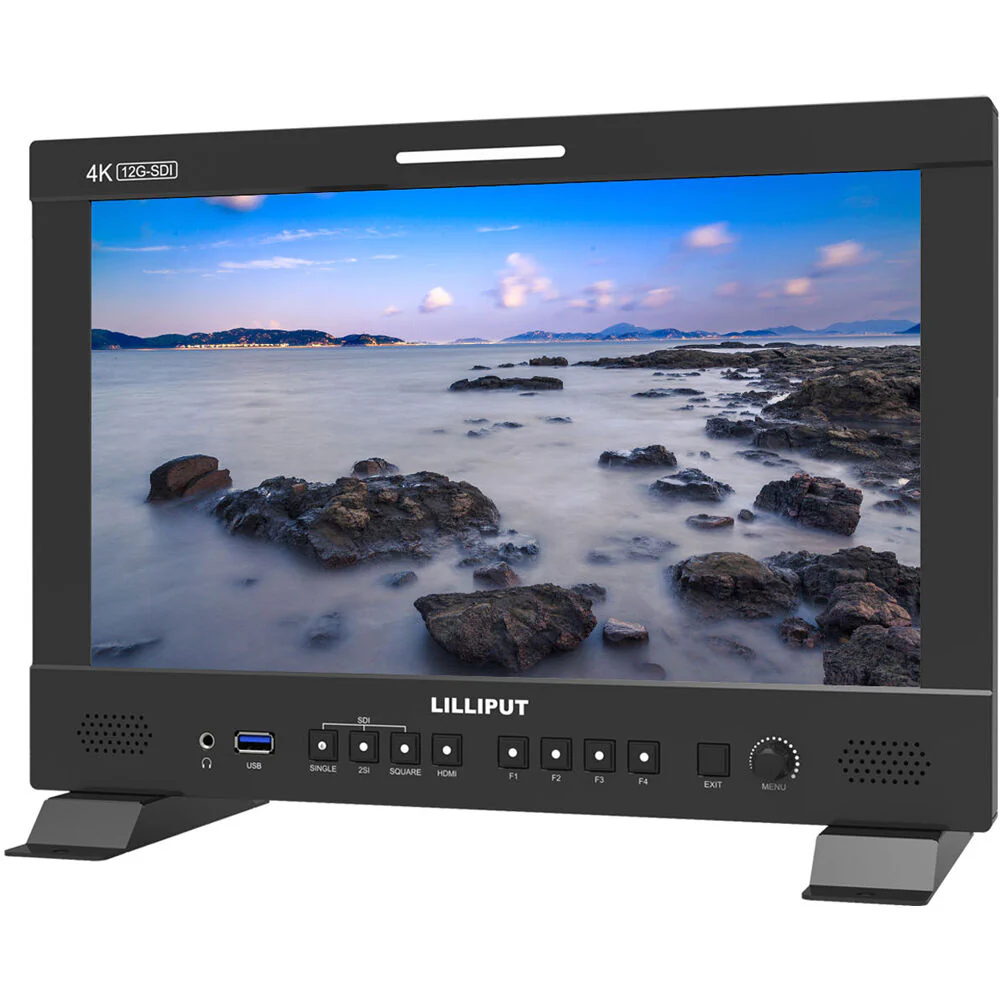

The Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor from Lilliput is a 13.3" broadcast studio and field monitor with a Gold mount battery plate and a native resolution of 3840 x 2160. It has the capability of supporting up to DCI 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1000:1 contrast ratio, a viewing angle of 178°, and 300 cd/m² brightness.

The Q13 features an HDMI 2.0 input and HDMI loop-through output, as well as two 12G-SDI and two 3G-SDI inputs with respective 12G-SDI and 3G-SDI outputs that support single-link, dual-link, or quad-link 12G-SDI signaling. The monitor supports HDR color spaces, audio vectoring, and accurate color calibration. You can also load custom 3D LUTs for quick access to a variety of color reference options. Other features include tally, quad-split multiview, stereo speakers, and headphone output. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a Gold mount battery using the included battery plate.

Features
Monitoring Tools
  • Peaking
  • Check field
  • Image freeze
  • Pixel-to-pixel
  • False color
  • Exposure
  • Histogram
  • Timecode
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment
HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.
Supported Log Formats
SLog2, SLog3, CLog, NLog, ARRILiog, JLog, and User.
Supported HDR
ST2084 300/1000/10000/HLG.
Audio Vector
The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.
Remote Control
The monitor supports RS-422 via discrete in and out RJ45 connectors as well as LAN and GPI ports. This allows you to control the monitor from computer applications, as well as link multiple monitors together.
Accurate Color Calibration
The monitor supports color calibration to ensure your monitor is displaying your image accurately.
Fiber Slot
An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.

In the Box

  • Lilliput Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)
  • Gold Mount Battery Plate
  • Power Adapter
  • VESA Mount Plate
  • Base Bracket
  • USB Flash Drive
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Lilliput Q13Specs

    Key Specs
    Display Size
    13.3" / 33.8 cm
    Native Resolution
    3840 x 2160
    Touchscreen
    No
    HDR Support
    No
    Video I/O
    2x BNC (12G-SDI) Input
    2x BNC (3G-SDI) Input
    2x BNC (12G-SDI) Output
    2x BNC (3G-SDI) Output
    1x HDMI 2.0 Input
    1x HDMI 2.0 Output
    Media/Memory Card Slot
    No
    Video Format
    HDMI/SDI
    DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/50
    720p: 60/50
    Fiber
    DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/50
    720p: 60/59.94/50
    Battery Type
    1x Gold Mount
    Power Consumption
    31.5 W
    Display
    Panel Type
    LCD
    Display Size
    13.3" / 33.8 cm
    Native Resolution
    3840 x 2160
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178°
    Vertical: 178°
    Touchscreen
    No
    Maximum Brightness
    300 nits / cd/m2
    Contrast Ratio
    1000:1
    HDR Support
    No
    Pixels Per Inch (ppi)
    331 ppi
    Image Controls
    Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Overscan, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform

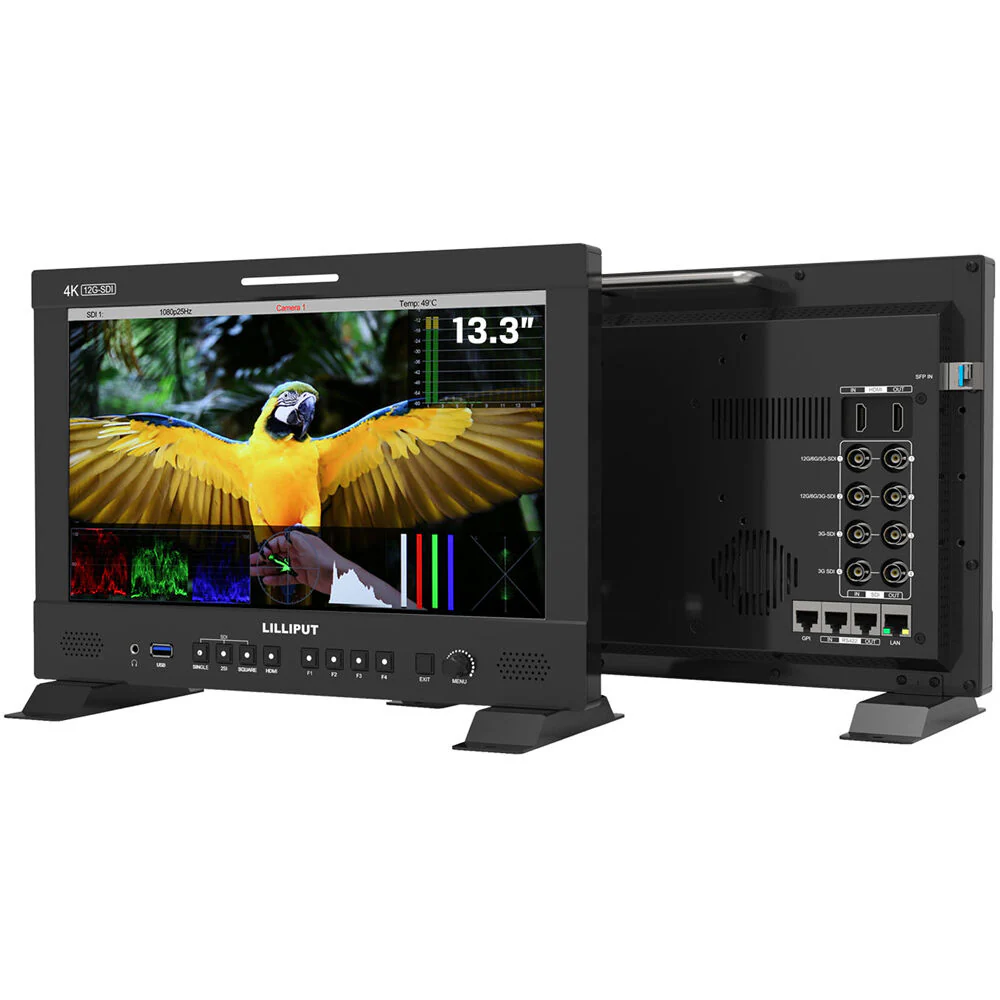

    Inputs/Outputs
    Video I/O
    2x BNC (12G-SDI) Input
    2x BNC (3G-SDI) Input
    2x BNC (12G-SDI) Output
    2x BNC (3G-SDI) Output
    1x HDMI 2.0 Input
    1x HDMI 2.0 Output
    Embedded Audio
    SDI: 16-Channel
    HDMI: 8-Channel
    Audio I/O
    1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    Stereo
    Power I/O
    1x XLR 4-Pin Input
    1x Unspecified 4-Pin Input
    Other I/O
    1x RJ45 (GPI) Input
    1x RJ45 (RS-422) Input
    1x RJ45 (RS-422) Output
    1x RJ45 (LAN) Input
    1x USB-A (Firmware/LUT Upload)
    Expansion Slots
    1x SFP Slot
    Media/Memory Card Slot
    No
    Wi-Fi
    No
    Bluetooth
    No
    Mobile App Compatible
    No
    Format Support
    Video Format
    HDMI/SDI
    DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/50
    720p: 60/50
    Fiber
    DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/50
    720p: 60/59.94/50
    Gamma Curve
    ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3
    Video Standard Compliance
    SMPTE ST-2084
    Power
    Input Power
    12 to 24 VDC
    Battery Type
    1x Gold Mount
    Power Consumption
    31.5 W
    Mounting
    Mounting-Hole Pattern
    75 x 75 mm, 100 x 100 mm
    General
    Operating Conditions
    32 to 122°F / 0 to 50°C
    Storage Conditions
    -4 to 140°F / -20 to 60°C
    Dimensions
    13.4 x 9.2 x 1.8" / 340 x 233 x 46 mm
    Weight
    5.3 lb / 2.4 kg
    Packaging Info
    Package Weight
    10.025 lb
    Box Dimensions (LxWxH)
    18.2 x 15.9 x 7.1"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
