Lilliput 5" Touch On-Camera HDMI Monitor
HomeStore

Lilliput 5" Touch On-Camera HDMI Monitor

Lilliput 5" Touch On-Camera HDMI Monitor

$98.99

Original: $329.98

-70%
Lilliput 5" Touch On-Camera HDMI Monitor—

$329.98

$98.99

The Story

Lilliput T5 Overview

  • 1Description
  • 2Function Buttons
  • 3Touchscreen
  • 4Functions
  • 5LUTs

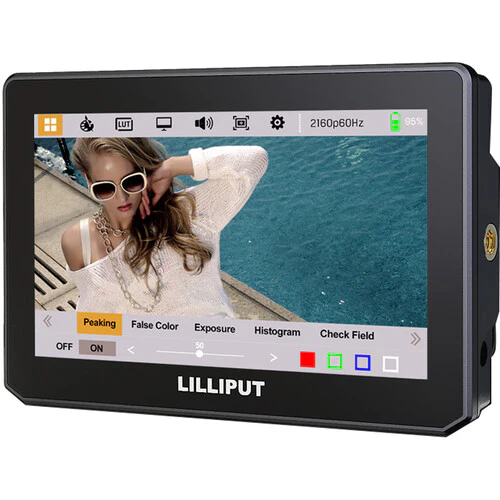

Compact, lightweight, and well suited for on-set work, the Lilliput 5" Touch On-Camera HDMI Monitor can handle DCI and UHD 4K as well as 1080p, 1080i, and 720p signals via its HDMI input. The monitor scales input video to its 1920 x 1080 IPS screen that provides you with a 1000:1 contrast ratio, 400 cd/m² maximum brightness, and a touchscreen interface.

A push-button power switch and five buttons sit along the top of the monitor providing access to the on-screen menu system. The IPS LCD touchscreen has a 170° angle of view, side-to-side and top-to-bottom, and allows you to control and adjust the monitor using capacitive touch control. The monitor supports image and camera-related display tools that help ensure your images are in focus and properly exposed. Three 1/4"-20 threaded mounting holes enable mounting the monitor on your camera in a variety of positions.

Function Buttons

The five control buttons on top of the monitor allow you to navigate the on-screen menu system. A sixth button (red) powers the monitor on and off and activates the touch switch.

Touchscreen

The monitor features a touchscreen that allows you to access the monitor's signal status, menu settings, and function displays.

Functions

The monitor supports the following:

  • Audio level display
  • Histogram
  • False color
  • User settable markers
  • Focus peaking
  • Zebra bars
  • Check field
  • Aspect ratio
  • Zoom
  • 3D LUT import (through the USB port)
  • HDR
  • Pixel zoom
  • H/V delay
  • Image flip
  • One-to-one pixel
  • Freeze frame

LUTs

You can apply a variety of real-time 3D LUTS.

In the Box

  • Lilliput 5" Touch On-Camera HDMI Monitor
  • HDMI Cable
  • Mini Cold Shoe Adapter
  • Sunshade Mounting Frame
  • Sunshade
  • Limited 1-Year Warranty

Not in the Box

    Table of Contents
    • Description
    • Function Buttons
    • Touchscreen
    • Functions
    • LUTs

    Lilliput T5 Specs

    Display
    Panel Type IPS-Type LCD
    Display Size 5.0" / 12.7 cm
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 170°
    Vertical: 170°
    Touchscreen Yes
    Maximum Brightness 400 cd/m2
    Contrast Ratio 1000:1
    Pixels Per Inch (ppi) 440 ppi
    Real-Time LUT Monitoring SDR, HDR
    Image Controls Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Zebra
    I/O
    Video 1 x HDMI Type A (HDMI 2.0) Input
    Embedded Audio HDMI: 8-Channel
    Audio 1 x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker None
    Power 1 x 5.5 mm Barrel (8 VDC) Output
    Other I/O 1 x USB 2.0 (USB Type-A) Input
    Media/Memory Card Slot None
    Wi-Fi None
    Format Support
    Video Format HDMI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    Gamma Curve HDR-HLG, ST2084, Sony S-Log, Sony S-Log 2, Sony S-Log 3
    Power
    DC Input Power 7 to 24 VDC
    Battery Type 1 x LP-E6, L-Series
    Power Consumption 12 W (Maximum)
    Mounting
    Mounting 3 x 1/4"-20 Female
    Environmental
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature 14 to 140°F / -10 to 60°C
    General
    Dimensions 5.2 x 3.4 x 0.7" / 132 x 86 x 18.5 mm
    Weight 7.1 oz / 200 g
    Warranty Length Limited 1-Year Warranty
    Packaging Info
    Package Weight 1.25 lb
    Box Dimensions (LxWxH) 6.5 x 5.1 x 3"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

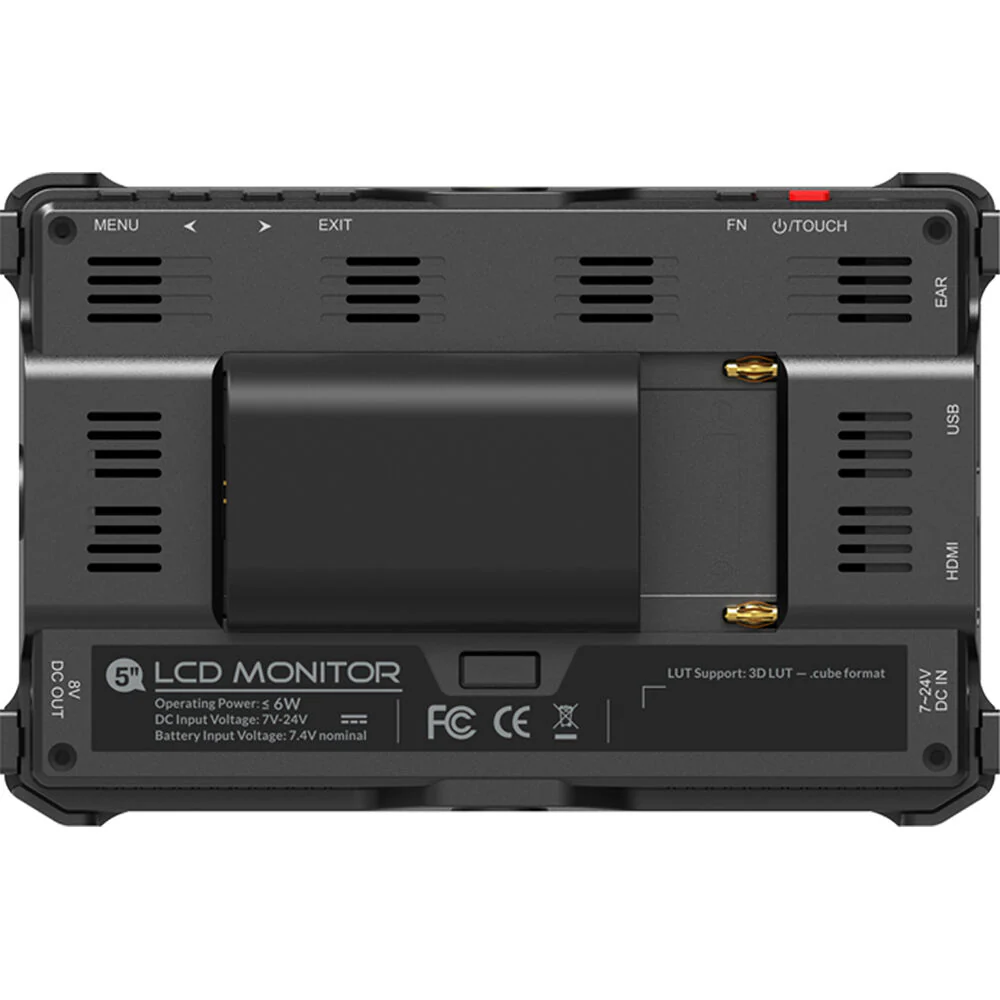

    Lilliput 5" Touch On-Camera HDMI Monitor - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

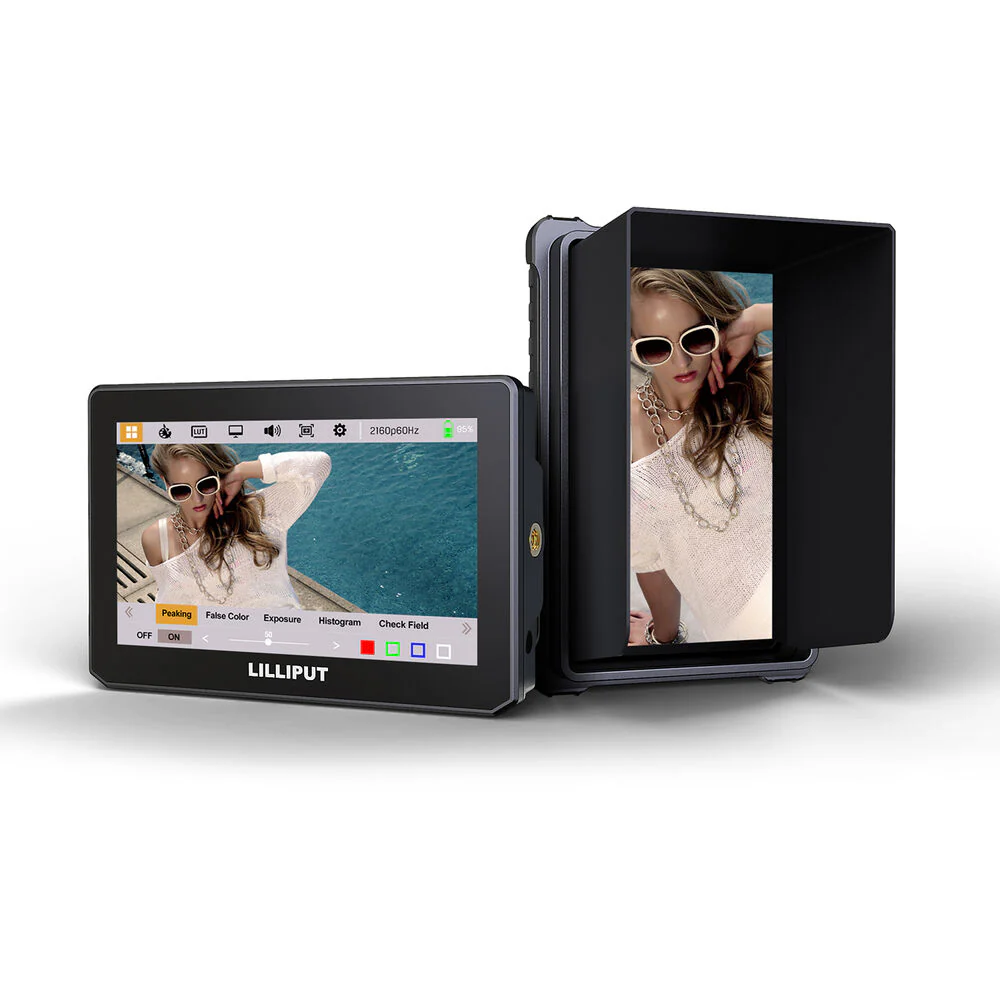

    Lilliput 5" Touch On-Camera HDMI Monitor - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

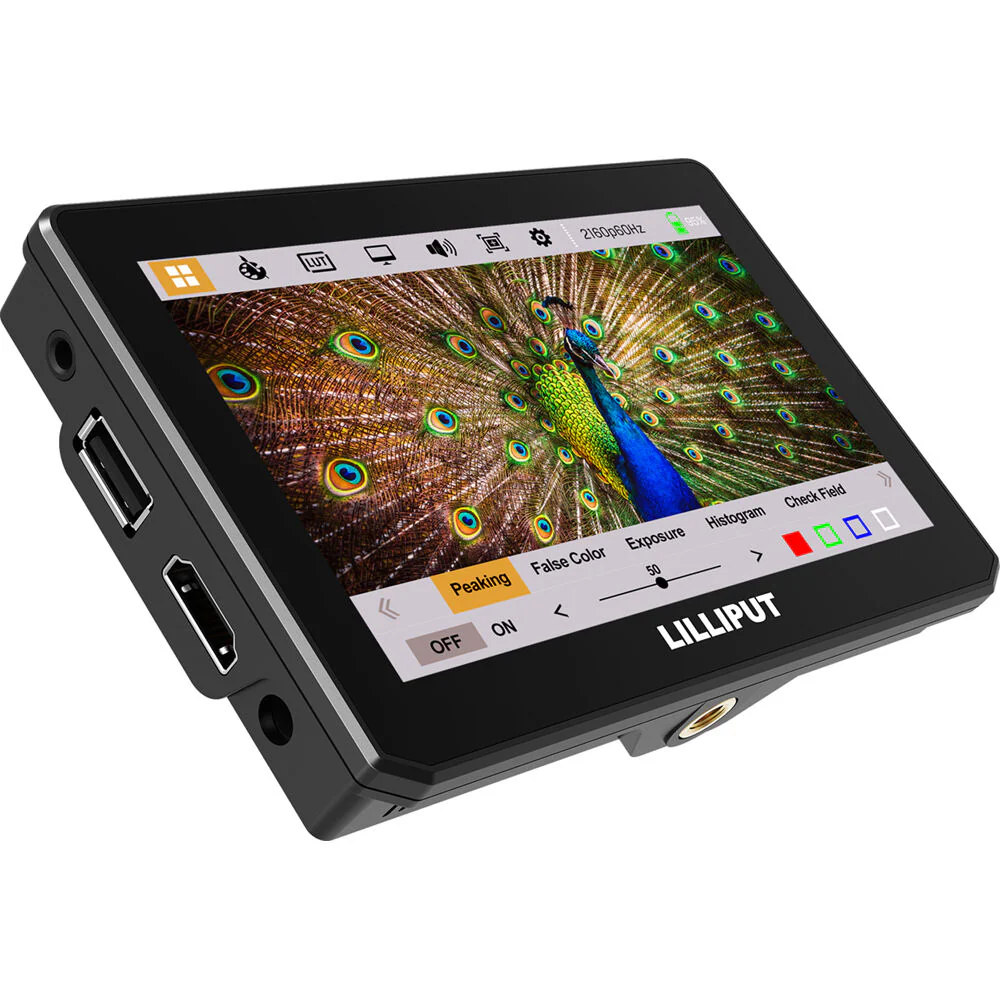

    Lilliput 5" Touch On-Camera HDMI Monitor - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

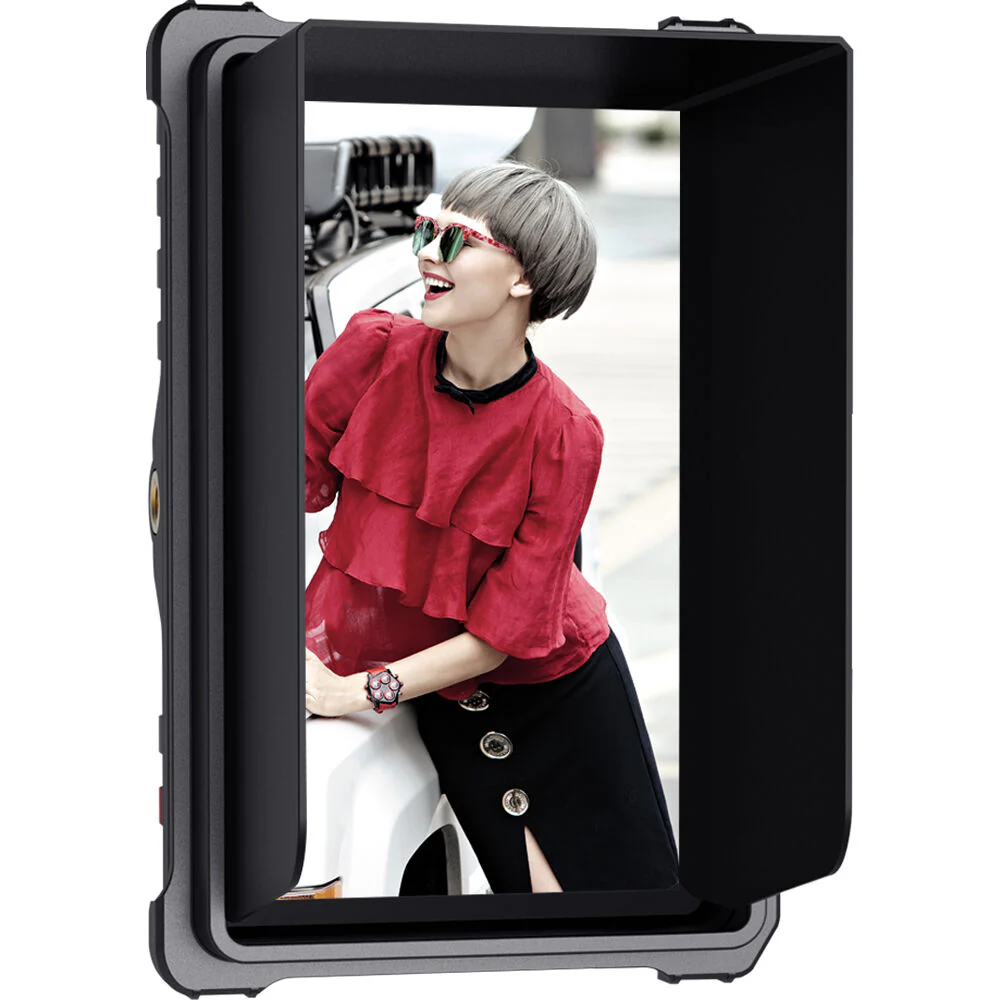

    Lilliput 5" Touch On-Camera HDMI Monitor - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

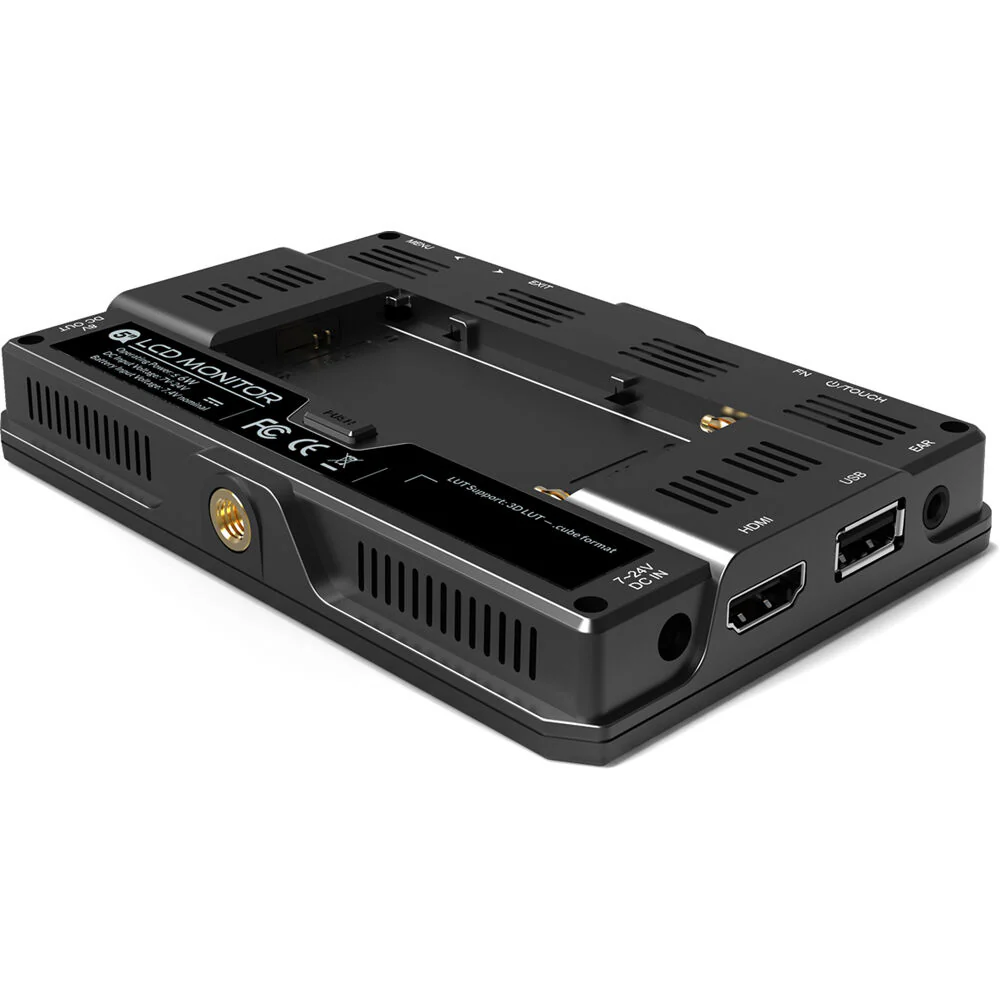

    Lilliput 5" Touch On-Camera HDMI Monitor - Image 6
