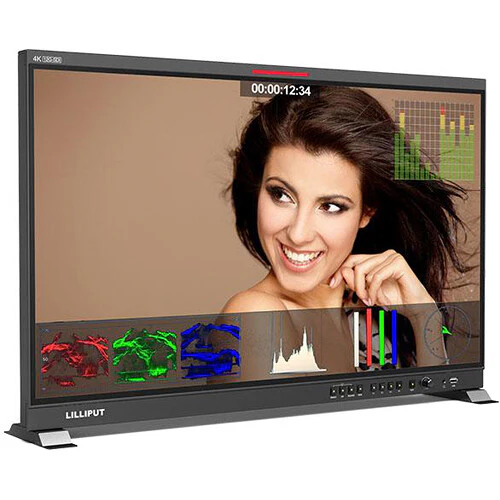

Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
HomeStore

Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)

Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)

$1,413.44

Original: $4,711.48

-70%
Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)—

$4,711.48

$1,413.44

The Story

Lilliput Q31 Overview

The Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor is a 31.5" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single-, dual-, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

Features

Monitoring Tools

  • Peaking
  • Check field
  • Image rotation/flip
  • Overscan
  • Underscan
  • Image freeze
  • Pixel-to-pixel
  • False color
  • Exposure
  • Histogram
  • Timecode (SDI-only)
  • Aspect ratio selection
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Supported Log Formats

SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.

Supported HDR

ST2084 300/1000/10000/HLG.

Audio

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration

The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.

In the Box

  • Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
  • V-Mount Battery Plate
  • Power Adapter
  • VESA Mount Plate
  • Base Bracket
  • USB Flash Disk
  • Limited 1-Year Warranty

    Lilliput Q31 Specs

    Display
    Display Size 31.5" / 80.0 cm
    Resolution 3840 x 2160
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Touchscreen No
    Maximum Brightness 350 cd/m2
    Contrast Ratio 1300:1
    HDR Compatibility Hybrid Log Gamma
    Pixels Per Inch (ppi) 139 ppi
    Real-Time LUT Monitoring HDR
    Image Controls Blue Only, Check Field, Color Temperature Selection, False Color, Focus Peaking, Green Only, H/V Delay, Histogram, Pixel-to-Pixel Zoom, Red Only, Scaling, Screen Markers, Screen Split - Half, Screen Split - Quarter, Underscan, Vectorscope, Waveform, Zebra
    I/O
    Video 1 x HDMI Type A (HDMI 2.0) Input
    2 x BNC (12G-SDI) Input
    2 x BNC (3G-SDI) Input
    1 x HDMI Type A (HDMI 2.0) Output
    2 x BNC (12G-SDI) Output
    2 x BNC (3G-SDI) Output
    Embedded Audio HDMI: 8-Channel
    SDI: 16-Channel
    Audio 1 x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker 2
    Power I/O 1 x XLR 4-Pin (24 VDC) Input
    Other I/O 1 x GPI (RJ45) Input
    1 x LAN (RJ45) Input
    1 x RS-422 (RJ45) Input
    1 x RS-422 (RJ45) Output
    1 x USB 2.0 (USB Type-A) Input
    Media/Memory Card Slot None
    Wi-Fi None
    Format Support
    Video Format HDMI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50
    SDI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    720p: 60/50
    Power
    DC Input Power 12 to 24 VDC at 1.2 A
    Battery Type 1 x V-Mount
    Power Consumption 65 W
    Environmental
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature 32 to 104°F / 0 to 40°C
    General
    Material of Construction Metal
    Dimensions 28.2 x 17.9 x 1.9" / 717.5 x 454.7 x 47.4 mm
    Weight 26.5 lb / 12 kg
    Packaging Info
    Package Weight 35 lb
    Box Dimensions (LxWxH) 33.4 x 23.1 x 6.4"

    Lilliput Q31 Reviews

    BEAUTIFUL STUDIO MONITOR!

    By Christopher
    Rated 5 out of 5
    Date: 2022-03-01

    amazing quality. pricey, yes ... but decently so. THE BEST BANG FOR YOUR BUCK if you need a true broadcast quality studio monitor!


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

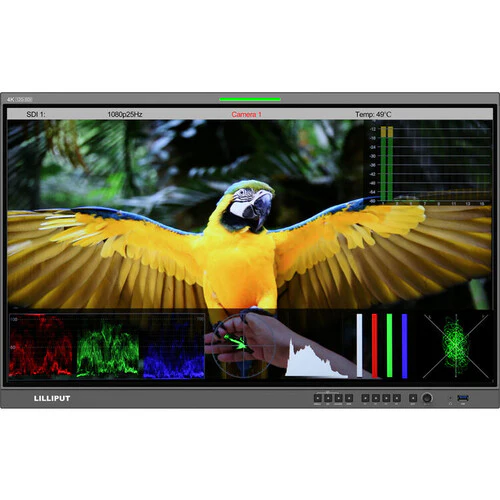

    Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

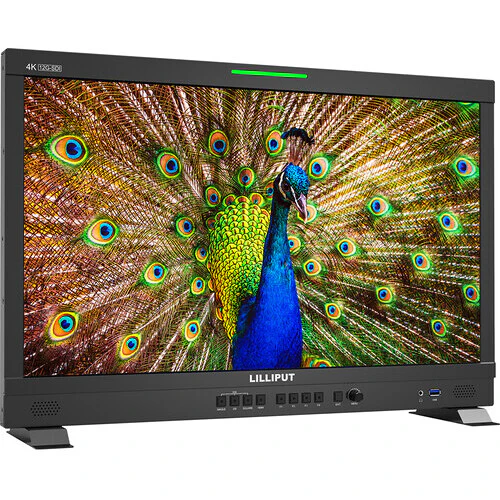

    Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

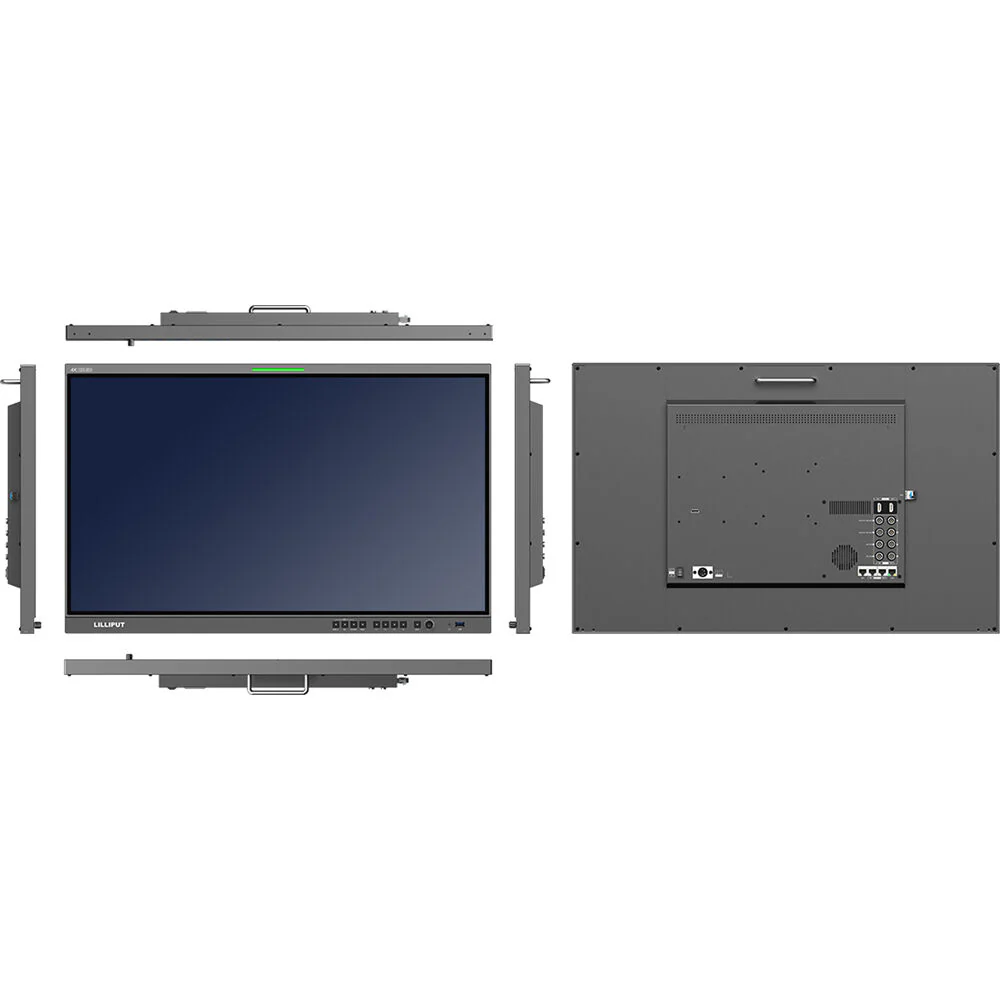

    Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount) - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

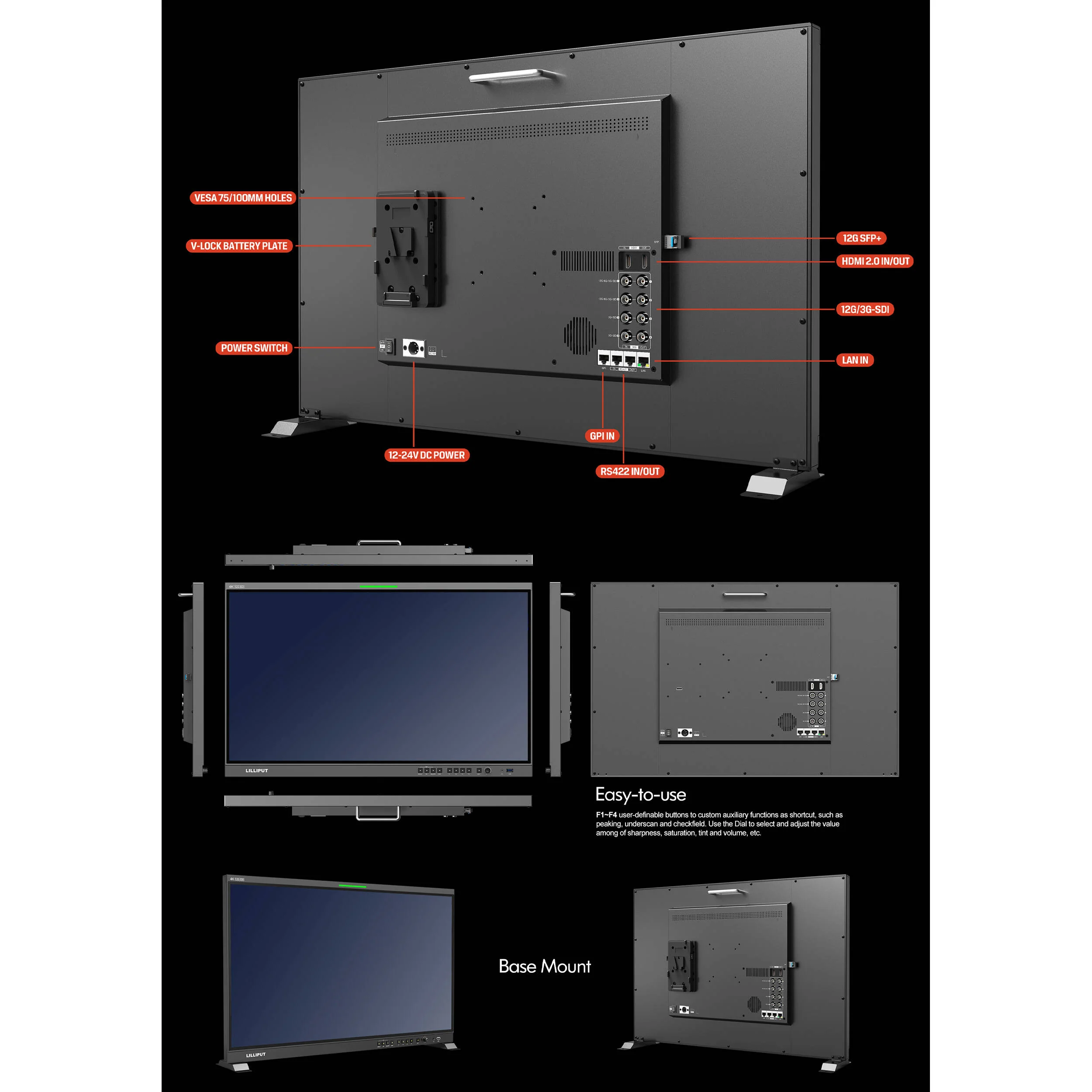

    Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount) - Image 5
