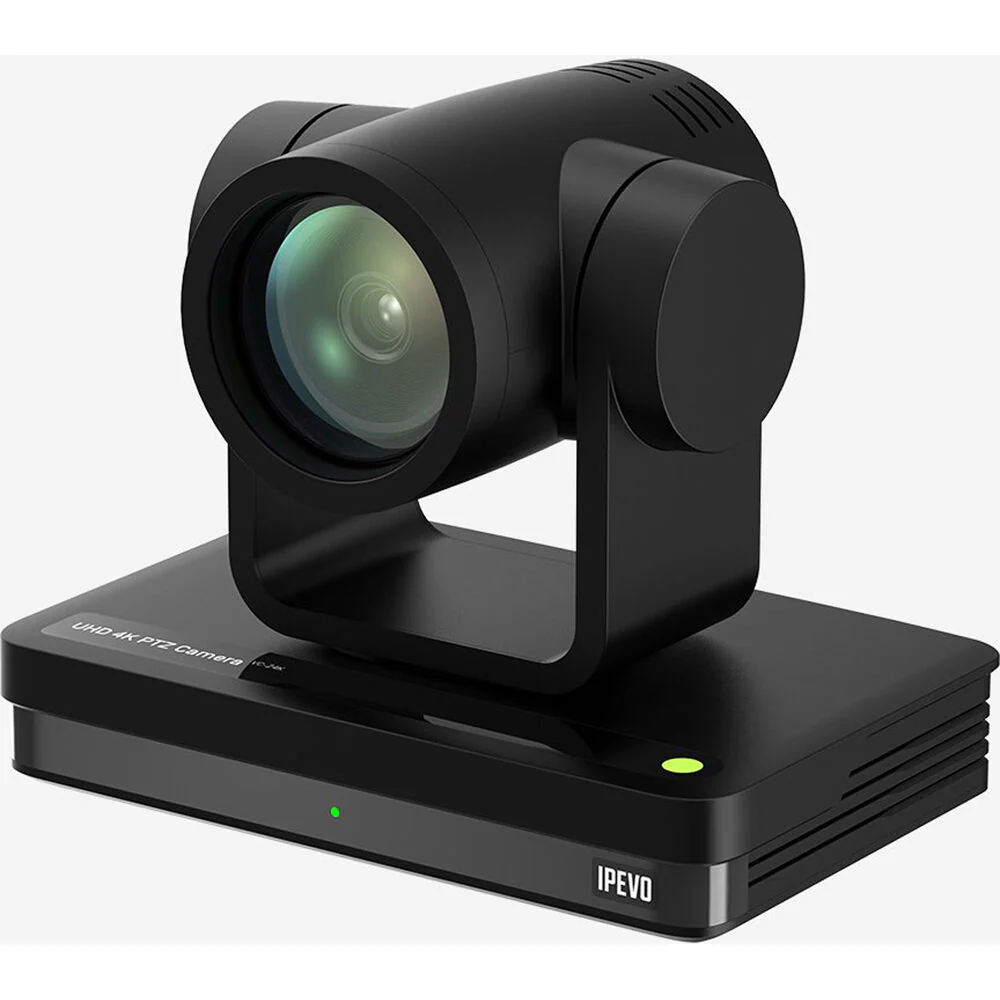

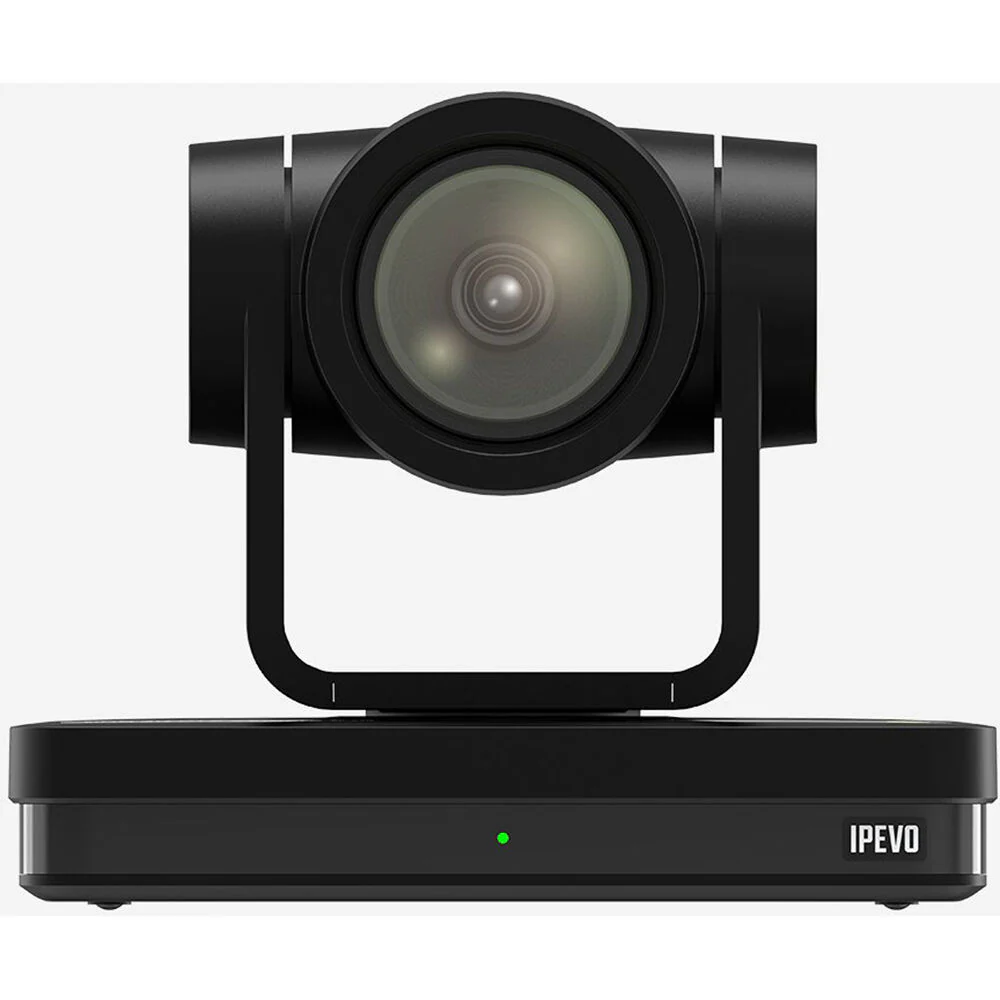

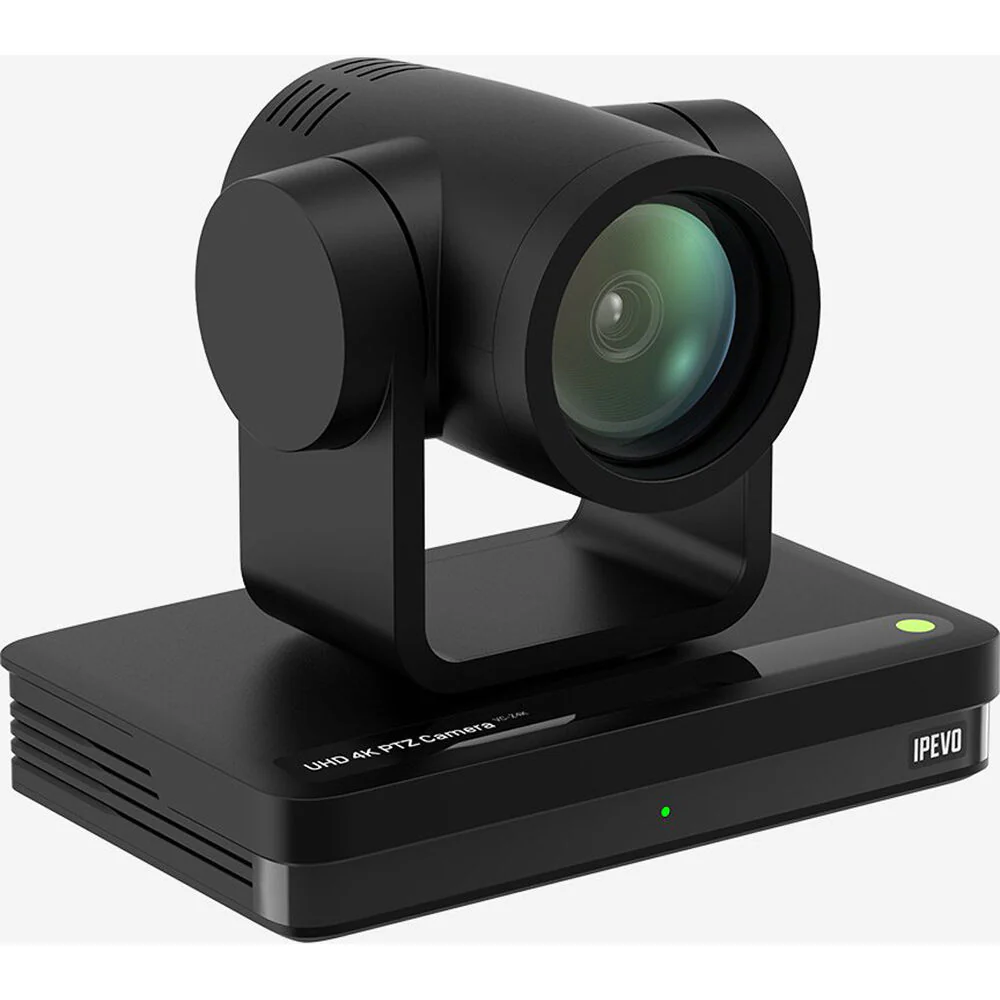

IPEVO VC-Z4K 4K AI Auto-Tracking PTZ Camera with 12x Optical Zoom (Black)

High-Resolution Recording and Streaming

The VC-Z4K features a 1/2.8" 8.29MP Sony CMOS sensor, which enables up to UHD 4K30 recording over USB and simultaneous 1080p 60 dual streams over SDI. The 12x optical zoom ensures optimal coverage in classrooms, places of worship, and other spaces within small institutions with its 70.9-6.5° field of view. Its coverage is further bolstered by its high-resolution sensor to a 15x digital zoom, while still retaining detail. The 2D/3D noise reduction ensures clarity in all kinds of lighting conditions, and efficient H.264/H.265 video compression delivers optimal image quality, even over low-bandwidth connections.

Pan, Tilt, and Zoom with AI-Powered Tracking

In addition to its robust zoom capabilities, the VC-Z4K has 340° of pan and 120° of tilt for maximum coverage of the scene. Combined with its AI-powered tracking features, users and organizations can save on additional personnel to control pan, tilt, and zoom during remote sessions. Automatically follow the speaker�s movements and whiteboard content with real-time and zone tracking functionality. Zone tracking gives users the option to set tracking zones to maintain focus during dynamic presentations within designated areas. Presenter tracking automatically tracks and zooms into the presenter, making it ideal for recording or livestreaming presentations and meetings. Included is an infrared remote allowing presenters to switch between tracking modes and ten preset angles on the fly. For advanced setups, users can access up to 255 configurable positions through the web control interface, assuring ideal coverage for diverse use cases.

Connectivity and Compatibility

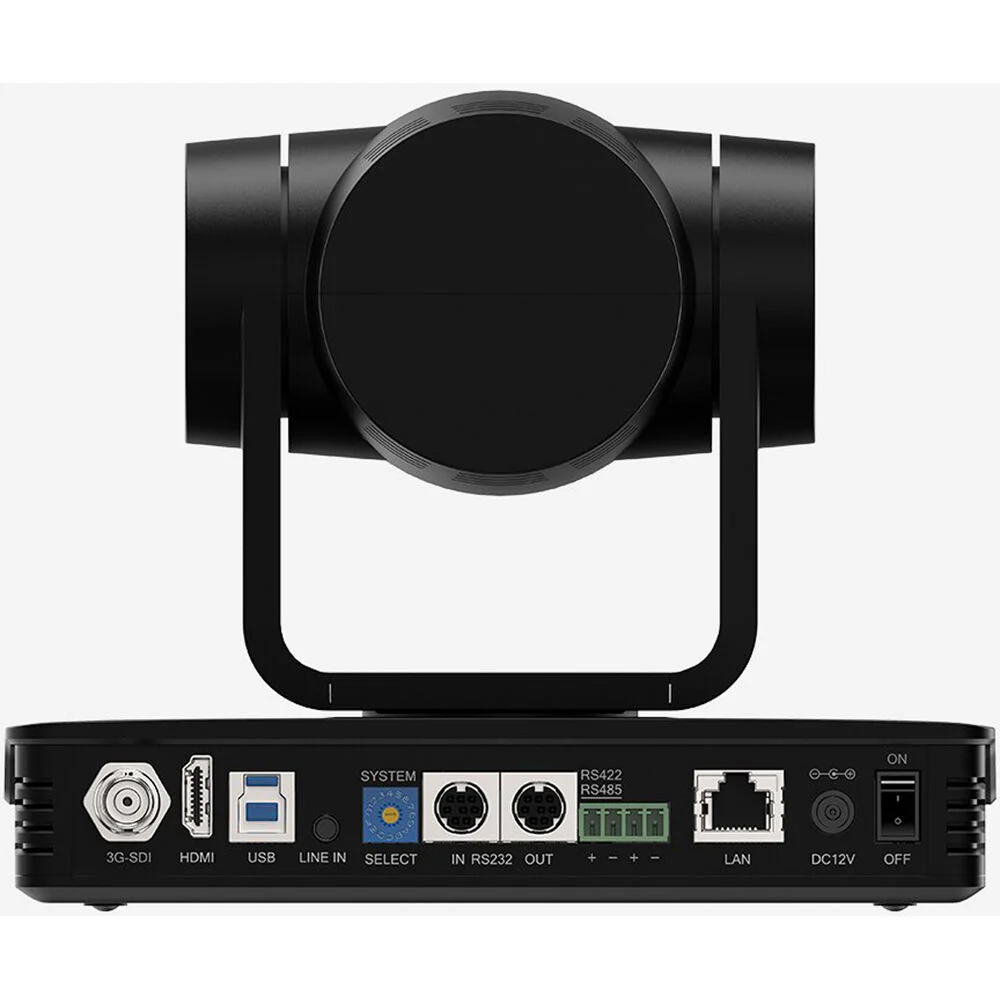

There are four video outputs on the back of the camera including HDMI, SDI, wired LAN with Power over Ethernet support, and USB 3.0 to ensure compatibility with Windows and Mac machines. Adjacent is a line input for audio, RS-232 input and output ports, and a RS-422 port that is compatible with the RS-485 standard to easily integrate into legacy wired control configurations.

The VC-Z4K can connect to streaming servers via the network, making it ideal for broadcast integration. It is compatible with most network control protocols including ONVIF, RTSP, RTMP, VISCA over IP, SRT, and more. On top of H.264/H.265 video compression, YUY2, MJPEG, and NV12 encoding are also supported to suit numerous platforms and deliveries. For video conferencing, this camera integrates seamlessly with software such as Microsoft Teams, Skype, Zoom, Google Meet, and more. For streamers and content creators, the camera connects with popular platforms such as OBS and YouTube.

IPEVO VC-Z4KSpecs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 8.29 Megapixel (3840 x 2160)
Shutter Speed	1/25 to 1/20000 Seconds in Video/Streaming Mode
Optical Zoom Ratio	12x
Max Digital Zoom	15x
External Recording Modes	SDI/BNC / HDMI / RJ45 / USB HD (1920 x 1080) up to 60.00 fps
Internal Recording Modes	UHD 4K (3840 x 2160) up to 30.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264, H.265, MJPEG, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 60p
Supported Control Protocols	IP IR RS-232 RS-422 RS-485 VISCA
PoE Support	PoE 802.3af
Mounting	1x 1/4"-20 Female for Ceiling/Wall

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 8.29 Megapixel (3840 x 2160)
Built-In ND Filter	No
Focus Control	Autofocus Manual Focus

Shutter Speed	1/25 to 1/20000 Seconds in Video/Streaming Mode
White Balance	Presets: Color Temperature, One Push, Manual, Auto

Focal Length	3.9 to 46.8mm
Optical Zoom Ratio	12x
Max Digital Zoom	15x
Field of View	Horizontal: 70.9 to 6.5°
Maximum Aperture	f/1.6 to 2.8

External Recording Modes	SDI/BNC / HDMI / RJ45 / USB HD (1920 x 1080) up to 60.00 fps
Internal Recording Modes	UHD 4K (3840 x 2160) up to 30.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264, H.265, MJPEG, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 60p
IP Multi-Stream Support	Simultaneous H.264, H.265, MJPEG, RTMP, RTSP: 1080p at 60p

Presets	255 via IP, IR, RS-232, VISCA
Supported Control Protocols	IP IR RS-232 RS-422 RS-485 VISCA

Video I/O	1x HDMI (Unspecified Signal) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x BNC (3G-SDI) Output 1x RJ45 (Unspecified Signal) Output
Audio I/O	1x 1/8" / 3.5 mm TRRS Headphone/Mic Line (Plug-in Power) Input on Camera Body
Other I/O	1x Mini-DIN 8-Pin (RS-232, RS-422, RS-485) Input 1x Mini-DIN 8-Pin (RS-232, RS-422, RS-485) Output

PoE Support	PoE 802.3af
Power I/O	1x DC (12VDC at 2.5 A) Input

Mounting	1x 1/4"-20 Female for Ceiling/Wall
Certifications	WEEE, RoHS
Operating Conditions	14 to 122°F / -10 to 50°C at 20 to 95% Humidity
Storage Conditions	14 to 158°F / -10 to 70°C
OS Compatibility	Windows 7 or Later / macOS 10.11 or Later
OS Compatibility	Windows 7 to 10 macOS 10.10 or Later

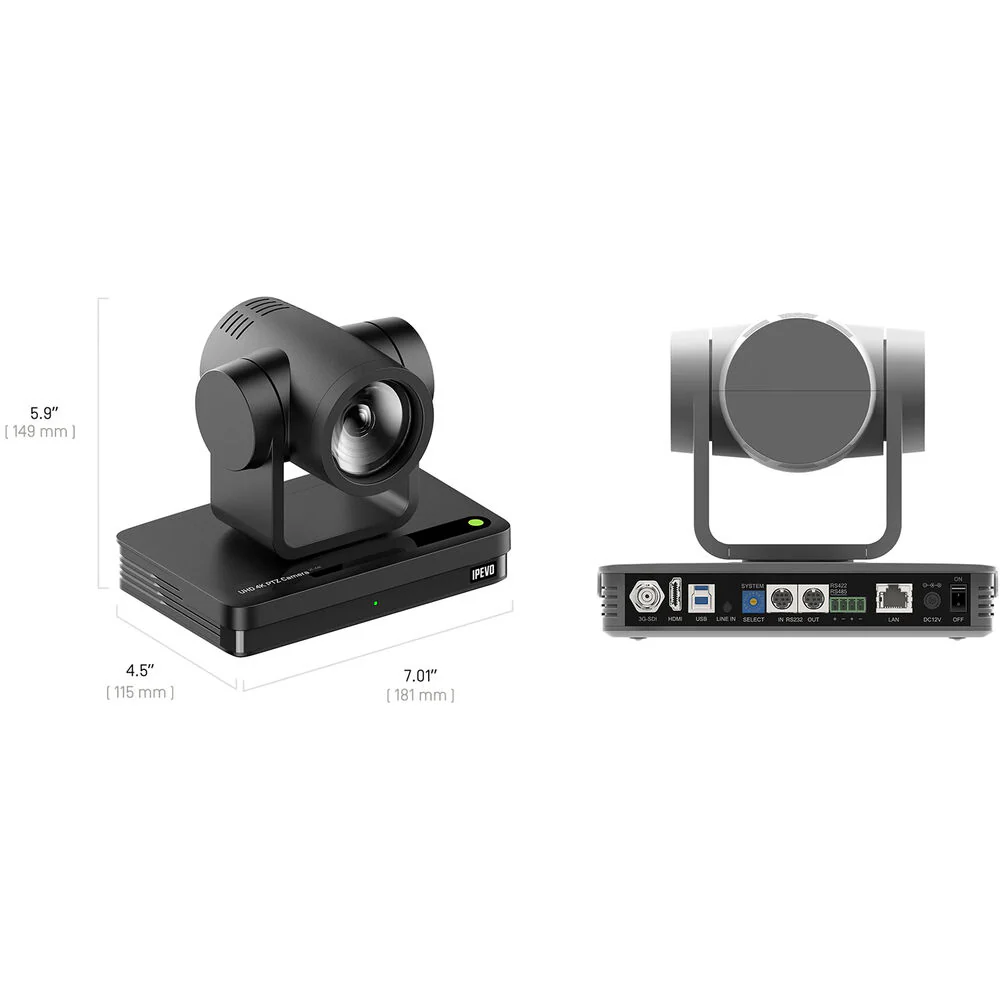

Dimensions (W x H x D)	4.5 x 5.9 x 7.1" / 11.4 x 15 x 18 cm
Weight	2.64 lb / 1.20 kg (Body Only)
