FeelWorld F7 Plus Overview

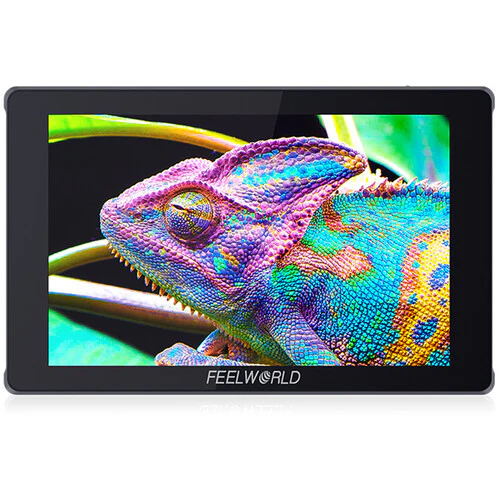

Monitor up to UHD 4K video with the F7 Plus 7" Touchscreen HDMI Field Monitor from Feelworld. Compact in design, this 7" display fits on top of your camera or handheld rig to provide crisp video monitoring with a 1920 x 1200 resolution. It features HDMI input and output that supports up to DCI/UHD 4K resolutions.

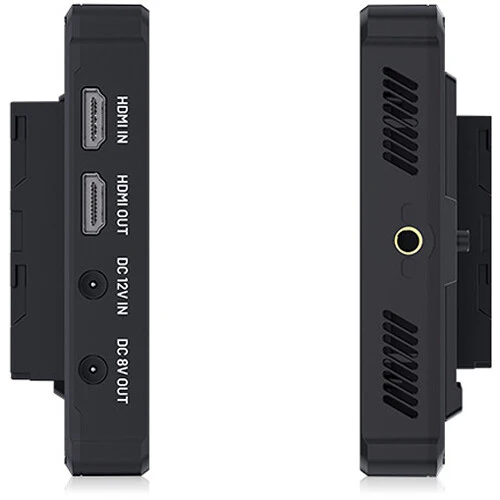

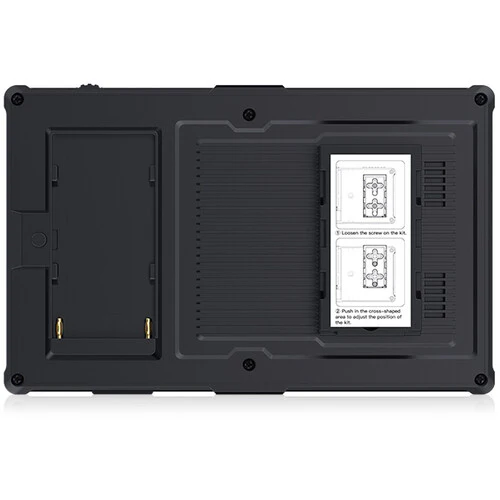

The monitor features an L-series battery plate on the back, and it can also be powered via USB-C or DC barrel inputs. There is also a DC barrel output to power your camera or accessories, and a mounting block on the back makes it easy to connect a wireless receiver to the back. There are numerous built-in image tools to ensure accuracy, such as vectorscope, histogram, and RGB parade.
- 7" touchscreen display
- 1920 x 1200 resolution
- HDMI 2.0 input and output up to DCI/UHD 4K resolutions
- HDR support
- 3.5mm headphone jack
- 5V USB-C and 12V 2.1mm barrel power inputs
- 8V 2.1mm barrel power output
- Rear L-series battery plate
- Accessory installation block on the back
- Support for 11 languages
- 1/4"-20 mounting thread
- SD card slot for loading 3D LUTs
- Histogram
- Vectorscope
- Waveform
- Audio level meters
- Focus peaking
- False color
- Overscan/underscan
- Anamorphic de-squeeze
- Image flip
- Nine grid
- Image freeze
- 1:1 pixel mapping
- Frame markers
- Focus assist
- Check field
- Exposure/zebra
Items Included
- FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
- Mini HDMI to HDMI Cable
- Sunshade
- Shoe Mount
- HDMI Plug Lock
- L-Series Battery Plate
- Limited 1-Year Manufacturer Warranty
Additional Resources
FeelWorld F7 Plus Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]
|
| Video Format |
HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| Battery Type |
1x L-Series
|
| Power Consumption |
15 W
|
| Mounting |
1x Anti-Twist 1/4"-20 Female (Top)
1x Anti-Twist 1/4"-20 Female (Right) 1x Anti-Twist 1/4"-20 Female (Bottom) |
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 160° (80/80)
Vertical: 160° (80/80) |
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
323 ppi
|
| Color Gamut |
100% Rec. 709
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel 5.5 mm (12 VDC) Input
1x USB-C (2 A / 5 VDC) Input 1x Barrel 5.5 mm (8 VDC) Output |
| Other I/O |
No
|
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| Input Power |
7 to 24 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
15 W
|
| Mounting |
1x Anti-Twist 1/4"-20 Female (Top)
1x Anti-Twist 1/4"-20 Female (Right) 1x Anti-Twist 1/4"-20 Female (Bottom) |
| Operating Conditions |
-4 to 122°F / -20 to 50°C
|
| Storage Conditions |
-22 to 140°F / -30 to 60°C
|
| Dimensions |
7.3 x 4.6 x 0.8" / 186 x 117 x 21 mm
|
| Weight |
20.9 lb / 9.5 kg
|
| Package Weight |
1.85 lb
|
| Box Dimensions (LxWxH) |
9 x 7 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
