DVDO C3-1 Overview

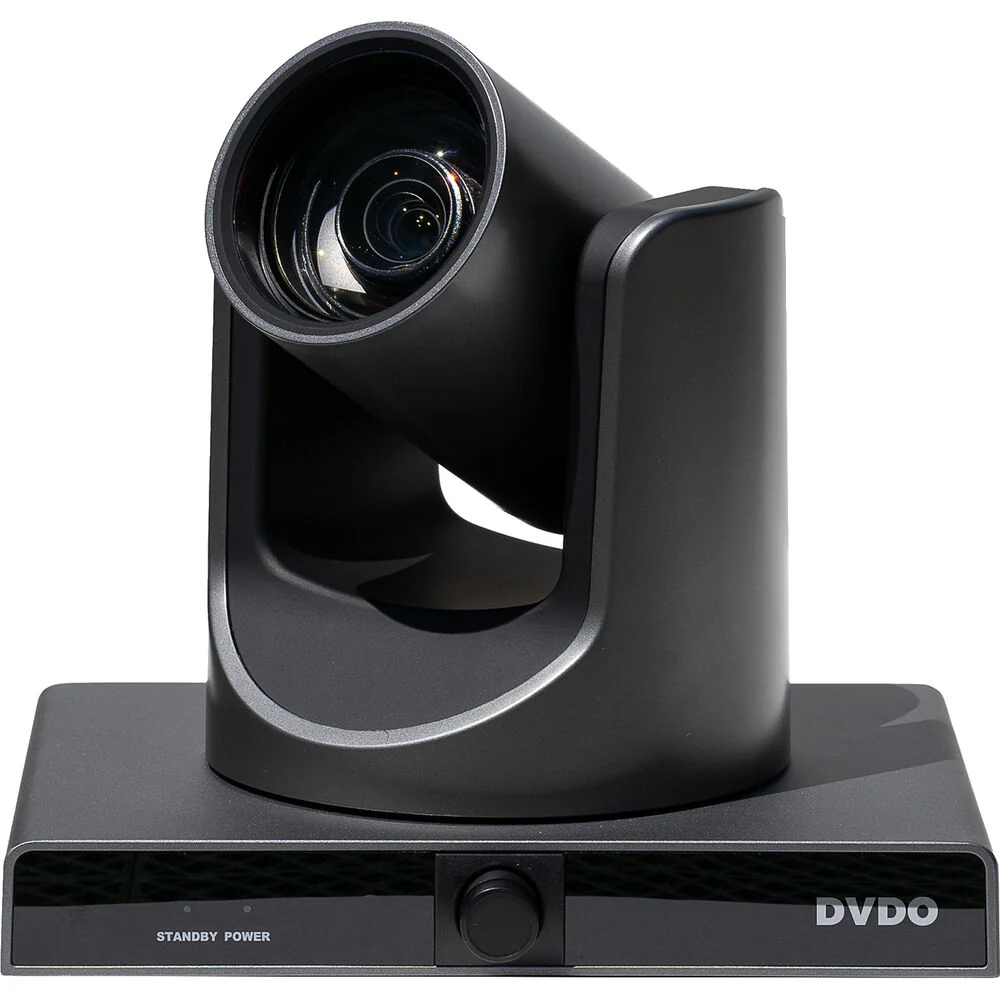

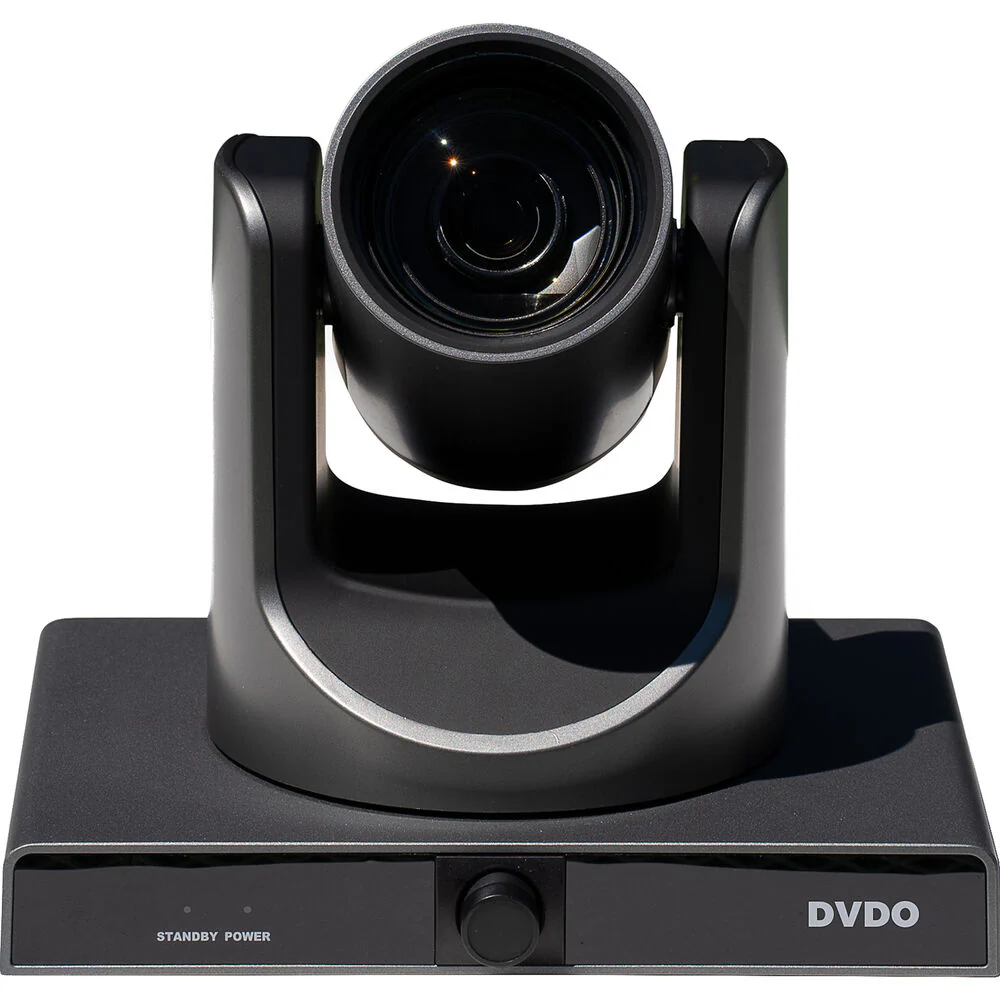

The DVDO HDMI/SDI/IP PTZ Auto Tracking Camera captures up to 1080p60 resolution and streams up to four simultaneous channels, with the first two in up to 1080p30 resolution and the third and fourth in up to 1024 x 576. It features HDMI and SDI ports supporting up to 1080p60 output, and an Ethernet port. A 3.5mm audio line input allows you to embed external audio. An RS-232 input supports VISCA, Pelco-D, and Pelco-P protocols, and the output supports VISCA. Both support up to 98' serial cables.
The camera features an Intelligent Tracking function for education and other applications. A built-in image recognition and tracking algorithm smoothly tracks the subject without auxiliary positioning of the camera or tracking host. Multiple cameras can be installed to track a teacher, students, and meeting participants.
An included M12 mount lens provides up to 12x optical zoom for small- to mid-size environments, capturing a closeup to wide-angle field of view range from 72.5 to 6.9° with consistent brightness and color, and complemented by 16x digital zoom. The lens can be tilt-adjusted 15° for optimal positioning.
A power supply, serial cable, wall bracket, and remote control are included to get you started right out of the box.
Other Features
First Stream Resolution (H.264/MJPEG)
Second Stream Resolution (H.264/MJPEG)
Third Stream Resolution (H.264/MJPEG)
Fourth Stream Resolution (H.264/MJPEG)
Video Bit Rate
Audio Bit Rate
White Balance
Protocols
MTBF

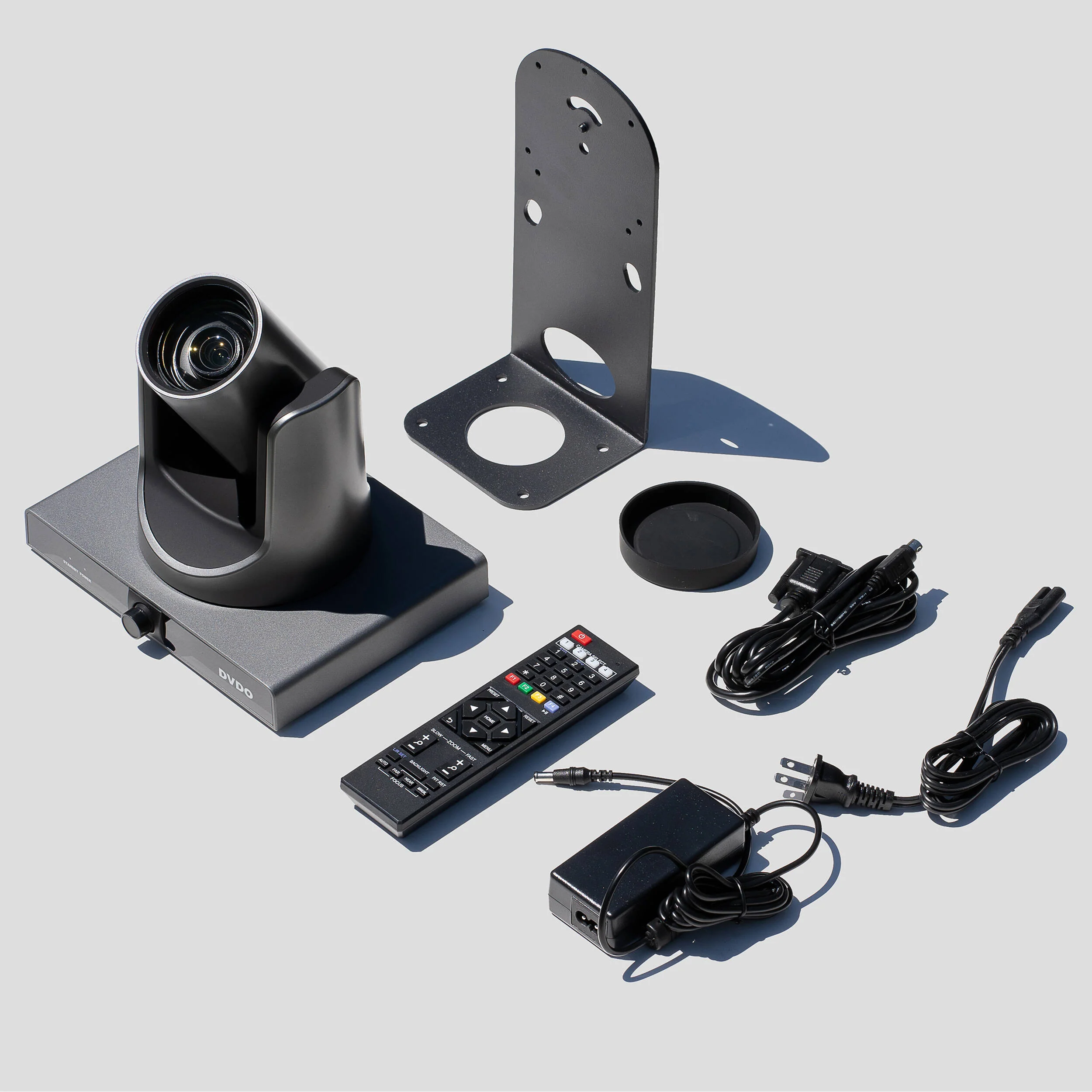

In the Box
- DVDO HDMI/SDI/IP PTZ Auto Tracking Camera with 12x Optical Zoom
- M12 Mount Lens 3.5 to 42.3mm
- AC Power Adapter
- Power Cable
- RS-232 Cable
- Remote Control

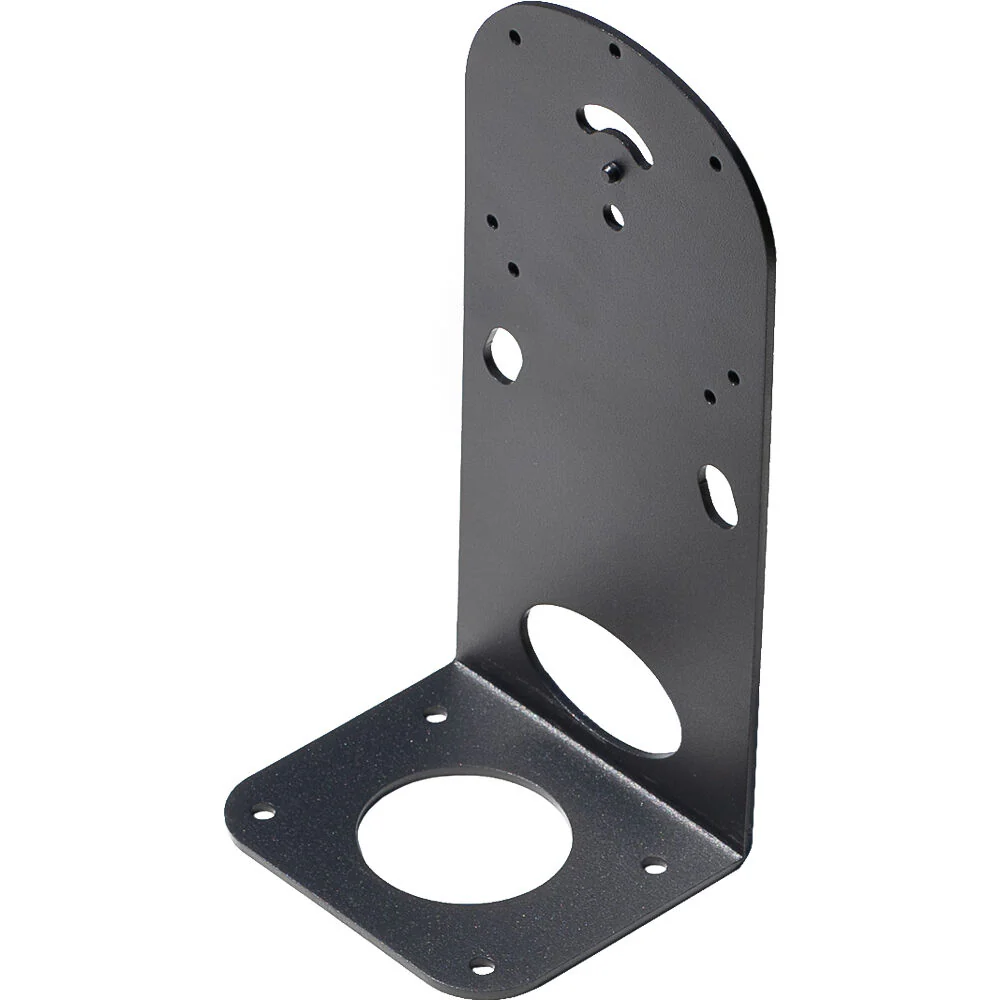

- Wall Bracket with Screw Pack
- Limited 1-Year Warranty
DVDO C3-1 Specs
| Image Sensor | 1-Chip 1/2.7" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Signal-to-Noise Ratio | 55 dB |
| Shutter Speed | 1/30 to 1/10,000 sec |
| Max Digital Zoom | 16x |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 12x |
| Focal Length | 3.5 to 42.3mm |
| Field of View | Horizontal: 72.5 to 6.9° Vertical: 44.8 to 3.9° |
| Maximum Aperture | f/1.8 to 2.8 |
| Focus Control | Autofocus Manual Focus |
| Audio Recording | AAC Audio |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec |
| Movement Range | Pan: 170° Tilt: -30 to 90° |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |

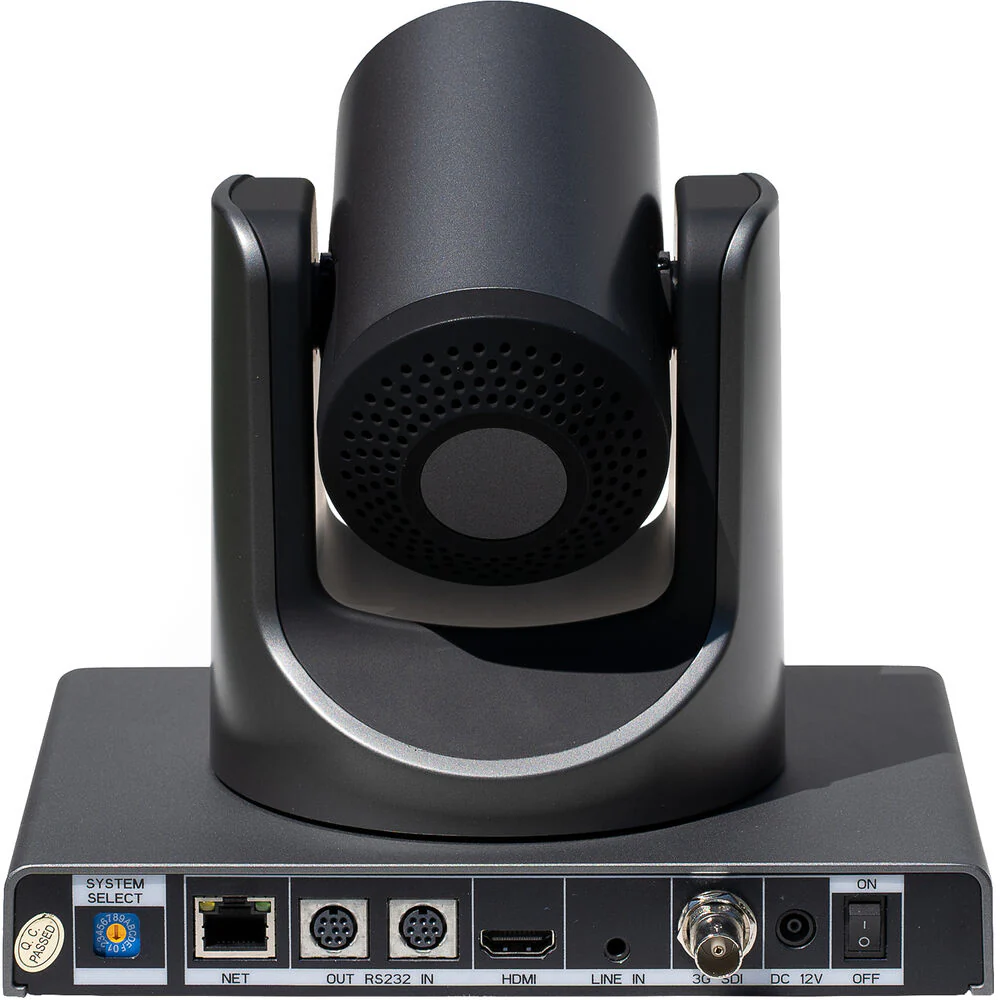

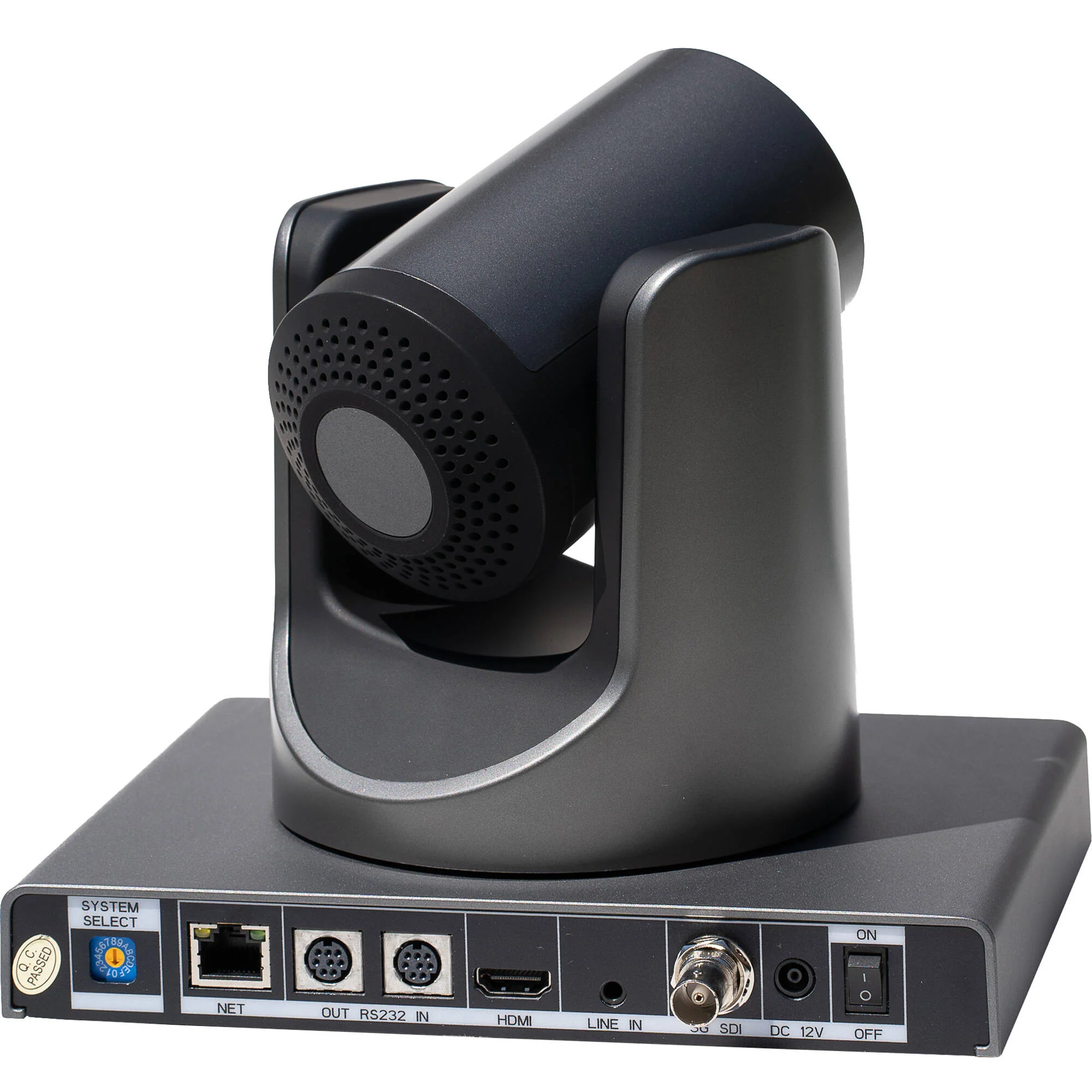

| Video Output Connectors | 1 x HDMI Type A (HDMI 1.3) 1 x BNC (3G-SDI) 1 x RJ45 |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output |
| Power Connectors | 1 x JEITA (12 VDC at 1 A) |
| Power Consumption | 12 W |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Dimensions | 7.9 x 6.5 x 5.9" / 200 x 165 x 150 mm |
| Weight | 3.5 lb / 1.6 kg |
| Package Weight | 7.66 lb |
| Box Dimensions (LxWxH) | 11.7 x 9.8 x 9.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
