Cranborne Audio Camden EC1 Microphone Preamp, Processor, and Headphone Amplifier
HomeStore

Cranborne Audio Camden EC1 Microphone Preamp, Processor, and Headphone Amplifier

Cranborne Audio Camden EC1 Microphone Preamp, Processor, and Headphone Amplifier

$260.56

Original: $868.53

-70%
Cranborne Audio Camden EC1 Microphone Preamp, Processor, and Headphone Amplifier—

$868.53

$260.56

The Story

Cranborne Audio EC1 Overview

Recording Drums With Camden Preamps | Cranborne Audio
Recording Vocals With Camden Preamps | Cranborne Audio

Designed to be the ultimate performer's recording and mixing front end, the Camden EC1 from Cranborne Audio is a versatile microphone preamp, signal processor, and reference-grade headphone amp in one compact, portable desktop unit. With Camden's award-winning preamp that features Mojo analog saturation on tap in three distinct flavors (Thump for transformer-style saturation, Cream for tube-style saturation, and True Bypass for pristine transparency), you can dial in any tone you want on mics, line-level signals, and Hi-Z instruments.

The audio performance of the EC1 approaches the theoretical limits of analog audio technology with extraordinarily low noise and distortion and incredible phase and frequency linearity across all available gain settings. The powerful headphone amp features two discrete mixers with independent level controls. You get balanced XLR and impedance-matched balanced and unbalanced 1/4" I/O for handling any studio setup or signal chain. The external high-current power supply provides a larger-than-average 24V of power for high-performance operation and sports a latching connector for reliability. The EC1 includes an external power supply, an IEC power cable, and four rubber feet for desktop placement.

Award-Winning Preamp Performance
Connect the Camden EC1 to your audio interface and experience the award-winning sound of the Camden preamp design. Providing up to 68.5 dB of pristine, clean gain, Camden EC1 is the perfect preamp to pair with low-gain dynamic microphones and ribbon mics.
Powerful Headphone Monitoring
Featuring a reference-grade high-powered headphone amp with a dedicated line mixer, Camden EC1 gives you true zero latency, mastering-quality monitoring of your preamp that is effortlessly mixed with playback from your DAW.
3 World-Class Preamps in 1
Thanks to its custom Mojo harmonic saturation control, the Camden EC1 offers 3 flavors of preamp tone that can be dialed to taste:

  • Thump provides transformer-style saturation with natural and dynamic low-end thickening at halfway and warm sustain without muddiness at 100%
  • Cream delivers tube-style saturation with compression effects at halfway, tape-style saturated high frequencies and sub-frequency harmonics at 70%, and fat transients with midrange compression and noticeable overdrive at 100%
  • True Bypass gives you the pure, uncolored EC1 preamp, with pristine transparency, high detail, and virtually nonexistent noise and distortion
Immersive Headphone Amplifier
Monitor the Camden preamp in true zero latency using headphones connected directly to the front panel, and mix in external DAW playback using the stereo 1/4" Aux Input jacks on the Camden EC1's rear panel. With the same reference-grade design developed for the 500R8 audio interface, Camden EC1's headphone amps deliver up to 1.2W of clean power per ear and a flat frequency response from 5 Hz to 70 kHz, perfect to power any set of headphones with clean power.
Portable, Powerful, and Timeless
Housed in a half-rack, desktop format, you can take the Camden EC1 with you studio to studio or onstage. Dial in your sonic signature and control your own consistent and pristine headphone monitoring.

Devoid of software updates and USB standards, the Camden EC1 is with you for the long haul. Even when you upgrade your surrounding studio, the Camden EC1 will always provide your tonal benchmark.

Ideal for a Wide Range of Applications
Musicians
  • Develop your own signature sound using Mojo saturation, and take it with you on the road or from studio to studio
  • Record natural forgiving instrument DIs that perfectly capture the character of your pickups and instrument
  • Split the Hi-Z signal using the Link Output to record both the DI and a processed amp signal, perfect for reamping workflows
Engineers
  • Critique your mix or master using a true, reference-grade headphone amp with clean power and enough volume to make your headphones shine
  • Offer true zero-latency mixes to your clients that can be controlled using two simple controls directly on the front panel for Preamp, Aux In, and DAW level
  • Comprehensive connectivity including balanced XLR and 1/4" impedance-balanced preamp outputs, and a 10 dB pad to prevent clipping of your converters
Voiceover Artists
  • Monitor your vocal channel directly using headphones connected to the preamp itself
  • Use Mojo to apply different characters to your voice
  • Use Thump for intimacy
  • Cream for excitement
  • Record using the Mojo settings for a streamlined workflow
Podcasters
  • Apply 68.5 dB of gain to low-sensitivity microphones such as the Shure SM7b or Electro-Voice RE20 without adding noise or coloration
  • Monitor your own voice in zero latency as well as your program output using the reference-grade headphone amp built into the front panel
C.A.S.T. Out Port
Transmit Camden EC1's preamp and Ext Input directly into the 500R8 and 500ADAT's 500-series module inputs for recording and processing
Receive a stereo mix generated from 500R8 or 500ADAT and monitor using the EC1 headphone mixer
All managed and distributed via single shielded Cat 5e, Cat 6, or Cat 7 cable

In the Box

  • Cranborne Audio Camden EC1 Microphone Preamp, Processor, and Headphone Amplifier
  • External Power Adapter
  • IEC Power Cord
  • 4 x Adhesive Rubber Foot
  • Limited 2-Year Manufacturer Warranty

    Cranborne Audio EC1 Specs

    General
    Input Impedance
    Mic: 8.9 Kilohms (48V Off), 5.4 Kilohms (48V On)
    Line: 24.3 Kilohms
    Hi-Z: 1.5 Megohms (Unbalanced), 3 Megohms (Balanced)
    Maximum Input Level
    Mic: +17.6 dBu (<0.003% THD)
    Line: +26.5 dBu (<0.02%)
    Hi-Z: +24 dBu (<0.02% THD)
    EIN
    <-135.5 dBu
    Frequency Response
    Preamp: 5 Hz to 200 kHz (±1 dB, Max Gain)
    Headphone Amp: <1 Hz to >70 kHz (±1 dB)
    THD
    Headphone Amp: <0.0006% (-104.4 dB)
    THD+N
    Preamp: <0.00025% (1 kHz, 35 dB Gain, +24 dBu Out)
    Headphone Amp: <0.00085% (+20 dBu, 1 kHz, A-Weighted, 300-Ohm Load)
    Maximum Output Level
    Balanced XLR: +27.5 dBu (<0.002% THD, 30 dB Gain)
    Balanced 1/4": +21.5 dBu (<0.002% THD, 30 dB Gain)
    Output Impedance
    Preamp: 150 Ohms (XLR, Balanced 1/4"), 75 Ohms (Unbalanced 1/4")
    Headphone Amp: 0.33 Ohms
    Dynamic Range
    Headphone Amp: 114.5 dBA
    Noise
    Headphone Amp: -93.5 dBA

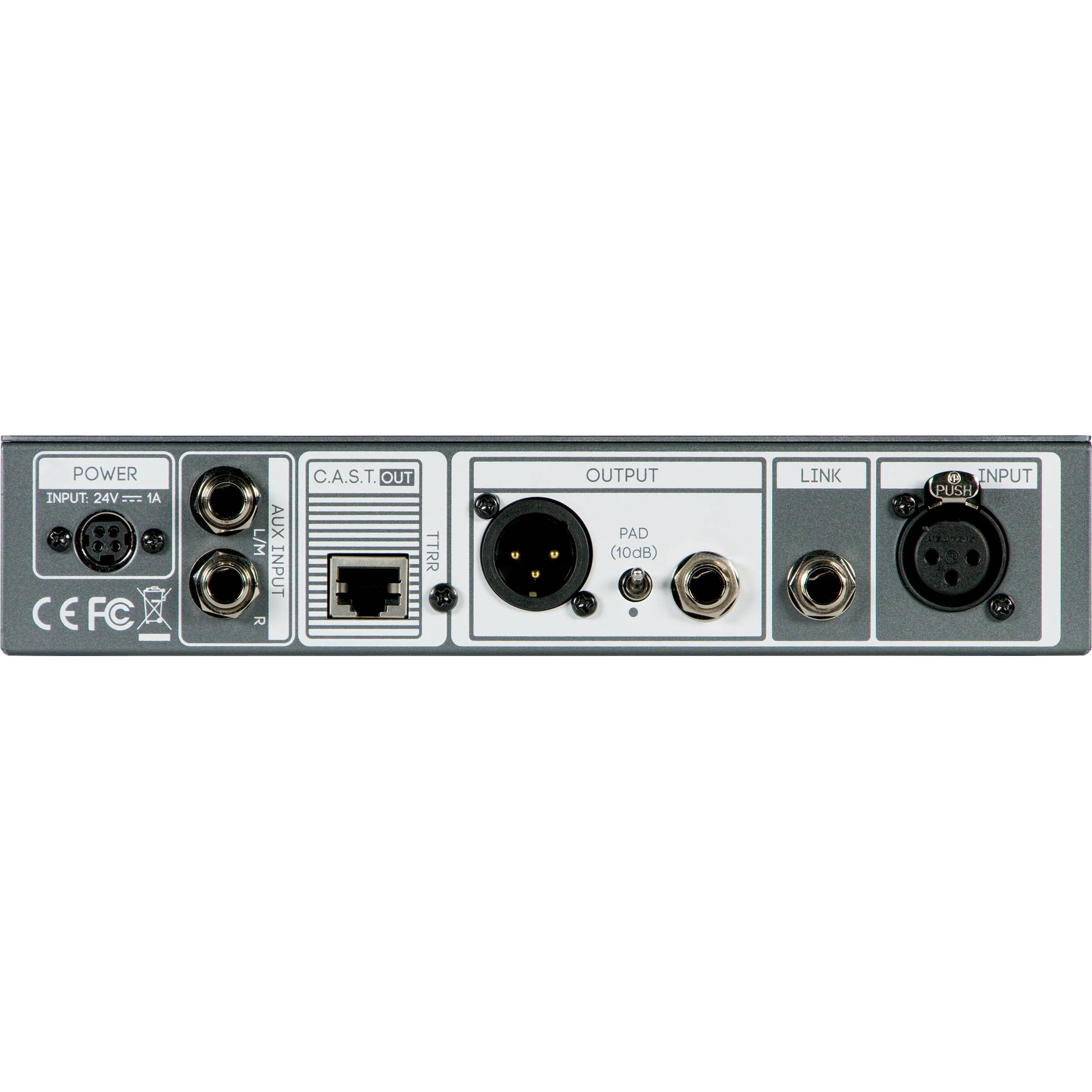

    Inputs / Outputs
    Audio I/O
    1x XLR 3-Pin Mic Input
    1x XLR 3-Pin Line Output
    1x 1/4" TS Hi-Z/Instrument Input (Selectable Hi-Z- or Line-Level Input)
    1x 1/4" Line Output
    2x 1/4" TRS Headphone Output
    1x 1/4" TRS Output (Link)
    2x 1/4" TRS Aux Input (1 Stereo Pair, L/M and R)
    1x RJ45 ADAT Output (C.A.S.T. Output)
    Power
    Power Source
    AC Adapter with Power Brick (Included)
    AC Input Power
    100 to 240 VAC, 50 / 60 Hz
    DC Input Power
    24 VDC at 1.25 A
    Power Consumption
    30 W
    Operating Current
    1.25 A
    Environmental
    Operating Temperature
    33 to 95°F / 1 to 35°C
    Storage Temperature
    -4 to 122°F / -20 to 50°C
    Physical
    Color
    Black
    Material of Construction
    Metal
    Dimensions
    9.4 x 8.7 x 1.7" / 24 x 22 x 4.4 cm
    Weight
    3.9 lb / 1.8 kg
    Packaging Info
    Package Weight
    5.645 lb
    Box Dimensions (LxWxH)
    14.2 x 14.1 x 4.5"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
