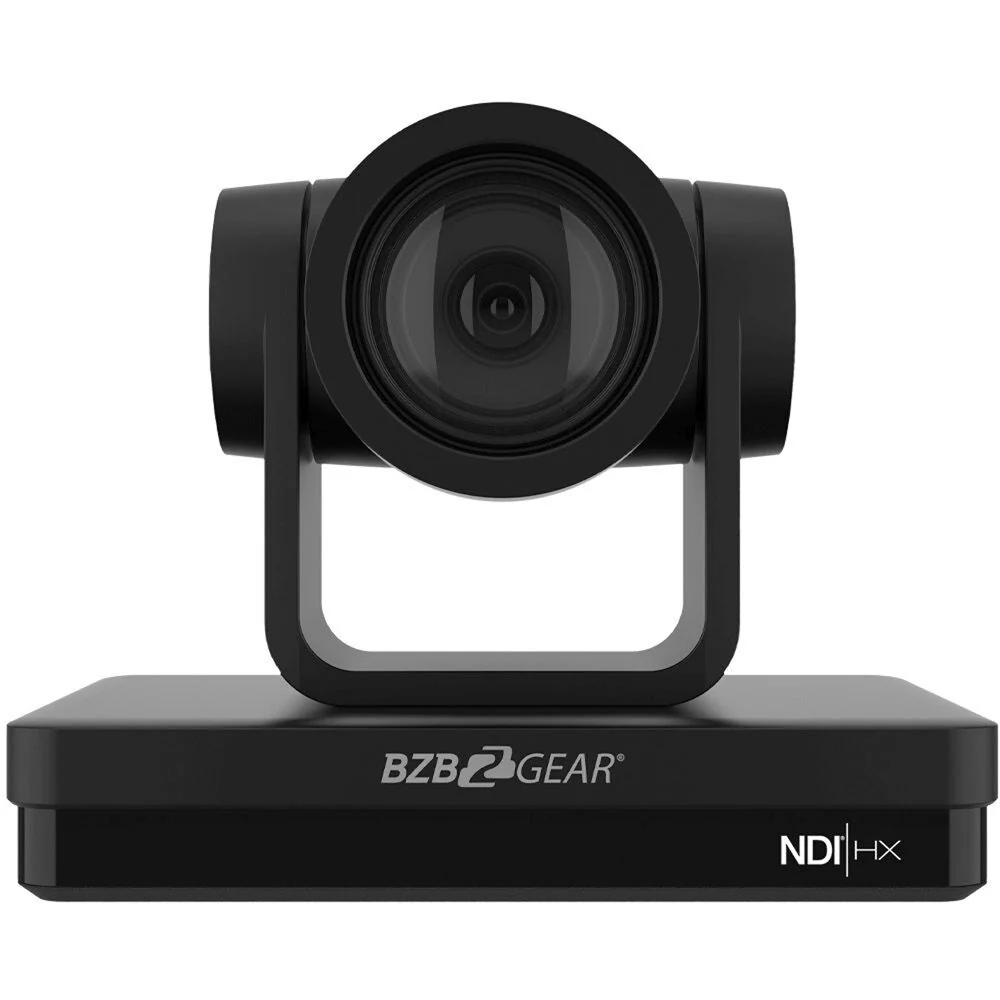

BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black)
HomeStore

BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black)

BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black)

$711.51

Original: $2,371.71

-70%
BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black)

$2,371.71

$711.51

The Story

BZBGear UPTZ Overview

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the black Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom from BZB Gear. The camera features a 1/2.8" CMOS sensor and simultaneously outputs up to 1080p60 video over HDMI, SDI, and USB 3.0 ports, using the NDI|HX protocol that works with any NDI network, or it uses RSMP/RTSP protocols to stream video and audio to the Internet.

The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. Equipped with a 30x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC, MP3, or PCM audio with the video signal. The camera streams are compatible with any NDI network and tools such as the NDI Studio Monitor, Scan Converter, and Virtual Input, so you can utilize the high-quality, low-bandwidth NDI|HX streams.

When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using ONVIF or by using its RS-232 or RS-485 serial ports with a separately available serial PTZ controller, and the RS-232 serial ports support cascading. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.

Key Features

Wide Applications

Remote learning, lectures, webcasting, video conferencing, remote training, remote medicine, interrogation, and emergency command systems

Audio/Video Compression

Supports H.264/H.265 video compression with resolutions up to 1920 x 1080p60 and 2-channel AAC, MP3, and PCM audio compression

High-Definition Image

High-Quality 1/2.8" CMOS sensor captures resolutions up to 1920 x 1080p60

NDI|HX Support

Adoption of NDI 4.0 from NewTek with NDI|HX streaming; compatible NDI tools such as NDI Studio Monitor, NDI Scan Converter, NDI Virtual Input, and more

Autofocus

Autofocus algorithm ensures a smooth adjusting lens, accuracy, and stable auto-focusing

Advanced 2D/3D Noise Reduction Technology

Further reduce noise while ensuring image sharpness

Multi-Format Video Outputs

NDI|HX, HDMI, 3G-SDI, wired IP LAN streaming output

Low Noise and High SNR

Low-noise CMOS ensures high SNR of camera video

Silent PTZ

An adaptive, high-accuracy, step-driving motor mechanism provides extremely quiet and smooth operation to designated positions

Control Options

Control using IR remote, IP via a web GUI, and RS232/RS485 serial

Network Protocols

ONVIF, RTSP, and RTMP protocols and RTMP push mode to a streaming media server (Wowza, FMS)

Low-Power Sleep Function

Supports low-power sleep/wake up; the consumption is lower than 500mW in sleep mode

Multiple Control Protocols

VISCA, VISCA-over-IP, ONVIF, Pelco-D, and Pelco-P protocols are automatically recognizable

RS-232 Cascade Function

RS-232 cascade function for convenient installation of multiple units

Multiple Presets

Support for up to 255 presets and 10 presets by IR remote

Audio Input Interface

3.5mm stereo line input supports 16, 32, 44.1, 48 kHz sampling frequency and AAC, MP3, PCM audio encoding

Power Options

Power the camera using the included power adapter or utilize PoE (Power-over-Ethernet)
UPC: 850023208613

In the Box

  • BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black)
  • Power Adapter
  • IR Remote Control
  • RS-232 Cable
  • Limited 3-Year Warranty, Extendable to 5 Years upon Registration

    BZBGear UPTZ Specs

    Image Sensor
    Image Sensor 1-Chip 1/2.8" CMOS Sensor
    Sensor Resolution Effective: 2.07 Megapixel (1920 x 1080)
    Signal-to-Noise Ratio 50 dB
    Minimum Illumination 0.5 Lux
    White Balance 2400 to 7100K
    Camera
    Max Digital Zoom 10x
    Built-In ND Filter None
    Flip / Mirror Support Image Flip
    Lens
    Optical Zoom Ratio 30x
    Focal Length 4.3 to 129mm
    Field of View Horizontal: 2.34 to 65.1°
    Maximum Aperture f/1.6 to 4.7
    Focus Control Autofocus
    Manual Focus
    Video Output
    Output Formats SDI, HDMI, RJ45, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
    1920 x 1080i at 50, 59.94, 60 fps
    1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps
    Embedded Audio HDMI/SDI: 2-Channel
    IP Streaming H.264, H.265, ONVIF, RTMP, RTSP: 1080p, 720p at 25p, 29.97p, 30p, 50p, 59.94p, 60p
    IP Multi-Stream Support Yes
    Recording
    Audio Recording None
    Control
    Presets 255 via IP, RS-232, VISCA
    10 via IR
    Move Speed Pan: 0.1 to 60°/sec
    Tilt: 0.1 to 30°/sec
    Movement Range Pan: 340° (-170 to 170°)
    Tilt: 120° (-30 to 90°)
    Supported Control Protocols IP
    Pelco-D
    Pelco-P
    RS-232
    RS-485
    VISCA
    Interfaces
    Video Output Connectors 1 x HDMI Type A Female
    1 x BNC (3G-SDI) Female
    1 x USB 3.0 Type-B (USB Video) Female
    1 x RJ45 (HX / NDI) Female
    Audio I/O 1 x 1/8" / 3.5 mm Stereo Line Level Input
    Control Interface 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input
    1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Output
    1 x Terminal Block (RS-485) Input
    Other I/O 1 x RJ45 (LAN) Input/Output
    Power
    PoE Support Yes
    Power Connectors 1 x Barrel / Coaxial (12 VDC up to 1 A)
    Power Consumption Power Supply: 12 VDC 12 W
    Environmental
    Operating Temperature 14 to 122°F / -10 to 50°C
    Storage Temperature 14 to 140°F / -10 to 60°C
    Operating Humidity 20 to 80%
    Storage Humidity 20 to 95%
    General
    Dimensions 7 x 5.9 x 4.5" / 178 x 150.9 x 115.5 mm
    Weight 3.04 lb / 1.38 kg

    BZBGear UPTZ Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

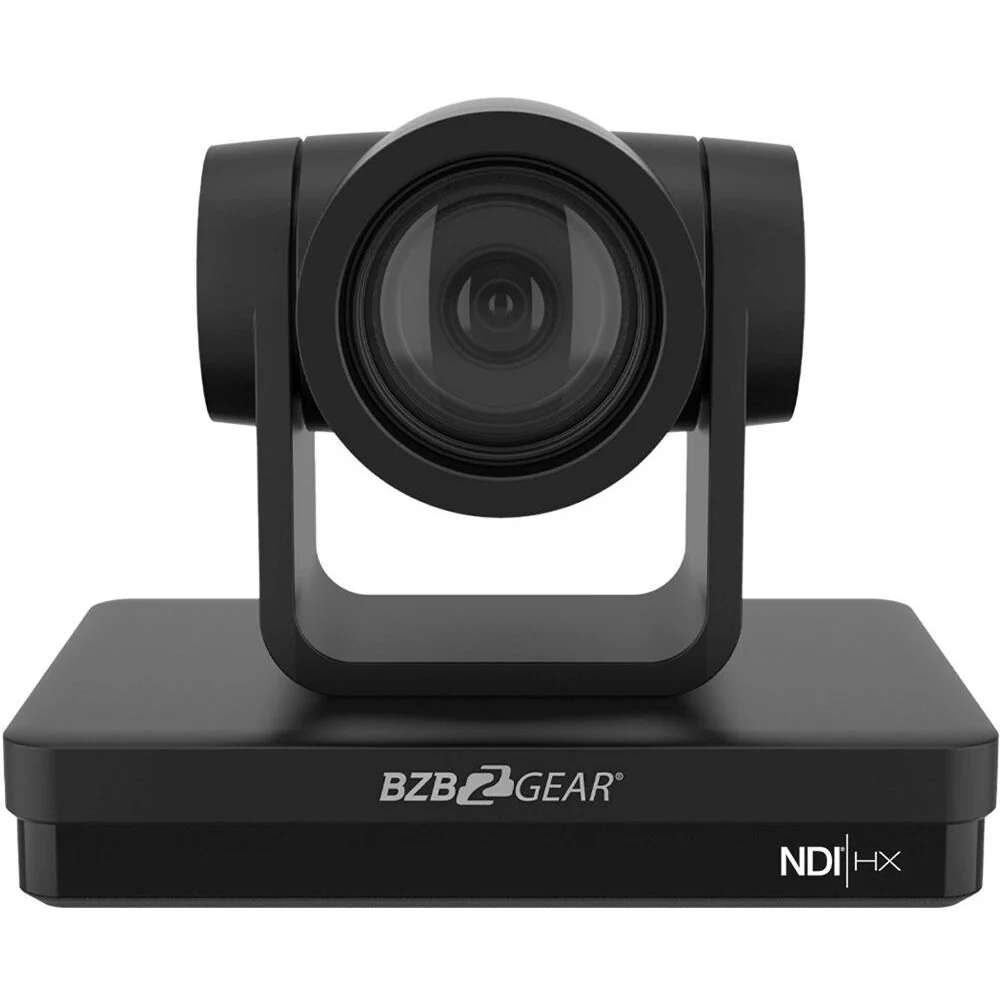

    BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

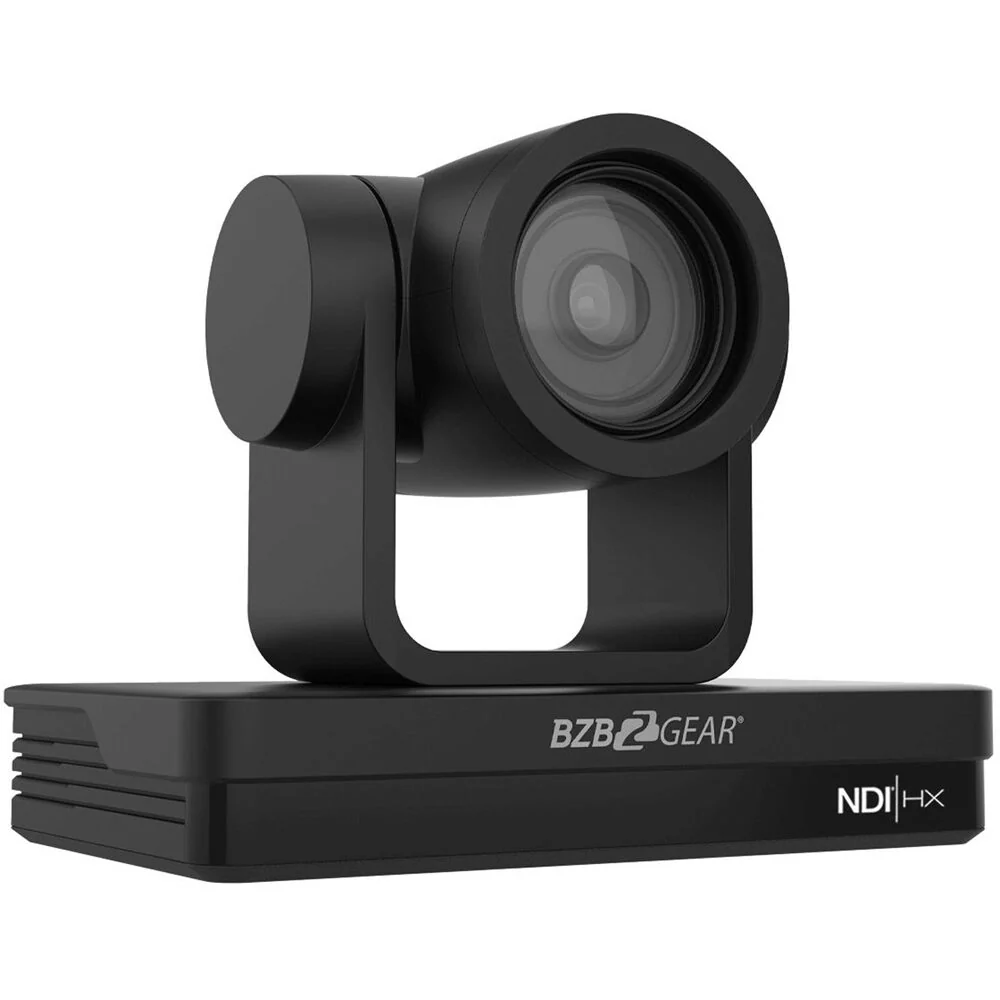

    BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

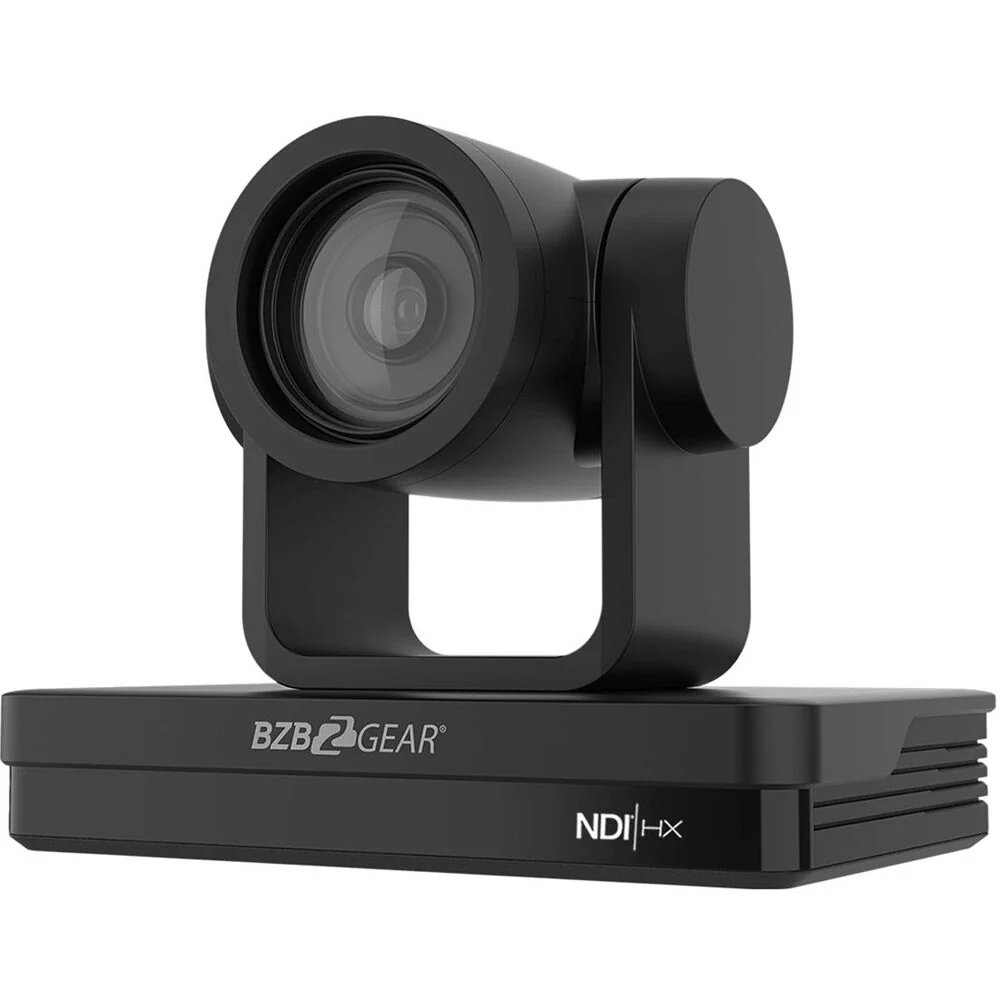

    BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black) - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

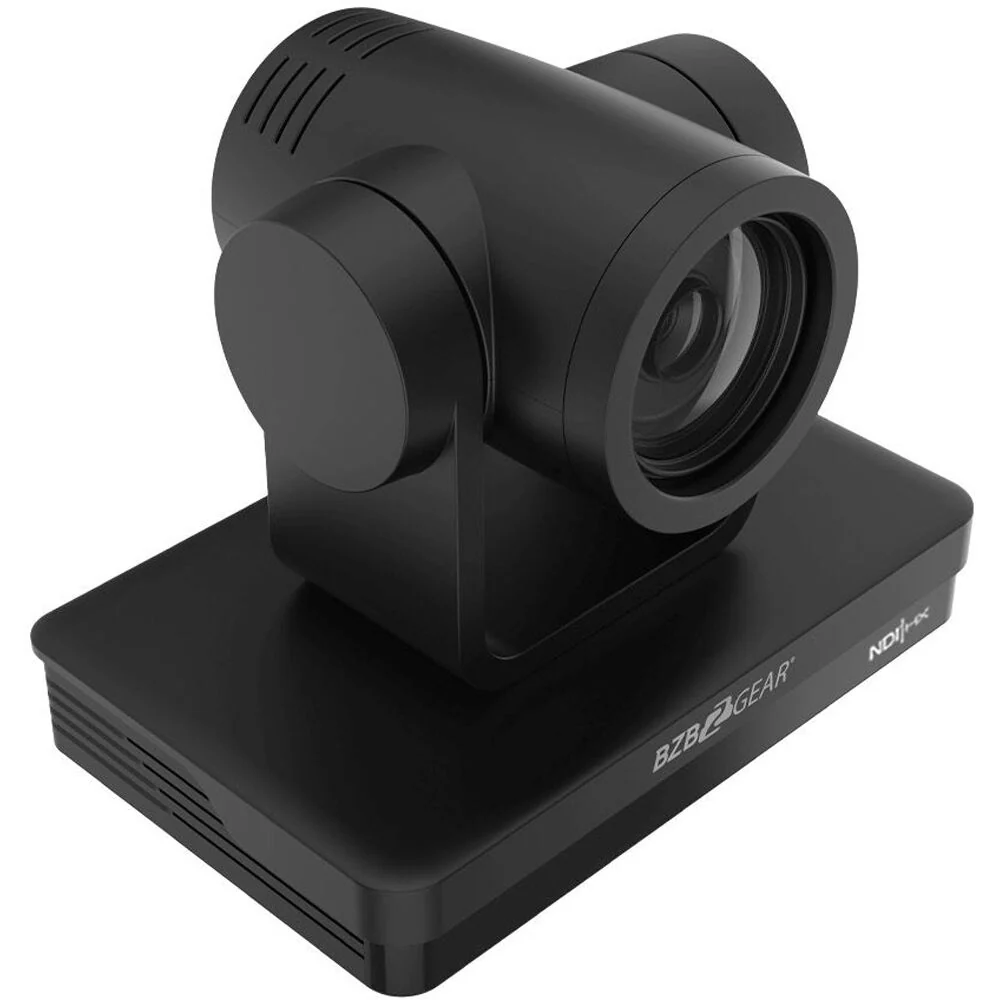

    BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black) - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

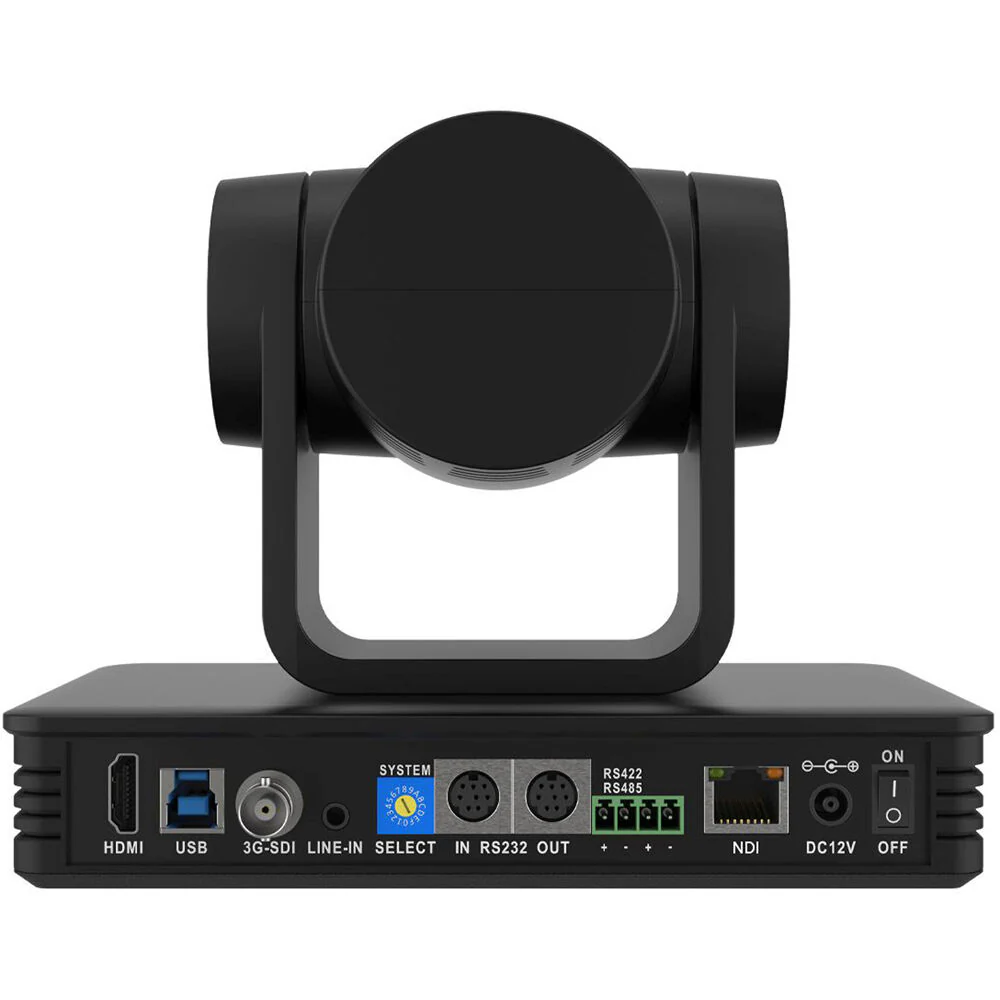

    BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (Black) - Image 6
