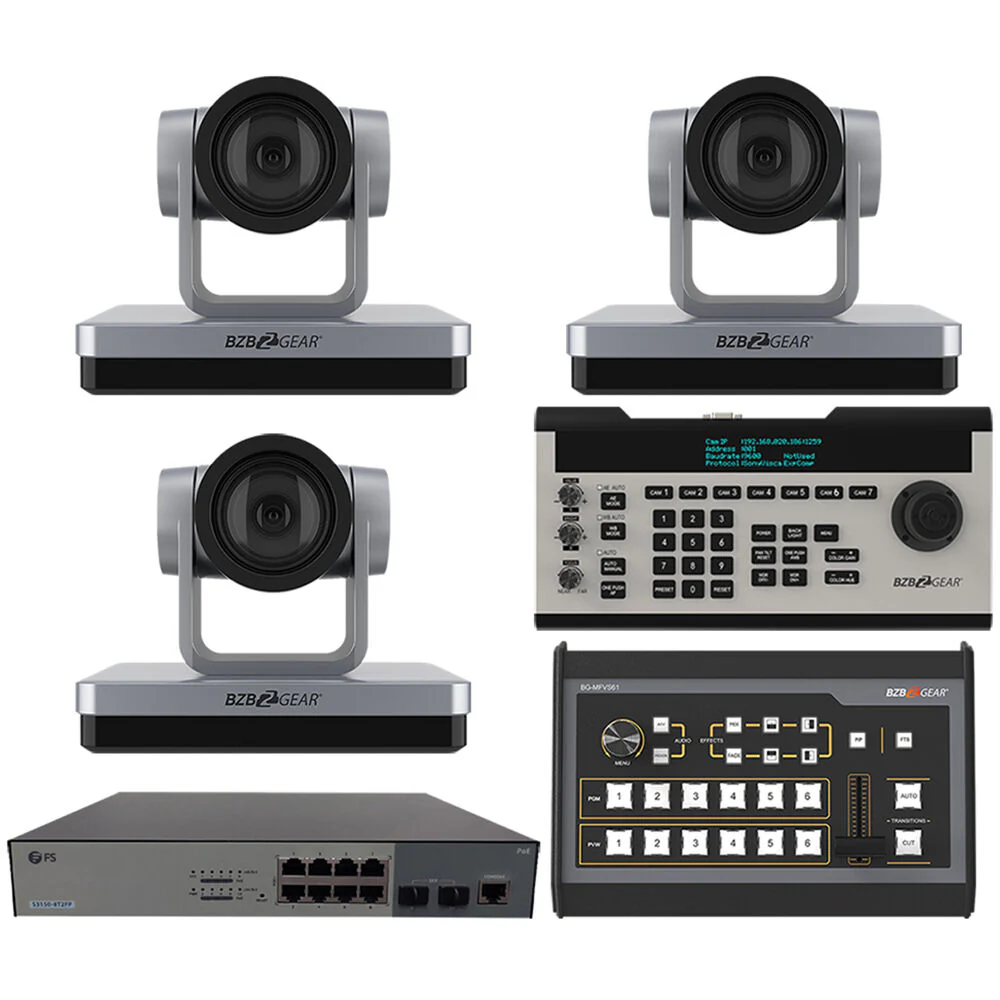

BZBGear 3 x 20x PTZ Camera Broadcast Kit with 6-Channel Mixer, 8-Port Switch & Controller (Silver)

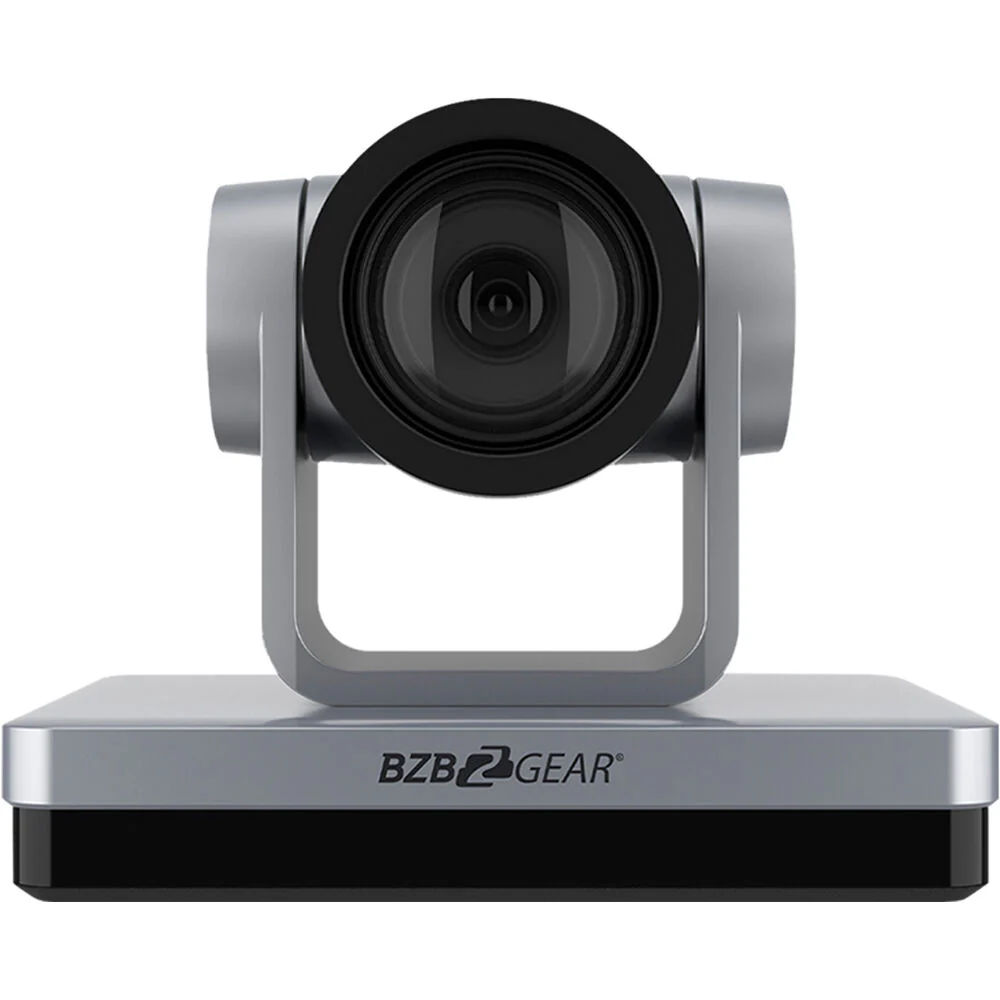

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the silver Universal HDMI/SDI/USB Live Streaming PTZ Camera with 20x Zoom from BZB Gear. The camera features a 1/2.8" CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet.

The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using ONVIF or by using its RS-232 or RS-485 serial ports with a separately available serial PTZ controller, and the RS-232 serial ports support cascading. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.

Equipped with a 20x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC, MP3, or PCM audio with the video signal.

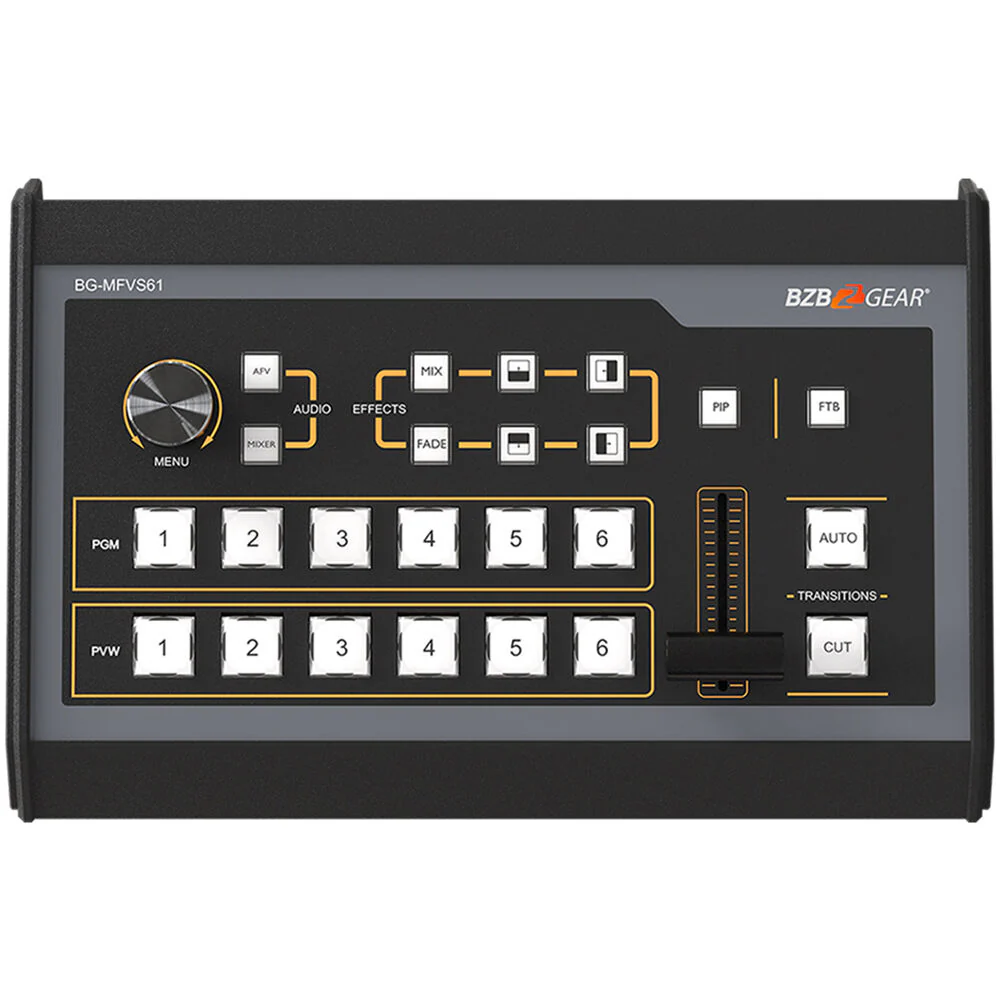

Switch up to four different HDMI video inputs while monitoring the program feed with the 6-Channel 3G-SDI/HDMI Video Mixer & Switcher with PiP/USB 3.0 Capture from BZBGear. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some use cases where the switcher could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.

The switcher features two HDMI and four 3G-SDI inputs that can connect to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can output video via the 3G-SDI or HDMI multiview outputs and 3G-SDI or HDMI program outputs using scaling features, allowing you to view them all on the same screen with configurable PiP functionality. You can also output program video via the USB Type-C port to a computer for video capture and streaming applications. You can also mix the audio using the two analog stereo 3.5mm mic/line or 2RCA stereo inputs and outputs along with embedded audio. You can also remotely control the switcher via IP using software using the LAN port.

Its interface features source and destination buttons and a T-bar for transitions and cuts, as well as mix, fade, and wipe effects. The switcher features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, a 3' USB Type-A to Type-C cable, and a padded carry case are included.

BZBGear Universal HDMI/SDI/USB Live Streaming PTZ Camera with 20x Zoom (Silver) Specs
