Avtec AVT-XFM Overview
Set up and monitor your shots in Full HD 1080p resolution! The AVtec 7" 1080p HDMI On-Camera Monitor features a slim design with an aluminum housing, and has a 1920 x 1080 IPS display with a 160° viewing angle. The monitor offers HDMI and composite inputs, a built-in speaker and headphone output for audio monitoring, numerous monitoring functions, including histogram, and four assignable function buttons. You can connect up to Ultra HD 4K camera signals for display in 1080p. There's also an on-screen menu for adjusting brightness, contrast, and other display settings.
The monitor comes with three different interchangeable battery plates, as well as an AC/DC power supply with international plug adapters for continuous power (batteries are sold separately.) A ball head is also included for flexible camera mounting, and a foldable/removable sun hood is supplied to allow monitoring in sunny environments. The sun hood is designed to securely clip onto the monitor.
- Full HD 1080p resolution IPS display with a 160° viewing angle
- Slim design with an aluminum housing
- HDMI and composite inputs
- Four assignable function buttons
- Connect up to Ultra HD 4K camera signals for display in 1080p
- Built-in speaker and headphone output
- On-screen menu for adjusting brightness, contrast, and other display settings
- Includes three battery plates, a sun hood, ball head, and HDMI cable
- Histogram
- False color
- Exposure (zebras)
- Focus assist
- Center marker
- Safe frames
- Check field
- Camera mode
- Aspect ratio
- Image flip
- Pixel-to-pixel
- Image freeze
- Image zoom
- Anamorphic
- Peaking color
- Embedded audio
- Nine grid
- Ratio marker
- Marker color
- Mark width
- Modified marker

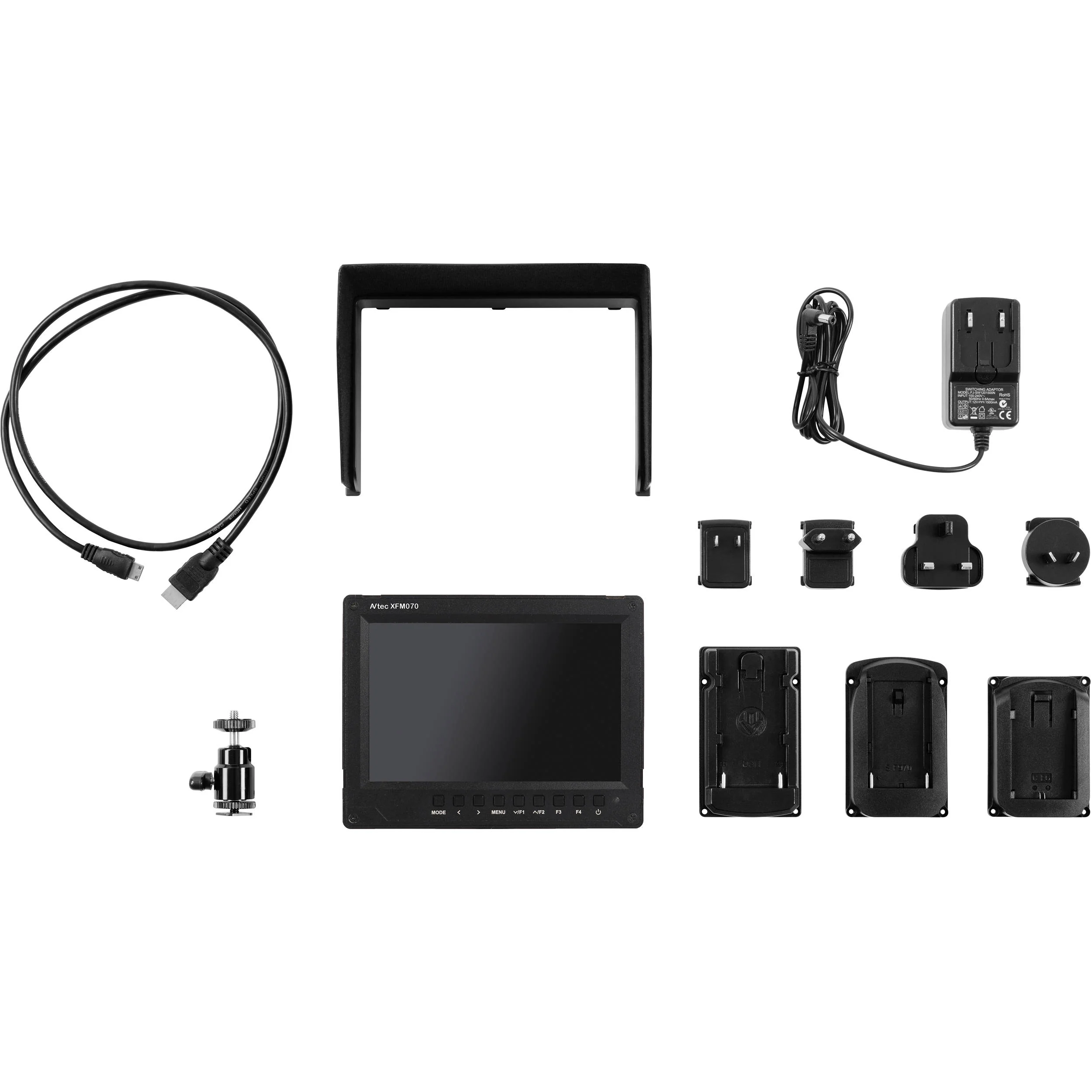

In the Box
- Avtec 7" 1080p HDMI On-Camera Monitor
- Foldable Sun Hood with Attachment
- AC/DC Power Supply (with EU, UK, US, AU Adapters)
- NP-F Battery Plate
- BP-U Battery Plate
- LP-E6 Battery Plate
- Ball Head
- HDMI Cable
Avtec AVT-XFM Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8Â cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Maximum Brightness | 400 cd/m2 |
| Contrast Ratio | 1200:1 |
| Dot Pitch | 0.07875 x 0.07875Â mm |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers |
| Video I/O | 1 x HDMI Input 1 x 1/8" / 3.5 mm TRRS A/V (Composite) Input |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Other I/O | 1 x 1/8" / 3.5 mm 1 x Mini-USB |
| Media/Memory Card Slot | None |
| Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 29.97/30/50/59.94/60 576p 576i 480p 480i |
| DC Input Power | 7.4 to 35 VDC |
| Battery Type | 1 x LP-E6, L-Series, or BP-U |
| Power Consumption | 8 W (Maximum) |
| Mounting | 1 x 1/4"-20 Female |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Material of Construction | Aluminum |
| Dimensions | 7.1 x 5.5 x 0.7" / 18 x 14 x 1.7Â cm |
| Weight | 1.2Â lb / 550Â g, Including Battery Plate |
| Package Weight | 3.3 lb |
| Box Dimensions (LxWxH) | 8.7 x 7.6 x 3.3" |
