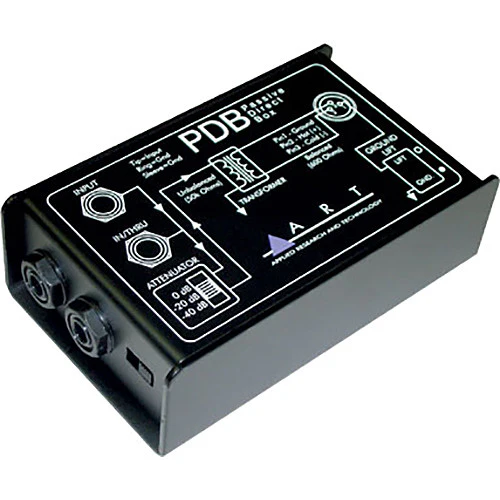

ART PDB Single Channel Passive Direct Injection Box
HomeStore

ART PDB Single Channel Passive Direct Injection Box

ART PDB Single Channel Passive Direct Injection Box

$51.16

Original: $170.53

-70%
ART PDB Single Channel Passive Direct Injection Box—

$170.53

$51.16

The Story

ART PDB Overview

  • 1Description
  • 2Electric Guitar and Bass
  • 3Keyboards and Line Level Signals
  • 4DJ Console Output Signals
  • 5Speaker Level Signals

The PDB passive direct box from ART is a roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs. It also allows for connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.

The unit features switchable input attenuation, a 50k ? instrument input, 50k ? parallel link jack, a 600 ? XLR output jack and a switchable ground lift. It excels at impedance matching and improving the sound of any instrument plugged into it. Enclosed in a rugged steel chassis, it is designed and manufactured to the highest standards to provide years of quiet, reliable performance.

Electric Guitar and Bass
The high impedance signal from a guitar or bass guitar pickup is translated by the unit into a low impedance balanced signal required by mixing consoles.
Keyboards and Line Level Signals
Automatically balances and matches the line level outputs of modern electronic keyboards. If using a multiple keyboard setup and the keyboards are all plugged into a single instrument amplifier, the PDB can be used to replace individual direct boxes by simply sending the output of the instrument amplifier to the PDB and then to the console.
DJ Console Output Signals
DJ mixers often supply only an unbalanced -10dB signal. The PDB converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
Speaker Level Signals
By accepting speaker level inputs from a power amplifier's output, the DI allows post-amplifier, post EQ and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.
UPC: 840402011392

In the Box

  • ART PDB Single Channel Passive Direct Injection Box
  • Ninety (90) Day Warranty
    Table of Contents
    • Description
    • Electric Guitar and Bass
    • Keyboards and Line Level Signals
    • DJ Console Output Signals
    • Speaker Level Signals

    ART PDB Specs

    Input Connections 2 x 1/4" TRS phone
    Output Connectors 1 x XLR
    Input Level 0, -20 and -40dB switchable input attenuation
    Output Level Not specified by manufacturer
    Controls Ground lift switch
    Frequency Response 10Hz to 50kHz +/-0.5dB @ +4dBu
    Noise Not specified by manufacturer
    Power Passive
    Dimensions 5 " x 3" x 2"
    Weight Not specified by manufacturer
    Specialties Switchable input attenuation
    Packaging Info
    Package Weight 1.45 lb
    Box Dimensions (LxWxH) 7.008 x 4.724 x 3.386"

    ART PDB Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

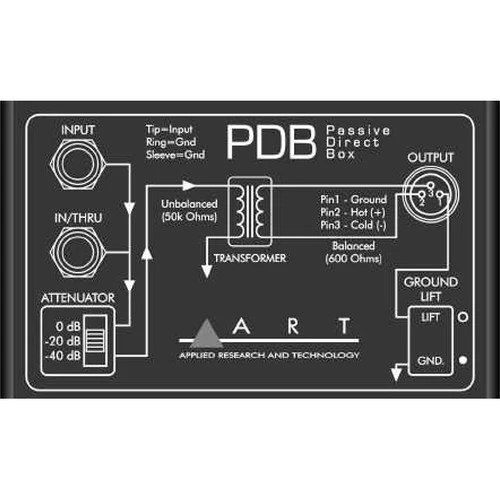

    ART PDB Single Channel Passive Direct Injection Box - Image 2
