ART DUALZDirect Overview

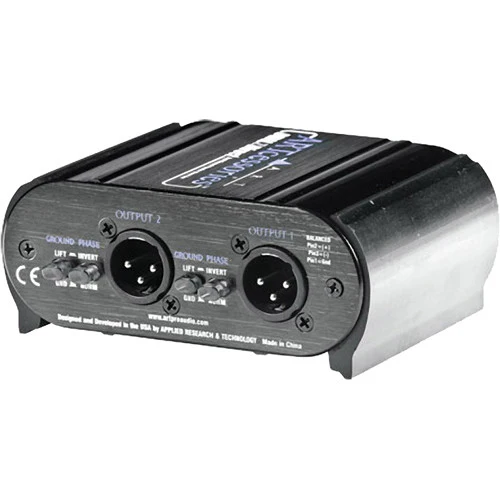

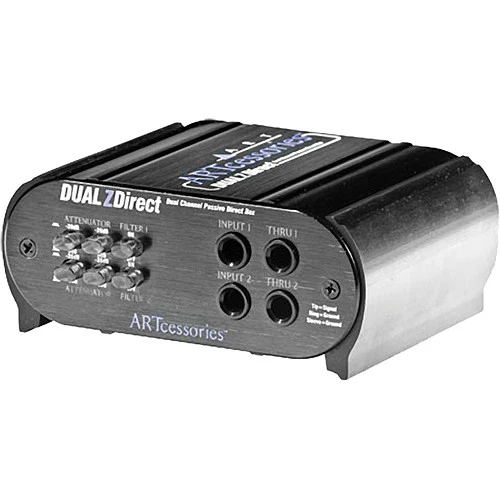

The DUALZDirect is a professional, two-channel, passive direct box that converts instrument, line, and speaker-level sources, via transformer, into signals compatible with balanced, low-impedance devices such as mixers and audio interfaces.
Both channels are totally independent and have identical features. These include attenuator switches that pad the inputs by -20 or -40 dB, and ground-lift switches that fully isolate each input from the chassis and the output to help eliminate hum and ground-loop noise.
You also get phase invert switches, 1/4" pass-through jacks, and switchable low-pass filters. The latter attenuate -3 dB at 30 kHz, and are designed to reduce radio-frequency interference (RFI) and digital computer noise. Combine all that functionality with a solid, black-anodized aluminum case, and you've got a handy and road-worthy direct box.
In the Box
- ART DUALZDirect - Professional Dual-Channel Passive Direct Box
- User Guide
- Limited 3-Year Manufacturer Warranty
ART DUALZDirect Specs
| Type |
Passive, Dual
|
| Input Connections |
2 x 1/4" TRS phone (unbalanced); 50k?
|
| Output Connectors |
2 x XLR male; 600?
2 x 1/4" TRS phone (pass through) |
| Frequency Response |
10 Hz - 50 kHz, ± 0.5 dB @ +4 dBu
|
| THD |
0.01% typical @ 1 kHz, +18 dBu / <.05% @ 100 Hz, +18 dBu
|
| Channel Separation |
> 80 dB (typical)
|
| Controls |
2 x Low-Pass Filter (switchable); -3 dB @ 30 kHz
2 x Input Attenuation (switchable); (0, -20, -40 dB) 2 x Phase Invert (switchable) 2 x Ground Lift (switchable) |
| Dimensions |
4.6 x 3.9 x 1.85" (117 x 99 x 47 mm)
|
| Weight |
0.88 lbs (0.40 kg)
|
| Package Weight |
1.15 lb
|
| Box Dimensions (LxWxH) |
13.1 x 6.5 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
