$71.17
Original: $237.23
-70%ANDYCINE A6 II 5.5" High-Brightness 4K HDMI Touchscreen Monitor—
$237.23
$71.17The Story
ANDYCINE A6 II Overview
- 1Description
- 2Bright Touchscreen
- 3Power Options
- 4Focus and Exposure Tools
- 5Connections
- 6Tilt Arm Mounting

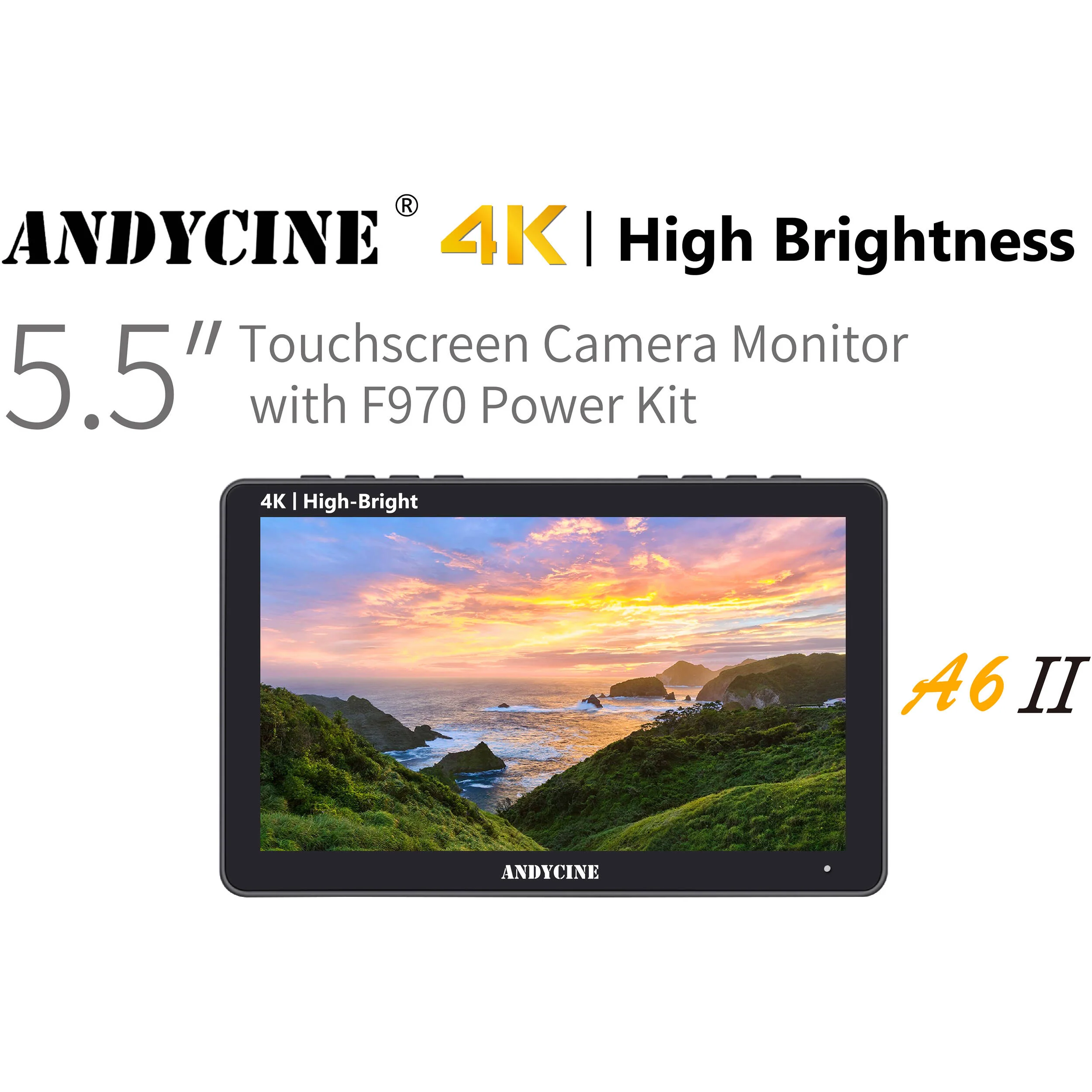

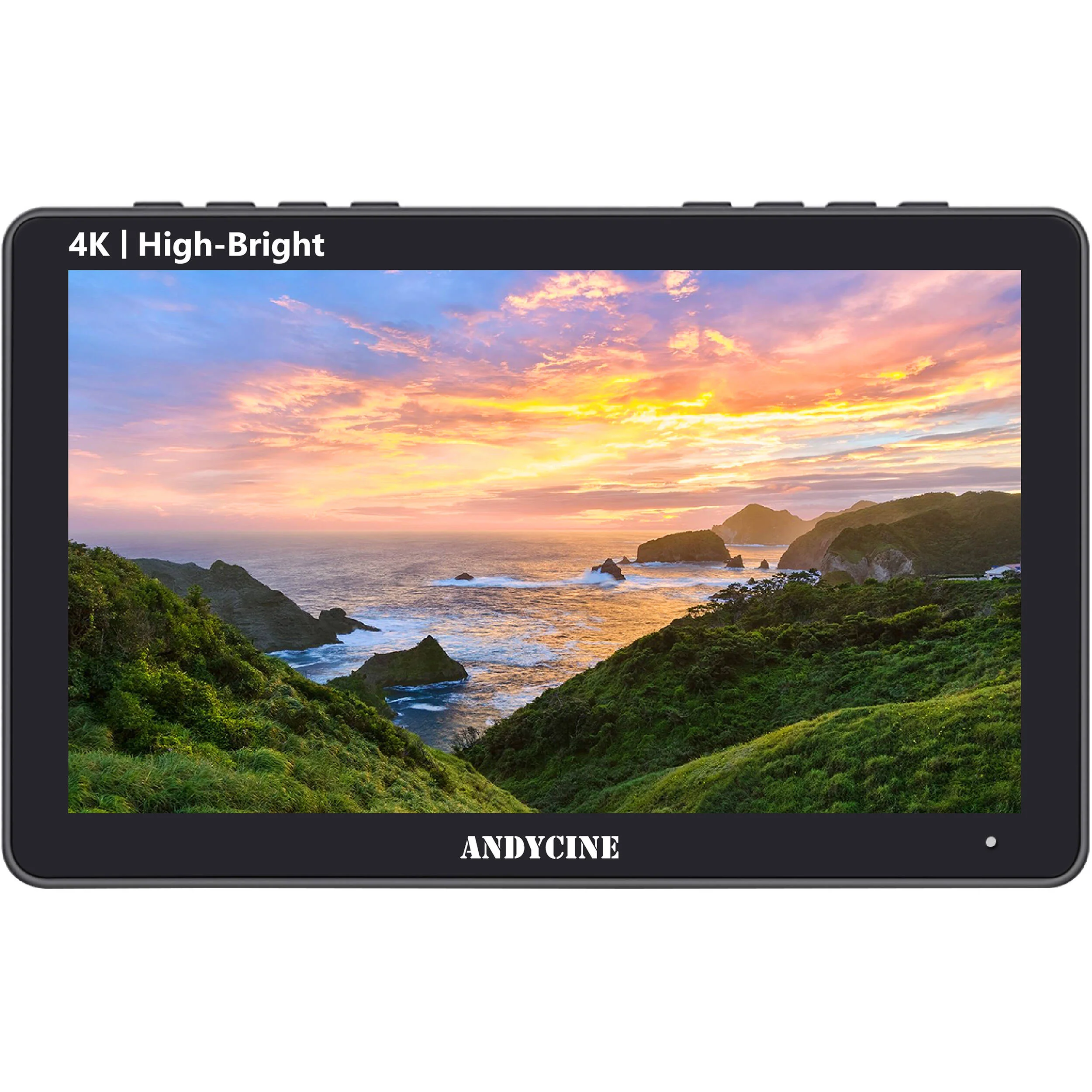

Add a bright touchscreen monitor to your 4K video capture using the A6 II 5.5" High-Brightness 4K HDMI Monitor from ANDYCINE. This 1920 x 1080 LCD monitor features 1600 cd/m² of brightness, a 1000:1 contrast ratio, and 3D LUT support. It has an HDMI input and loop output, multiple imaging tools, and a bracket for attaching a wireless transmitter. Power the A6 II using the built-in L-series battery plate, the USB-C input, or the DC barrel power input.
Bright Touchscreen
The A6 II monitor features a 5.5" touchscreen with high 1600 cd/m² brightness and 1000:1 contrast for easy viewing even in daylight.

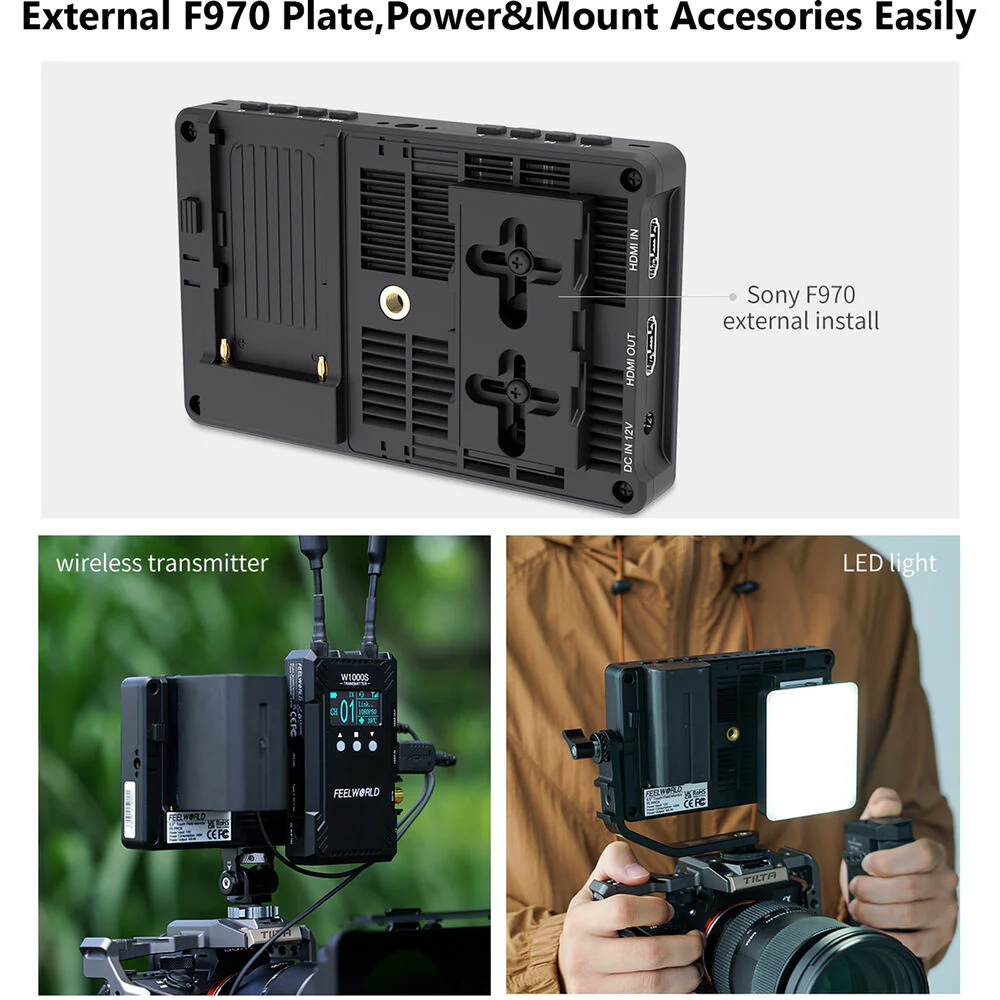

Power Options
- Power this monitor using a separately available Sony L-series type battery.
- Can also be powered via the USB-C port or the 8.4 VDC barrel input.

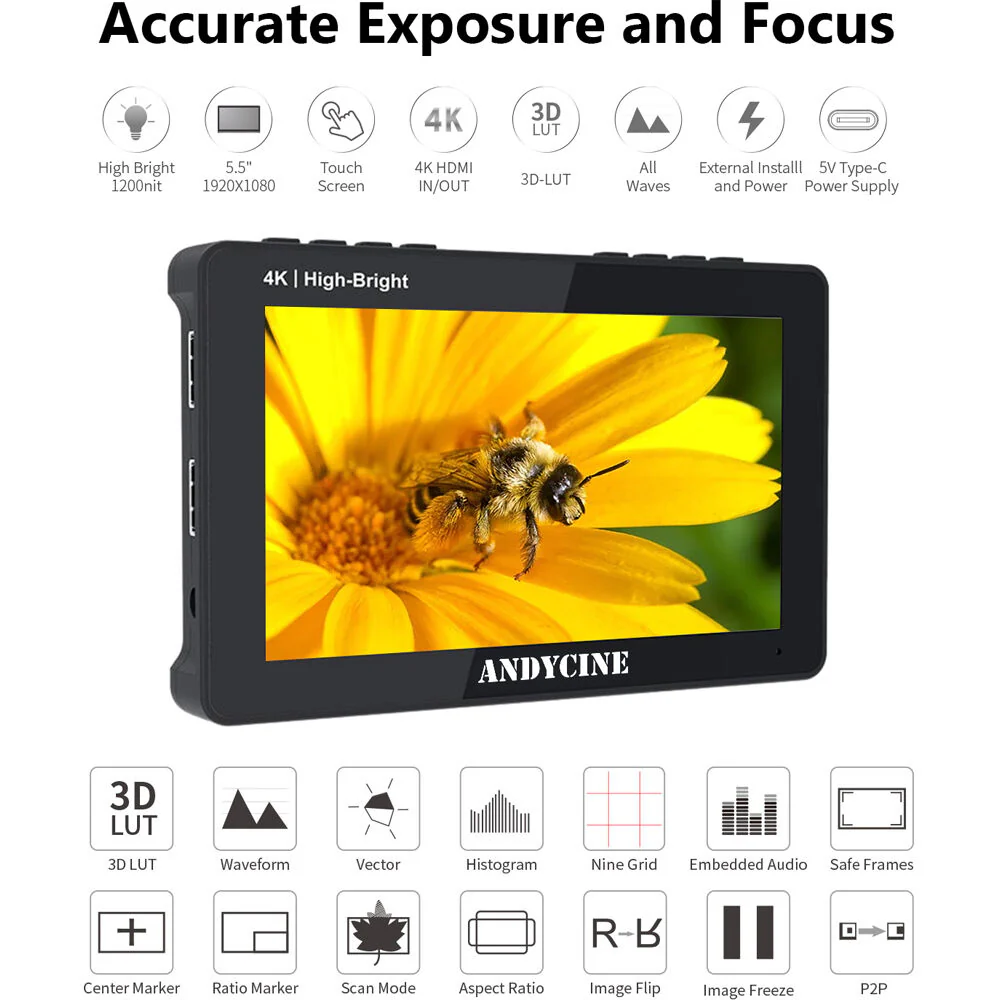

Focus and Exposure Tools
Tools include focus assist, histogram, waveform, and RGB/Chroma only for proper image setup.

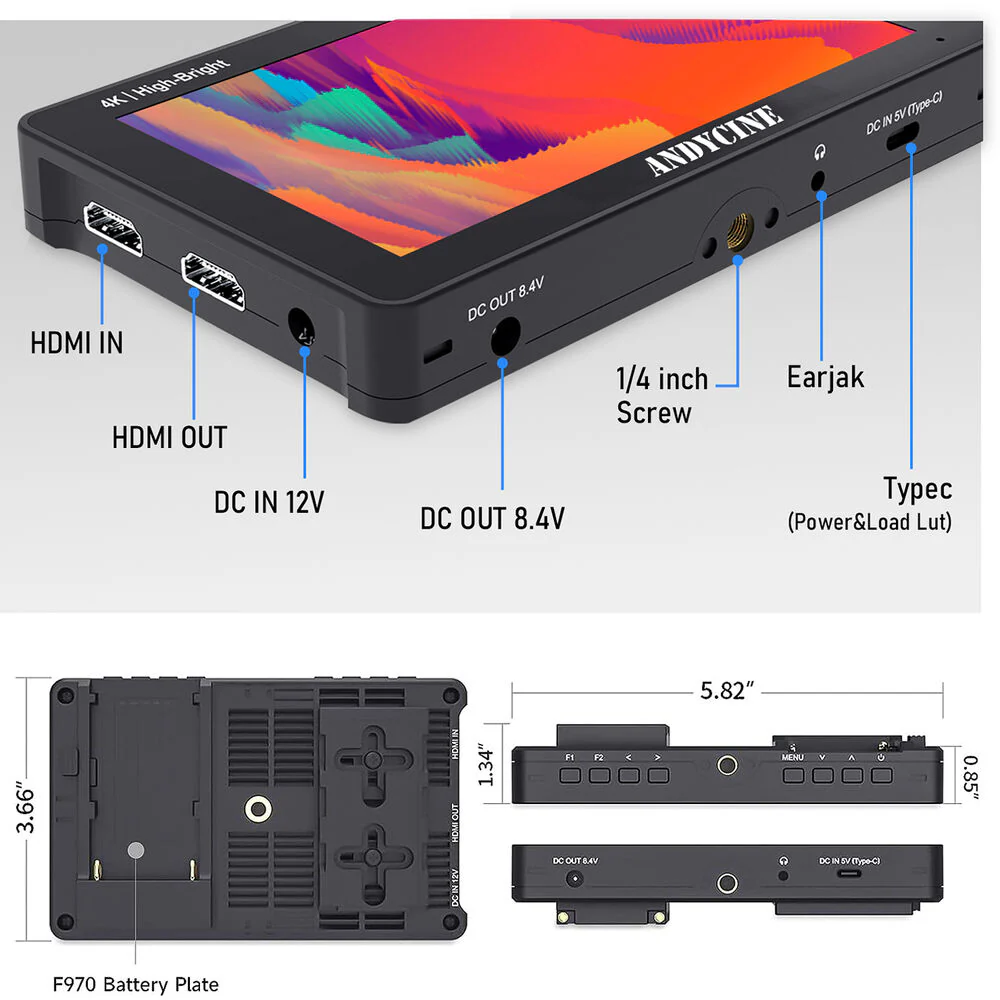

Connections
The monitor interface includes a 4K HDMI input and HDMI loop output, a USB-C port, and a 3.5mm audio jack for headphone monitoring.
Tilt Arm Mounting
Mounts on your camera or cage using the included tilt arm.
UPC: 756244139241

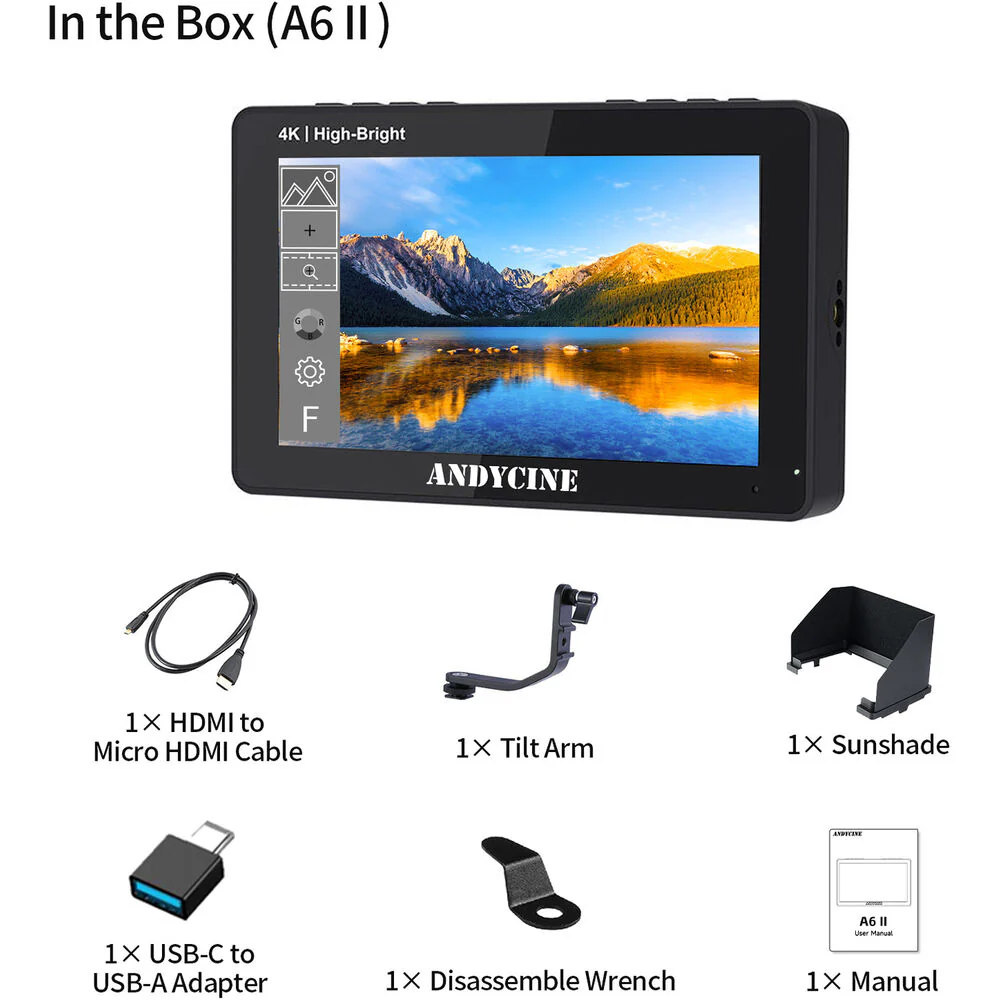

In the Box
- ANDYCINE A6 II 5.5" High-Brightness 4K HDMI Touchscreen Monitor
- HDMI to Micro-HDMI Cable
- Tilt Arm
- USB-A to USB-C Adapter
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Batteries (Not Included)
Table of Contents
- Description
- Bright Touchscreen
- Power Options
- Focus and Exposure Tools
- Connections
- Tilt Arm Mounting
ANDYCINE A6 II Specs
Key Specs
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Loop Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI (8-Bit)
DCI 4K: 24 UHD 4K: 30/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Battery Type |
1x L-Series
|
| Power Consumption |
9 W (Maximum)
|
| Mounting |
2x ARRI Anti-Twist 1/4"-20
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160°
Vertical: 160° |
| Touchscreen |
Yes
|
| Maximum Brightness |
1600 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Dot Pitch |
69.00 x 69.00 µm
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| HDR Compatibility |
No
|
| Pixels Per Inch (ppi) |
400 ppi
|
| Color Gamut |
100% Rec. 709
100% DCI-P3 |
| Real-Time LUT Monitoring |
SDR
|
| Image Controls |
Anamorphic De-Squeeze, Focus Assist, Histogram, R/G/B/Chroma Only, Waveform
|
Inputs / Outputs
| Video I/O |
1x HDMI Input
1x HDMI Loop Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel 5.5 mm (12 VDC) Input
1x USB-C (5 VDC) Input 1x Barrel 5.5 mm (8.4 VDC) Output |
| Other I/O |
No
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI (8-Bit)
DCI 4K: 24 UHD 4K: 30/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
Power
| DC Input Power |
12 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
9 W (Maximum)
|
Mounting
| Mounting |
2x ARRI Anti-Twist 1/4"-20
|
Environmental
| Environmental Protection |
No
|
General
| Dimensions |
5.8 x 3.7 x 0.97" / 148 x 93 x 24.75 mm
|
| Weight |
8.5 oz / 240 g, Including Battery Plate
|
Packaging Info
| Package Weight |
1.625 lb
|
| Box Dimensions (LxWxH) |
7.3 x 5.8 x 4.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
