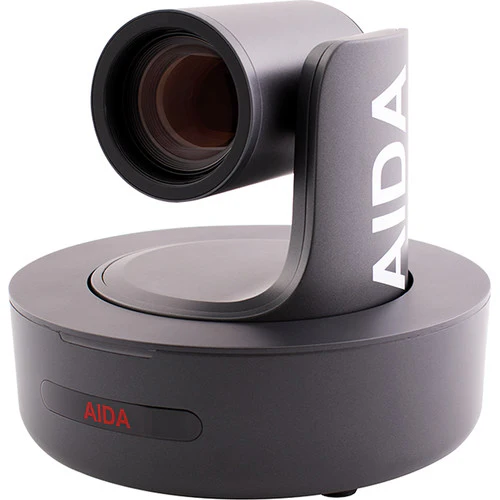

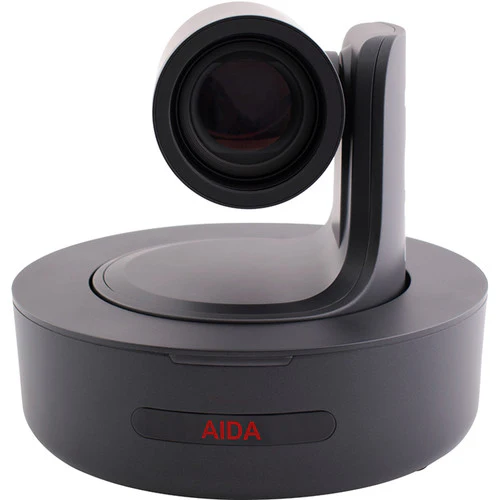

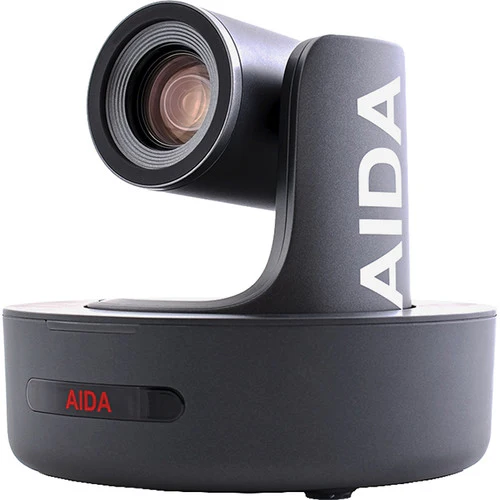

AIDA Imaging Full HD NDI Broadcast PTZ Camera with 12x Optical Zoom

Simultaneous SDI, HDMI, USB, IP Outputs

NDI Protocol; SDI, HDMI, USB Outputs

12x Optical Zoom

RS-232, VISCA over IP Control

Add the Full HD NDI Broadcast PTZ Camera with 12x Optical Zoom from AIDA to your NDI network, which offers four simultaneous video outputs as well as NDI workflows over IP. While the SDI, HDMI, and USB outputs must be set at the same resolution up to 1080p60, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps. The camera features a 12x zoom, and pan, tilt, and zoom functions can be controlled via serial control or by using the included remote control.

The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.

Key Features

• Simultaneous SDI, HDMI, USB, and NDI output
• Up to 1080p60 resolution video output
• 12x optical zoom
• H.264 / H.265 streaming
• RS-232 input/output
• VISCA-over-IP control protocol
• TCP/IP, RTSP/RTMP IP protocol
• 10 presets via included IR remote controller, 128 presets over serial control
• Motion-compensated temporal noise reduction filter allows for noise reduction without blur
• SMPTE 424M/292M standard
• Built-in OSD controls
• 4:2:2 (YCbCr) 10-bit color space
• White balance: auto, manual, auto tracking, one push, indoor, outdoor
• Auto shutter speed

UPC: 682863380125

Image Sensor	1-Chip 1/2.5" CMOS Sensor
Sensor Resolution	1920 x 1080
Effective Sensor Resolution	1920 x 1080
Minimum Illumination	0.1 Lux

Shutter Speed

1/1 to 1/10,000 sec

Optical Zoom Ratio	12x
Field of View	Horizontal: 6.3 to 72.5°
Maximum Aperture	f/1.5 to 3
Focus Control	Autofocus Manual Focus

Output Formats	SDI, HDMI, USB: 1920 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps RJ45: 1920 x 1080 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1024 x 576 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 620 x 360 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
IP Streaming	RTMP, RTSP: 1080i, 1080p, 720p at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60p

Presets	10 via IR 128 via RS-232, VISCA
Move Speed	Pan: 0 to 120°/sec Tilt: 0 to 80°/sec
Movement Range	Pan: 340° Tilt: 120° (-30 to 90°)
Supported Control Protocols	IR RS-232 VISCA

Video Output Connectors	1 x BNC (3G-SDI / HD-SDI) Female 1 x HDMI Type A Female 1 x USB 3.0 Type-B (USB Video) Female 1 x RJ45 (NDI) Female
Control Interface	1 x 8-Pin Mini-DIN (RS-232, VISCA) Input 1 x 8-Pin Mini-DIN (RS-232, VISCA) Output 1 x RJ45 (LAN) Output

Power Connectors

1 x Barrel / Coaxial (9 to 15 VDC)

Operating Temperature

32 to 104°F / 0 to 40°C

Dimensions	6.69 x 6.3 x 6.1" / 17 x 16 x 15.5 cm
Weight	2.97 lb / 1.35 kg

Package Weight	7.74 lb
Box Dimensions (LxWxH)	11.8 x 10.8 x 10.4"
