The Story
- For 500 Series Enclosures
- Based on the Quad Eight Pacifica Console
- Mic and DI Inputs
- Up to 72 dB of Gain
- Warm Full Tone with Sweet Top End
- Custom Cinemag Input Transformer
- Custom Cinemag Output Transformer
- Polarity Switch, -20 dB Pad
- +48V Phantom Power
- Handmade in the USA

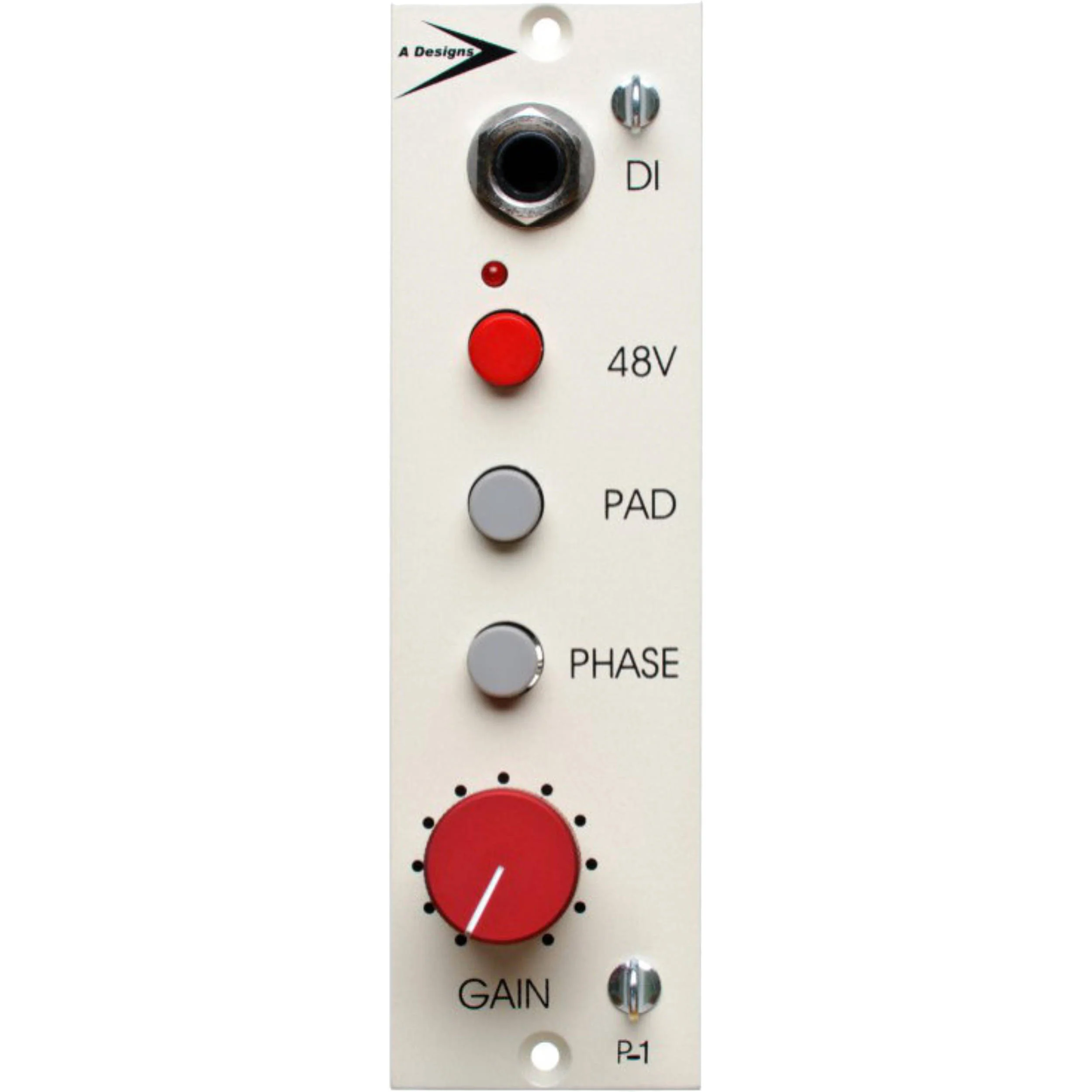

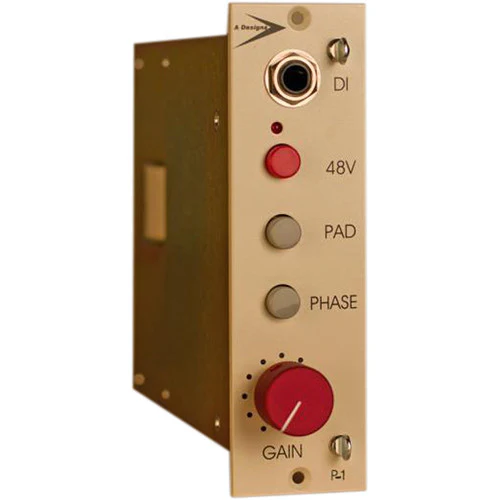

The P-1 from A-Designs is a 500 Series, solid-state microphone preamplifier that captures the sound of the legendary Quad Eight Pacifica console, offering a big, warm tone without being dark, and a sweet, open top end. The preamp features a unique DI signal path that utilizes two transformers for added depth and a richer tone. The custom-wound Cinemag transformers are of a proprietary design by A-Designs.
The P-1 offers an ultra-wide bandwidth of 9 Hz to 101 kHz with less than 1% distortion, resulting in rich, harmonic content, while reducing in-band phase shifts for more realism. The preamp features a phase reversal switch, -20 dB pad, and 48V phantom power, while the 72 dB of quiet gain is more than enough for ribbon microphones. The P-1 is handmade in the USA.
-
- 500 Series compatible
- Solid state preamp with�front-panel Hi-Z input
- Captures the sound quality of the legendary Quad Eight Pacifica console with even more presence and high-end
- Very warm and full tone without being dark; wide bandwidth with a sweet top end
- Custom-wound Cinemag input and output transformers
- Input transformer: A-Designs proprietary input transformer with unique winding
- Output Transformer: A-Designs proprietary alloy using the same massive design as the original Quad Eight
- 72 dB of quiet gain, great for use with ribbon mics
- Unique DI design sends signal through the input transformer for two transformers in the signal path
- Phase reversal
- -20 dB pad
- +48V phantom power
- Handmade in the USA
- Limited 1-Year Warranty
| Number of Channels | 1 |
| Inputs and Outputs | 500 Series compatible |
| Phantom Power | Switchable +48 V |
| Gain Range | 72 dB |
| Frequency Response | 9 Hz to 101 kHz |
| Noise | EIN: -128 dB |
| Input Impedance | 1500 ohms |
| Phase Reversal | Switchable 0 - 180� |
| Distortion | < 1 % |
| Dimensions (W x H x D) | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
