$0.59
Original: $1.96

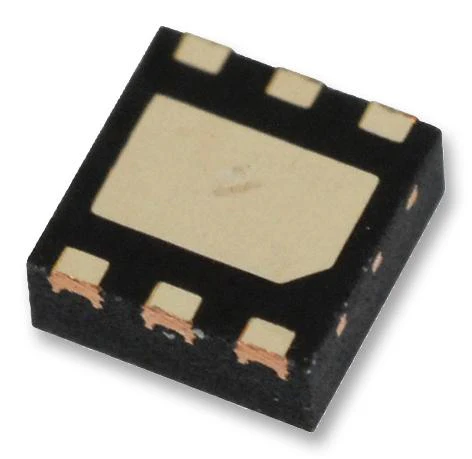

-70%Texas Instruments TPS25200DRVT TPS25200DRVT Efuse Adjustable Current Limit & Overvoltage Clamp 2.5 V to 6.5 in SON-6—
$1.96
$0.59The Story
The TPS25200DRVT is a 6.5V eFuse with precision current limit and overvoltage clamp. The device provides robust protection for load and source during overvoltage and over-current events. The TPS25200 is an intelligent protected load switch with VIN tolerant to 20V. In the event that an incorrect voltage is applied at IN, the output will clamp to 5.4V to protect the load. If the voltage at IN exceeds 7.6V, the device disconnects the load to prevent damage to the device and/or load. The TPS25200 has an internal 60mR power switch and is intended for protecting source, device and load under a variety of abnormal conditions. The device provides up to 2.5A of continuous load current. Current limit is programmable from 85mA to 2.9A with a single resistor to ground. During overload events output current is limited to the level set by RILIM. If a persistent overload occurs the device will eventually go into thermal shutoff to prevent damage to the TPS25200.
- Input withstands up to 20V
- 7.6V Input overvoltage shutoff
- 5.25 to 5.55V Fixed over voltage clamp
- 0.6µs Overvoltage lockout response
- 3.5µs Short-circuit response
- Integrated 60mR high-side MOSFET
- Up to 2.5A continuous load current
- ±6% Current-limit accuracy at 2.9A
- Reverse current blocking while disabled
- Built-in soft start
- Green product and no Sb/Br
Power Management, Communications & Networking, Portable Devices, Wireless
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS25200DRVT |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
