Sonifex AVN-AI16 16-Input Dante Interface with PoE
HomeStore

Sonifex AVN-AI16 16-Input Dante Interface with PoE

Sonifex AVN-AI16 16-Input Dante Interface with PoE

$1,321.01

Original: $4,403.35

-70%
Sonifex AVN-AI16 16-Input Dante Interface with PoE—

$4,403.35

$1,321.01

The Story

Sonifex AVN-AI16 Overview

The AVN-AI16 16-Input Dante Interface from Sonifex converts up to 16 analog inputs to the Dante Audio-over-IP networking standard. This 1 RU rackmount unit offers an easy solution for AV professionals and system integrators. All setup, except line-up levels, is done via the standard Dante Controller software, and power is provided via PoE. All analog inputs are on Neutrik XLR connectors, and there are front-panel status/confidence LEDs for PoE, Link, and Clock.

In the Box

  • Sonifex AVN-AI16 16-Input Dante Interface with PoE

    Sonifex AVN-AI16 Specs

    Key Specs
    Form Factor
    Rackmount (Rack-Mountable with Included Hardware)
    Converter Type
    A/D Converter
    Number of Channels
    16 x A/D
    Maximum Sampling Rate
    192 kHz / 32-Bit
    Analog Audio I/O
    16 x XLR 3-Pin Line Input
    Converter Type
    A/D Converter
    Number of Channels
    16 x A/D
    Conversion Formats
    Dante
    Display
    3 x Color LED
    Maximum Sampling Rate
    192 kHz / 32-Bit
    Number of Microphone Preamps
    No
    Expansion Slots
    No
    Gain/Trim Range
    +12 dBu to +24 dBu
    Connectivity
    Analog Audio I/O
    16 x XLR 3-Pin Line Input
    Phantom Power
    No
    Digital Audio I/O
    No
    Host Connection / USB
    No
    Sync I/O
    No
    Network I/O
    1 x RJ45 Dante
    MIDI I/O
    No
    Wireless
    No
    Performance
    Frequency Response
    20 Hz to 20 kHz +0/-0.2 dB
    Impedance
    XLR Line Inputs:
    > 20 Kilohms (Balanced)
    SNR
    XLR Line A/D Converters:
    -110 dBFS (20 kHz to BW, RS=200?)
    THD+N
    XLR Line Inputs:
    < -110 dBFS (20 Hz to 20 kHz, 20kHz BW)
    Crosstalk
    < -100 dB
    Digital Audio
    Sample Rates
    44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (A/D Conversion)
    Sample Rate Conversion
    No
    Bit Depths
    16 / 24 / 32-Bit
    Sync Sources
    Dante
    Clocking
    Dante:
    Compatibility
    OS Compatibility
    Windows 10
    *As of August, 2023: Check with manufacturer for the most up-to-date compatibility
    Included Software
    No
    Compatible Software (Not Included)
    Dante Domain Manager
    Mobile App Compatible
    No
    *As of August, 2023: Check with manufacturer for the most up-to-date compatibility
    Mobile Device Compatibility
    No
    Required Hardware
    Ethernet Port
    Power
    Power Requirements
    PoE
    Power Consumption
    12.94 W (Maximum)
    Physical
    Rackmount Size
    1 RU (with Optional Hardware)
    Dimensions
    18.9 x 4.3 x 1.7" / 48 x 11 x 4.3 cm
    Weight
    2.4 lb / 1.1 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    Sonifex AVN-AI16 16-Input Dante Interface with PoE - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

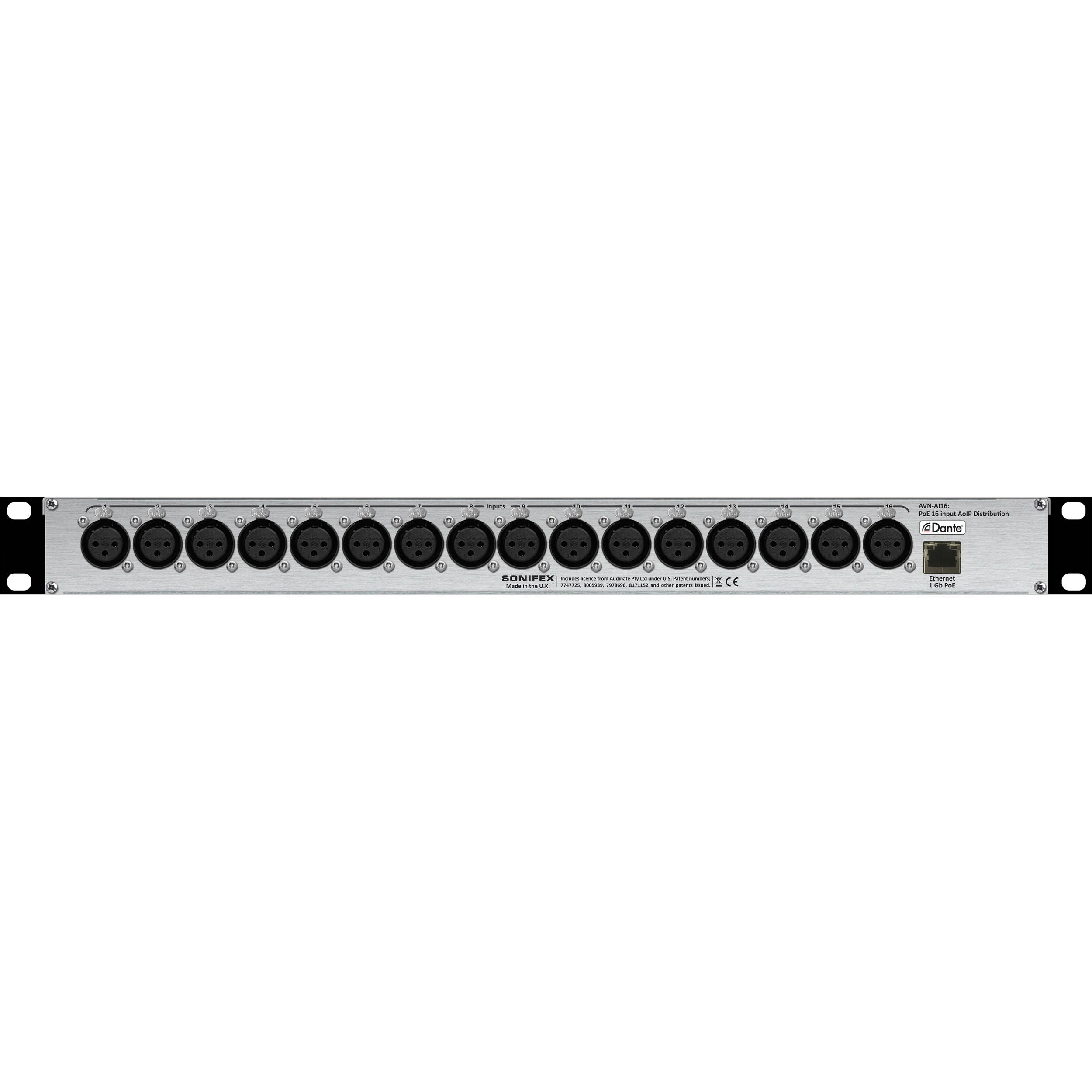

    Sonifex AVN-AI16 16-Input Dante Interface with PoE - Image 3
