Original: $2,662.83
-70%$2,662.83
$798.85The Story
- 4 Input/6 Output
- 2 x XLR Microphone/Line Inputs
- 2 x 1/4" Instrument/Line Inputs
- 2 x 1/4" Monitor Outputs
- 2 x 1/4" Line Outputs (Fixed Level)
- High-Power Headphone Output
- Ethernet Connectivity
- SoundGrid Compatible
- 48V Phantom Power
- Powered by Included Adapter or PoE

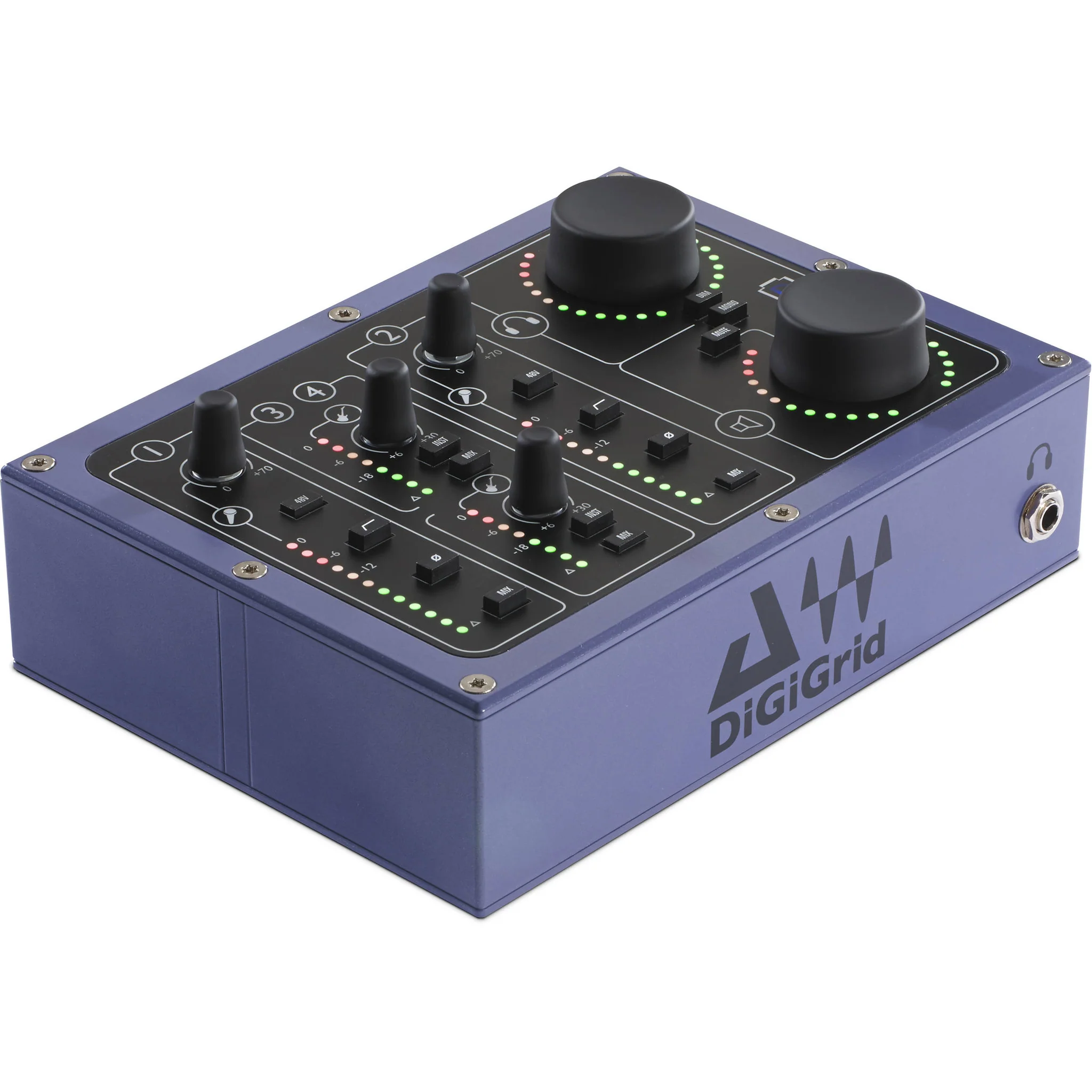

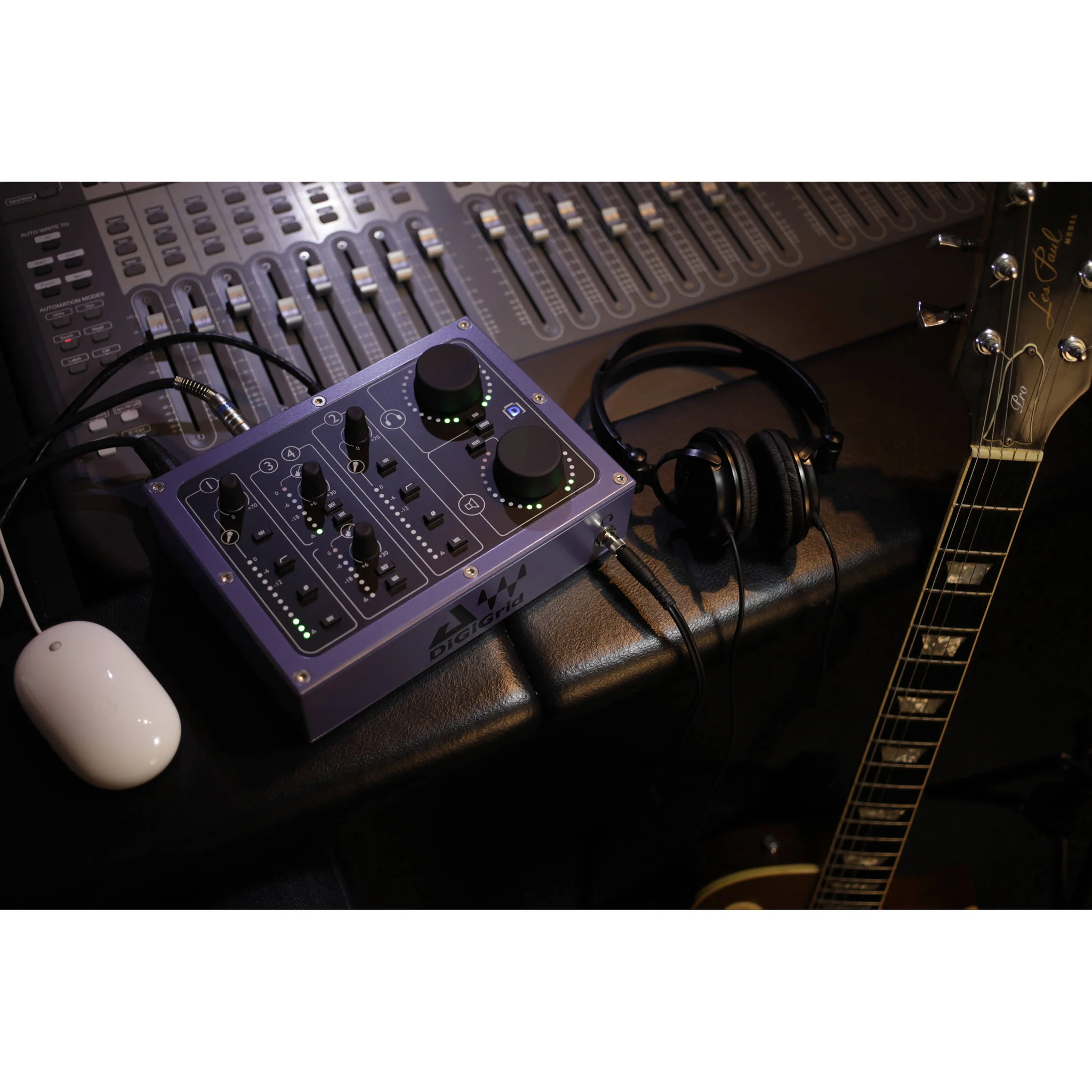

DiGiGrid D from DiGiGrid is an Ethernet-based, four-input, six-output desktop recording interface that provides excellent flexibility in all applications. Inputs 1 and 2 are microphone/line, while 3 are 4 are instrument/line. There are two 1/4" outputs with level control that are ideal for monitoring, and two 1/4" fixed-level line outputs. Monitoring in the studio or on location can also be achieved using the headphone output.
The interface integrates seamlessly with any other DiGiGrid product using the Cat5 SoundGrid network port to provide the user with extra I/O and overall functionality. The unit is powered by the included twist-lock 12 VDC power supply, or via Power over Ethernet (PoE). When used in conjunction with the optional DiGiGrid S, up to four DiGiGrid devices can be easily networked up to 245 feet (75 meters) apart, and can even connect to multiple computers and DAWs simultaneously.
- Compact four-input, six-output 96 kHz advanced audio interface
- Use as a standalone device or as an interface to a larger DiGiGrid system
- Analog controls for pure sonic performance
- Designed for all applications, including studio, educational, home studio, and live
- Enhance a DAW and expand the recording capabilities
- Professional-quality network audio interface for Windows and Mac computers
- High-resolution input and output meters
- Cat5 port for the SoundGrid network connection
- Includes eMotion ST Mixer, SoundGrid Studio Application, and StudioRack software
| Microphone/Line Input | Connectors: 2 x XLR Input Impedance: 1.5 kOhms Gain Range: 0 to +70 dB Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog) Harmonic Distortion: 0.005% (40 dB gain) Noise EIN: -127 dB (70 dB gain) typical High-Pass Filter: -3 dB, 100 Hz, 18 dB/octave |
| Line / Instrument Inputs | Connectors: 2 x 1/4" Input Impedance: 1 MOhm / 10 kOhms Gain Range: +6 to +30 dB Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog) Harmonic Distortion: 0.005% |
| Noise | Minimum Gain: -82 dBu Maximum Gain: -73 dBu |
| Headphones | Connectors: 1 x 1/4" Gain Range Infinity: to +10 dB Max Output Levels: 16 Ohm � 2.3 Vrms 32 Ohm � 3.7 Vrms 100 Ohm � 6.0 Vrms 200 Ohm � 7.5 Vrms 600 Ohm � 8.8 Vrms |
| Monitor Outputs | Connectors: 2 x 1/4" Maximum Output Level: +22 dBu Residual Output Noise: < 92 dBu Output Impedance: 50 Ohms Harmonic Distortion: 0.005% Fixed-Level Line Outputs: 2 x 1/4" |
| Packaging Info | |
|---|---|
| Package Weight | 5.9 lb |
| Box Dimensions (LxWxH) | 13.7 x 11.7 x 4.8" |
- External Power Supply
- Downloadable Software Applications
- One (1) Year Limited Warranty
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- 4 Input/6 Output
- 2 x XLR Microphone/Line Inputs
- 2 x 1/4" Instrument/Line Inputs
- 2 x 1/4" Monitor Outputs
- 2 x 1/4" Line Outputs (Fixed Level)
- High-Power Headphone Output
- Ethernet Connectivity
- SoundGrid Compatible
- 48V Phantom Power
- Powered by Included Adapter or PoE
DiGiGrid D from DiGiGrid is an Ethernet-based, four-input, six-output desktop recording interface that provides excellent flexibility in all applications. Inputs 1 and 2 are microphone/line, while 3 are 4 are instrument/line. There are two 1/4" outputs with level control that are ideal for monitoring, and two 1/4" fixed-level line outputs. Monitoring in the studio or on location can also be achieved using the headphone output.
The interface integrates seamlessly with any other DiGiGrid product using the Cat5 SoundGrid network port to provide the user with extra I/O and overall functionality. The unit is powered by the included twist-lock 12 VDC power supply, or via Power over Ethernet (PoE). When used in conjunction with the optional DiGiGrid S, up to four DiGiGrid devices can be easily networked up to 245 feet (75 meters) apart, and can even connect to multiple computers and DAWs simultaneously.
- Compact four-input, six-output 96 kHz advanced audio interface
- Use as a standalone device or as an interface to a larger DiGiGrid system
- Analog controls for pure sonic performance
- Designed for all applications, including studio, educational, home studio, and live
- Enhance a DAW and expand the recording capabilities
- Professional-quality network audio interface for Windows and Mac computers
- High-resolution input and output meters
- Cat5 port for the SoundGrid network connection
- Includes eMotion ST Mixer, SoundGrid Studio Application, and StudioRack software
| Microphone/Line Input | Connectors: 2 x XLR Input Impedance: 1.5 kOhms Gain Range: 0 to +70 dB Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog) Harmonic Distortion: 0.005% (40 dB gain) Noise EIN: -127 dB (70 dB gain) typical High-Pass Filter: -3 dB, 100 Hz, 18 dB/octave |
| Line / Instrument Inputs | Connectors: 2 x 1/4" Input Impedance: 1 MOhm / 10 kOhms Gain Range: +6 to +30 dB Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog) Harmonic Distortion: 0.005% |
| Noise | Minimum Gain: -82 dBu Maximum Gain: -73 dBu |
| Headphones | Connectors: 1 x 1/4" Gain Range Infinity: to +10 dB Max Output Levels: 16 Ohm � 2.3 Vrms 32 Ohm � 3.7 Vrms 100 Ohm � 6.0 Vrms 200 Ohm � 7.5 Vrms 600 Ohm � 8.8 Vrms |
| Monitor Outputs | Connectors: 2 x 1/4" Maximum Output Level: +22 dBu Residual Output Noise: < 92 dBu Output Impedance: 50 Ohms Harmonic Distortion: 0.005% Fixed-Level Line Outputs: 2 x 1/4" |
| Packaging Info | |
|---|---|
| Package Weight | 5.9 lb |
| Box Dimensions (LxWxH) | 13.7 x 11.7 x 4.8" |
- External Power Supply
- Downloadable Software Applications
- One (1) Year Limited Warranty
