The Story
American Recorder MINI MIX Overview
- 1Description
- 2Miniature Mixer
- 3USB Interface
- 4Ultracompact Size
- 5Stereo 3x2 Audio Configuration
- 6Amplifier Gain
- 7Onboard EQ
- 8Dedicated Headphone Level
- 9Flexible Power

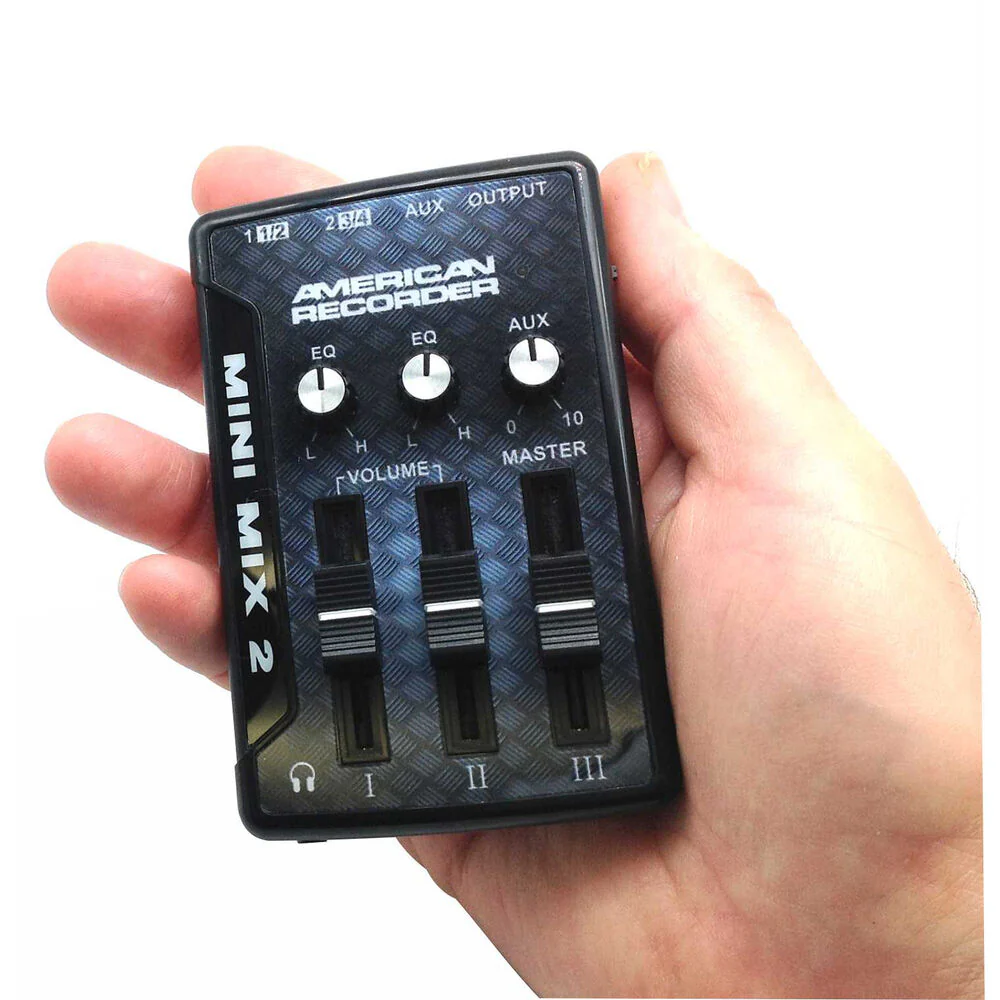

Equally handy for live performances, live streaming, and podcasting, the American Recorder Mini Mixer 2 is a flexible 3-stereo-input and 2-stereo-output mixer and USB audio interface in an ultracompact and lightweight housing that can stow away in a drawer, pocket, or bag. Since it is bus powered and operable as a standalone mixer or 16-bit / 48 kHz USB interface, the Mini Mixer 2 can be used with or without a compatible USB host such as a Mac/Windows/Linux computer or USB OTG-equipped Android mobile device.

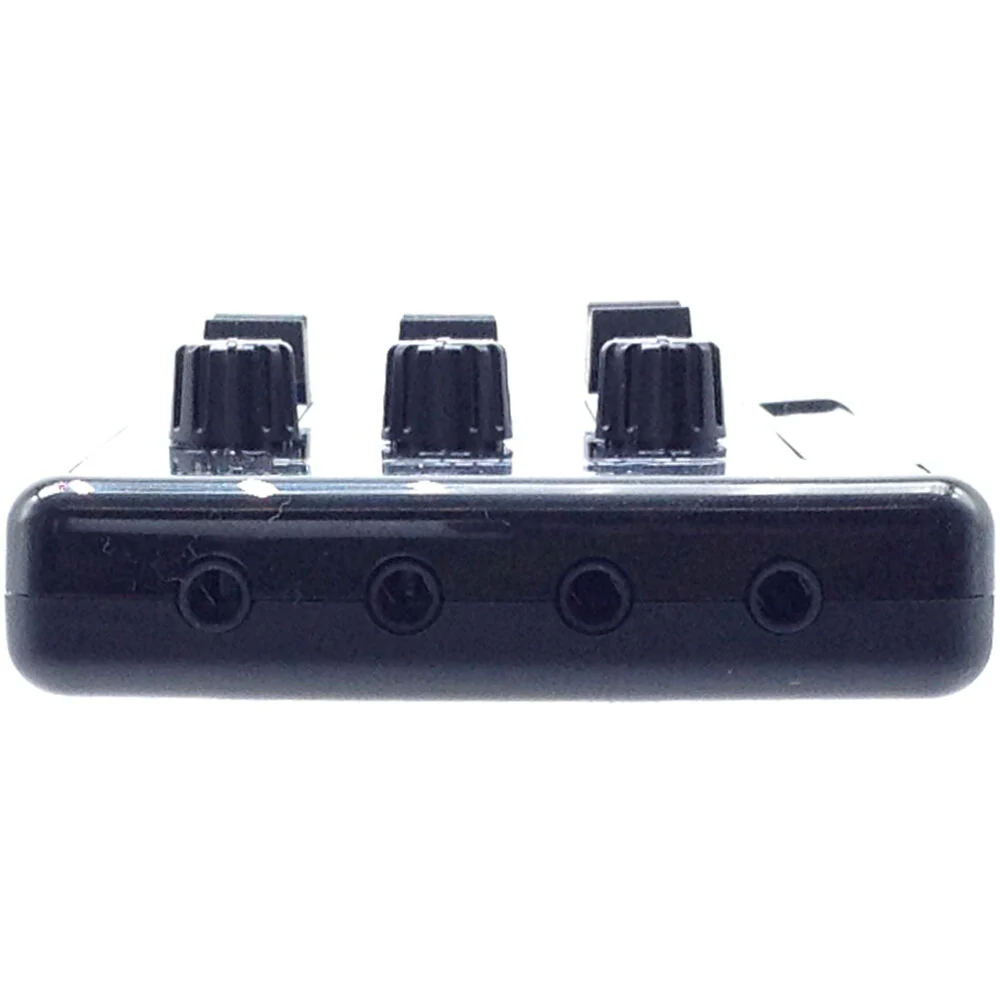

It features three 3.5mm stereo inputs�two with a single-knob EQ and fader with up to 35 dB of gain�for dynamic mics, battery-powered condenser mics, or portable music players. Additionally, there is a separate 3.5mm stereo TRS aux input with its own level knob. Thanks to the 3.5mm main and headphone outputs and their independent level controls, the Mini Mixer 2 can simultaneously feed speakers and headphones.
Miniature Mixer
USB Interface
Ultracompact Size
Stereo 3x2 Audio Configuration
Amplifier Gain
Onboard EQ
Dedicated Headphone Level
Flexible Power
In the Box
- American Recorder Mini Mixer 2 Ultracompact 3-Stereo-Input, 2-Stereo-Output Mixer / USB Audio Interface

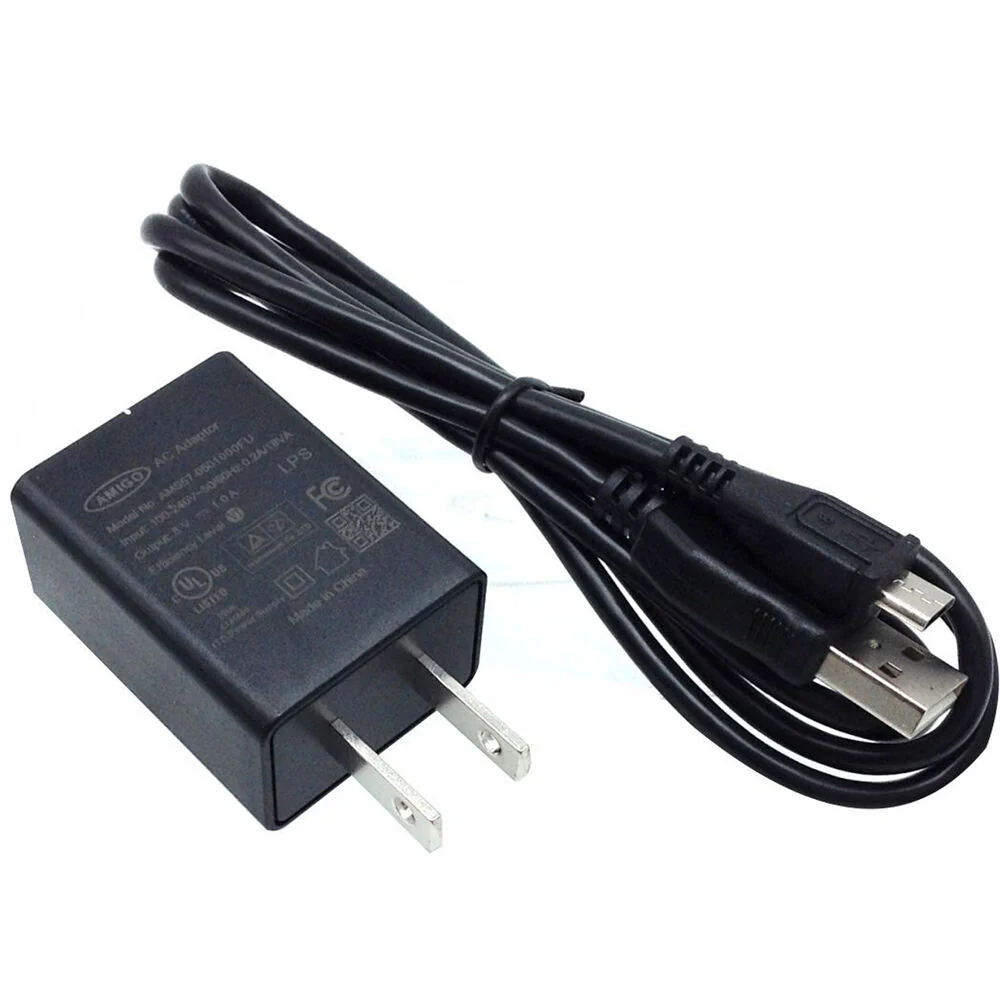

- Micro-USB to USB Type-A Cable
- 5V, 1A Adapter
- Dustproof Pouch
- Limited 1-Year Warranty
- Description
- Miniature Mixer
- USB Interface
- Ultracompact Size
- Stereo 3x2 Audio Configuration
- Amplifier Gain
- Onboard EQ
- Dedicated Headphone Level
- Flexible Power
American Recorder MINI MIX Specs
| Form Factor | Mobile |
| Display | None |
| Channels of I/O | 3 Inputs / 2 Outputs |
| Max Sample Rate/Resolution | 48 kHz / 16-Bit |
| Number of Mic Preamps | 2 |
| Input Level Adjustment | 2 x Fader |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Mic/Line Inputs: Up to 35 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Analog Audio I/O | 2 x 1/8" / 3.5 mm TRS Unbalanced Mic/Line Input 1 x 1/8" / 3.5 mm TRS Unbalanced Aux Input 1 x 1/8" / 3.5 mm TRS Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output |
| Phantom Power | None |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x Micro-USB (Class-Compliant) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
| Sample Rates | 48 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 16-Bit |
| Sync Sources | Internal |
| Memory Card Slot | None |
| OS Compatibility | macOS Windows 7 or Later Linux Android |
| Included Software | None |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | None |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Class-Compliant (No Driver Needed) Android Class-Compliant (No Driver Needed) |
| Mobile Device Compatibility | Android Smartphone (with USB OTG (On-The-Go)) Android Tablet (with USB OTG (On-The-Go)) |
| Required Hardware | Available USB Port USB Cable (Included) |
| Power Requirements | AC/DC Power Adapter (Included) or USB Bus Power |
| AC/DC Power Adapter | 5 VAC at 1 A (Included) |
| Dimensions | 4.1 x 2.7 x 0.9" / 10.5 x 6.8 x 2.4Â cm |
| Weight | 3.4Â oz / 95.0Â g |
| Package Weight | 0.545 lb |
| Box Dimensions (LxWxH) | 6.3 x 5.3 x 2.1" |
American Recorder MINI MIX Reviews
