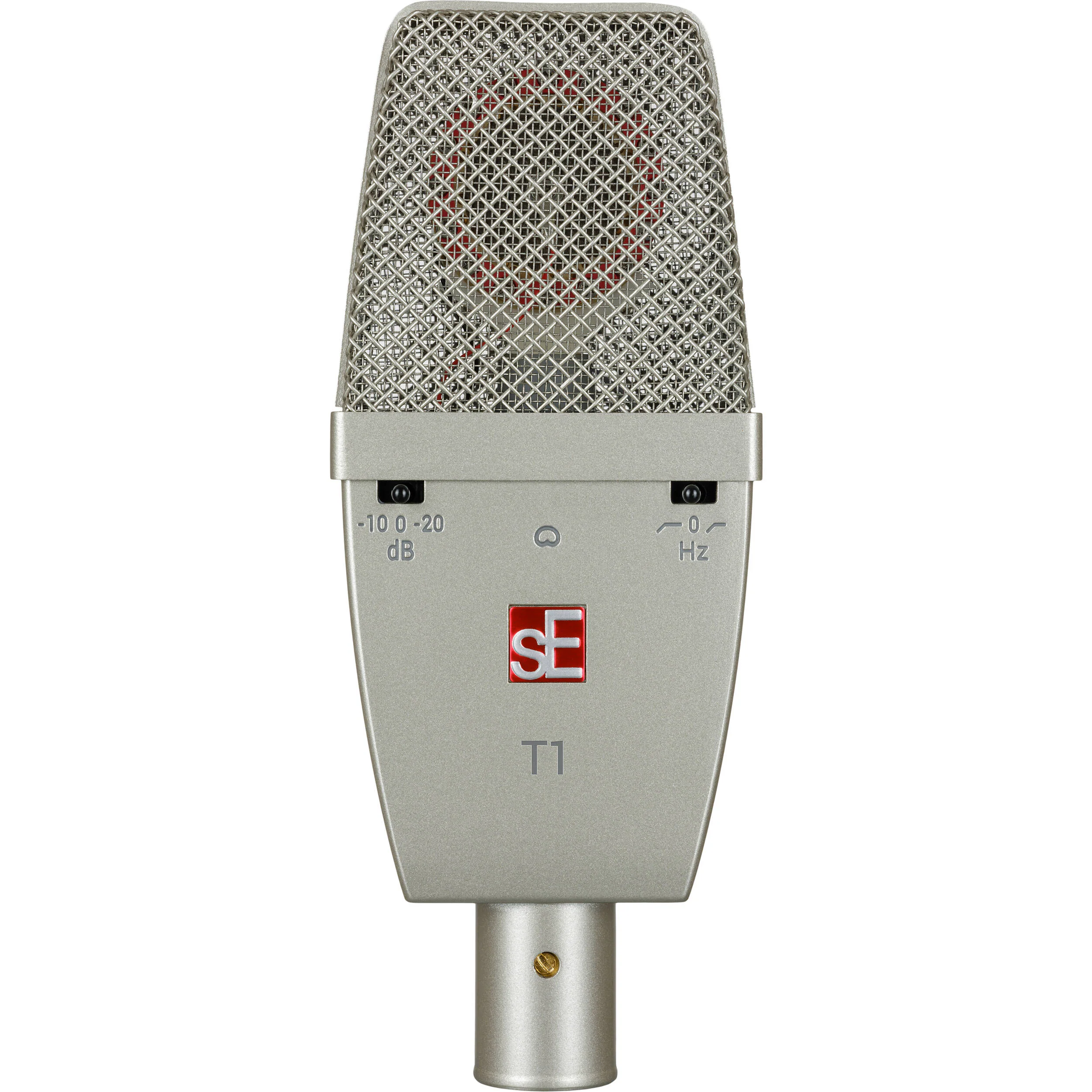

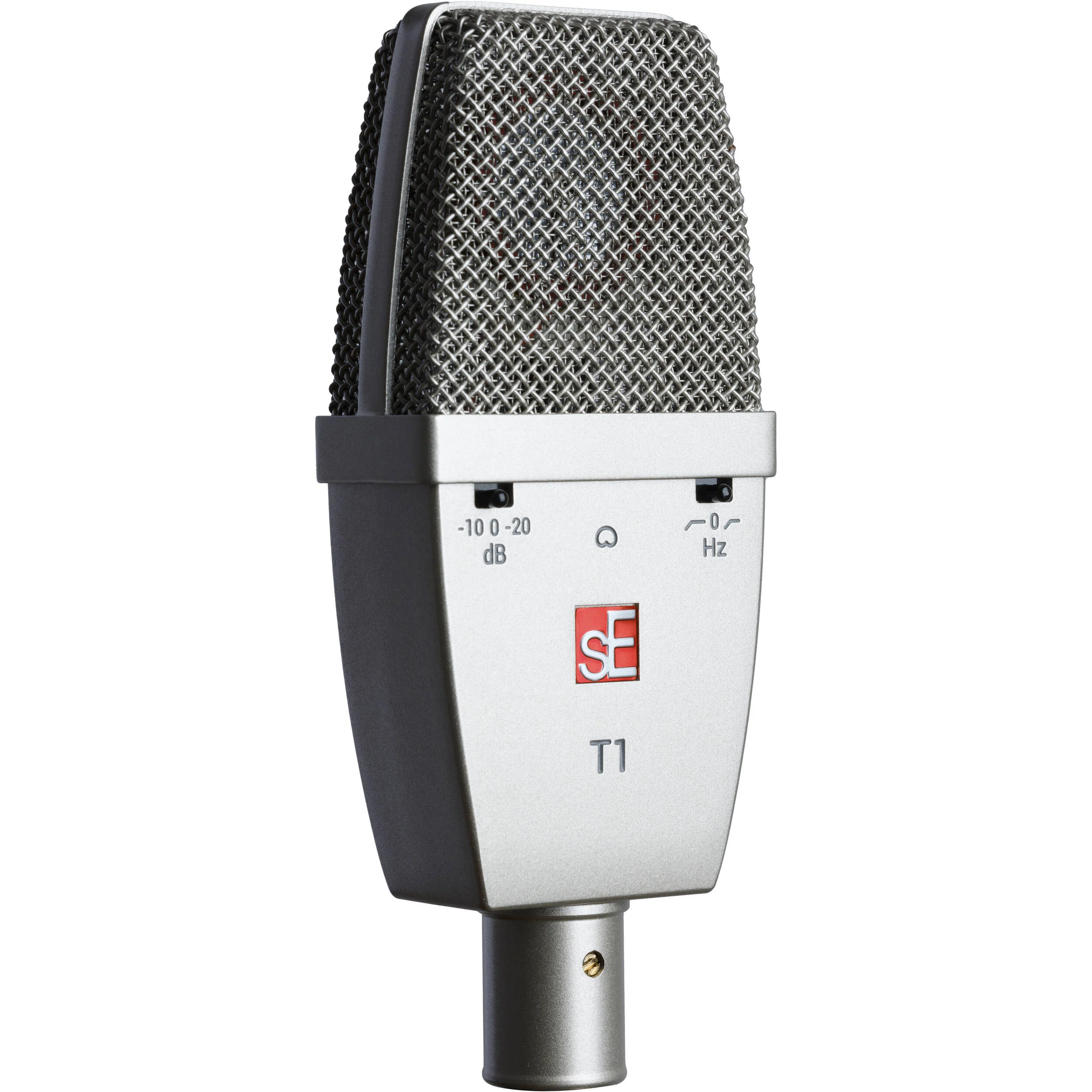

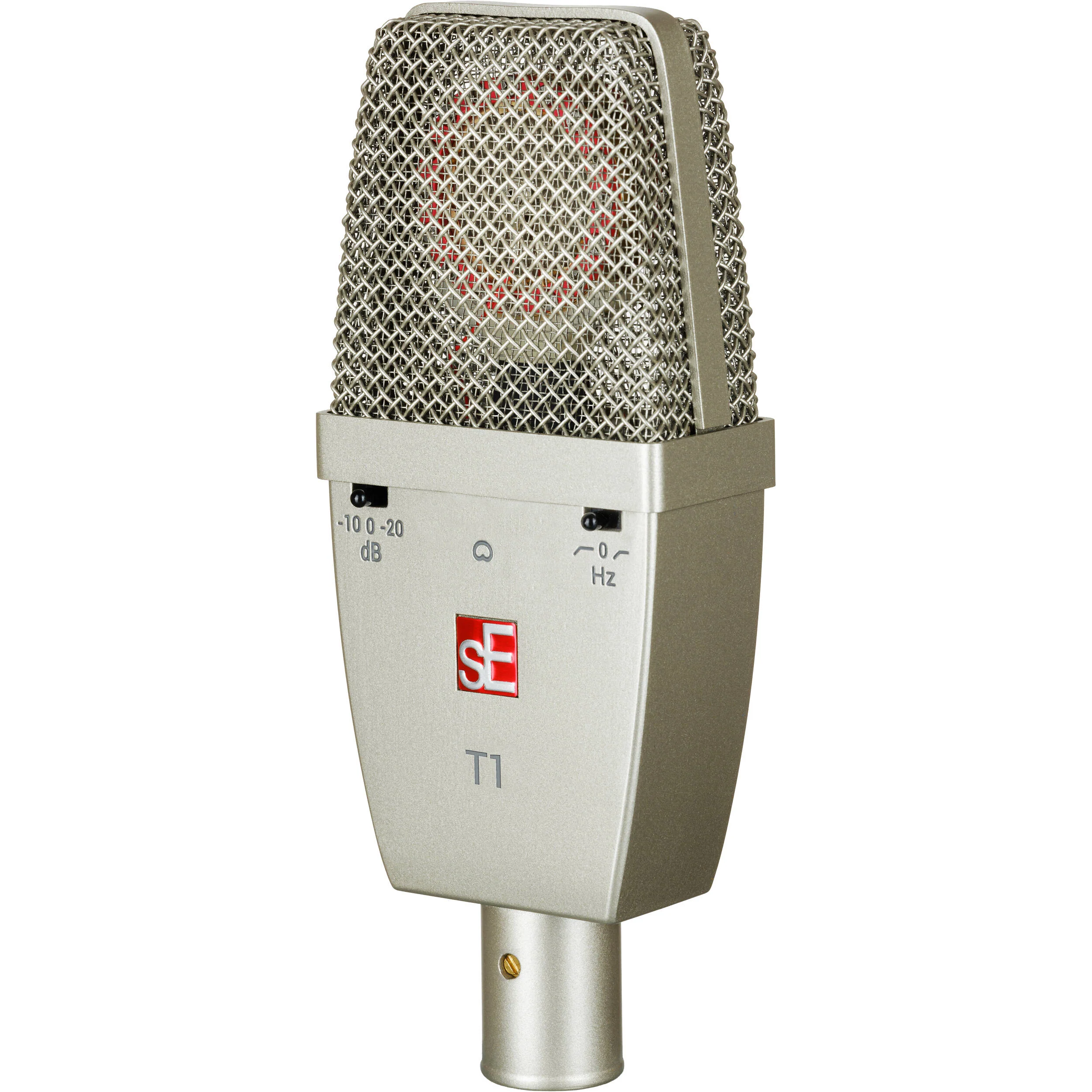

sE Electronics T1 Large-Diaphragm Condenser Microphone

Improving upon the technology of the renowned T2 while cutting out unnecessary complications, the T1 Large-Diaphragm Condenser Microphone from sE Electronics is a quality studio condenser mic with a fixed cardioid pickup pattern and a 1" titanium capsule. 33% stiffer and more than 300% lighter than gold, the titanium-sputtered diaphragm offers a superior transient response, ideal for drums, cymbals, and bass recording applications.

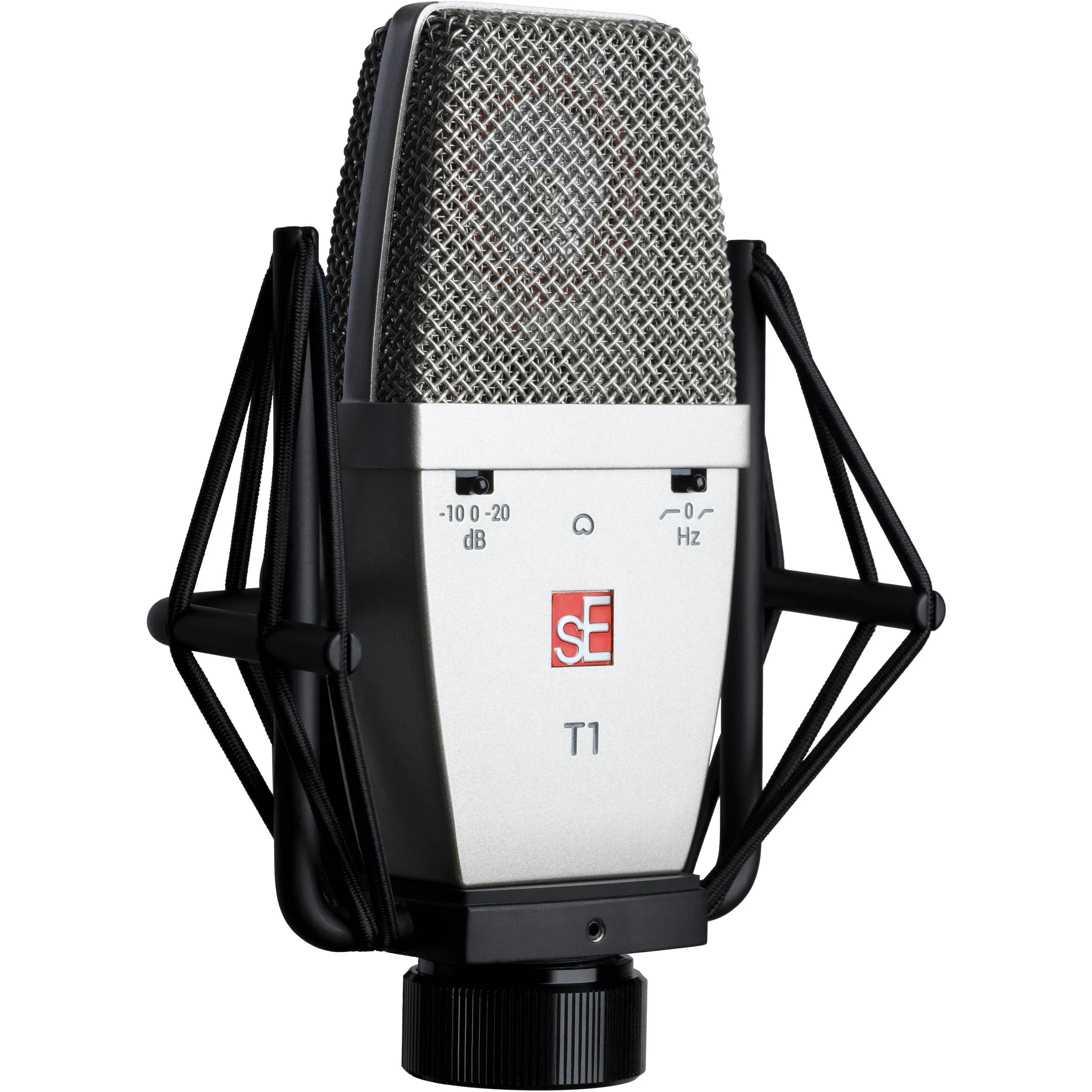

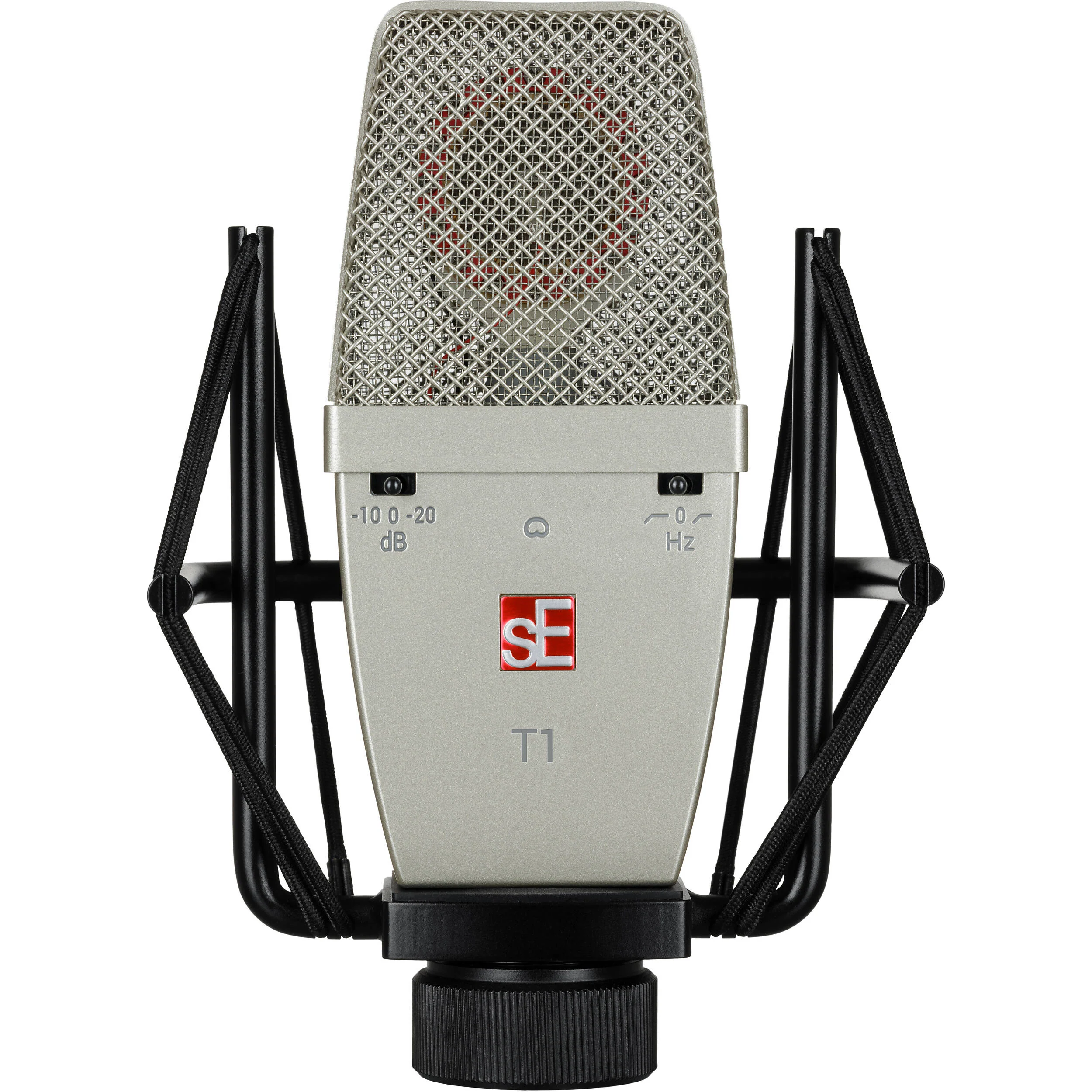

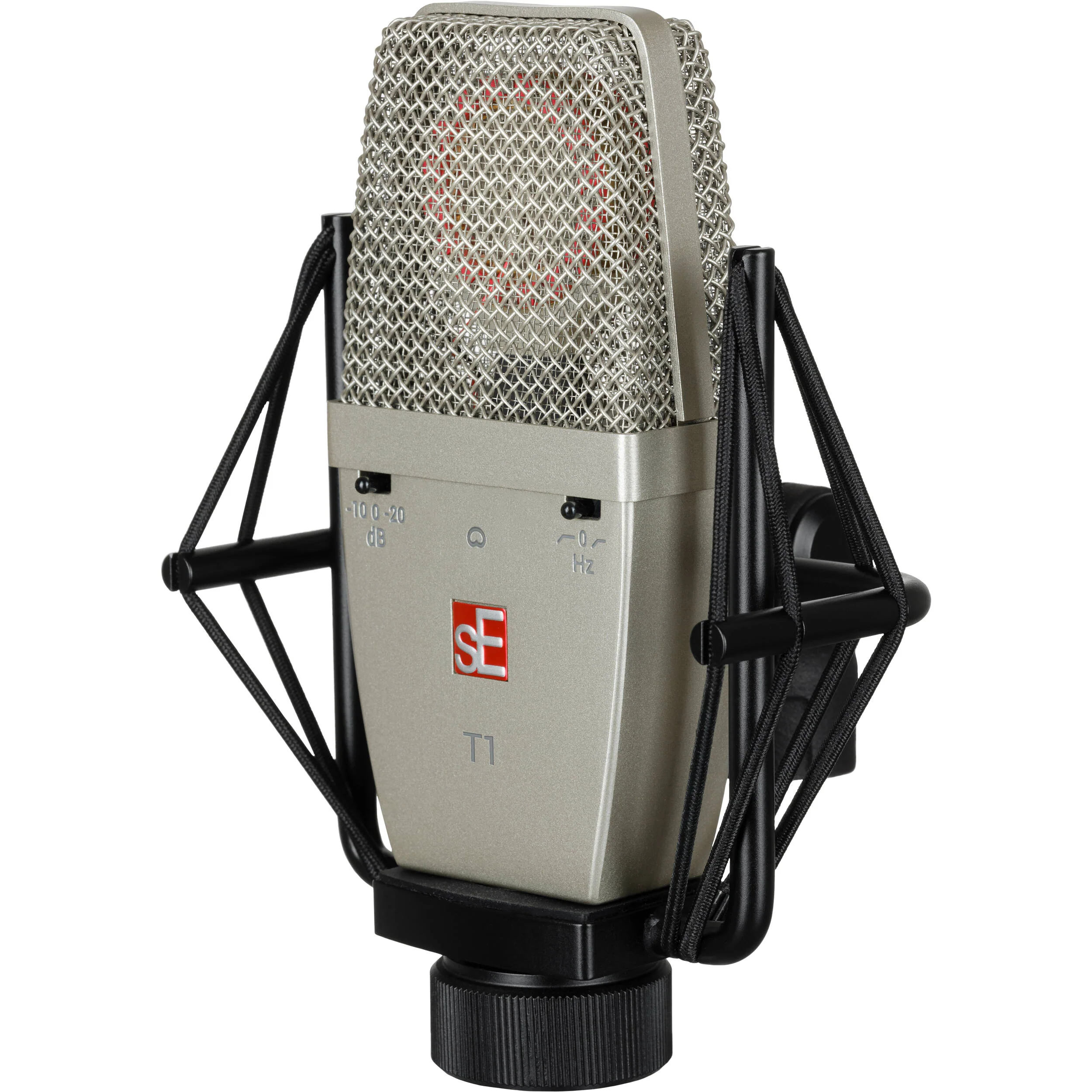

The T1 features an impressive low noise and a whopping 157 dB max SPL with the attenuation pad engaged, allowing it be used on a very wide array of sources, from whisper quiet to extremely loud. With the 80 or 160 Hz low-cut filter, you can eliminate rumbling and footfall noise. Both the pad and high-pass filter utilize metal switches, rather than delicate plastic, and the whole enclosure is handmade at sE Electronics' factory, providing a dent-proof housing that will survive years of intensive use. This microphone includes a shockmount, a metal case, a thread adapter, and an sE Electronics logo sticker.

Drawing from the well-regarded design of the T2 multipattern condenser microphone, the T1 offers the same performance with a few improvements and a fixed cardioid pattern.

• Titanium-sputtered 1" mylar diaphragm offers superior transient response over gold-sputtered capsules
• True condenser technology with high-precision parts for excellent sound quality
• Improved self noise, from 13 dBA on the T2 to only 9 dBA on the T1
• Enhanced dynamic range over the T2 (128 instead of 124 dB)
• Each capsule is handcrafted and individually tuned in sE Electronics' own factory

Swapping out the multipattern design of the T2 for the cardioid capture of the T1 offers improved off-axis rejection and a more affordable mic without sacrificing sound quality.

• Minimizes signal bleed from unwanted sources, especially helpful in untreated spaces
• Ensures high gain before feedback across the whole frequency range
• Enhances directivity from the source by preventing coloration from indirect reflections and reverb

The T1 sports the same pad with metal switches found on the T2, providing:

• An extended dynamic range, up to 148 dB
• Greater range of applications due to wider SPL resistance
• Support for close miking of loud sources such as electric guitars, brass instruments, and kick drums

The improved high-pass filter on the T1 changes values to 80 and 160 Hz for improved versatility. With the high-pass filter, you can eliminate low-frequency rumble or footfall noise. It also helps compensate for excessive bass when using close-miking techniques.

• Road worthy die-cast housing and solid spring-steel grille for a robust build
• Efficient rejection of electromagnetic interference and noise
• Premium finish ensures an eye-catching look for many years of regular use
• Handmade by sE Electronics engineers
• Rigorously tested and tuned in house for excellent quality control

sE Electronics T1Specs

Element Type	Condenser
Polar Pattern	Cardioid
Controls	Pad, Low Cut/HPF
Frequency Response	20 Hz to 20 kHz
Maximum SPL	137 dB (.5% THD) 157 dB (.5% THD, with Pad)
Analog Output	1x XLR 3-Pin Male
Power Sources	Phantom Power

Sound Field	Mono
Element Type	Condenser
Diaphragm	1" / 25.4 mm
Polar Pattern	Cardioid
Orientation	Side Address
Circuitry	Solid-State
Pad	-10 / -20 dB
High-Pass Filter	80 Hz, 6 dB/Octave 160 Hz, 6 dB/Octave
Filter & EQ	Low-Cut Filter: 80 Hz, 6 dB/Octave / 160 Hz, 6 dB/Octave
Gain Adjustment	No
Controls	Pad, Low Cut/HPF

Frequency Response	20 Hz to 20 kHz
Maximum SPL	137 dB (.5% THD) 157 dB (.5% THD, with Pad)
Dynamic Range	128 dB (Phantom Power, without Pad) 148 dB (Phantom Power, with Pad)
Equivalent Noise Level	9 dB (A-Weighted, Phantom Power)

Analog Output

1x XLR 3-Pin Male

Power Sources	Phantom Power
Operating Voltage	48 V (Phantom Power)

Color	Gray
Mounting Thread Size	5/8"-27 Female (3/8"-16 Female with Included Adapter)
Dimensions	ø: 1.1 x W: 2.32 x L: 5.75" / ø: 2.8 x W: 5.89 x L: 14.61 cm
Weight	9.9 oz / 280 g

Package Weight	4.95 lb
Box Dimensions (LxWxH)	12.9 x 7.7 x 5.7"
