-70%sE Electronics X1 A Medium-Diaphragm Cardioid Condenser Microphone—
$199.82
$59.95The Story
sE Electronics X1-A-U Overview
- 1Description
- 2Based on the X1
- 3Electret Condenser Capsule
- 4All-Metal Housing and Premium Finish
- 5Integrated Windscreen
- 6New Acoustic Design
- 7Attenuation and Low-Cut Switches
- 8Gold-Plated XLR Connector

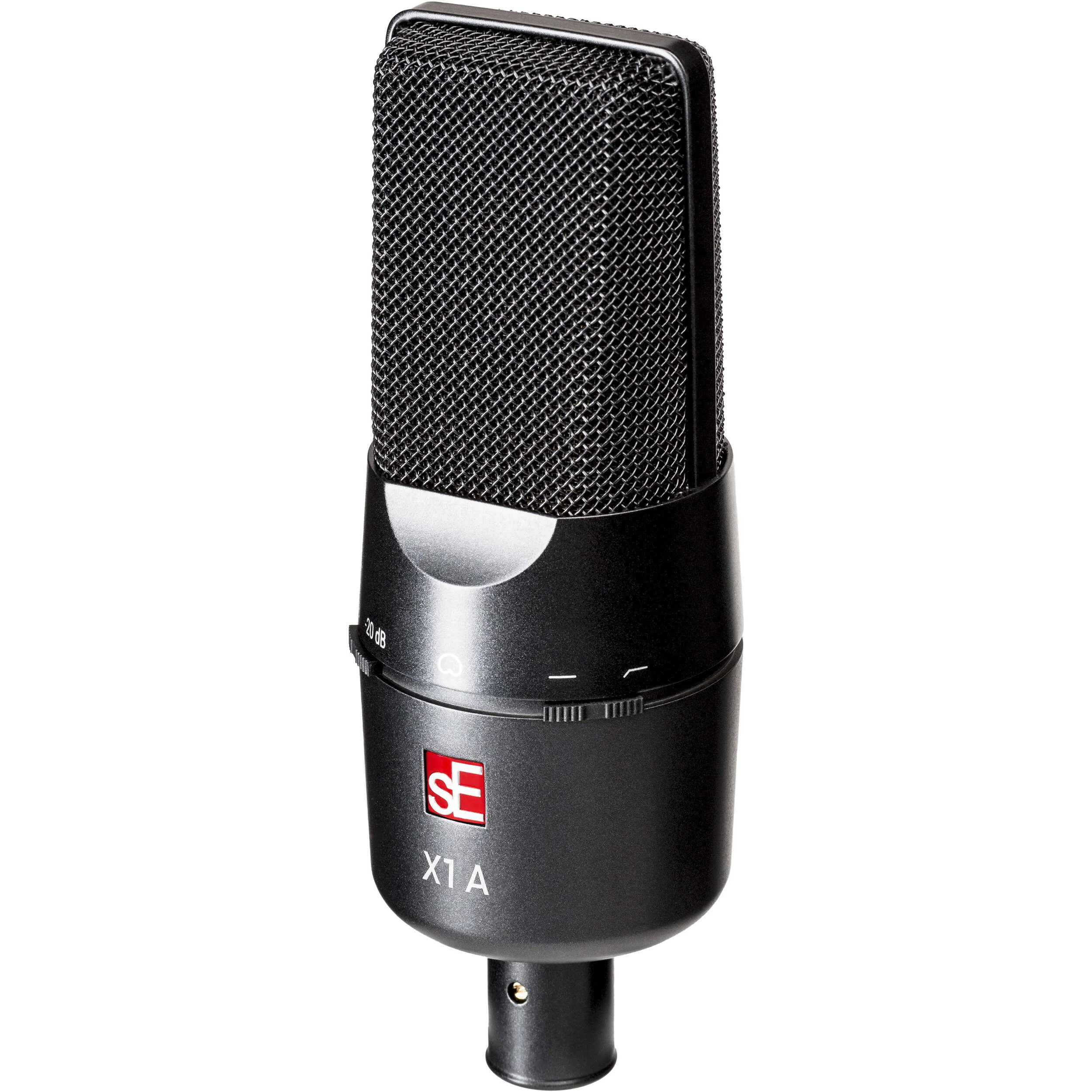

The sE Electronics X1 A is a medium-diaphragm cardioid condenser microphone designed for versatile, full-range vocal and instrument recording on a small budget, making it an attractive choice for a first mic or adding to an existing mic locker. The 2/3" electret condenser capsule features a pressure-gradient design for directional focus and rejection of off-axis sounds. It utilizes a gold-plated XLR 3-pin jack and requires 48V phantom power.
The metal-bodied X1 A delivers a 20 Hz to 20 kHz frequency response along with low self-noise (16 dBA). Its selectable 100 Hz low-cut filter helps to reduce rumble and low-frequency buildup, and the switchable -20 dB pad minimizes distortion when miking loud sources such as drums and amplified guitars. Even without a pad, the X1 A can handle a maximum SPL of 130 dB. It ships with a mic clip and thread adapter for easy mounting on a mic stand.
Based on the X1
When it was introduced in 2011, the X1 brought a new level of quality to its price point, competing easily with microphones costing several times as much. But that didn't stop sE from trying to outdo themselves again.
With a newly developed condenser capsule and an exterior based on the rugged metal chassis of the X1, the X1 A offers first-class sound and specifications at an even better "home studio" cost, featuring an extremely natural frequency response, massive SPL-handling capabilities (150 dB), switchable attenuation and low-cut filters, and a balanced sensitivity level. So, it's at home on absolutely any source.
With a newly developed condenser capsule and an exterior based on the rugged metal chassis of the X1, the X1 A offers first-class sound and specifications at an even better "home studio" cost, featuring an extremely natural frequency response, massive SPL-handling capabilities (150 dB), switchable attenuation and low-cut filters, and a balanced sensitivity level. So, it's at home on absolutely any source.
Electret Condenser Capsule
The X1 A utilizes a permanently biased 2/3" condenser capsule with a cardioid polar pattern, making it well suited for anything from vocals and acoustic guitars to guitar amps and percussion.
All-Metal Housing and Premium Finish
Unlike the cheaply constructed bodies of many entry-level microphones, the X1 A's all-metal chassis provides efficient rejection of any electrical interference and noise. Plus, the high-quality finish ensures a great look for years to come.
Integrated Windscreen
By incorporating an integrated windscreen, the X1 A eliminates the need for an external pop filter while providing an extra layer of safety and security for the all-important capsule.

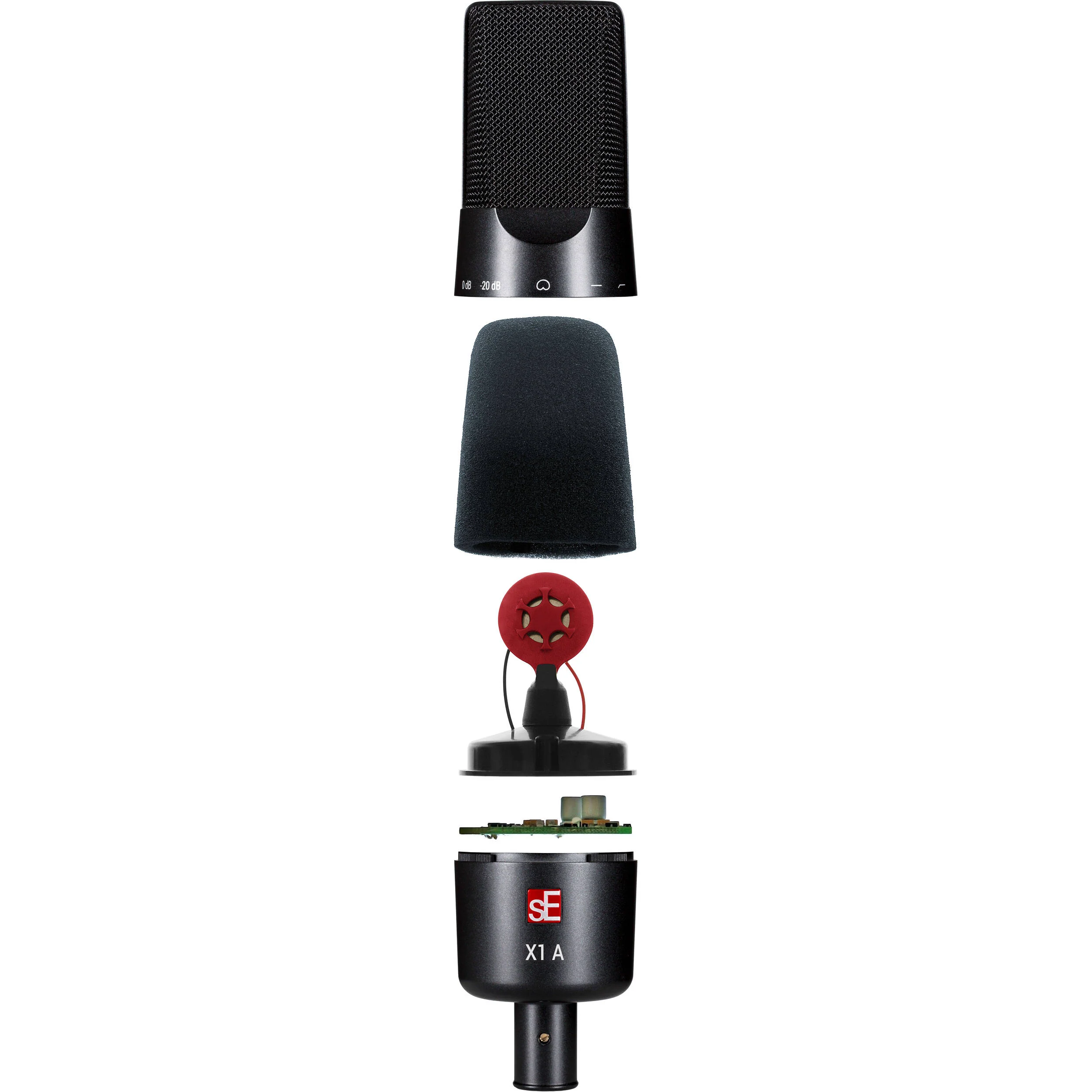

New Acoustic Design
The X1 A's new condenser capsule design is a work of art, delivering stellar sonic performance on any source with incredible speed, accuracy, and well-balanced frequency response. The electronics have also undergone a complete overhaul, and exhibit better specifications and sound on and off the test bench.
Attenuation and Low-Cut Switches

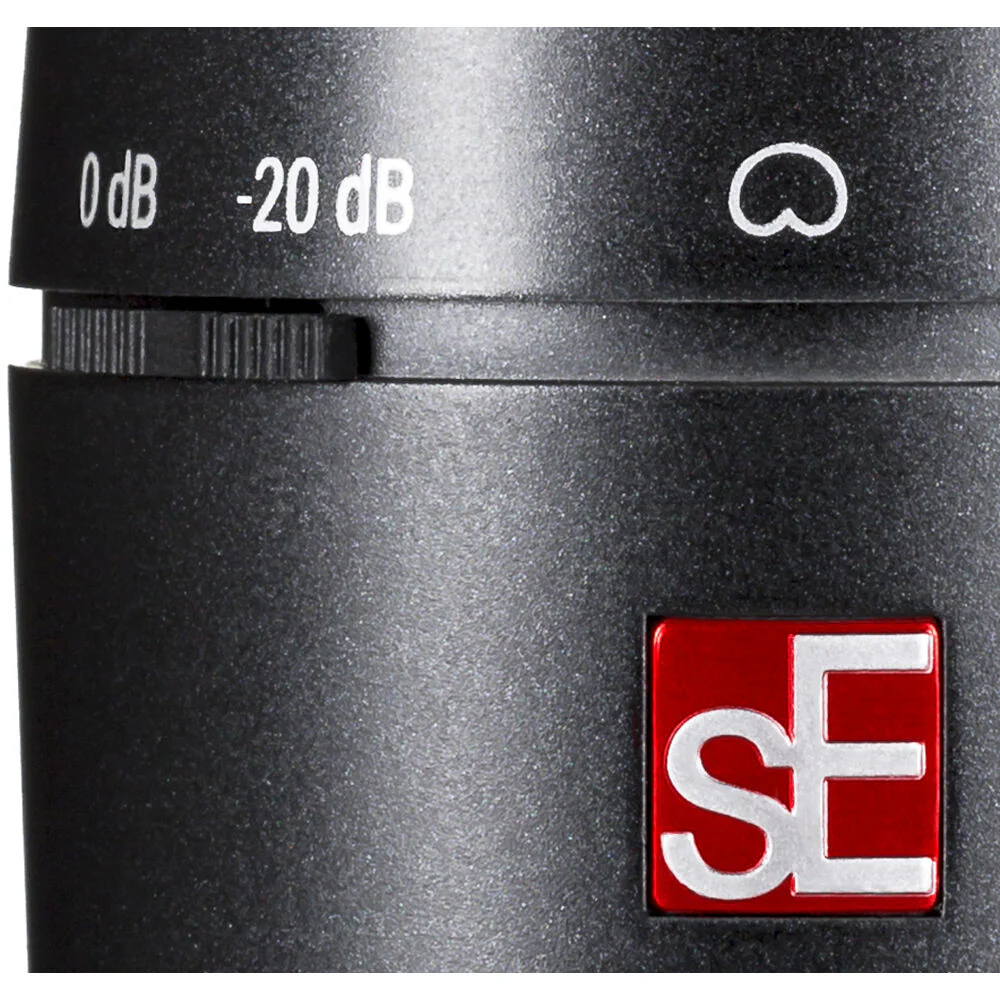

The -20 dB pad switch on the left provides extended dynamic range, enabling an array of applications and close-mic techniques for even the loudest instruments such as super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums.

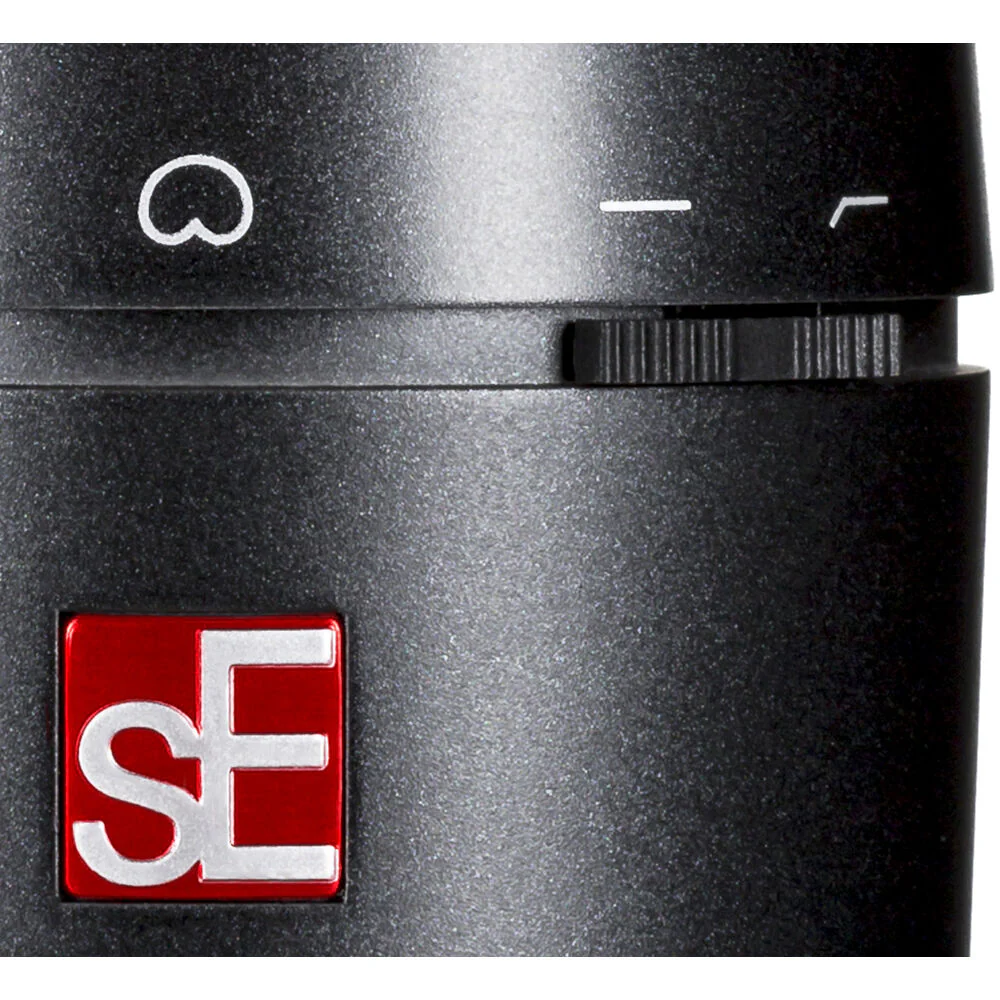

On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect).
On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect).
Gold-Plated XLR Connector
The gold-plated XLR connector ensures a loss-free, reliable signal connection for years to come.
UPC: 819032011171
In the Box
- sE Electronics X1 A Medium-Diaphragm Cardioid Condenser Microphone

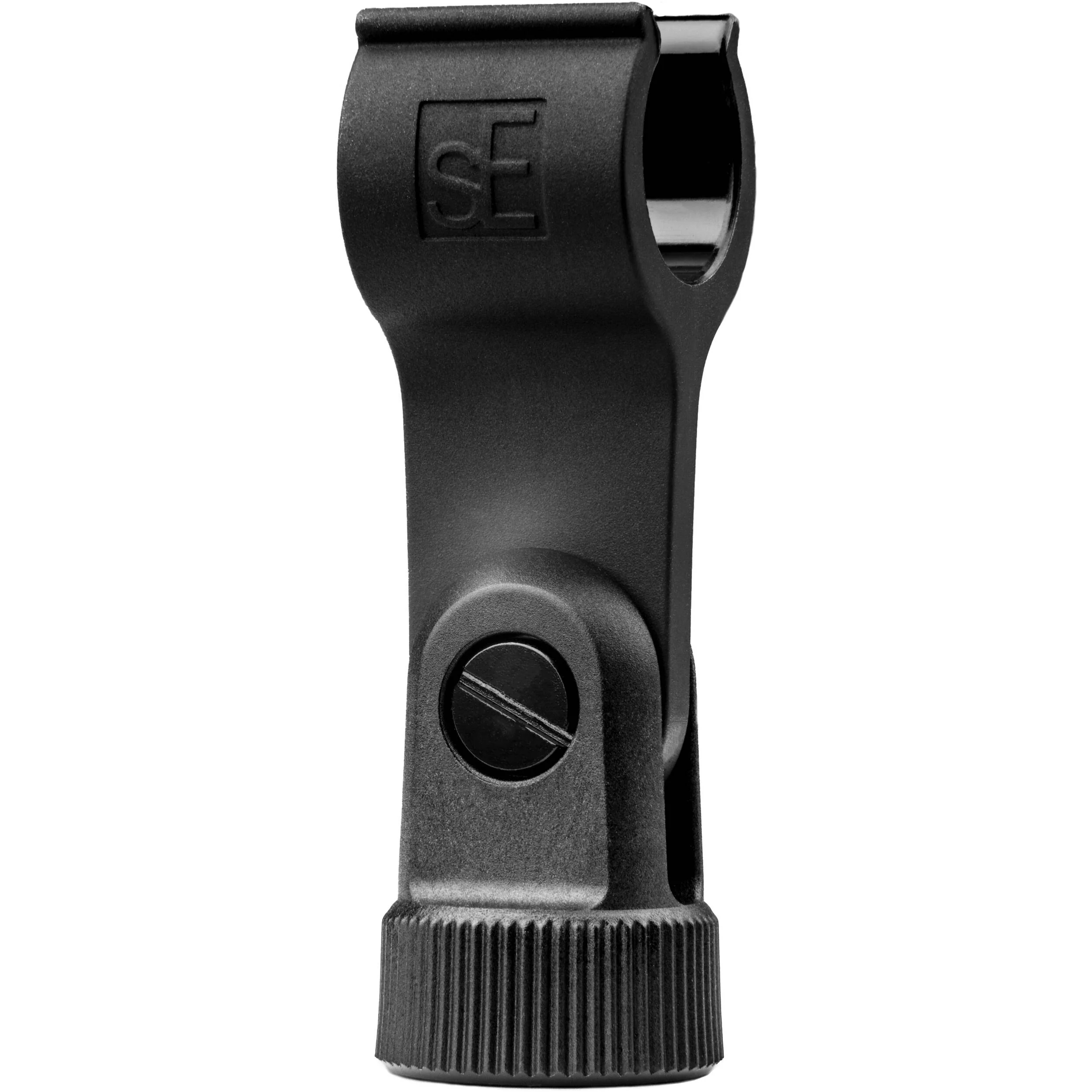

- Swivel Mic Clip
- Thread Adapter
- Limited 2-Year Warranty, Extends to 3 Years upon Online Registration
Table of Contents
- Description
- Based on the X1
- Electret Condenser Capsule
- All-Metal Housing and Premium Finish
- Integrated Windscreen
- New Acoustic Design
- Attenuation and Low-Cut Switches
- Gold-Plated XLR Connector
sE Electronics X1-A-U Specs
Microphone
| Primary Applications | Live Sound, Studio Recording |
| Form Factor | Stand/Boom Mount |
| Intended Sound Sources | Vocals, Instrument |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Electret Condenser |
| Diaphragm | 0.67" / 17.02Â mm |
| Polar Pattern | Cardioid |
| Orientation | Side Address |
| Circuitry | Solid-State |
| Pad | -20 dB |
| High-Pass Filter | 100 Hz, 6 dB/Octave |
| Tone Adjustment | None |
| Gain Adjustment | None |
| Indicators | None |
| On-Board Controls | High-Pass Filter, Pad |
| Windscreen | Built-In |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL (1 kHz, .5% THD) 150 dB SPL (1 kHz, .5% THD, with Pad) |
| Off-Axis Rejection |
3 dB at 60° 10 dB at 120° 22 dB at 180° |
| Impedance | 50 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | -34 dB |
| Dynamic Range | 114 dB (without Pad) 134 dB (with Pad) |
| Signal-to-Noise Ratio | 78 dB A-Weighted |
| Equivalent Noise Level | 16 dB A-Weighted |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector | None |
Power
| Bus Power | None |
| Operating Voltage | 48 V (Phantom Power) |
| Operating Current Consumption | 4 mA |
Physical
| Color | Black |
| Mounting | Mic Clip/Stand Adapter (Included) |
| Included Case | None |
| Included Filters | None |
| Construction Material | Metal |
| Dimensions | ø: 2.28 x L: 6.65" / ø: 5.79 x L: 16.89 cm |
| Weight | 13.8Â oz / 391Â g |
Packaging Info
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 10.5 x 5.1 x 3.9" |
