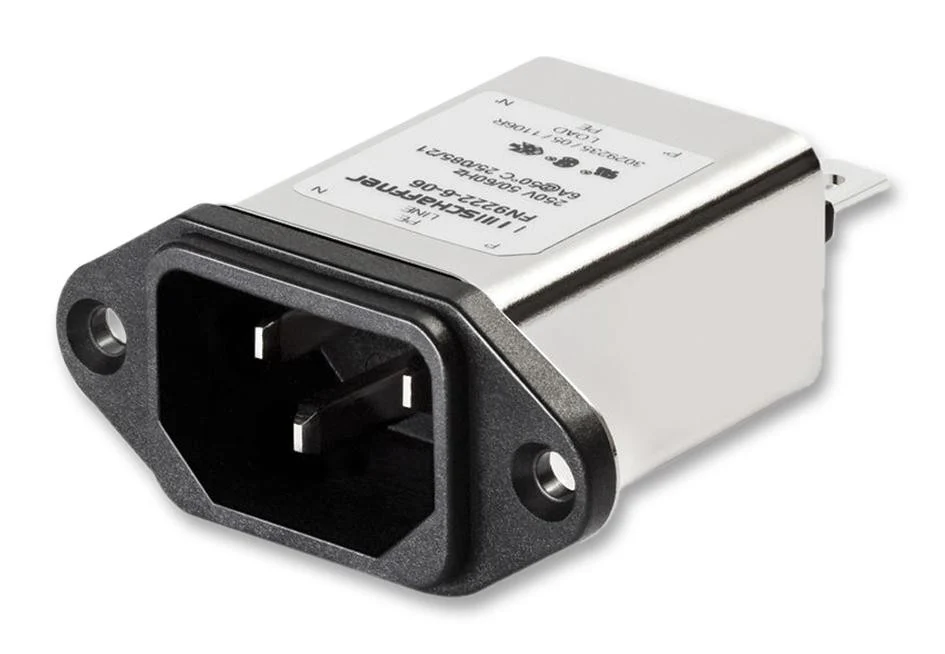

-70%SCHAFFNER FN9222-10-06 IEC Filter, 250 VAC, 11.6 A, EMI, RFI, Quick Connect, 225 µH—
$11.02
$3.31The Story
The FN9222-10-06 is a 11.6A General Performance Filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor. Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. Different output connections offering maximum flexibility for assembly.
- DC to 400Hz Operating frequency
- UL94V-2 Flammability rating
- -25 to 85°C Operating temperature range
- IP40 Protection rating
Applications
Industrial, Consumer Electronics, Power Management, Test & Measurement, Medical
Product details
| Leakage Current Max | 373µA |
| Capacitance | - |
| Filter Type | EMI, RFI |
| Filter Terminals | Quick Connect |
| Inductance Min | 225µH |
| Current Rating | 11.6A |
| Product Range | - |
| Voltage Rating | 250VAC |
Other details
| Brand | SCHAFFNER |
| Part Number | FN9222-10-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The FN9222-10-06 is a 11.6A General Performance Filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor. Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. Different output connections offering maximum flexibility for assembly.
- DC to 400Hz Operating frequency
- UL94V-2 Flammability rating
- -25 to 85°C Operating temperature range
- IP40 Protection rating
Applications
Industrial, Consumer Electronics, Power Management, Test & Measurement, Medical
Product details
| Leakage Current Max | 373µA |
| Capacitance | - |
| Filter Type | EMI, RFI |
| Filter Terminals | Quick Connect |
| Inductance Min | 225µH |
| Current Rating | 11.6A |
| Product Range | - |
| Voltage Rating | 250VAC |
Other details
| Brand | SCHAFFNER |
| Part Number | FN9222-10-06 |
| Quantity | Each |
| Technical Data Sheet EN | |
