$13.77
Original: $45.89

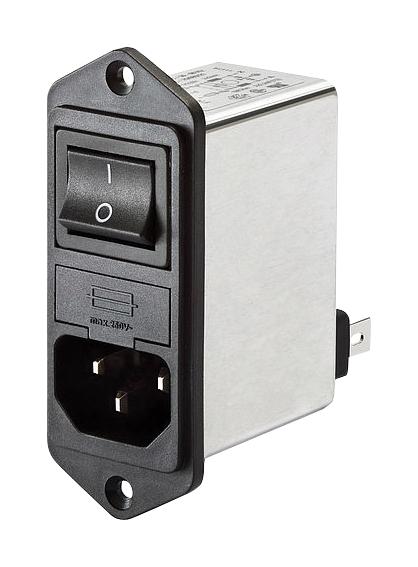

-70%Schaffner FN285-1-06 IEC Filter 0.22 µF 250 VAC Mains 1 A Quick Connect 7.5 mH—
$45.89
$13.77The Story
The FN 280 series compact filtered Power Entry Module combines an IEC inlet, a mains filter with single or dual-fuse holder and a 2-pole rocker switch in a small form factor. Choosing FN 280 product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
- High conducted attenuation performance
- Rear/front or snap-in mounting
- Single or dual-fuse holder
- 2-pole rocker switch
- Custom-specific versions are available on request
Power Management, Consumer Electronics, Test & Measurement, Medical
Product details
| Capacitance | 0.22µF |
| Voltage Rating | 250VAC |
| Filter Type | IEC, Mains |
| Current Rating | 1A |
| Filter Terminals | Quick Connect |
| Inductance Min | 7.5mH |
| Leakage Current Max | 373µA |
| Product Range | FN 280 Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | SCHAFFNER |
| Part Number | FN285-1-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The FN 280 series compact filtered Power Entry Module combines an IEC inlet, a mains filter with single or dual-fuse holder and a 2-pole rocker switch in a small form factor. Choosing FN 280 product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
- High conducted attenuation performance
- Rear/front or snap-in mounting
- Single or dual-fuse holder
- 2-pole rocker switch
- Custom-specific versions are available on request
Power Management, Consumer Electronics, Test & Measurement, Medical
Product details
| Capacitance | 0.22µF |
| Voltage Rating | 250VAC |
| Filter Type | IEC, Mains |
| Current Rating | 1A |
| Filter Terminals | Quick Connect |
| Inductance Min | 7.5mH |
| Leakage Current Max | 373µA |
| Product Range | FN 280 Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | SCHAFFNER |
| Part Number | FN285-1-06 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
