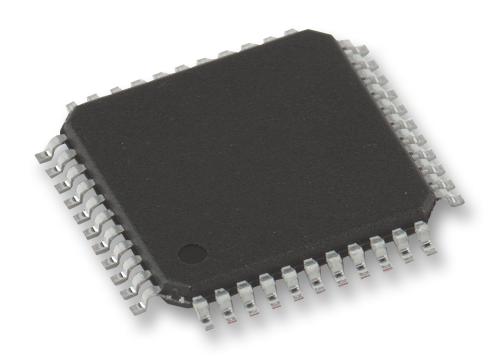

MICROCHIP PIC18F56Q71-I/PT 8 Bit MCU, PIC18 Family PIC18Fx6Q71 Series Microcontrollers, PIC18, 64 MHz, 64 KB, 44 Pins, TQFP

PIC18F56Q71-I/PT is a low-power, high-performance microcontroller with XLP technology. It is the ideal solution for lighting, motor control, and medical market segments. This analogue-focused family features a 12-bit differential ADC with computation and context switching, two operational amplifiers, a 10-bit digital-to-analogue converter (DAC) and two 8bit DAC modules with buffered outputs and internal connections to other peripherals, and two advanced high-speed Analog comparators. This device family also features the analogue peripheral manager to manage analogue peripherals for optimizing power consumption. The PIC18-Q71 microcontroller family also features the 8bit virtual port module to interconnect digital peripherals without using external pins.

• C compiler optimized RISC architecture, 128-level deep hardware stack
• Operating speed: DC - 64MHz clock input, 62.5ns minimum instruction cycle
• User-programmable source and destination sizes, hardware and software-triggered data transfers
• Selectable high/low priority, fixed interrupt latency of three instruction cycles
• 128-level deep hardware stack, low-current power-on reset (POR), brown-out reset (BOR)
• Watchdog reset on too long or too short intervals between watchdog clear events
• Temperature indicator factory calibrated data, fixed voltage reference measurement data
• Dual outputs for each PWM module, integrated 16-bit timer/counter
• Three 16bit timers (TMR0/1/3), two 8bit timers (TMR2/4) with hardware limit timer (HLT)
• Operating voltage range from 1.8V to 5.5V
