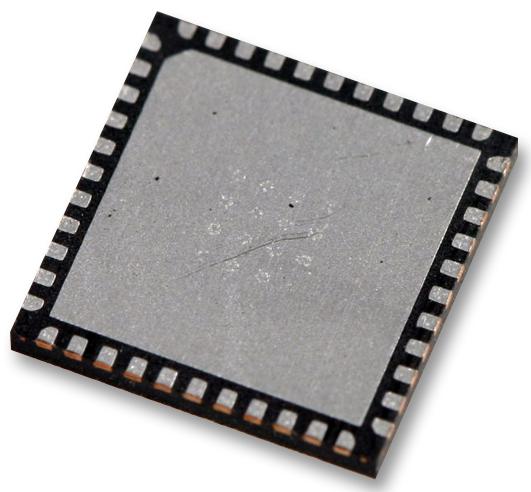

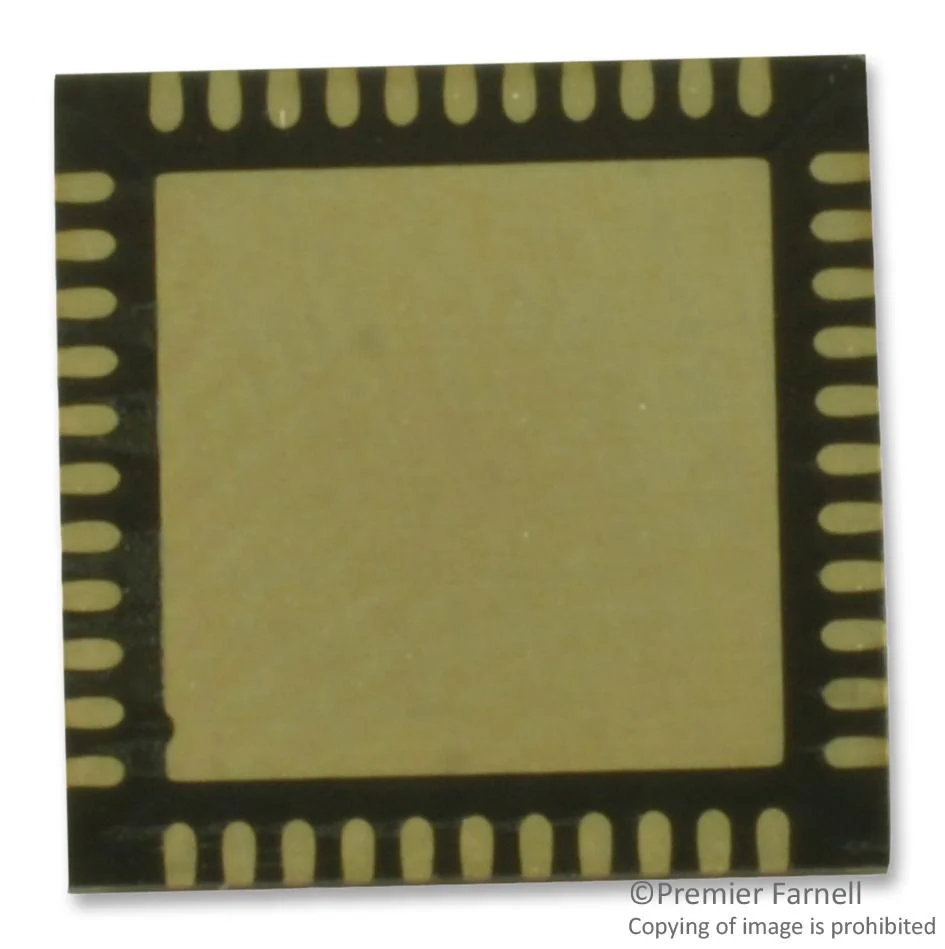

MICROCHIP ATXMEGA128A4U-MH 16 Bit Microcontroller, High Performance, Low Power, AVR Family ATmega128 Series Microcontrollers

The ATXMEGA128A4U-MH is a 16-bit low power AVR Microcontroller Unit featuring 128kB self-programming flash program memory, 4kB boot code section, 8kB SRAM, 2048-byte EEPROM, external bus interface, 4-channel DMA controller, 8-channel event system and up to 32MIPS throughput at 32MHz. The AVR CPU combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the arithmetic logic unit (ALU), allowing two independent registers to be accessed in a single instruction, executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs many times faster than conventional single-accumulator or CISC based microcontrollers.

• High performance
• Non-volatile program and data memories
• 4-channel DMA controller
• 8-channel event system
• Five 16-bit timer/counters
• One USB device interface
• External interrupts on all general purpose I/O pins
• Power-on reset and programmable brown-out detection
• Programmable multilevel interrupt controller
• 5 sleep modes

Applications

Building Automation, Industrial, Motor Drive & Control, Automation & Process Control, HVAC, Communications & Networking, Metering, Consumer Electronics, Medical

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
