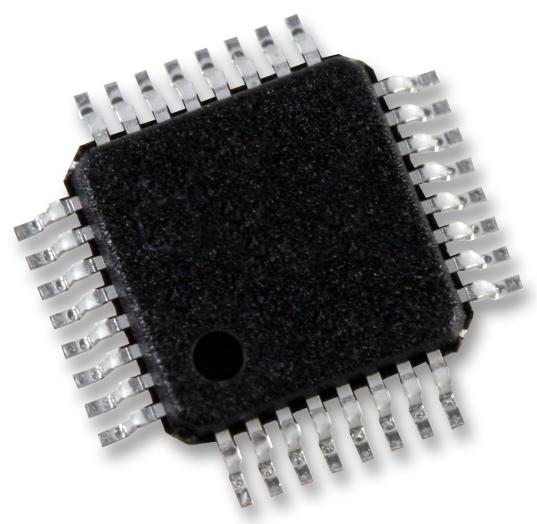

MICROCHIP AT90USB162-16AU MCU-Application Specific 8BIT, AVR, 16MHz, 512 Byte RAM/16KB Program, 2.7V-5.5Vin, TQFP-32

The AT90USB162-16AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 16kb ISP flash memory with read-while-write capabilities, 512B EEPROM, 22 general purpose I/O lines, 32 general purpose working registers, two flexible timer/counters with compare modes and PWM, USART, programmable watchdog timer with internal oscillator, SPI serial port, debugWIRE interface for on-chip debugging and programming and five software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• High-performance, Low-power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
• Non-volatile Program and Data Memories
• USB 2.0 Full-speed Device Module with Interrupt on Transfer Completion
• On Chip Debug Interface (debugWIRE)
• Power-on Reset and Programmable Brown-out Detection
• Internal Calibrated Oscillator
• External and Internal Interrupt Sources
• Idle, Power-save, Power-down, Standby and Extended Standby Sleep Modes
• 8MHz at 2.7V and 16MHz at 4.5V (Industrial Range) Maximum Frequency

Applications

Industrial, Automation & Process Control, Sensing & Instrumentation, Test & Measurement, Computers & Computer Peripherals
