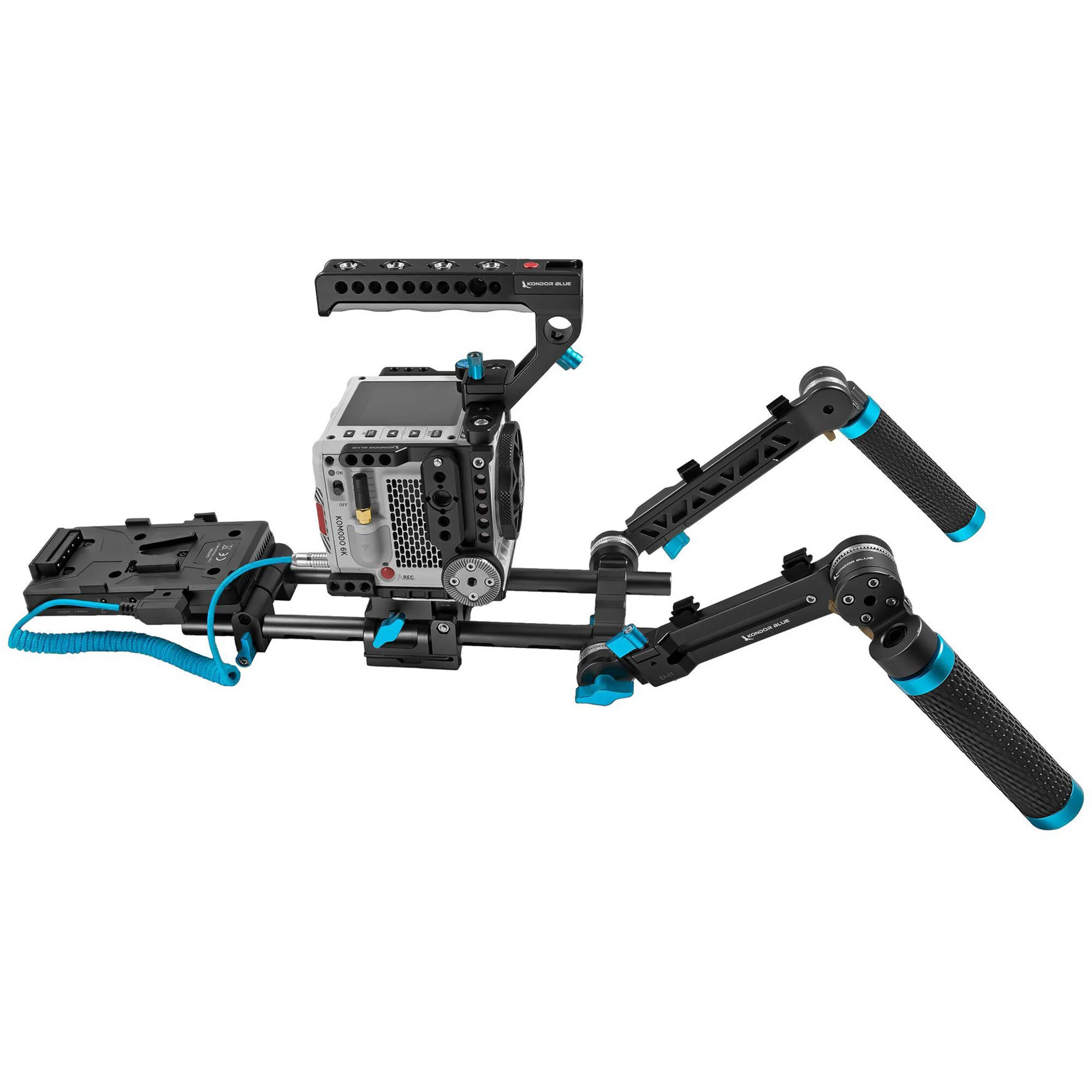

Kondor Blue Ultimate Camera Rig for RED KOMODO (Black, V-Mount)

Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this black Camera Cage from Kondor Blue. The camera mounts onto the formfitting cage using top and bottom screws so it doesn't twist or slip, and there is rubber padding on the base to protect the camera from scratching or moving. Its open design allows you to access all the camera's ports and controls.

The cage offers ARRI-style rosettes on the left and right sides so you can add optional side handgrips or extension arms for 360° rotation. There are also 1/4"-20 threads and two integrated NATO rails on the sides with safety pins to prevent your accessories from sliding. On the top of the cage is an integrated NATO rail with multiple 1/4"-20 threads and a 3/8"-16 ARRI-style anti-twist thread for accessories such as a monitor, top handle, or microphone. On the bottom, there are 1/4"-20 and 3/8"-16 tripod mounting threads, and on the front are two threads for an optional lens support. A magnetic tool set including an Allen wrench stores in the base of the cage.

Features

This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal, cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more. An 11" long 2.5mm LANC cable and a 12" long micro-USB cable for Sony Alpha series cameras are both included. The grip of the aluminum handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

Compatibility

Although featuring a fairly universal design, the space gray Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These Space gray aluminum threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Add professional battery power to your rig with this space gray V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Power your RED KOMODO cinema camera using a D-Tap source with this Coiled D-Tap to Female 2-Pin LEMO-Type Power Cable from Kondor Blue. The coiled power cable is braided for flexibility and prevents snags and knotting. It features a D-Tap male connector on one end and a 2-pin female LEMO-type connector on the other end to provide power from a professional battery such as a V-mount, Gold mount, or another D-Tap power source to the camera. There is a status LED on the D-Tap connector to indicate power.

Protect your camera's mount and sensor with this Aluminum Body Cap for Canon RF Mount Cameras, in space gray, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.

Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only) Specs

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black) Specs
