8Sinn 15mm Baseplate + Riser Plate I + 10" ARRI Dovetail Plate Bundle

For 8Sinn Z CAM, a7R, BMPCC 4K/6K Cages

15mm LWS Rod Support

ARRI Rosettes

1/4"-20 and 3/8"-16 Tripod Mounts

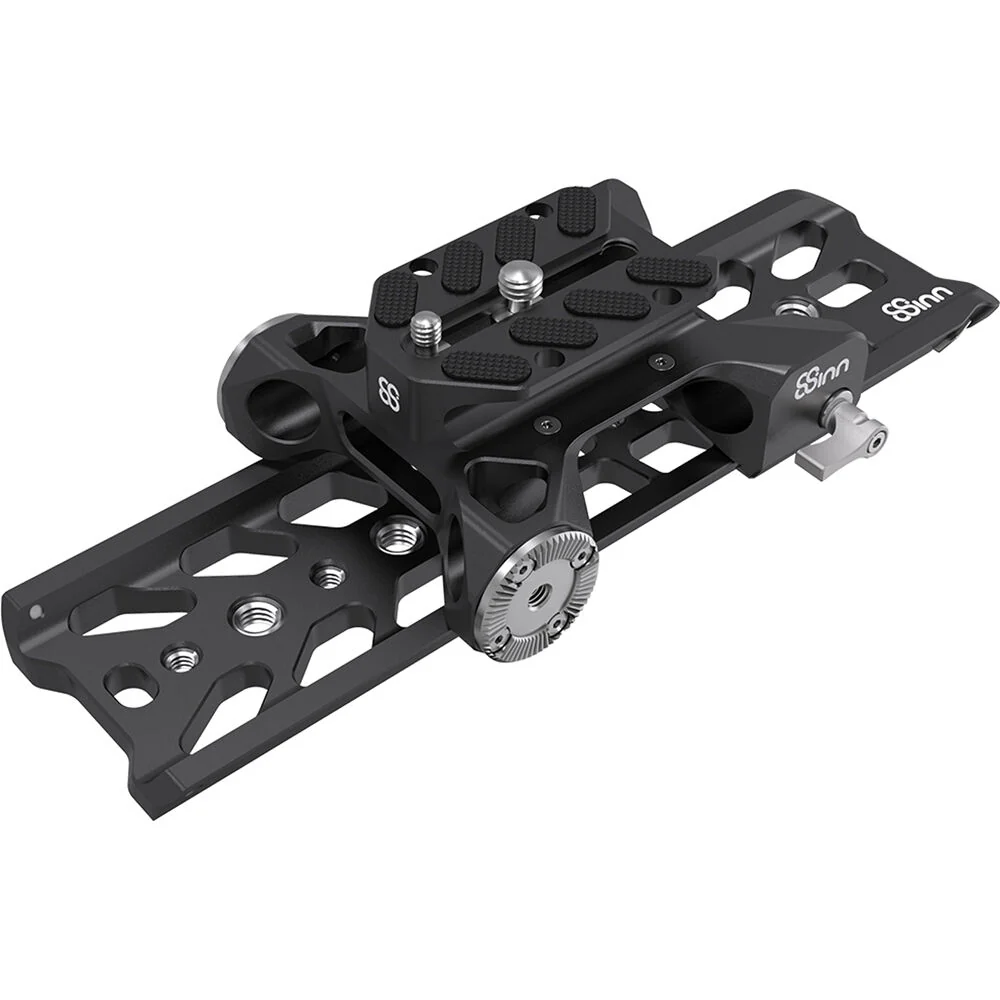

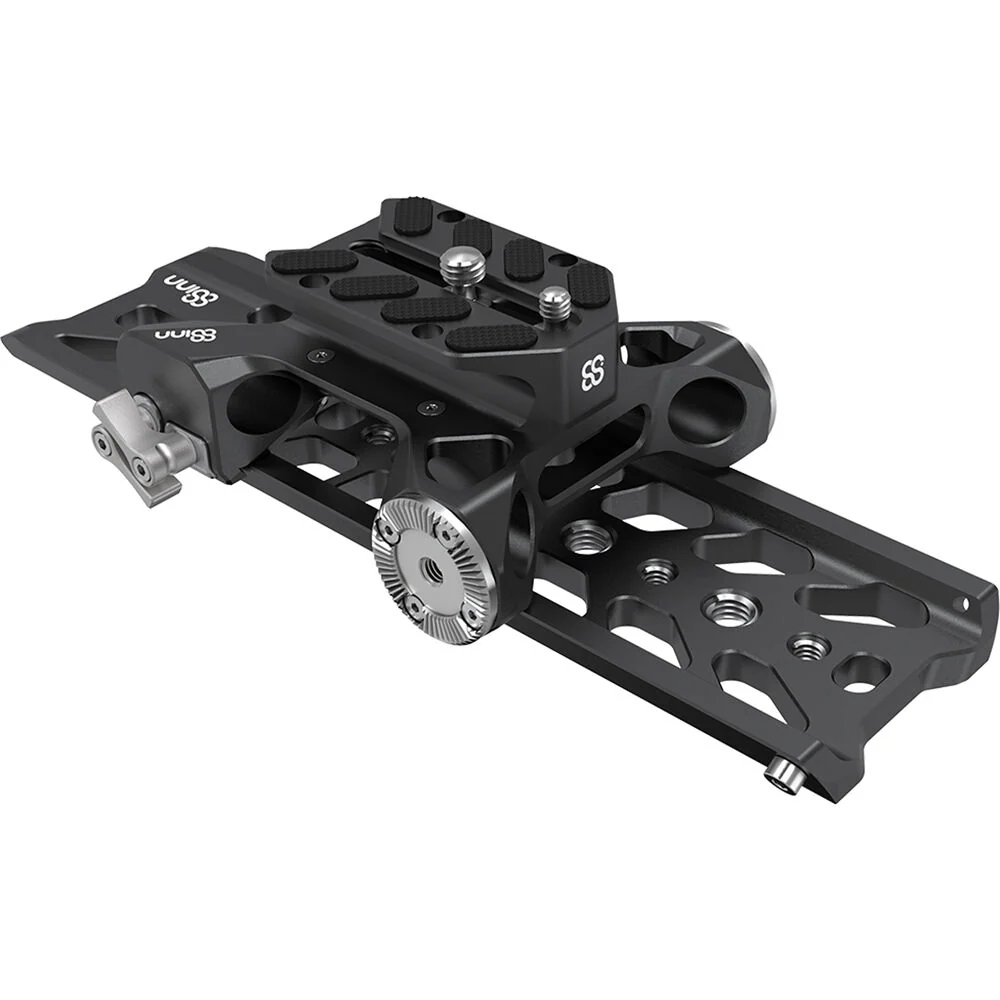

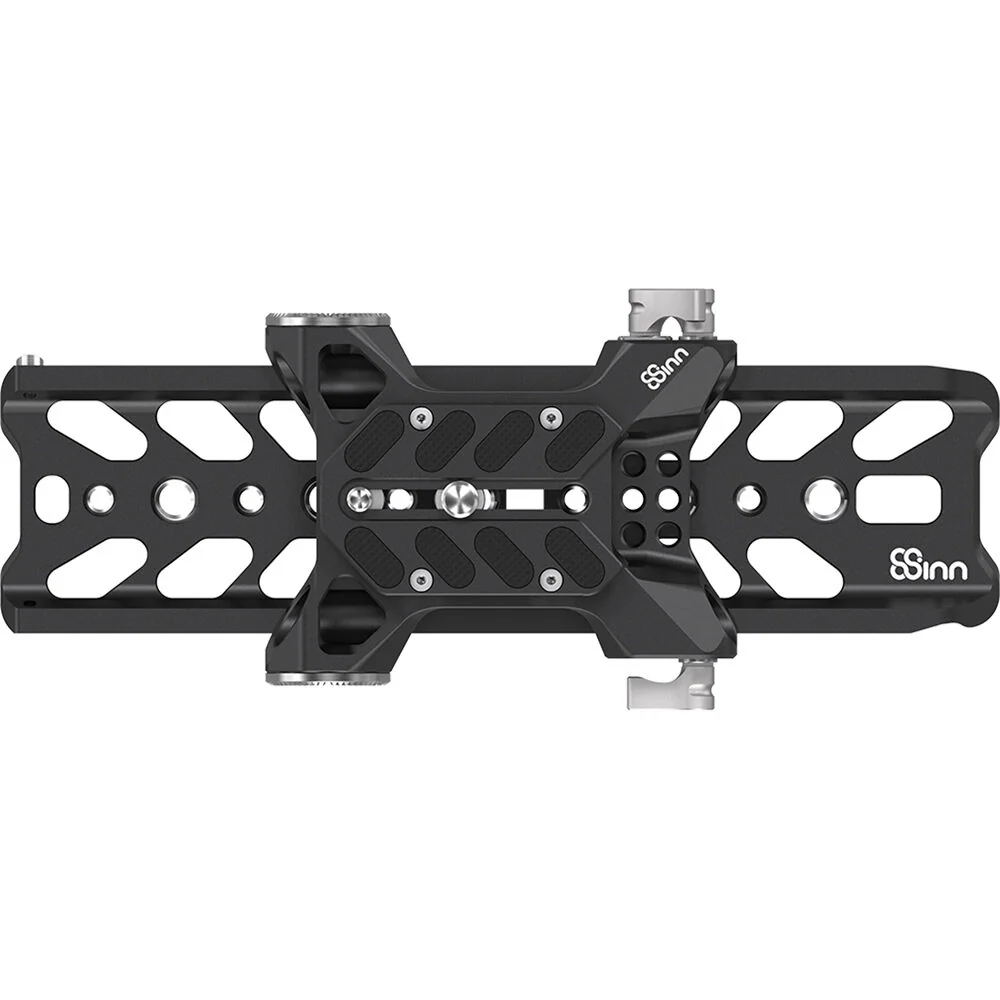

The 8Sinn 15mm Baseplate + Riser Plate I + 10" ARRI Dovetail Plate Bundle supports select 8Sinn Z CAM, Sony a7/a7R, and Blackmagic Pocket 4K/6K cages via the Riser Plate I. The ARRI Dovetail Plate offers reinforced 1/4"-20 and 3/8"-16 threads, a release pin, and a stopper screw. The 15mm Baseplate is ARRI dovetail compatible and features 15mm LWS rod support, two ARRI rosettes, and 1/4"-20 threads for accessories.

8Sinn 15mm Baseplate

The 8Sinn 15mm Baseplate is ARRI dovetail compatible and supports optional camera-specific riser plates from 8Sinn. Available plates include the Riser Plate Basic, which supports the URSA Mini, C100, and Sony FX-9 cameras, and the Riser Plate I, which is for select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages. These optional plates set the supported cameras at the appropriate optical center on the 15mm Baseplate.

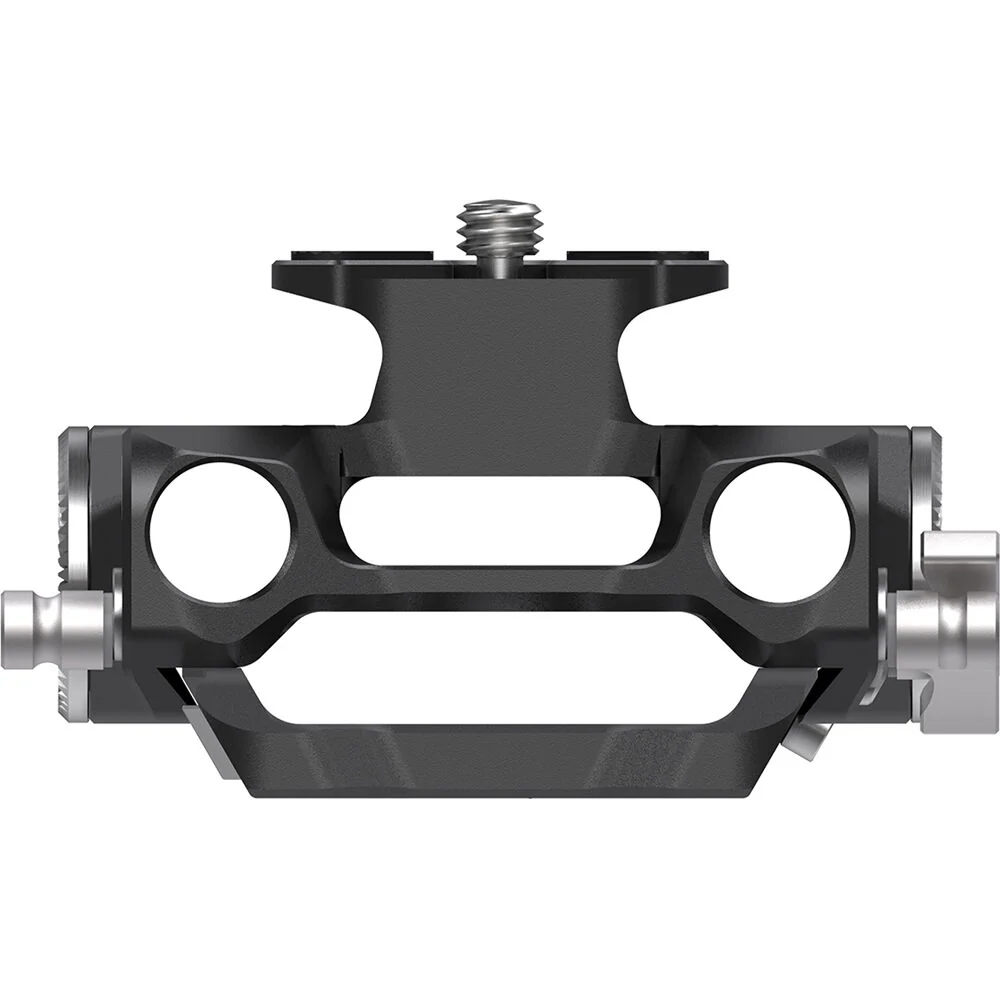

The 15mm Baseplate features 15mm LWS rod support via front and rear rod ports and a tightening lever on the left and right sides. The left side has a second lever, and this is for securing the compatible riser plate. The 15mm Baseplate offers two ARRI rosette mounts for attaching optional handgrips, and it also provides a section with multiple 1/4"-20 accessory mounting threads. The baseplate is made with excess weight cut out to provide a minimalist, lightweight design.

Features

• Supports optional camera-specific riser plates from 8Sinn
• Compatible with the Riser Plate I and Riser Plate Basic
• ARRI dovetail compatible
• 15mm LWS rod support
• ARRI rosette mounts
• 1/4"-20 accessory mounting threads

8Sinn Riser Plate I

The Riser Plate I from 8Sinn is designed to be used with the 8Sinn 15mm Baseplate and select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages. Please see the compatibility list in the Features section below. The plate sets the cameras of those cages at an 85mm optical center.

The Riser Plate I is made of aluminum and comes with 1/4"-20 and 3/8"-16 screws. Rubber padding provides anti-scratch and anti-twist support for your cage.

Compatible Cages

• 8Sinn Cage for Z CAM E2-S6/F6/F8
• 8Sinn Cage for Z CAM E2
• 8Sinn Cage for Sony a7R III and a7 III
• 8Sinn Cage for Sony a7R IV
• 8Sinn Cage for Blackmagic Pocket Cinema Camera 4K/6K
• 8Sinn Half Cage for Blackmagic Pocket Cinema Camera 4K/6K

8Sinn 10" ARRI Dovetail Plate

The 8Sinn 10" ARRI Dovetail Plate can be used with 8Sinn's 15mm Baseplate or 3rd-party ARRI dovetail bridge plates to balance large camera setups with large lenses. The plate is designed with cutouts throughout its length so that it can be more lightweight. In this minimalist design made out of a single piece of aluminum, the plate offers reinforced 1/4"-20 and 3/8"-16 threads, a release pin, and a stopper screw.

Support Type	Baseplate
Grip Type	None

Rod Standard	15 mm LWS / 60 mm Spacing
Battery Plate Type	None
Accessory Mounting	x 1/4"-20 Thread
Rod Ports	4 x 15 mm Rod Port
Shoe Mounting	None
Rosettes	2 x ARRI Rosette w/ M6 Thread

Construction	Aluminum
Dimensions	4.72 x 3.19 x 1.26" / 12 x 8.1 x 3.2 cm
Weight	0.47 lb / 212 g

Material	Aluminum with Rubber Padding
Mount Types	1/4"-20 and 3/8"-16 Screws Included
Dimensions	3 x 1.9 x 0.9" / 7.6 x 4.9 x 2.3 cm
Weight	3.7 oz / 106 g

Material	Aluminum
Mount Types	1/4"-20 Female 3/8"-16 Female
Dimensions	10 x 2.7 x 0.56" / 25.4 x 6.8 x 1.4 cm
Weight	0.55 lb / 251 g

Package Weight	0.725 lb
Box Dimensions (LxWxH)	12.4 x 4.2 x 2.2"
