$408.18
Original: $1,360.60

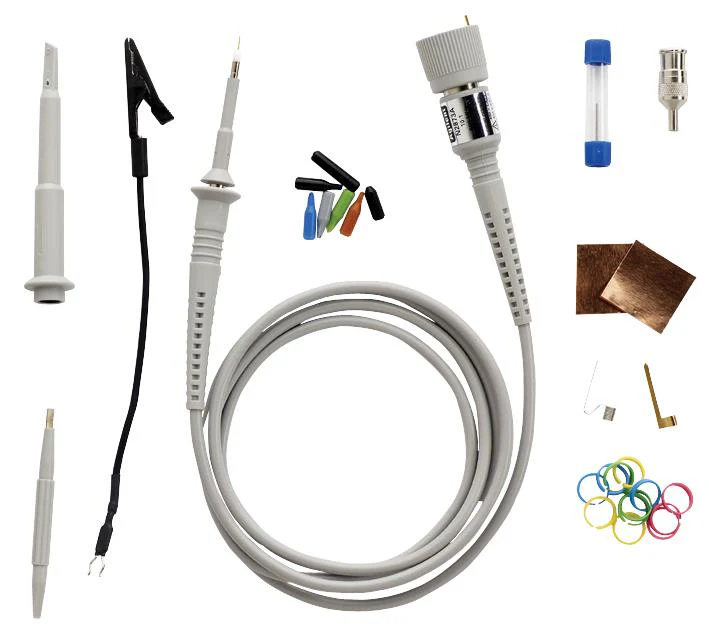

-70%Keysight Technologies N2874A N2874A Oscilloscope Probe Passive 1.5 GHz 8.5 V 10:1—
$1,360.60
$408.18The Story
The N2874A passive probe offers DC to 1.5 GHz and 10:1 attenuation factor to measure fast edges in high speed applications more accurately. This probe needs 50 R input on the oscilloscope. Compact 2.5-mm probe head diameter, low input capacitance, and various fine-pitch probe tip accessories make the Keysight N2870A Series passive probes ideal for probing densely populated IC components or surface-mount devices used in today's high-speed digital applications. The sharp probe tip is spring loaded to help engineers keep the probe from slipping off the device under test. Insulating IC caps keep the small probe tip centred on the IC lead and keep it from shorting adjacent leads. Standard flat blade ground connector and self-adhesive copper ground pad help reduce ground inductance while offering easy ground access. Optional probe tip accessories provide specialized capabilities for demanding applications.
- 1.5 GHz bandwidth
- 10:1 attenuation ratio
- 2 pF input capacitance
- 500 R input resistance (when terminated into 50 R scope input)
- 8.5V CAT I maximum input voltage
Sensing & Instrumentation, Metering, Test & Measurement
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | N2874A |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The N2874A passive probe offers DC to 1.5 GHz and 10:1 attenuation factor to measure fast edges in high speed applications more accurately. This probe needs 50 R input on the oscilloscope. Compact 2.5-mm probe head diameter, low input capacitance, and various fine-pitch probe tip accessories make the Keysight N2870A Series passive probes ideal for probing densely populated IC components or surface-mount devices used in today's high-speed digital applications. The sharp probe tip is spring loaded to help engineers keep the probe from slipping off the device under test. Insulating IC caps keep the small probe tip centred on the IC lead and keep it from shorting adjacent leads. Standard flat blade ground connector and self-adhesive copper ground pad help reduce ground inductance while offering easy ground access. Optional probe tip accessories provide specialized capabilities for demanding applications.
- 1.5 GHz bandwidth
- 10:1 attenuation ratio
- 2 pF input capacitance
- 500 R input resistance (when terminated into 50 R scope input)
- 8.5V CAT I maximum input voltage
Sensing & Instrumentation, Metering, Test & Measurement
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | N2874A |
| Quantity | Each |
| Technical Data Sheet EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
