-70%Hammond 1551WTBK Plastic Enclosure Miniature Multipurpose Polycarbonate 22 mm 60 IP68—
$10.40
$3.12The Story

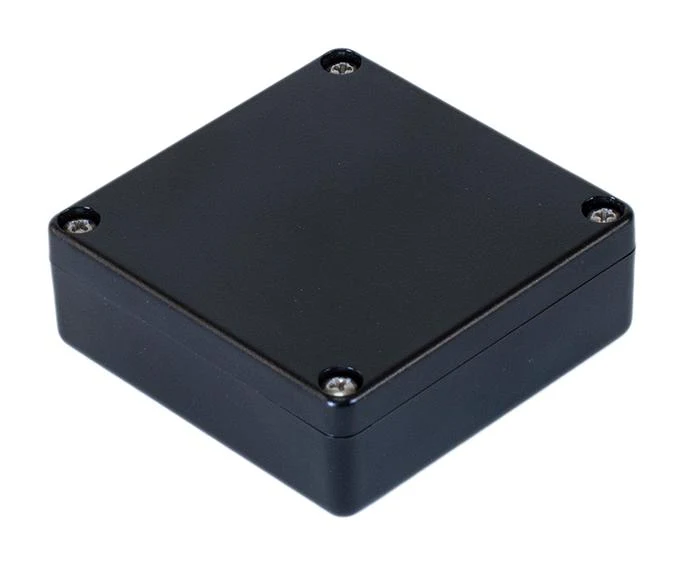

1551W series watertight polycarbonate miniature enclosure is ideally suited for mounting small printed circuit boards.
- Black colour, without flange
- Moulded from robust polycarbonate
- Suitable for outdoor use
- Polycarbonate has a flame rating of UL94 V-0
- Satin texture finish
- P.C. board standoffs moulded into interior for easy installation
- Includes replaceable silicone gasket to protect against ingress of water or dust
- Designed to meet IP68
- Complete with lid and (4) plastite #4 self tapping screws
- Dimension is 60mm x 60mm x 22mm (W x L not including flange x H including lid)
Other details
| Brand | HAMMOND |
| Part Number | 1551WTBK |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
