$360.91
Original: $1,203.04
-70%Elation Professional Prisma PAR 20—
$1,203.04
$360.91The Story
Elation Professional PAR 20 Overview
- 1Description
- 2Features
- 3Source
- 4Effects
- 5Construction

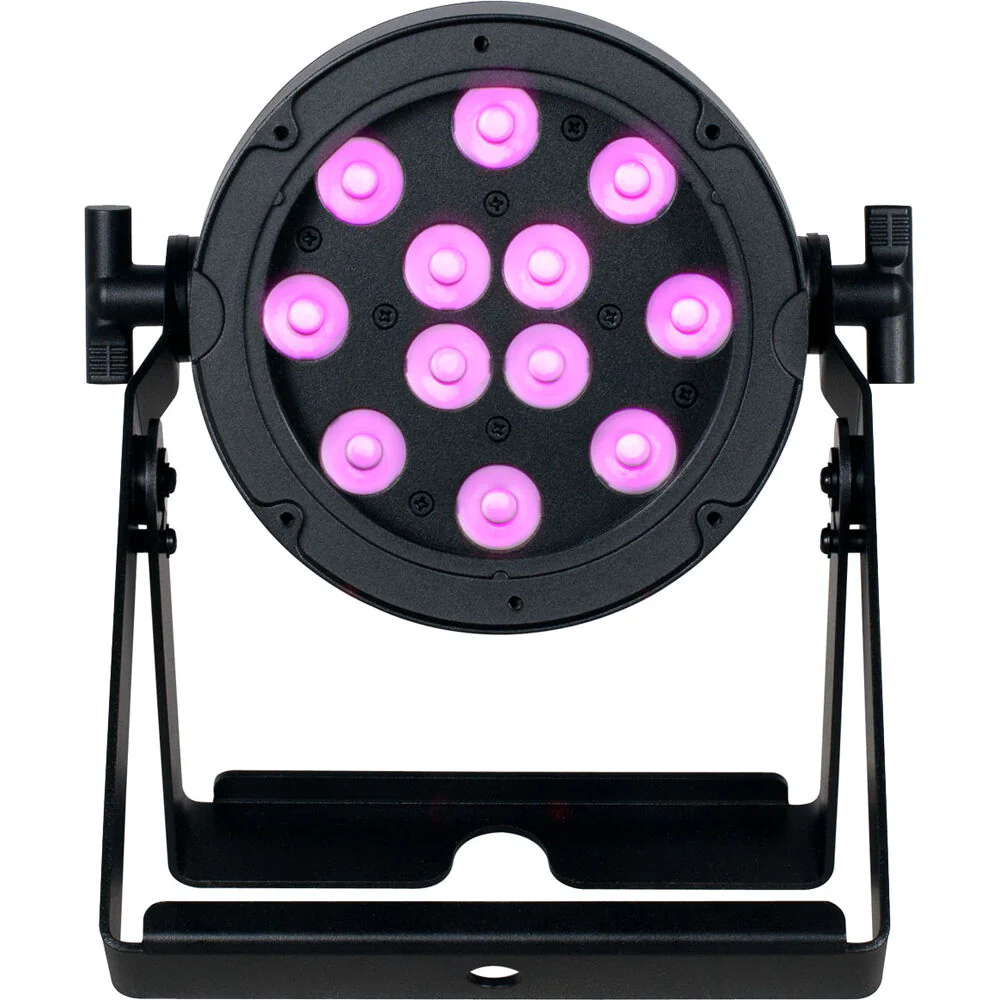

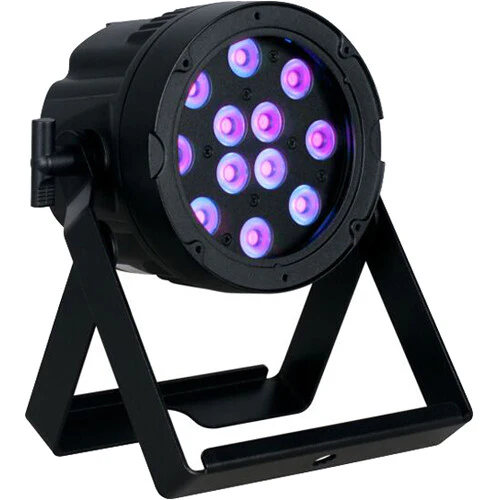

The Elation Professional Prisma PAR 20 is an exterior IP65-rated UV wash PAR luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20-degree narrow beam angle, a user-friendly digital 2.5" LCD touchscreen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5-pin XLR, and locking power in/out connections.
Features
- IP65-rated exterior high-power UV wash PAR luminaire
- 20-degree narrow beam angle
- 365nm peak true UV wavelength
- Zero visible light output
Source
- Twelve 2W high-power UV diode LEDs
- 20,000-hour average LED life
Effects
- High-speed electronic strobe
- Variable dimming curve modes
Construction
- Rugged IP65-rated housing

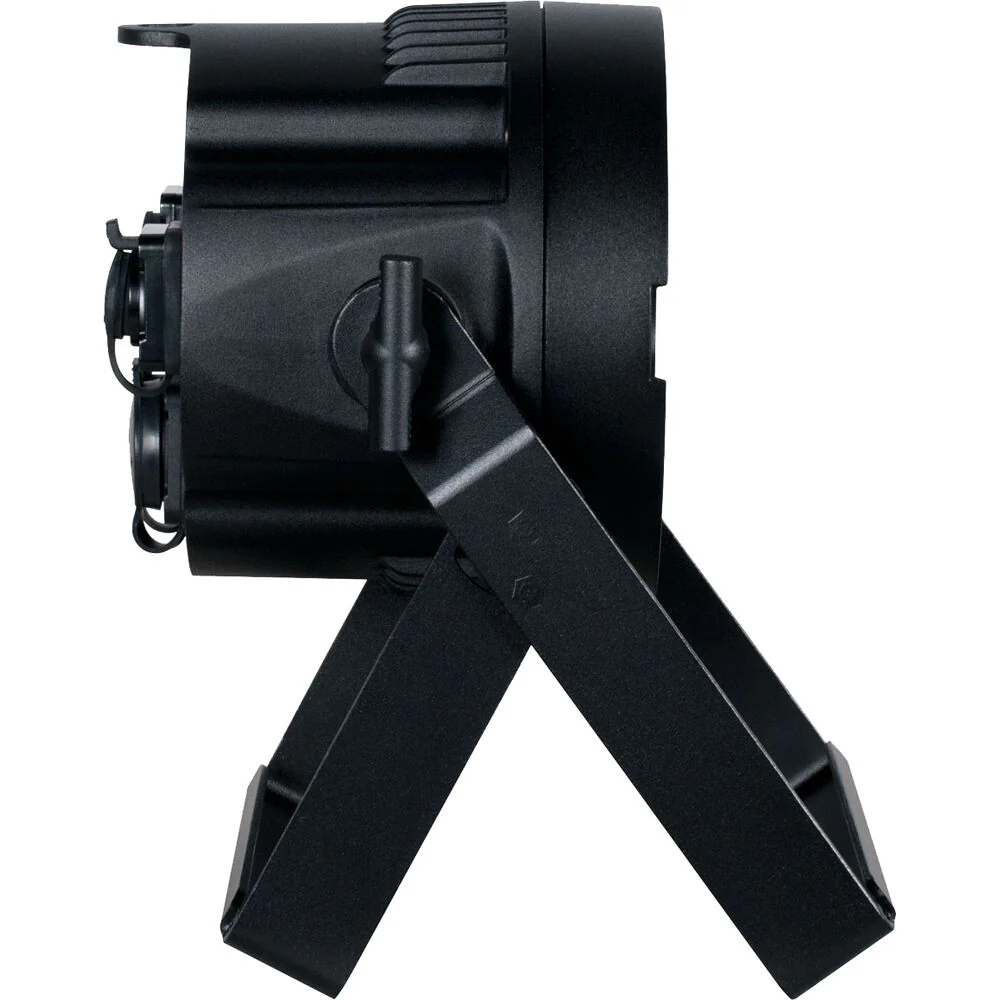

- Dual adjustable mounting yokes

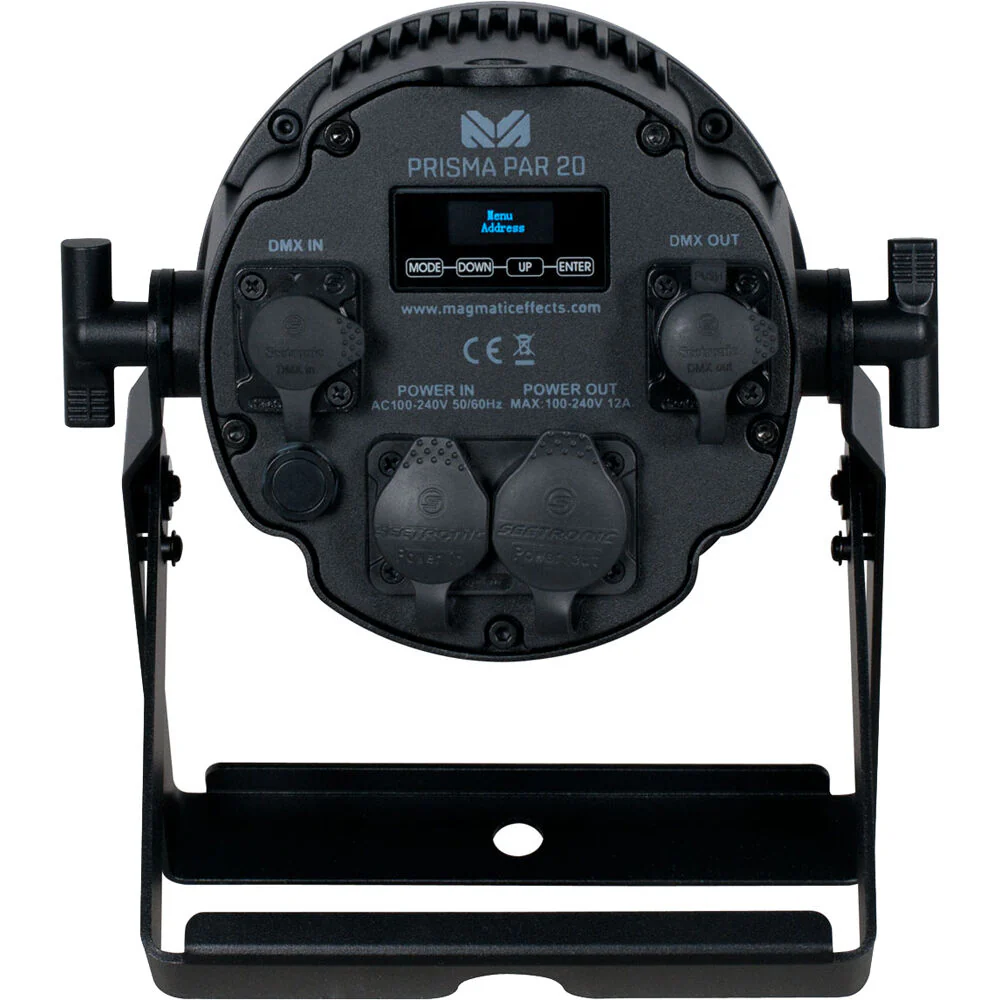

- Locking 5-pin XLR connector in/out
- IP65 locking power connector In
- Wired digital communication network
UPC: 810008261149
In the Box
- Elation Professional Prisma PAR 20
- Locking Power Cable
Table of Contents
- Description
- Features
- Source
- Effects
- Construction
Elation Professional PAR 20 Specs
Light
| Fixture Type | PAR / Special Design |
| Light Source | 12 x Ultraviolet LED - 2 W |
| Light Source Life Expectancy | 20,000 Hours |
| Colors | Ultraviolet |
| UV Wavelength | 365 nm |
| Beam Angle | 20° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | None |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
Performance
| Operating Modes | DMX, Primary/Secondary |
| Macros / Programs | None |
| Effects | Strobe |
| Gobos | None |
| Refresh Rate | 900 Hz to 25,000 Hz (Adjustable) |
Control
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 4 Mode(s): 1 / 2 / 3 / 6-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | None |
| Mobile App Compatible | No |
Connectivity
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
Power
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
| Power / Current Consumption | 27 W |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
Physical
| Mounting | Dual/Scissor Yoke |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 9.7 x 8.6 x 5.9" / 24.6 x 21.8 x 15Â cm |
| Weight | 5.3Â lb / 2.4Â kg |
