Dracast LED2000 Overview
-
1Description
-
2App Remote Control
-
30-100% Dimming
-
4DMX512 Input and Output
-
5V-Mount Battery Plates
-
64-Way Barn Doors Included
-
7Soft Diffusion Included
Featuring a slim, lighter design, the Kala Plus Series LED2000 Bi-Color LED Light Panel from Dracast weighs just 10.3 lb making it an ideal choice for location work, interviews, and small sets where color accuracy, control, and flicker-free output are important. Variable color temperature from 2800-6500K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of the knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 0-100% with negligible color shift. The low 120W electrical draw means a timely return on your investment. The light is controllable from a console via built-in DMX.

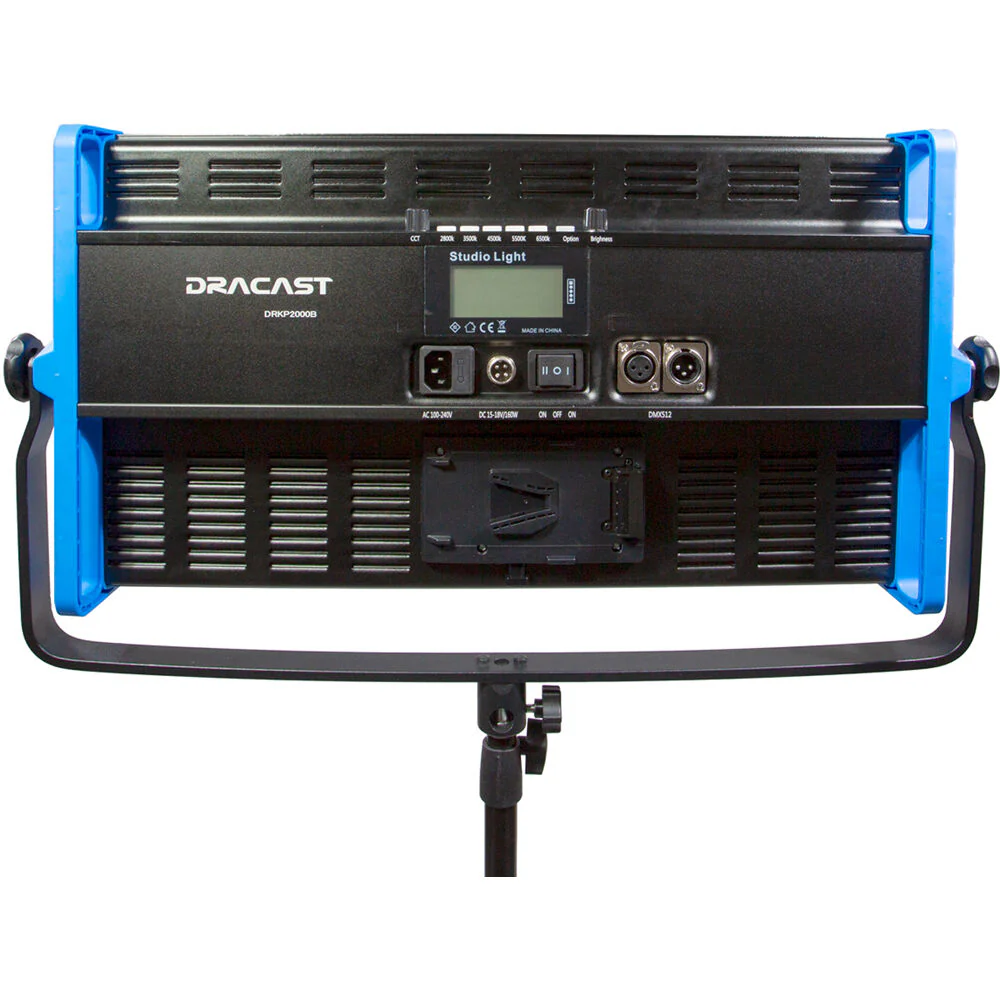

The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED2000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-mount batteries. A carry case is included.
App Remote Control
Full control of your Kala Plus Series panel light. Using the new Dracast Kala Plus app available for iOS and Android, you can control your light or groups of Kala Plus Series light simultaneously. Control dimmer, CCT, RGB, HSI, special effects, and more right from your phone or tablet
0-100% Dimming
Kala Plus Series lights can be manually dimmed via the onboard control knobs for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.
DMX512 Input and Output
Use your Kala Plus Series lights in studio with 3-pin DMX512 input and output ports. Kala Plus lights include multi-channel DMX settings for dimmer, color temperature, RGB, HSI, special effects, and more.
V-Mount Battery Plates
Maximum portability. All Kala Plus Series panel lights include either single or dual v-mount battery plates so that your lights can easily be used on location.

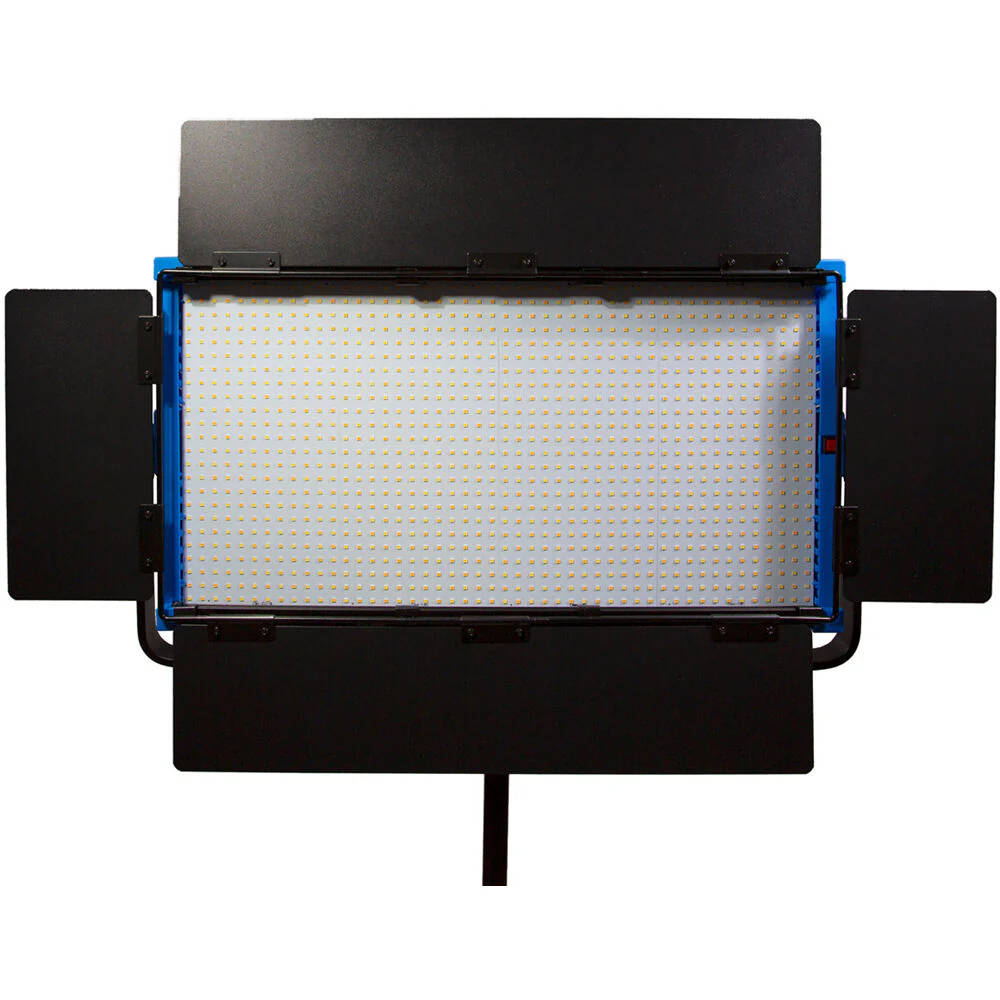

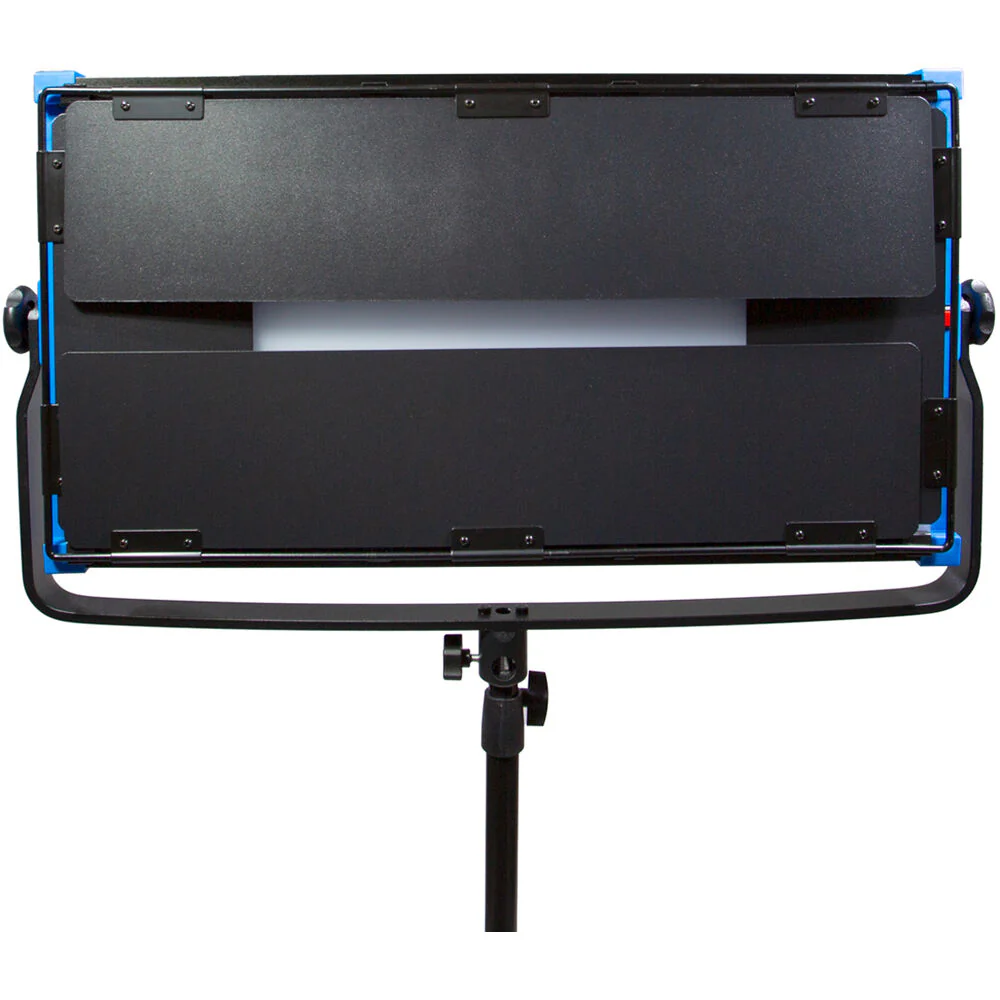

4-Way Barn Doors Included
Shape and control your light output with included four way barn doors. This accessory comes preinstalled with each Kala Plus Series panel light.

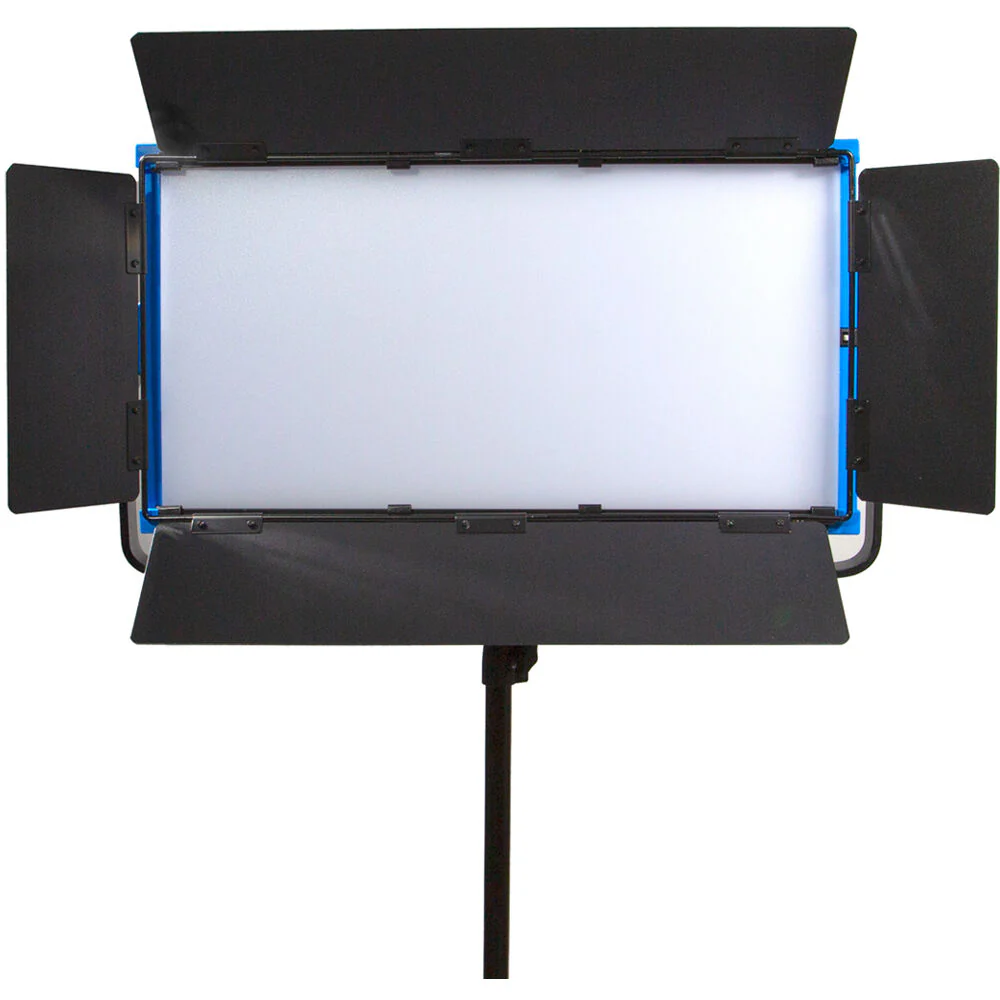

Soft Diffusion Included
often your light output with the included removable diffusion filter. This accessory comes preinstalled with each Kala Plus Series panel light.
![]()
UPC: 610877756575
In the Box
- Dracast Kala Plus Series LED2000 Bi-Color LED Light Panel
- Light Panel with V-Mount Battery Plate
- AC Power Adapter with Cord
- 4-Way Barndoors
- Diffusion Filter
- Carry Case
- Power Adapter with Cord
- Limited 1-Year Warranty
Table of Contents
- Description
- App Remote Control
- 0-100% Dimming
- DMX512 Input and Output
- V-Mount Battery Plates
- 4-Way Barn Doors Included
- Soft Diffusion Included
Dracast LED2000 Specs
Light Fixture
| Color Temperature |
2800 to 6500K |
| Color Accuracy Standard |
CRIÂ 96 |
| Cooling System |
Passive |
| Dimming |
Yes, 0 to 100% |
| Display |
LCD |
| Beam Angle |
120° |
| Fixture Dimensions |
24.4 x 15.4 x 3.1" / 62.0 x 39.0 x 8.0Â cm |
| Fixture Weight |
10.36Â lb / 4.70Â kg |
Connectors
| Battery Plate |
2 x V-Mount |
| DMX Connection |
3-Pin XLR |
Mounting
| Fixture Mount |
5/8" Receiver |
Remote Operation
| Remote Control Type |
Bluetooth, DMX |
| Number of DMX Channel Modes |
512 |
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter, External Battery |
| Max Power Consumption |
120 W |
Packaging Info
| Package Weight |
15 lb |
| Box Dimensions (LxWxH) |
28.1 x 18.9 x 6.1" |
