American DJ Encore FR20 DTW Overview
-
1Description
-
2American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel
-
3Eliminator Lighting Tri-32 Tripod Light Stand (9')
-
4American DJ Uni Pak II 1-Channel Dimmer Pack / Switch
The American DJ Starter Stream PAK is a lighting kit well suited for 1- or 2-person live streaming applications. The Fresnel LED fixtures, two stands, and dimmer system provide you with the lighting flexibility to create a visually interesting image for your stream. The lights provide a crisp output and the Fresnel lens creates a directional beam for a classic look when used to light faces. The light fixtures can also be used to light backgrounds, and the combination of the Fresnel lens and the light's barndoors can be used to create distinct lighting effects not possible with soft lights.
The two lights can be used as two key lights or as one key light with the second light used as either fill or set light. The two stands enable placing the fixtures individually as befits their use. Each fixture can be dimmed individually on the light itself and is compatible with the included dimmer system that allows you to control the intensity of both lights simultaneously.
American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel
Well suited for stage, theater, and commercial use, the American DJ Encore FR20 DTW is a 17W warm white LED 2" Fresnel fixture offering a soft-edged 3000K beam with a CRI of 92. The instrument features a 19° beam angle, but may be expanded to 45° with the included frost filter. The removable barndoors allow you to further adjust the beam dispersion.
The fixture offers a manual knob to change the dimming from 100 to 0% with a dim-to-warm feature. The FR20 is also Triac dimmable, making it compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers. The American DJ FR20 DTW is equipped for multi-voltage operation and includes a hanging bracket, a safety cable, a gel frame, a frost filter, two retainer rings, a gold snoot, and a metal spacer.
- 17W warm white LED engine
- 2" Fresnel lens
- Dimming potentiometer: 0-100%
- Dim-to-warm feature
- Triac dimmable, compatible with Lutron and Leviton wall dimmers or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)
- Color temperature of 3000K
- 19° beam angle, switchable to 45° with the included frost filter
- Includes hanging bracket, removable barndoors, safety cable, gel frame, and additional hardware
![]()
UPC: 818651025453
Eliminator Lighting Tri-32 Tripod Light Stand (9')
Ideal for DJs, traveling performers, or small theaters, the Tri-32 Tripod Light Stand from Eliminator Lighting rises to a maximum working height of 9', and it has a T-bar on top that can support four pin spots or PAR cans weighing up to 30 lb. The stand weighs 12 lb and folds down to 5 x 5 x 46" for storage and transport.
![]()
UPC: 855666000310

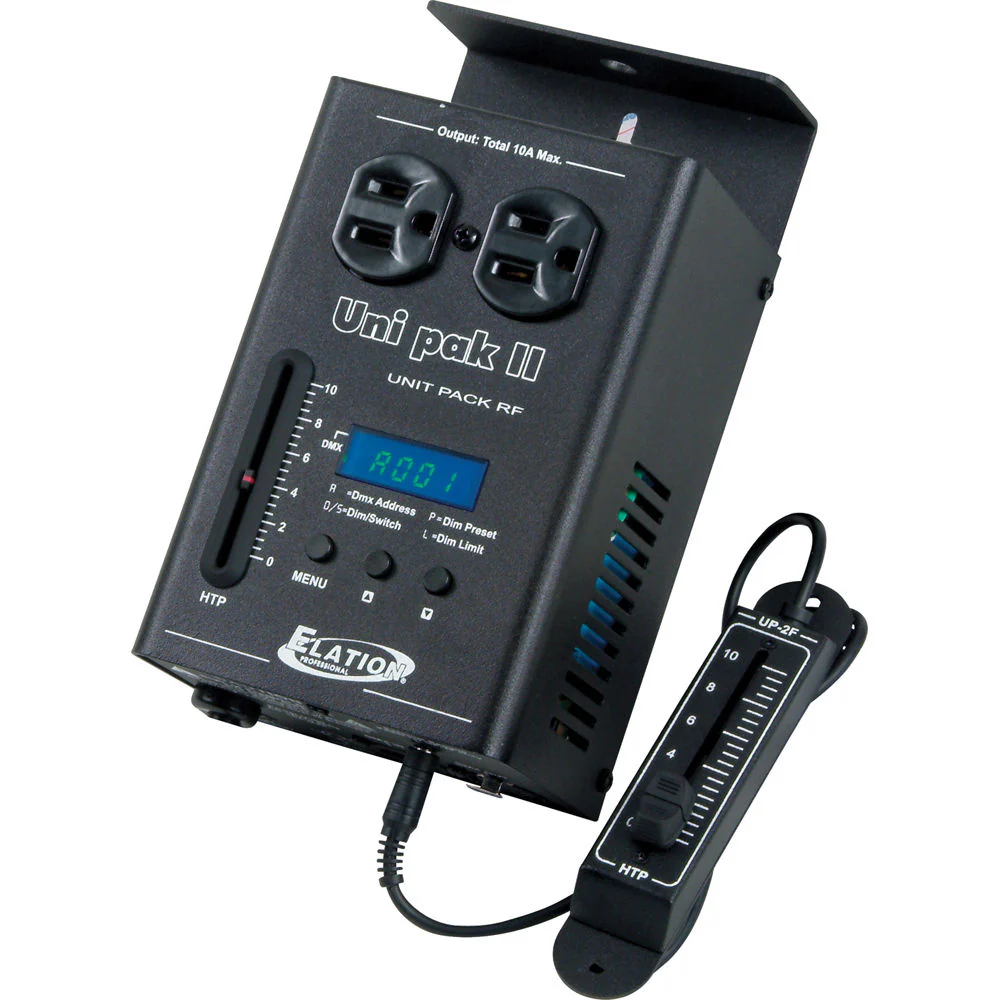

American DJ Uni Pak II 1-Channel Dimmer Pack / Switch
The American DJ Uni Pak II is a single channel dimmer and on/off switching pack. The Uni Pak II features 3-prong Edison plugs, an XLR out to a DMX controller and an external HTP (Highest Takes Precedence) slider. The pack also features an LED display for easy DMX channel programming.
Compact, 1 channel Dimmer/Switch Pack
On-board and external HTP (Highest Takes Precedence) slider
Standard DMX-512 protocol
Dim preset - Dim limiter settings
LED display makes it easy to set DMX channels
Two standard AC 3-prong Edison plugs
Easy-to-use mounting bracket
![]()
UPC: 819730012241
In the Box
- 2 x American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel
- Hanging Bracket
- Removable Barndoors
- Safety Cable
- Gel Frame
- Frost Filter
- 2 x Retainer Ring
- Gold Snoot
- Metal Spacer
- Limited 2-Year Warranty
- 2 x Eliminator Lighting Tri-32 Tripod Light Stand (9')
- American DJ Uni Pak II 1-Channel Dimmer Pack / Switch
Table of Contents
- Description
- American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel
- Eliminator Lighting Tri-32 Tripod Light Stand (9')
- American DJ Uni Pak II 1-Channel Dimmer Pack / Switch
American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel Specs
| Light Source |
17 W warm white LED engine
LED Life: 50,000 hours |
| Lens |
2.0" / 50.8 mm Fresnel |
| Color Temperature |
3000K |
| CRI |
92 |
| Dimmer |
Dimming Potentiometer: 0 to 100%
Dim-to-warm feature
Triac dimmable, compatible with Lutron & Leviton wall dimmers or ADJ dimmer packs (DP-415R, DP-DMX20L, Uni Pak II) |
| Lux |
600 at 9.8' / 3.0 m |
| Beam Angle |
19 or 45° |
| Operating Voltage |
Multi-Voltage: 100-240 VAC, 50/60 Hz |
| Dimensions (L x W x H) |
10.3 x 5.3 x 8.3" / 25.9 x 13.3 x 21.0 cm |
| Weight |
5.0 lb / 2.3 kg |
Packaging Info
| Package Weight |
6.56 lb |
| Box Dimensions (LxWxH) |
12.75 x 10.4 x 7.85" |
Eliminator Lighting Tri-32 Tripod Light Stand (9') Specs
| Stand Type |
1 x T-Bar Stand |
| Maximum Working Height |
9' / 2.7 m |
| Load Capacity |
30 lb / 13.6 kg |
| Collapsed Height |
46" / 1.2 m |
Mounting
| Stand/Column Top Mount |
T-Bar & Light Tree |
Features
| Accepts Second Riser |
No |
| Air Cushioned |
No |
| Detachable Base |
No |
| Leveling Leg |
No |
| Reverse Legs |
No |
General
| Finish |
Black |
| Weight |
12 lb / 5.4 kg |
| Warranty Length |
Limited 1-Year Warranty |
Packaging Info
| Package Weight |
9.7 lb |
| Box Dimensions (LxWxH) |
44 x 5 x 4.5" |
American DJ Uni Pak II 1-Channel Dimmer Pack / Switch Specs
Connections
| DMX |
1 x 3-Pin XLR |
| Plug Type |
NEMA 5 Unspecified |
Power
| AC Input Power |
120 VAC, 60 Hz |
General
| Dimensions |
7.25 x 3.62 x 2.62" / 184 x 92 x 92 mm |
| Weight |
3 lb / 1.3 kg |
Packaging Info
| Package Weight |
4.13 lb |
| Box Dimensions (LxWxH) |
10.3 x 6.65 x 4.55" |
