CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture
HomeStore

CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture

CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture

$212.89

Original: $709.62

-70%
CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture

$709.62

$212.89

The Story

CHAUVET DJ Swarm Wash FX ILS Overview

Lighting designers and mobile entertainers looking to thrill their audience should check out the CHAUVET DJ Swarm Wash FX ILS, a multi-effects light that combines an RGBAW (red, green, blue, amber, and white) LED rotating derby effect with an RGB+UV (red, green, blue + ultraviolet) LED wash light, green/red laser diodes, and a white SMD LED strobe, in a single compact fixture. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly.

The effects can be coordinated to create instant light shows with countless multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases, and hundreds of red and green beams that can both rotate and strobe. The fixture provides wide coverage angles of 82° for the laser, 65° for the derby, 71° for the strobe, and 46° for the washes�suitable for blanketing a stage or dancefloor. The Swarm Wash FX ILS allows for both standalone and DMX operation. For use without a DMX controller, you can choose between sound-active or automatic modes. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. The fixture is equipped with a universal, autosensing power supply and is compatible with the IRC-6 wireless remote (available separately).

Note:
This is a Class 3B and Class 3R laser product. Avoid direct eye exposure.
  • 4-in-1 light using LEDs that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes
  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced coordinated light show across multiple fixture types
  • D-Fi USB compatibility for wireless Master/Slave, or DMX control
  • Access built-in automated programs via IRC6 remote, Master/Slave, or DMX
  • Red and green laser beams project thousands of beams for maximum coverage
  • Generate complex looks easily with built-in eye-catching automatic and sound-activated programs
  • Save time running extension cords by power linking multiple units
  • Fits best inside the CHS-40 VIP gear bag
UPC: 781462222307

In the Box

  • CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture
  • Power Cord
  • Mounting Hardware

    CHAUVET DJ Swarm Wash FX ILS Specs

    Light
    Fixture Type Special Design
    Light Source Effect Light:
    5 x Color LED - 2 W / 650 mA
    Wash:
    8 x Color/UV LED - 1.5 W / 600 mA
    Strobe:
    12 x White LED (SMD) - 1 W / 300 mA
    Light Source Life Expectancy 50,000 Hours
    Colors Effect Light:
    Red
    Green
    Blue
    Amber
    White
    Wash:
    Red
    Green
    Blue
    Ultraviolet
    Strobe:
    White
    Laser 1 x Red: 650 nm / 100 mW
    1 x Green: 520 nm / 30 mW
    Laser Class: 3R, 3B
    Coverage Angle Laser: 82°
    Effect Light: 65°
    Strobe: 71°
    Wash: 46°
    Shutter / Strobe Electronic
    Dimming 0 to 100%
    Performance
    Operating Modes Automatic, DMX, Primary/Secondary, Sound-Active, Standalone
    Macros / Programs Sound-Active
    Effects Blinder (Variable Speed)
    Strobe Rate 0 to 20 Hz
    Gobos None
    Control
    Control Protocols DMX512
    DMX Channel Modes 2 Mode(s):
    2 / 18-Channel
    Display / Controls LED / 4-Button
    Remote Control IR Remote (with Optional Equipment)
    Connectivity
    Inputs/Outputs 1 x XLR 3-Pin DMX Input
    1 x XLR 3-Pin DMX Output
    Power
    AC Input Power 100 to 240 VAC, 50/60 Hz
    AC Power Connector Input: 1 x IEC
    Output: 1 x Edison
    Power / Current Consumption 120 VAC, 60 Hz: 51 W / 0.7 A
    230 VAC, 50 Hz: 50 W / 0.4 A
    Power Linking 11 Units at 120 VAC
    20 Units at 230 VAC
    Total Current: 8 A
    Environmental
    IP Rating None
    Physical
    Mounting Mounting Bracket, Single Yoke Only
    Included Accessories 1 x Power Cable
    Exterior Color Black
    Max Housing Temperature 95°F / 35°C
    Cooling Convection
    Certifications CE
    *as per Manufacturer
    Dimensions 13.1 x 13 x 9.4" / 33.3 x 33 x 23.9 cm
    Weight 9.5 lb / 4.3 kg
    Packaging Info
    Package Weight 11.6 lb
    Box Dimensions (LxWxH) 14.9 x 14.4 x 12.4"

    CHAUVET DJ Swarm Wash FX ILS Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

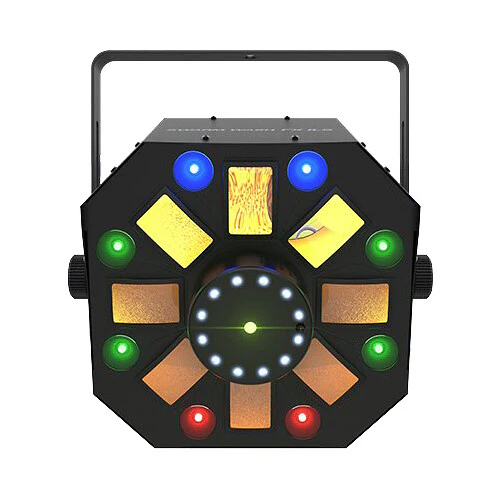

    CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

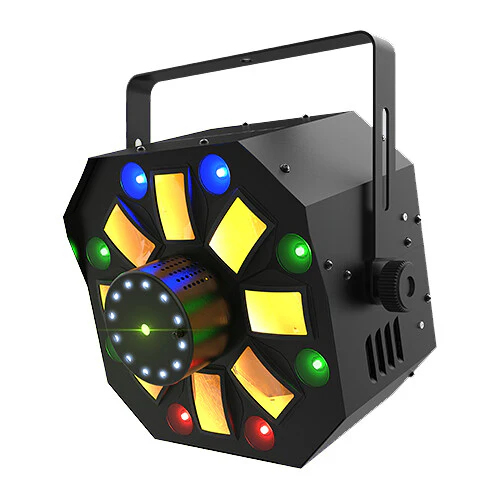

    CHAUVET DJ Swarm Wash FX ILS Derby, Wash, Laser, Strobe, Multi-Effects Fixture - Image 3
