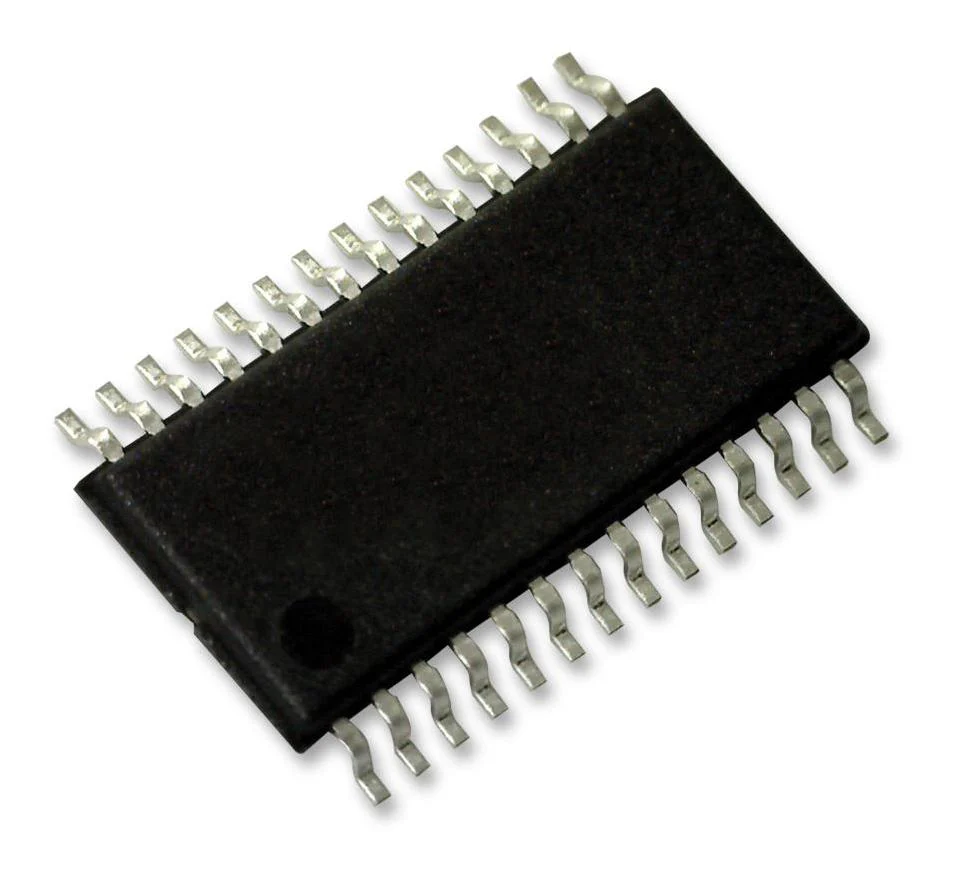

ANALOG DEVICES ADUC814ARUZ 8 Bit MCU, ADUC Family ADUC8 Series Microcontrollers, 8052, 16.78 MHz, 8 KB, 28 Pins, TSSOP

ADUC814 is a fully integrated 247KSPS, 12bit data acquisition system incorporating a high performance multichannel ADC, an 8-bit MCU, and program/data flash/EE memory on a single chip. This low power device operates from a 32KHz crystal with an on-chip PLL generating a high frequency clock of 16.78MHz. This clock is in turn routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The microcontroller core is an 8052 and is compatible with an 8051 instruction. 8KBytes of non-volatile flash/EE program memory are provided on-chip. 640 bytes of non-volatile flash/EE data memory and 256bytes RAM are also integrated on-chip. It is used in application such as optical networking laser power control, base station systems power amplifier bias control, precision instruments, smart sensors, battery-powered systems, precision system monitors etc.

• Specified for 3V and 5V operation
• Integral nonlinearity is 2LSB maximum at (VDD = 5V)
• Differential nonlinearity is 4LSB maximum at (VDD = 5V)
• ADC high speed data capture mode, voltage output settling time 15µs typical
• Flash/EE, 100 year retention, 100Kcycle endurance
• Temperature monitor (±1.5°C typical accuracy)
• Precision voltage reference, time interval counter (wake-up/RTC timer)
• UART serial I/O, SPI®/I²C® compatible serial I/O, watchdog timer (WDT), power supply monitor (PSM)
• Operating temperature is -40°C to +125°C
• Package style is 28-lead TSSOP

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
